Quarter Window Glass: Service and Repair

REMOVAL
1. Remove the rear quarter trim panel.

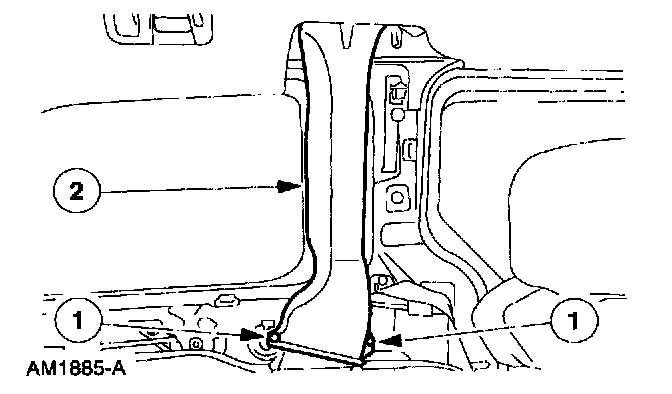

2. For the LH flip quarter window glass and if equipped, remove the rear A/C upper duct.
1 Remove the pin-type retainers.
2 Remove the rear upper A/C duct.

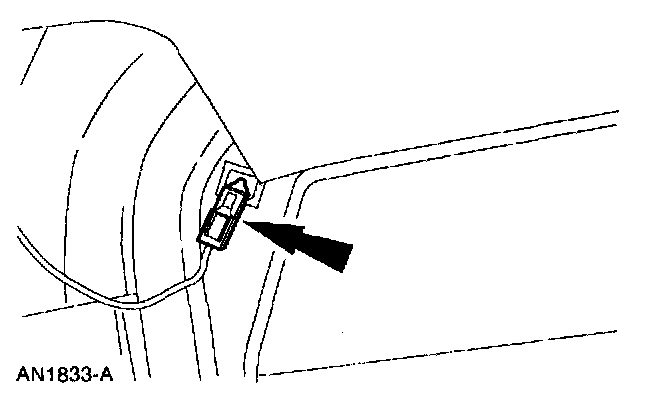

3. For the RH flip quarter window glass, disconnect the electrical connector.

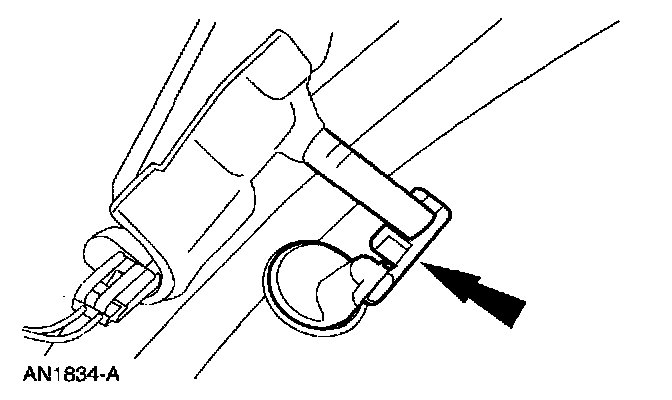

4. Separate the window latch.

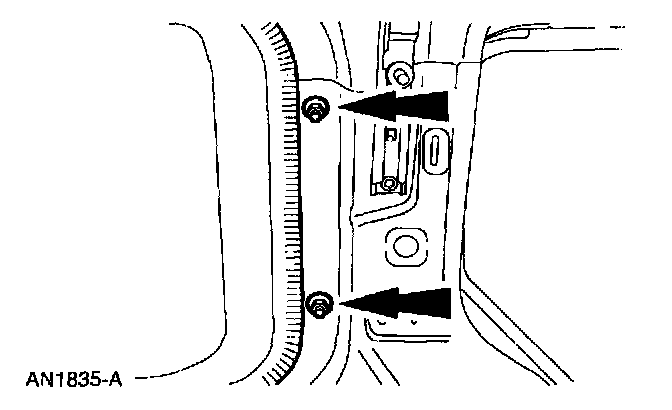

5. Remove the nuts and the rear flip quarter window glass.

INSTALLATION

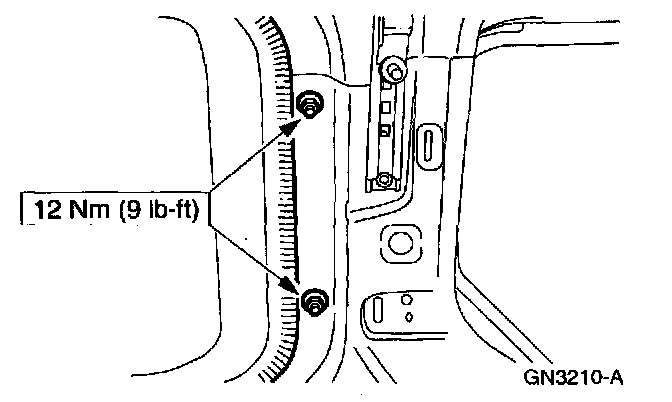

1. To install, reverse the removal procedure
