Sliding Door Window Glass: Service and Repair
REMOVAL 1.
Remove the power
sliding door trim panel.
2.

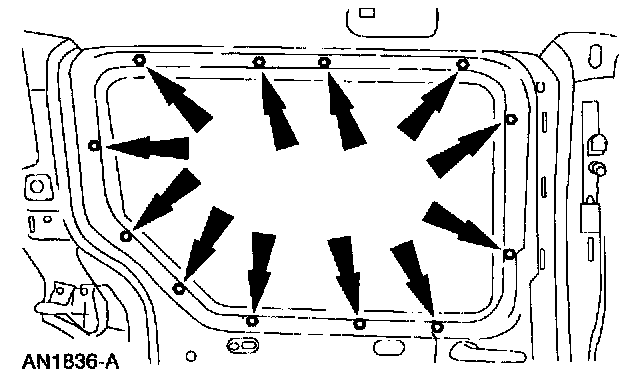

Remove the nuts and the power
sliding door window glass.
NOTE: Gently pull the glass away from the butyl.

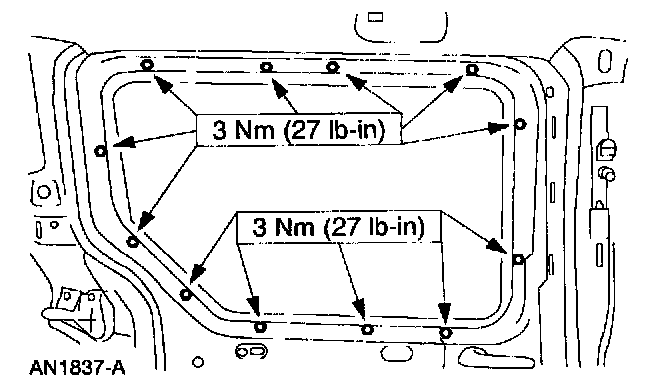

INSTALLATION 1.
To install, reverse the removal procedure.
NOTE: Clean the area of any remaining butyl. Note: Apply new butyl to the window assembly.
