Door Glass Run Retainer

REMOVAL
1. Remove the front door trim panel.

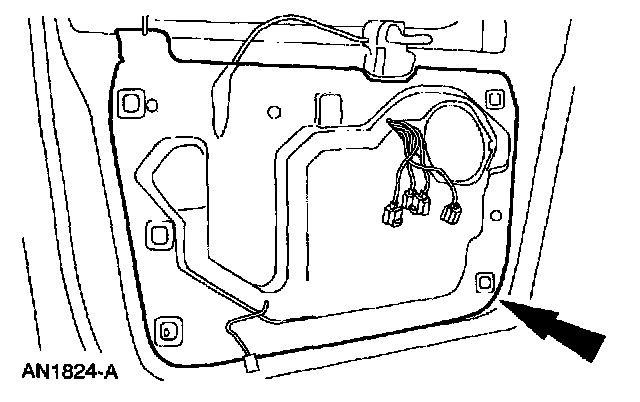

2. Remove the watershield.

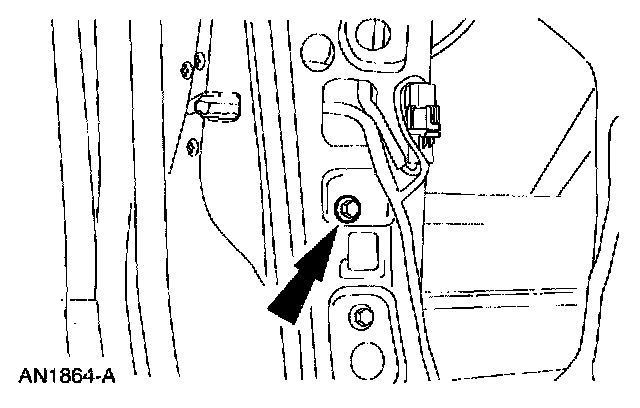

3. Remove the door glass run retainer nut.

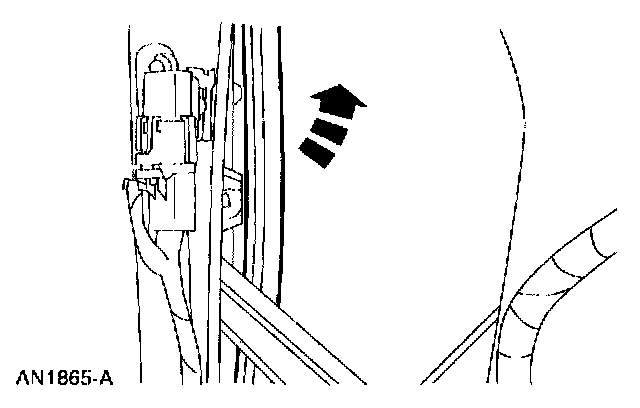

4. Remove the rear door glass run retainer.

INSTALLATION

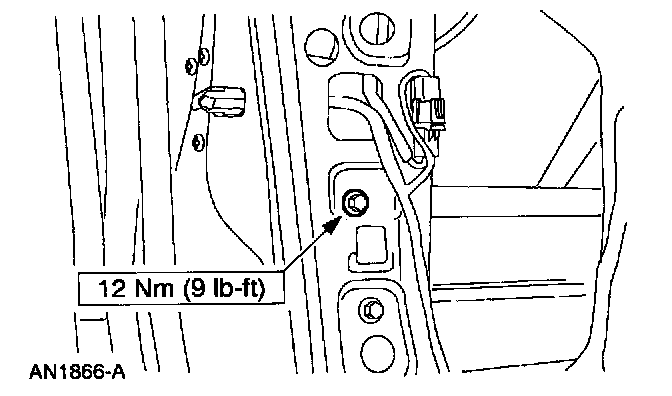

1. To install, reverse the removal procedure.
