Wiper Motor Linkage: Service and Repair

REMOVAL
1. Remove the cowl top vent panel grille assembly (upper).






2. Disconnect the electrical connectors.







3. Remove the lower cowl top vent panel assembly.

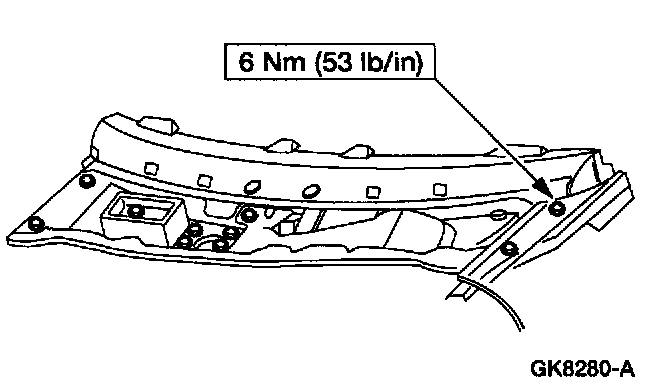

1 Remove the 10 bolts.
2 Remove the lower cowl top vent panel assembly.

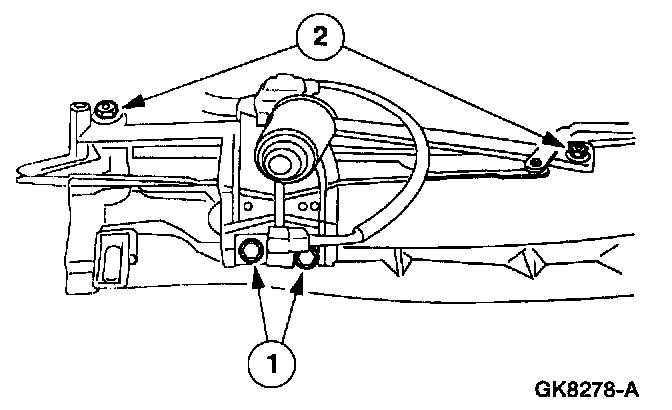

4. Remove the mounting arm and pivot shaft.
1 Remove the bolts.
2 Remove the nuts.

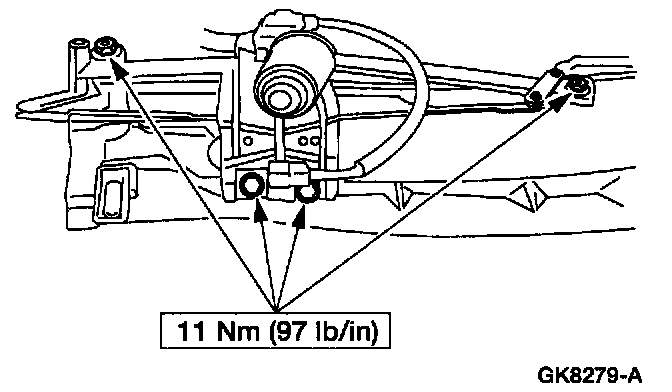

INSTALLATION












1. To install, reverse the removal procedure.
