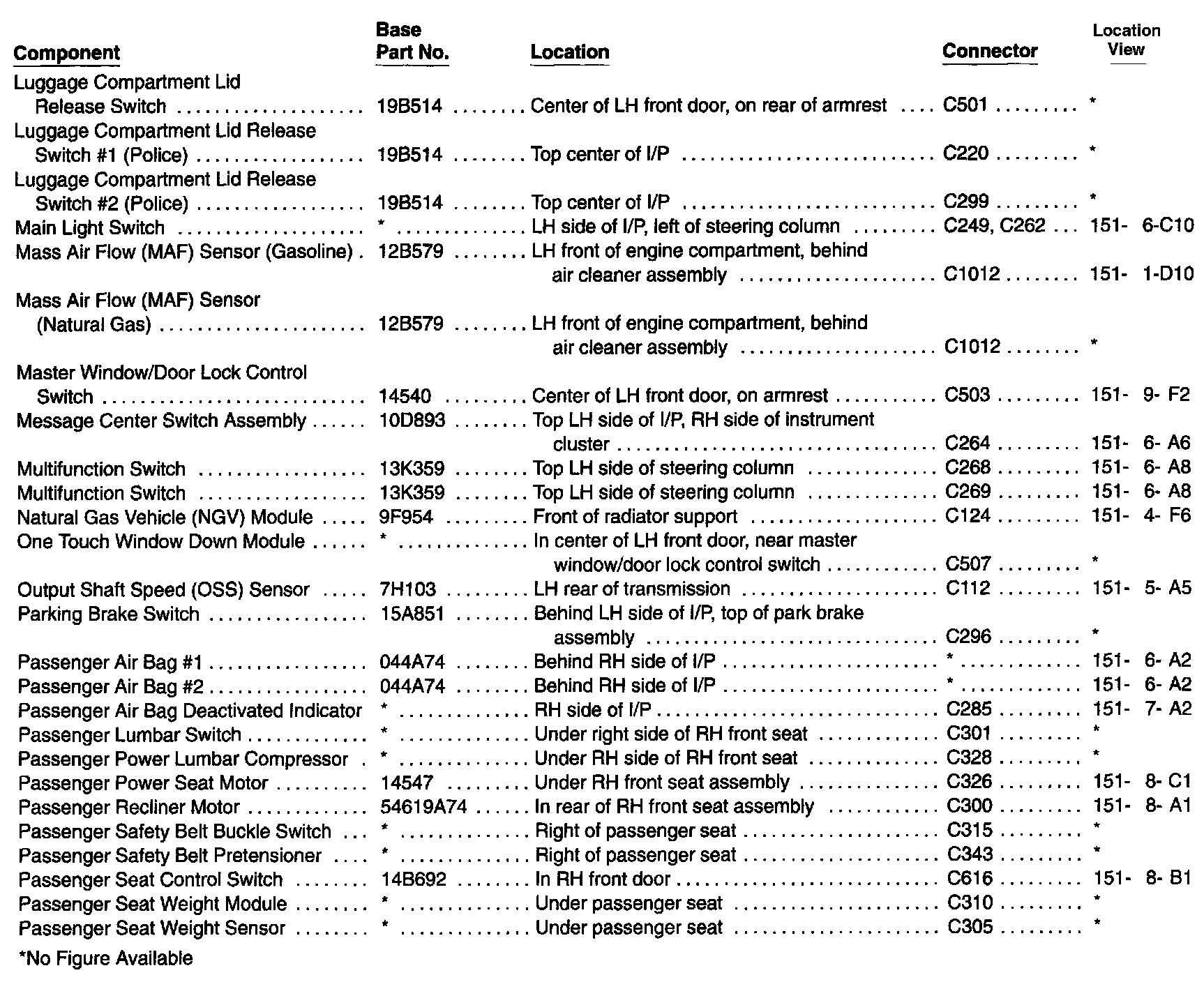

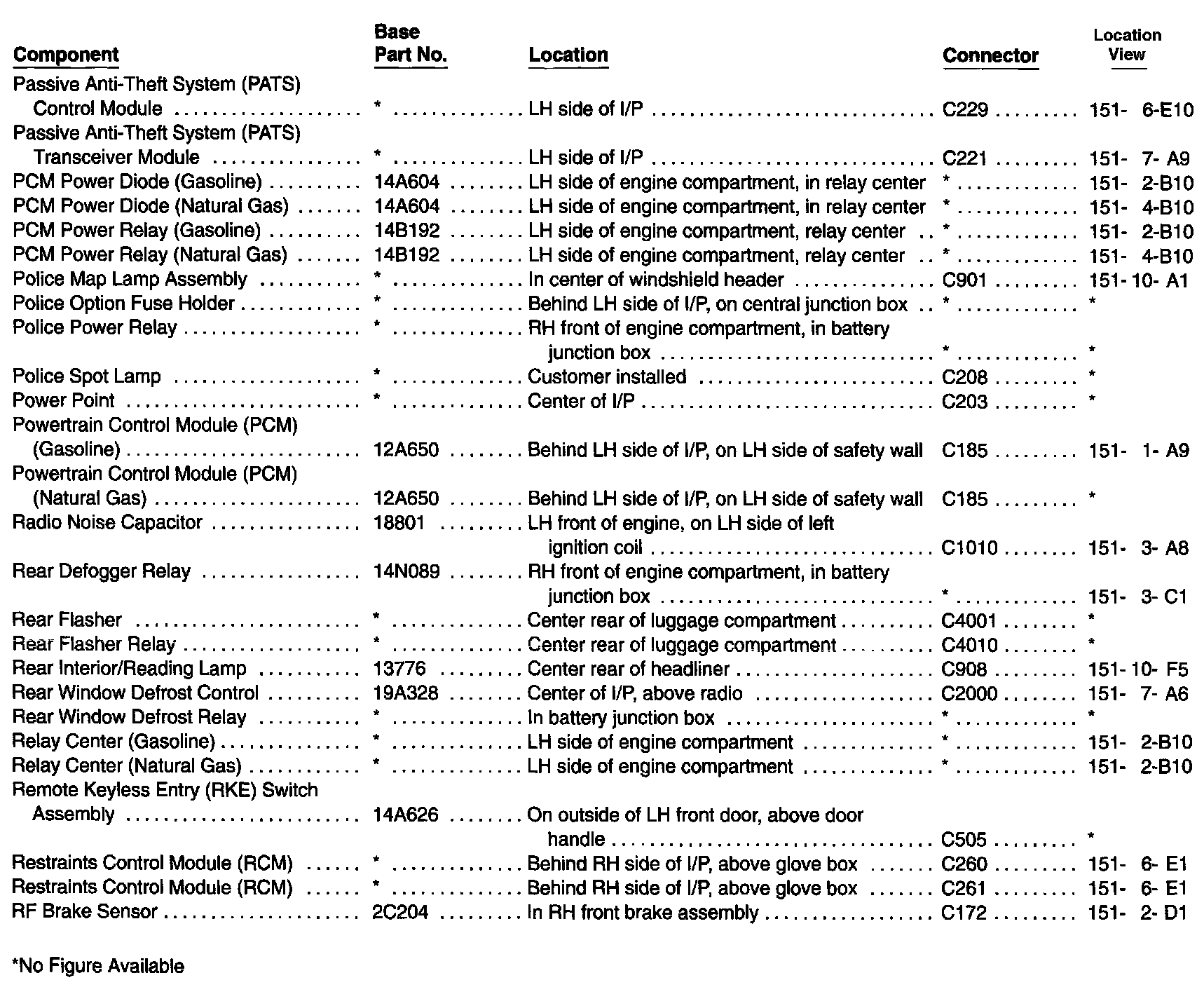

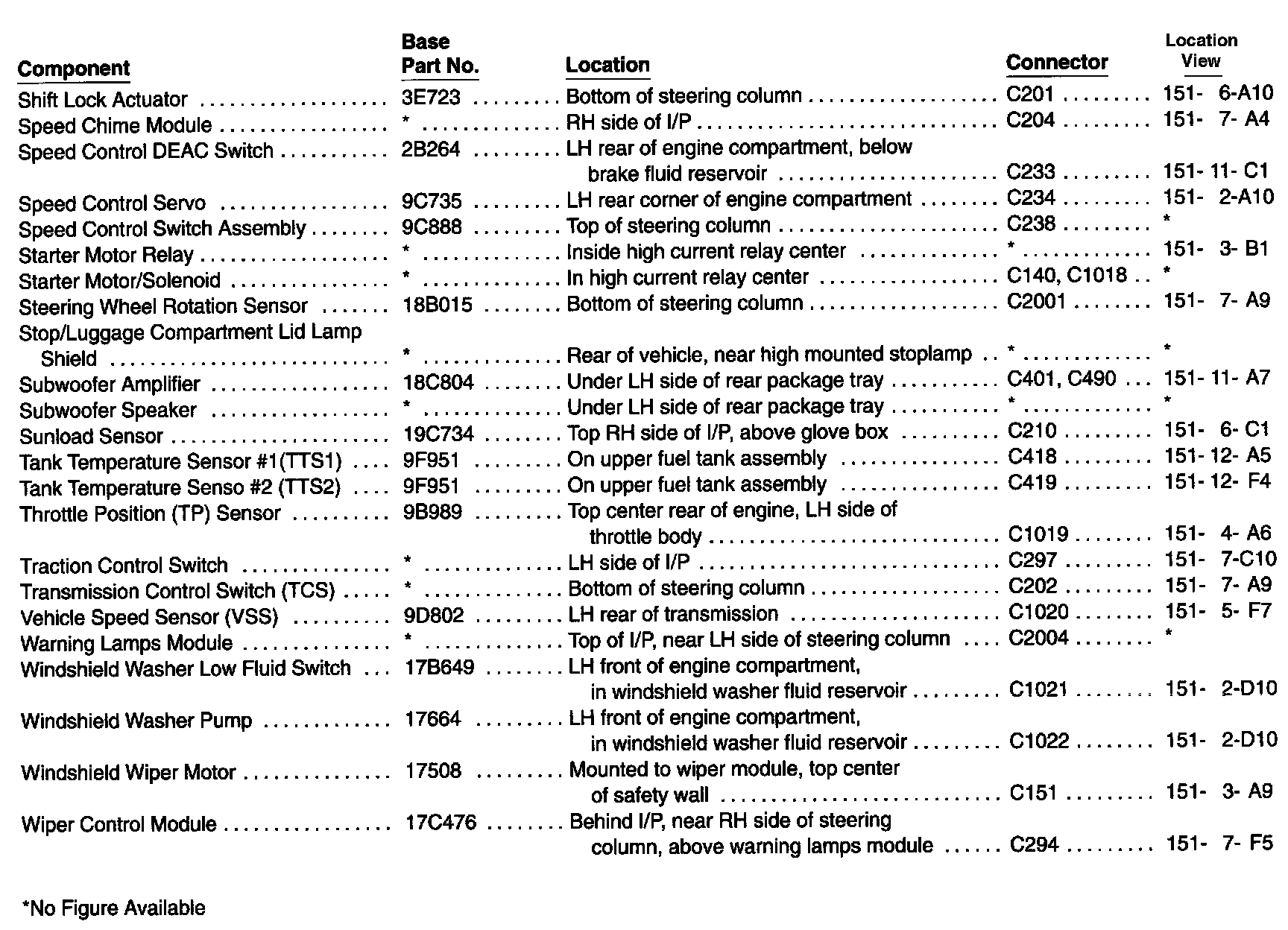

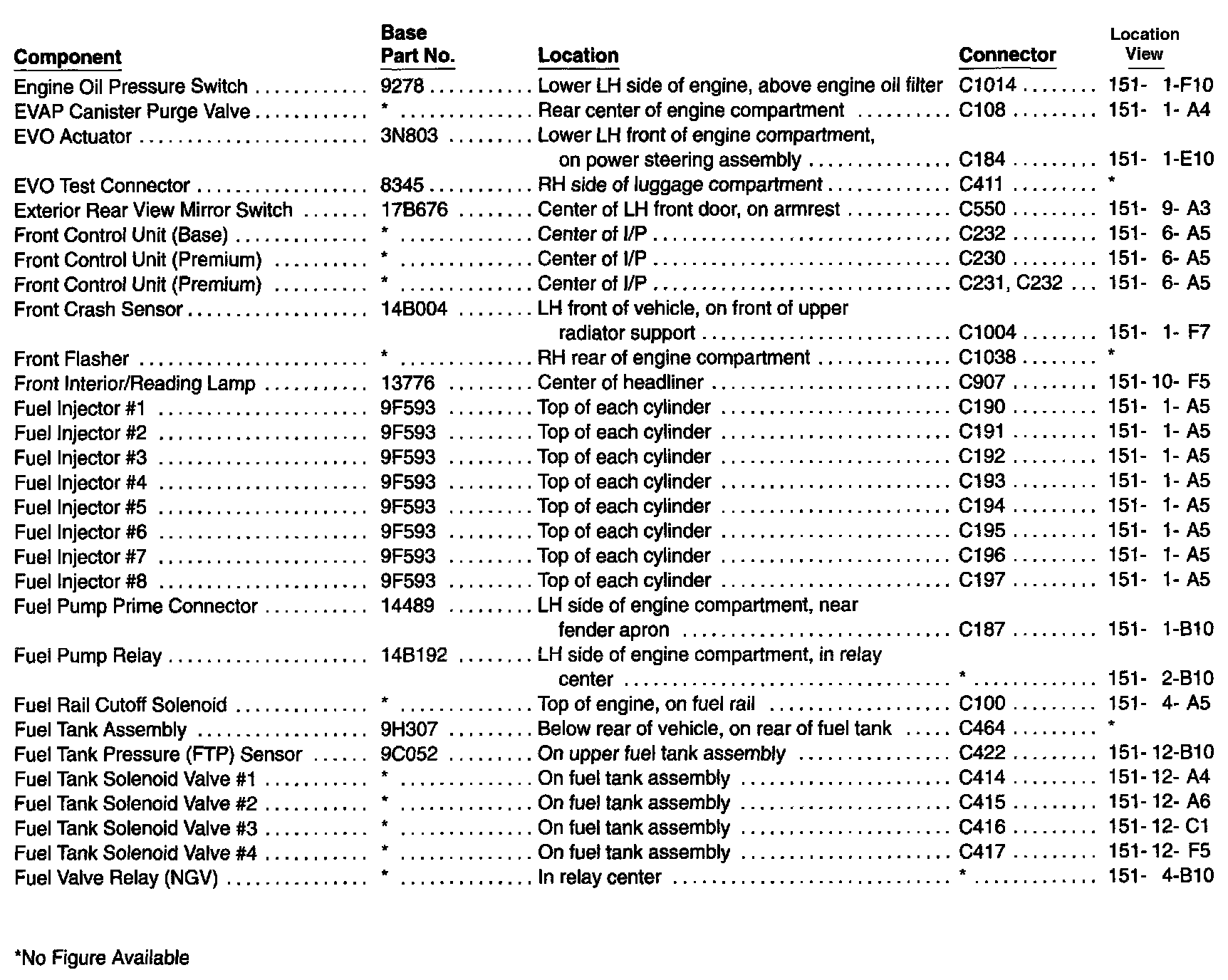

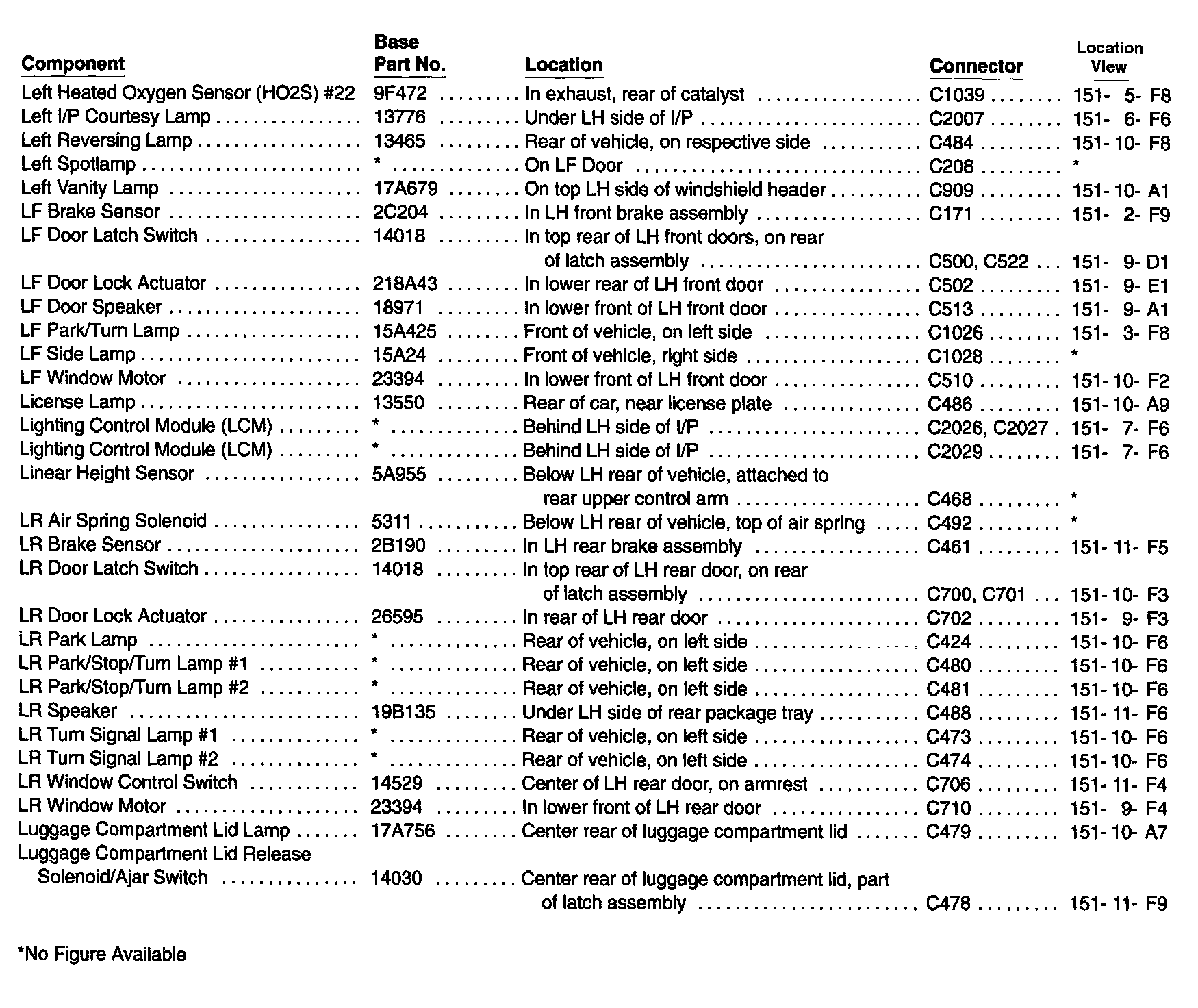

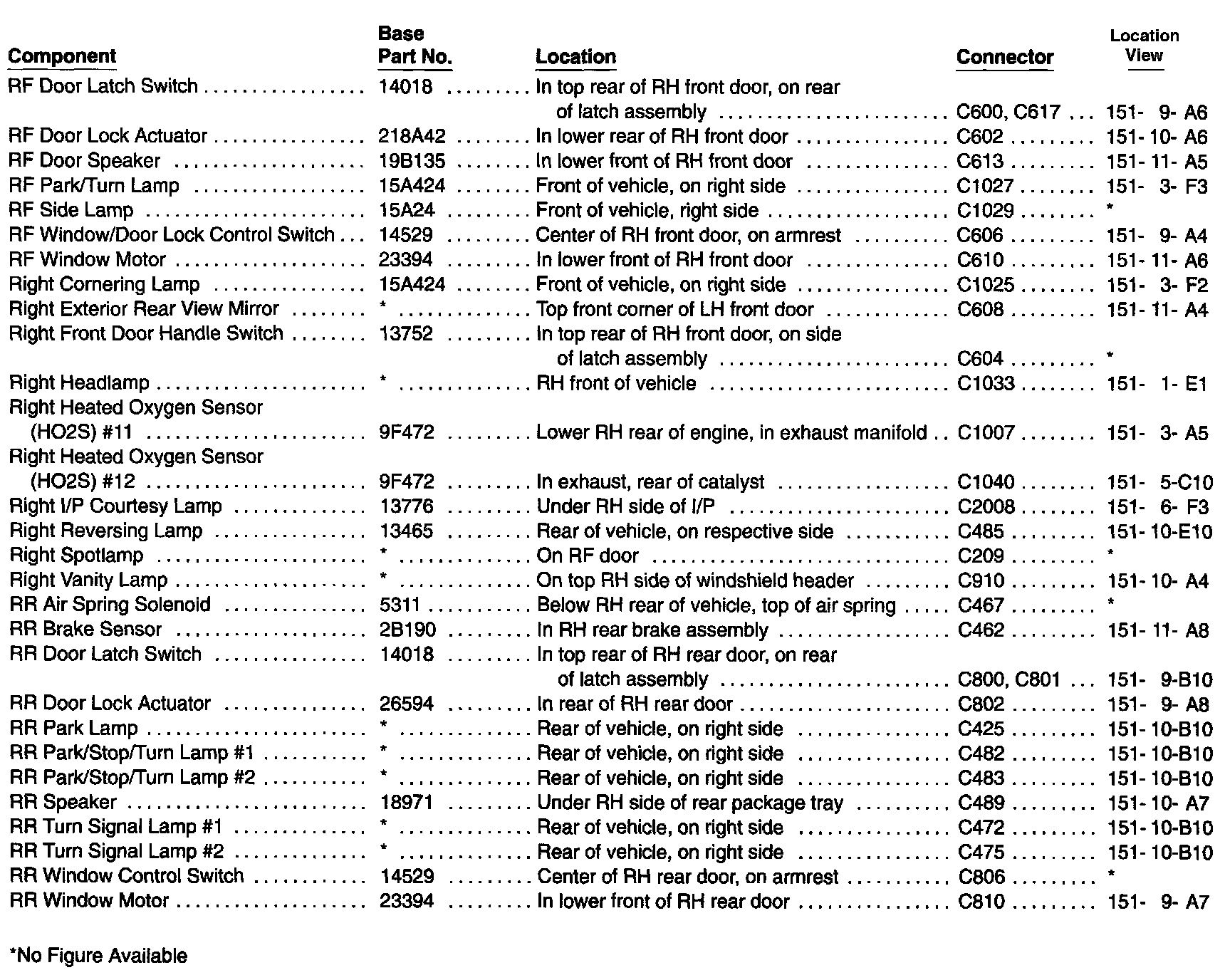

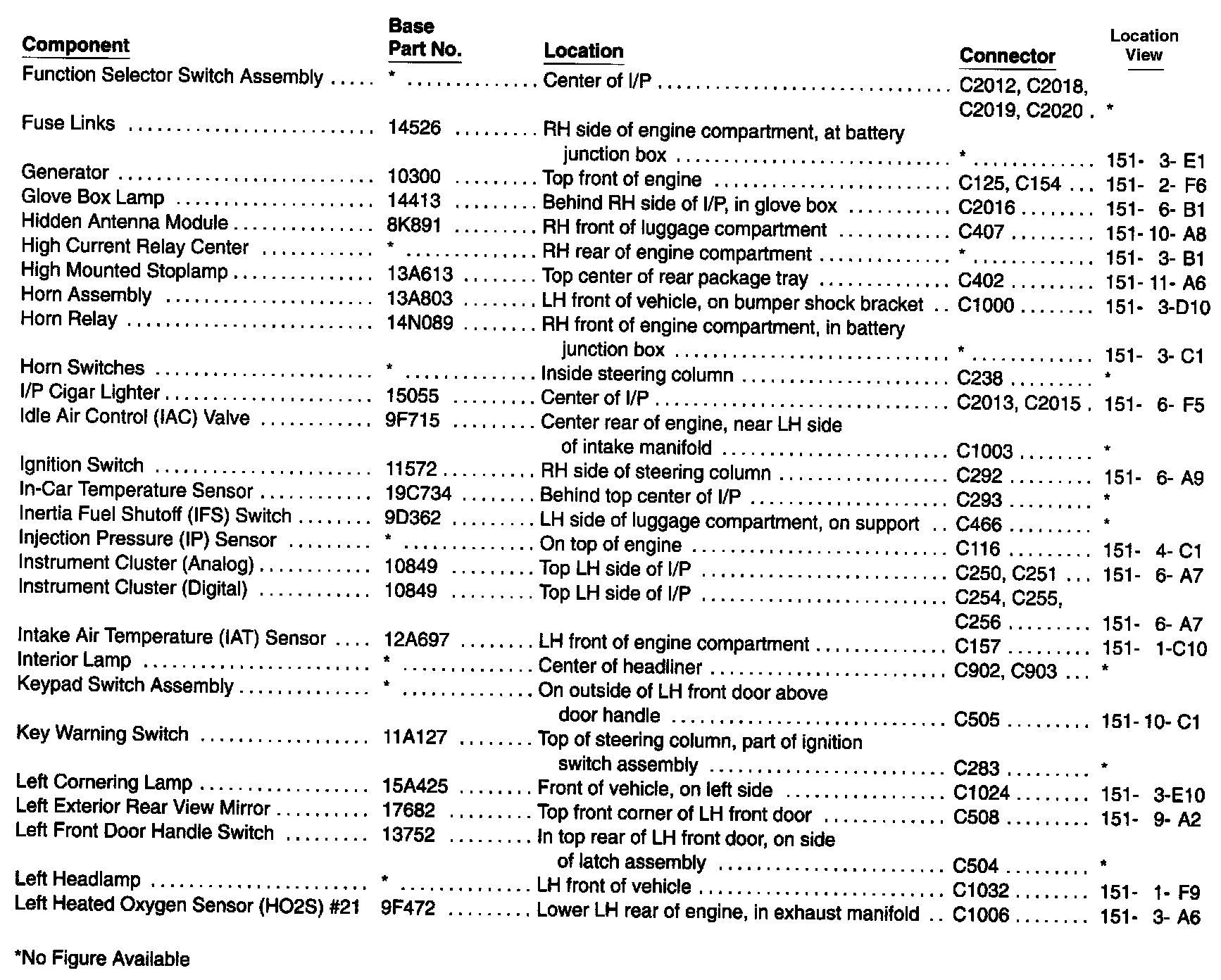

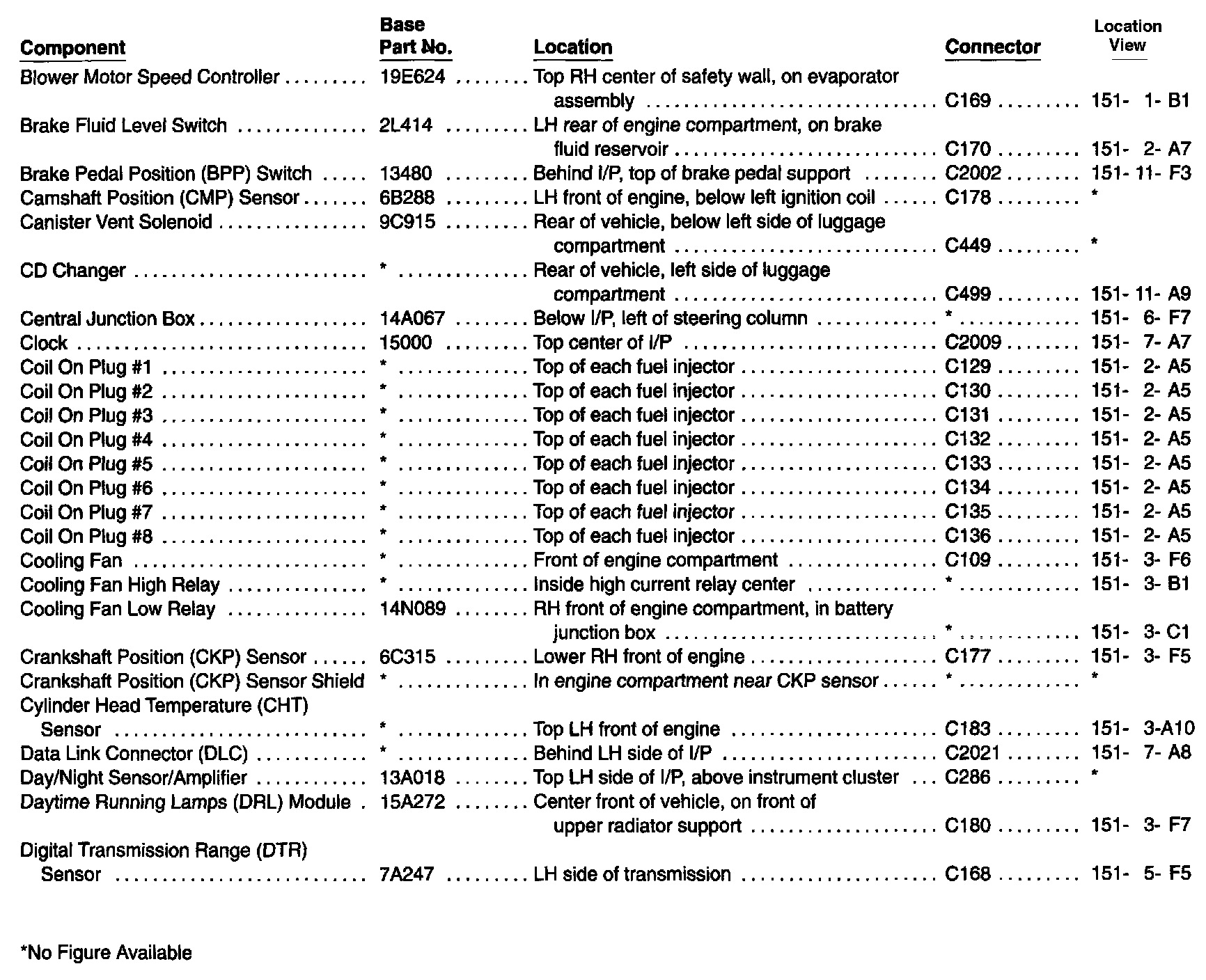

Components

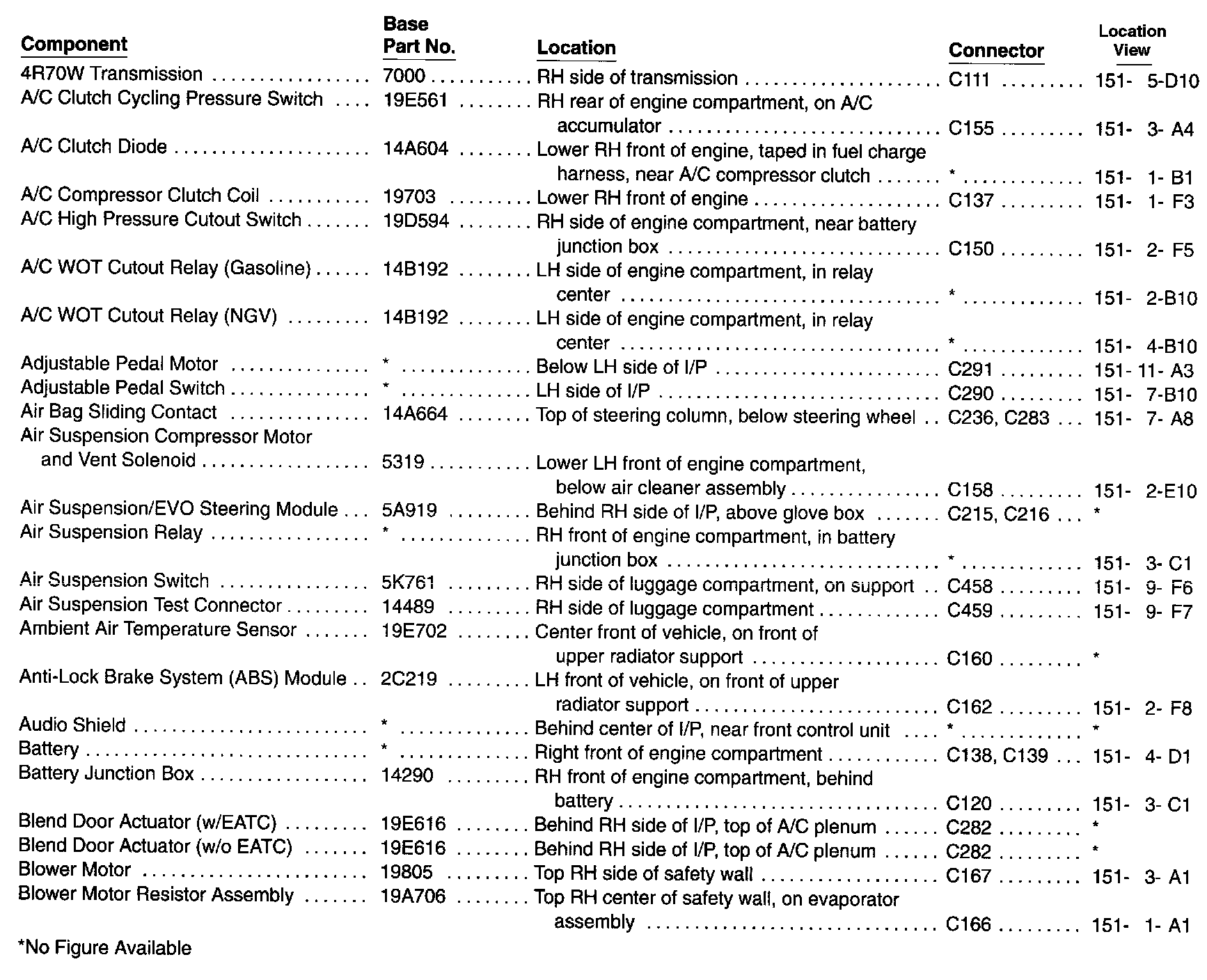

4R-Bl:






Bl-Di:

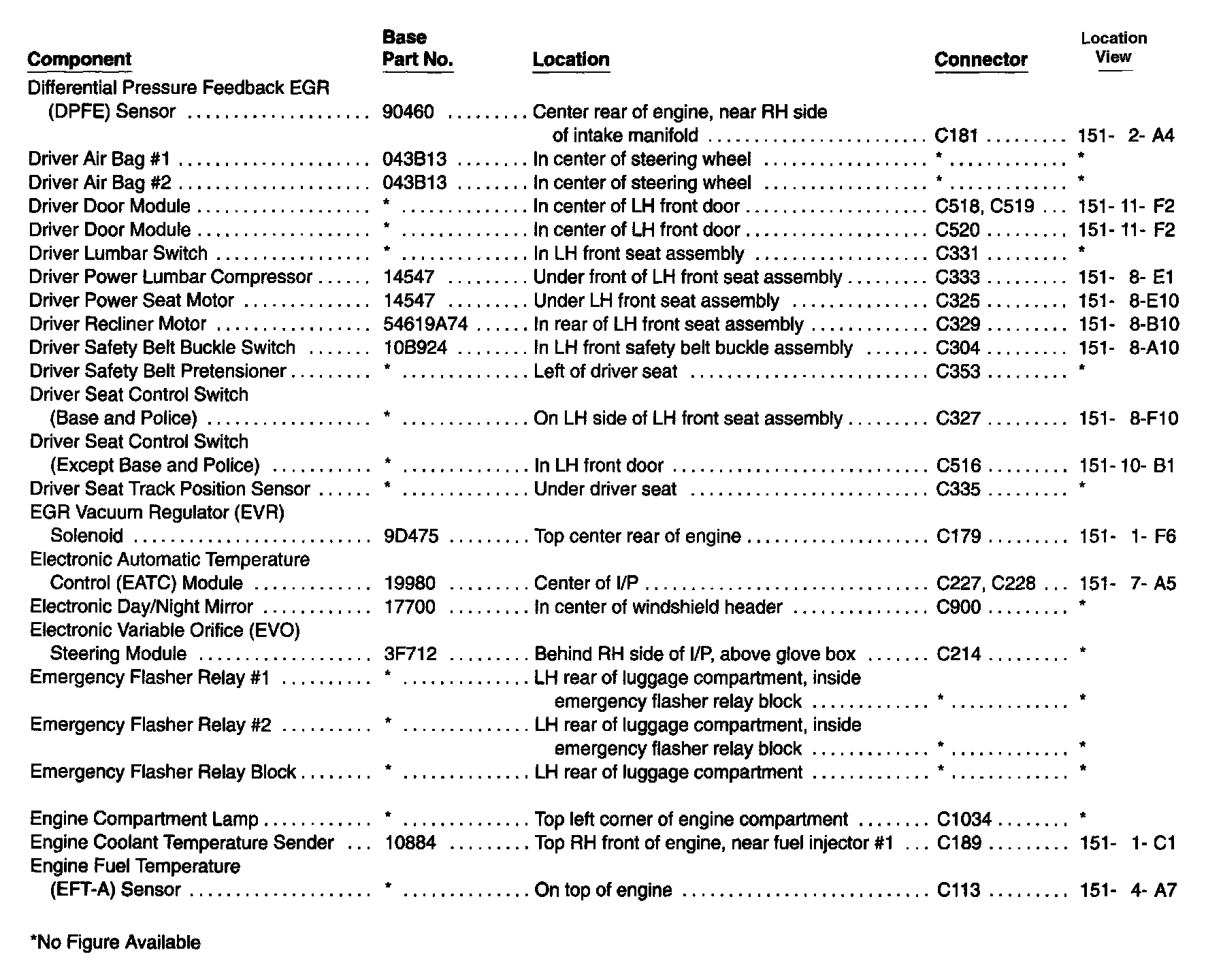

Di-En:






En-Fu:






Fu-Le:






Le-Lu:






Lu-Pa:






Pa-RF:






RF-RR:






Sh-Wi:
