Solar Sensor: Service and Repair

REMOVAL

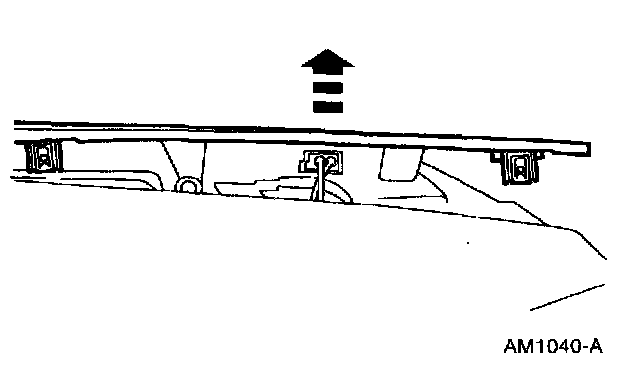

1. Remove the instrument panel upper finish panel.

2. Disconnect the wire harness connector.

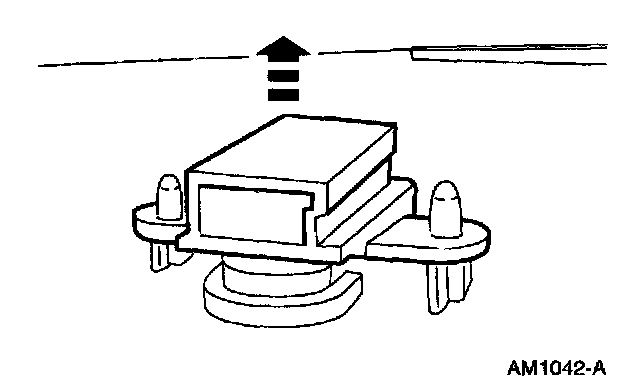

3. Remove the A/C sunload sensor from the instrument panel upper finish panel.

INSTALLATION
1. To install, reverse the removal procedure.
