Toe Adjustment

1. Start the engine and center the steering wheel.





2. Turn the engine off, and hold the steering wheel in the "straight forward" position by attaching a rigid link from the steering wheel to the brake pedal.
3. Check the toe settings. Follow the manufacturer's instructions.

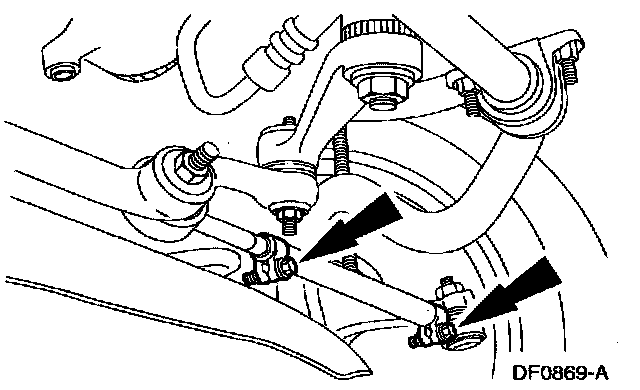

4. Loosen the nuts.
- Clean and lubricate the steering linkage and tie rod end threads.

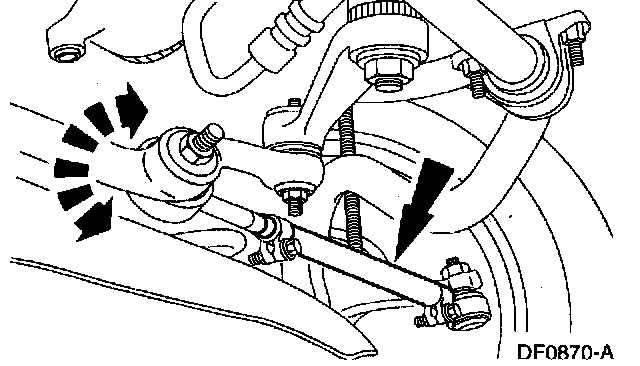

5. Rotate the adjusting sleeves to obtain the correct toe setting.

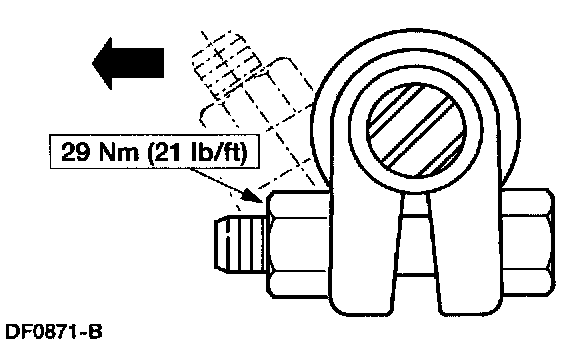

6. Position the adjusting sleeve clamps within the horizontal and vertical limits shown. Tighten the nuts.
7. Recheck the toe settings. Follow the manufacturer's instructions.
