Pressure Feedback Exhaust Sensor: Service and Repair
REMOVAL 1.

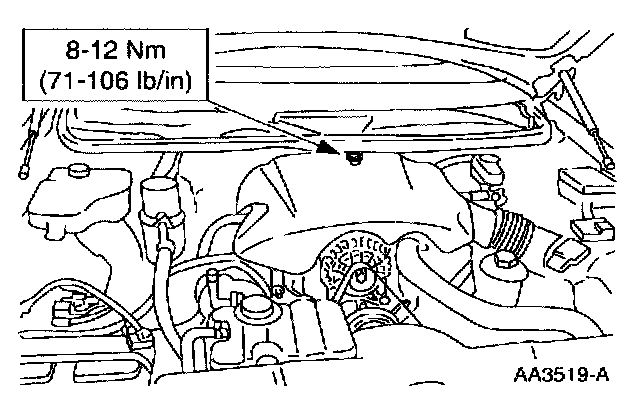

Remove the appearance cover.
2.

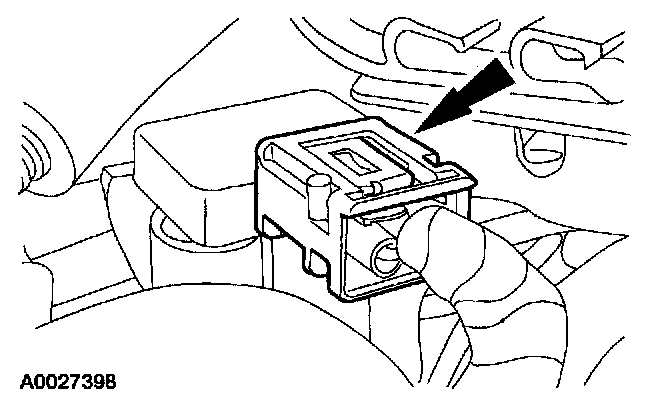

Disconnect the differential pressure feedback sensor electrical connector.
3.

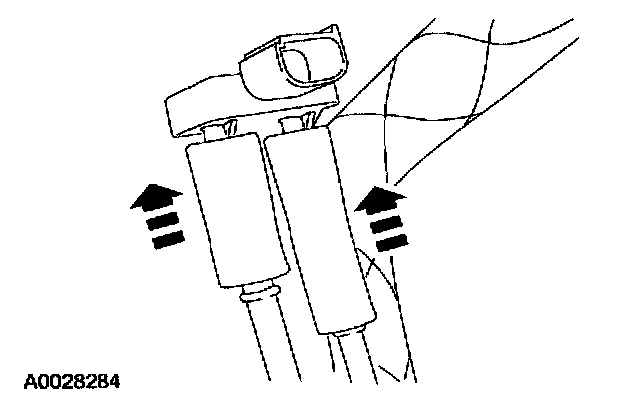

Remove the differential pressure feedback sensor from the hoses.
INSTALLATION 1.
To install, reverse the removal procedure.
