Steering Control Module: Service and Repair
Removal 1.

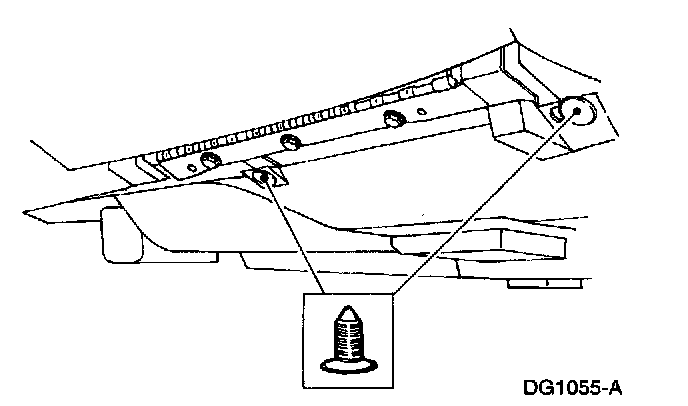

Lower the panel.
2.

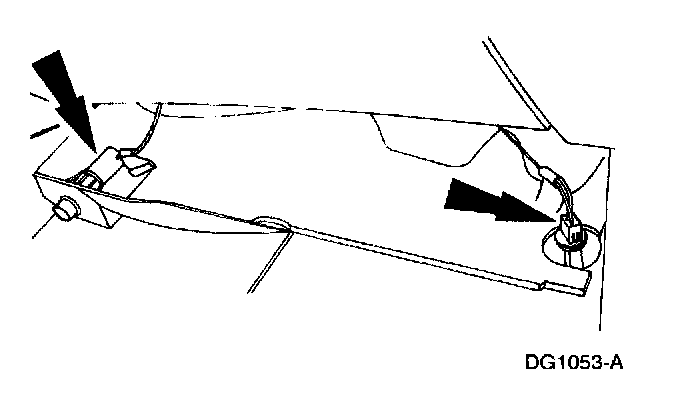

Remove the lamp from the panel and disconnect the wiring.
3.

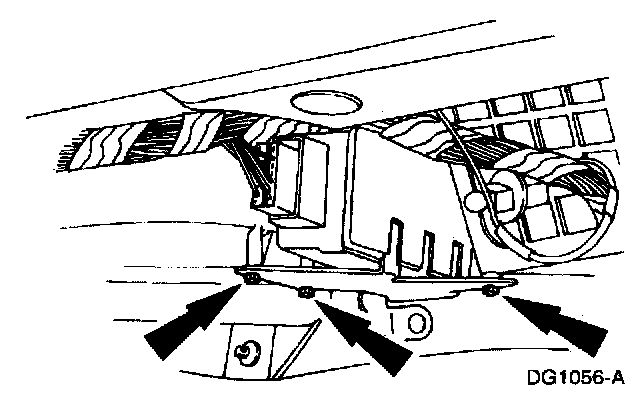

Remove the screws.
4.

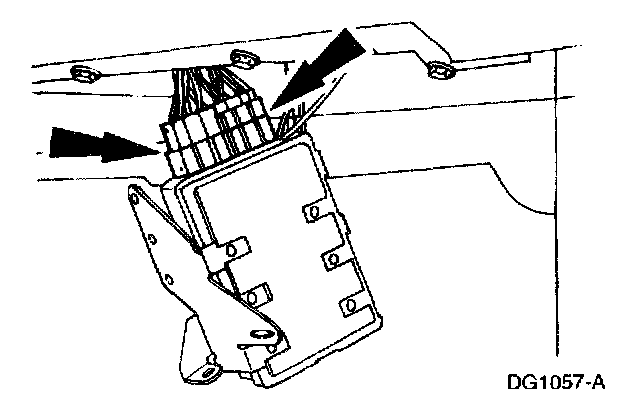

Disconnect the wiring and remove the control module.
Installation 1.
Follow the removal procedure in reverse order.
