Window Frame: Service and Repair

REMOVAL
1. Remove the front door trim panel.

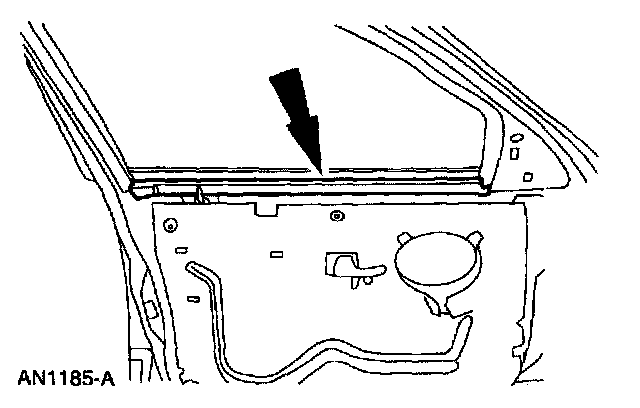

2. Remove the interior weatherstrip.
3. Remove the front door window glass.

4. Remove the interior garnish moulding.

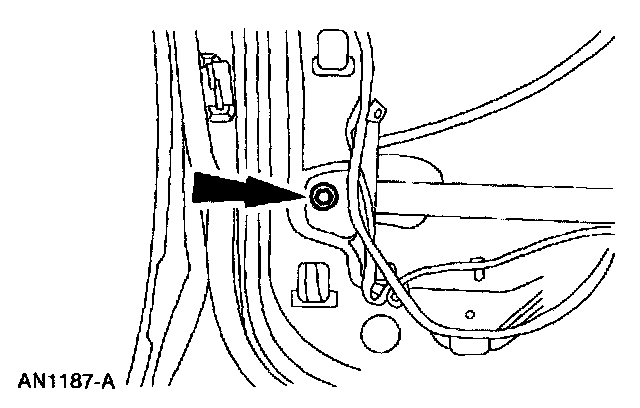

5. Remove the bolt.

6. Remove the nut and the exterior weatherstrip.

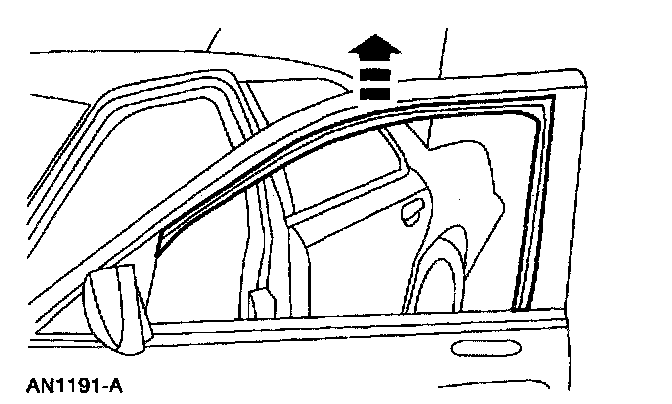

7. Remove the door glass top run.

INSTALLATION

1. To install, reverse the removal procedure.
