ABS Control Module Parameter Identification (PID) Index

ABS Control Module Parameter Identification (PID) Index

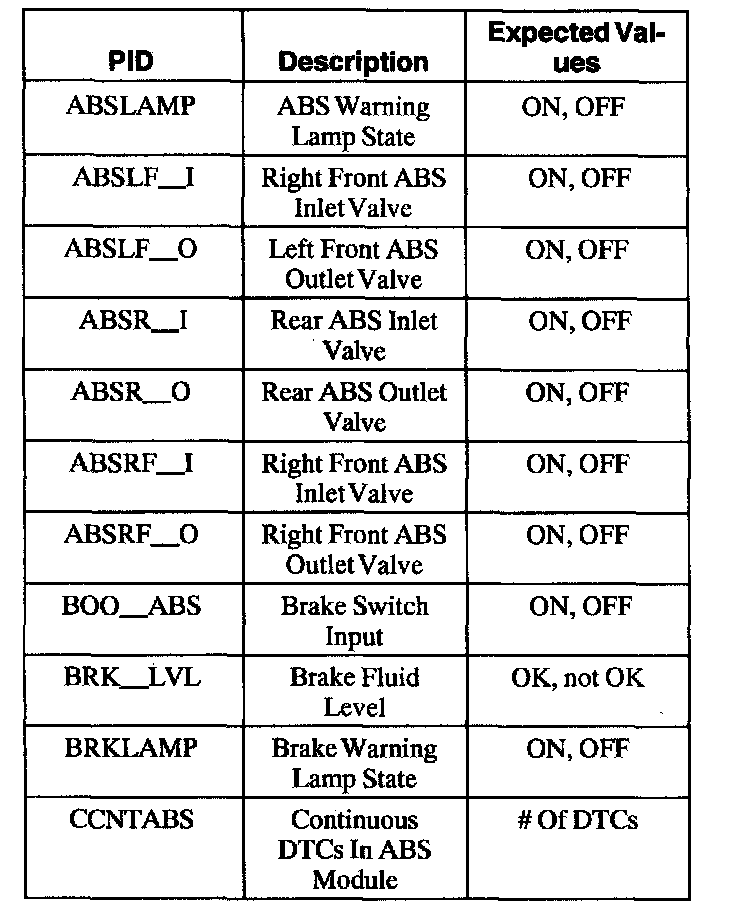

ABS Control Module Parameter Identification (PID) Index (Part 1):

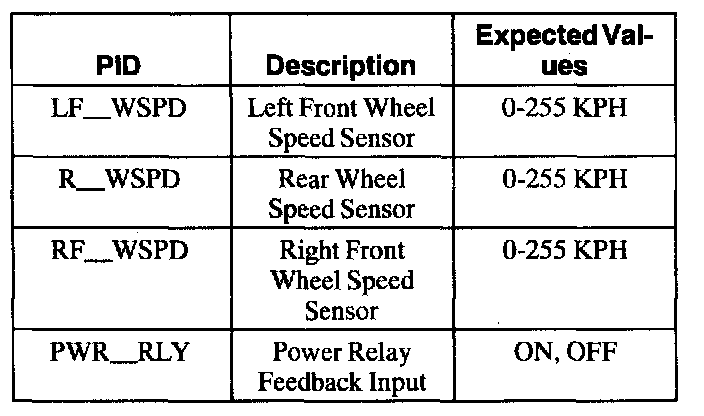

ABS Control Module Parameter Identification (PID) Index (Part 2):
