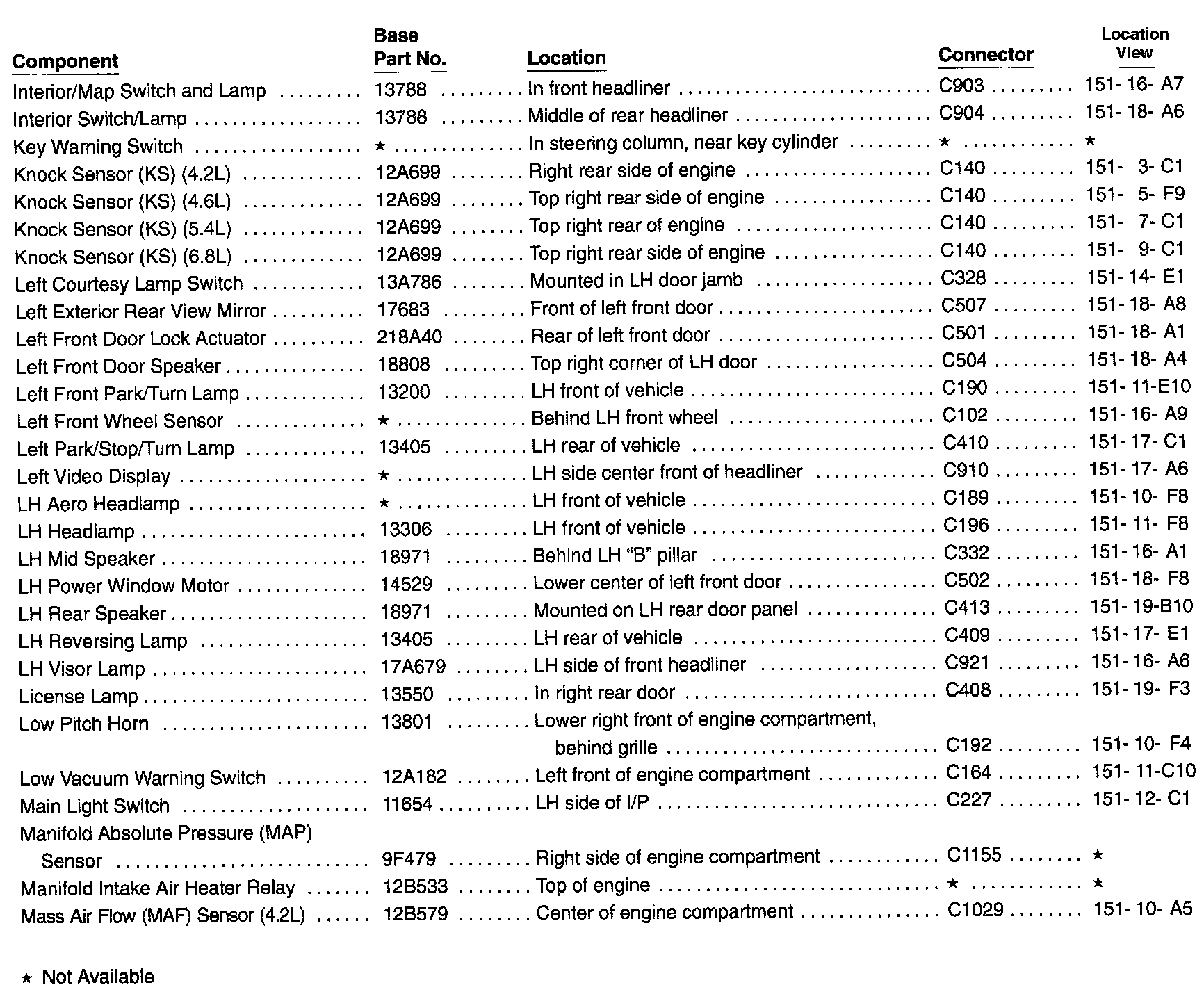

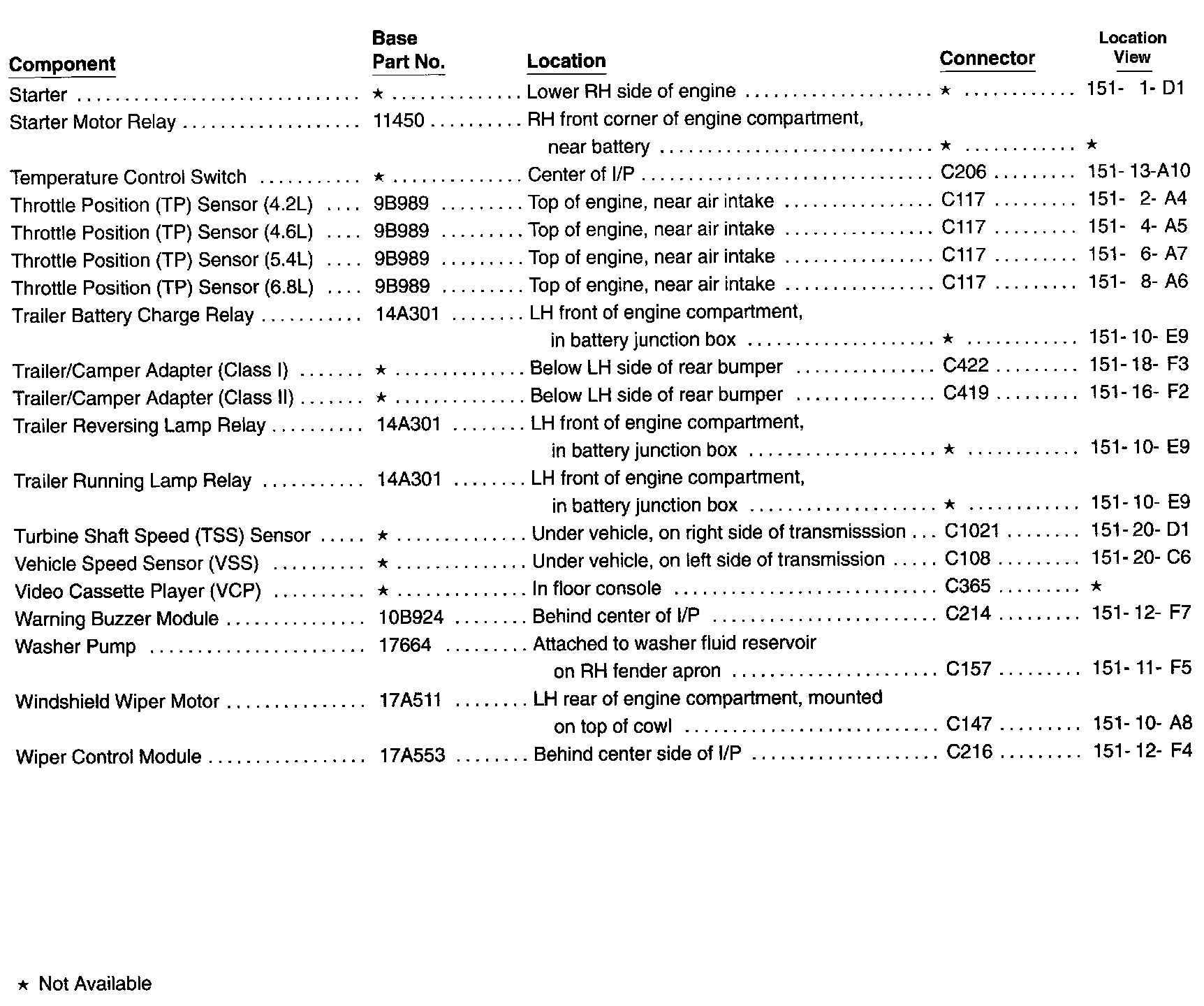

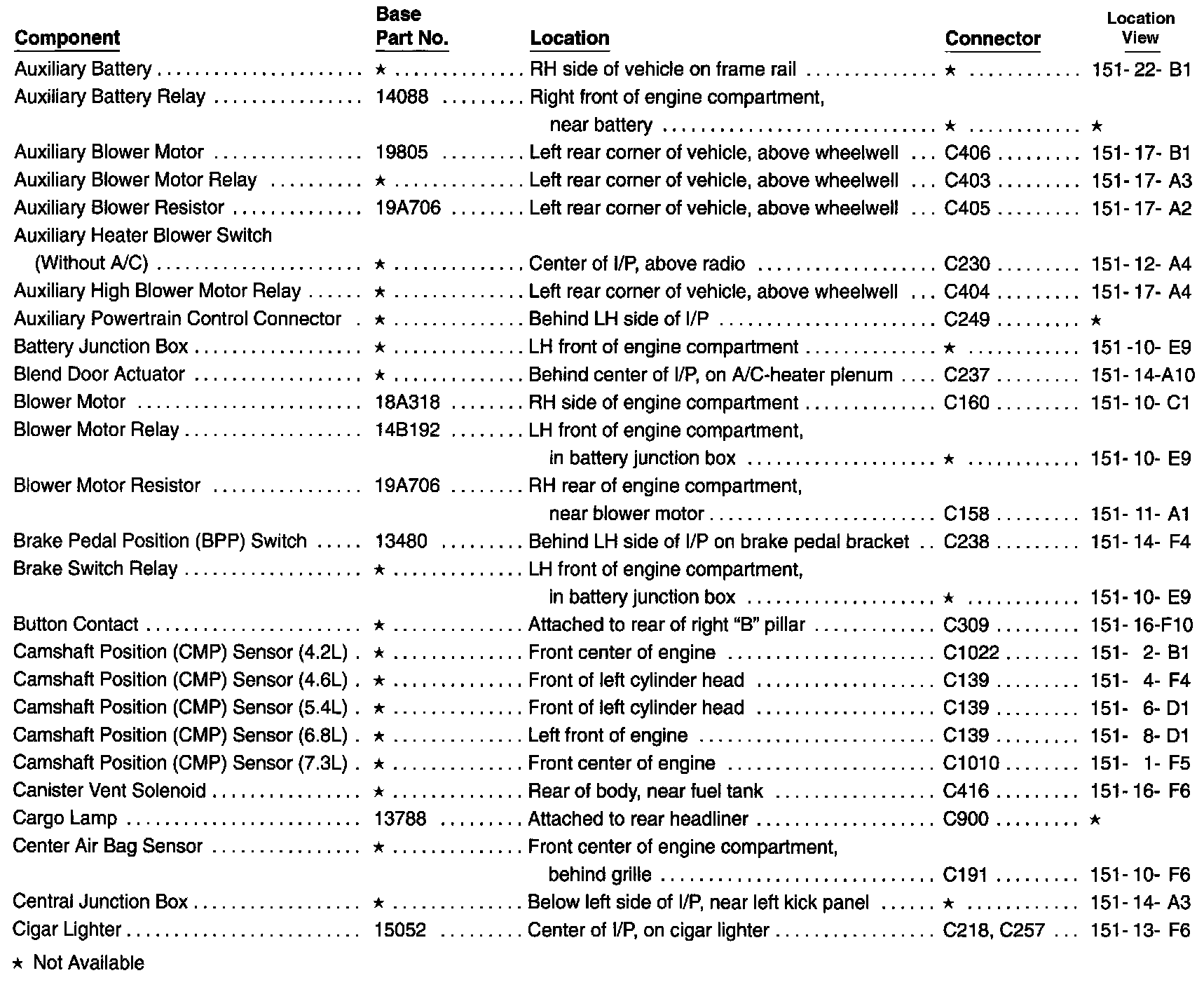

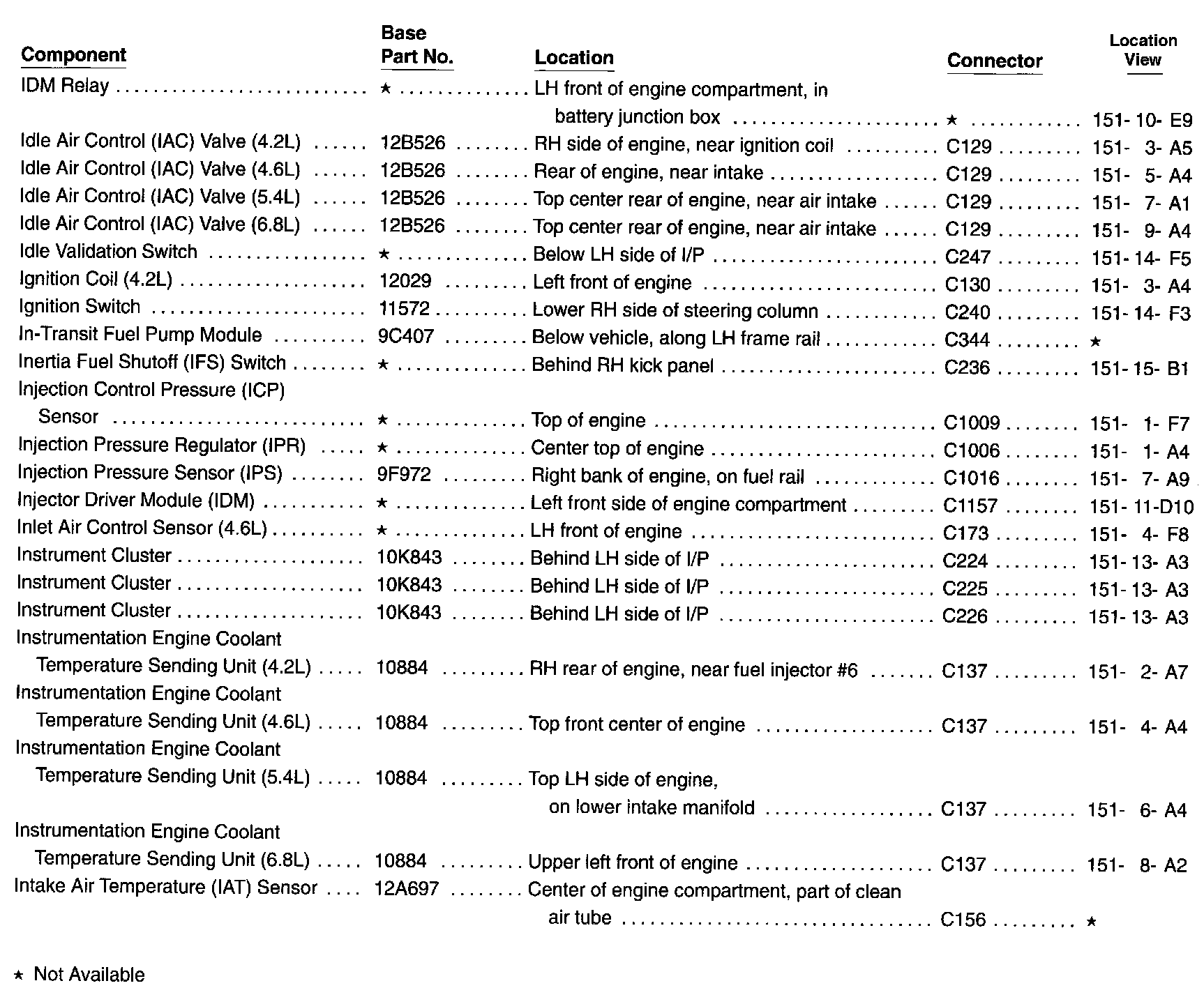

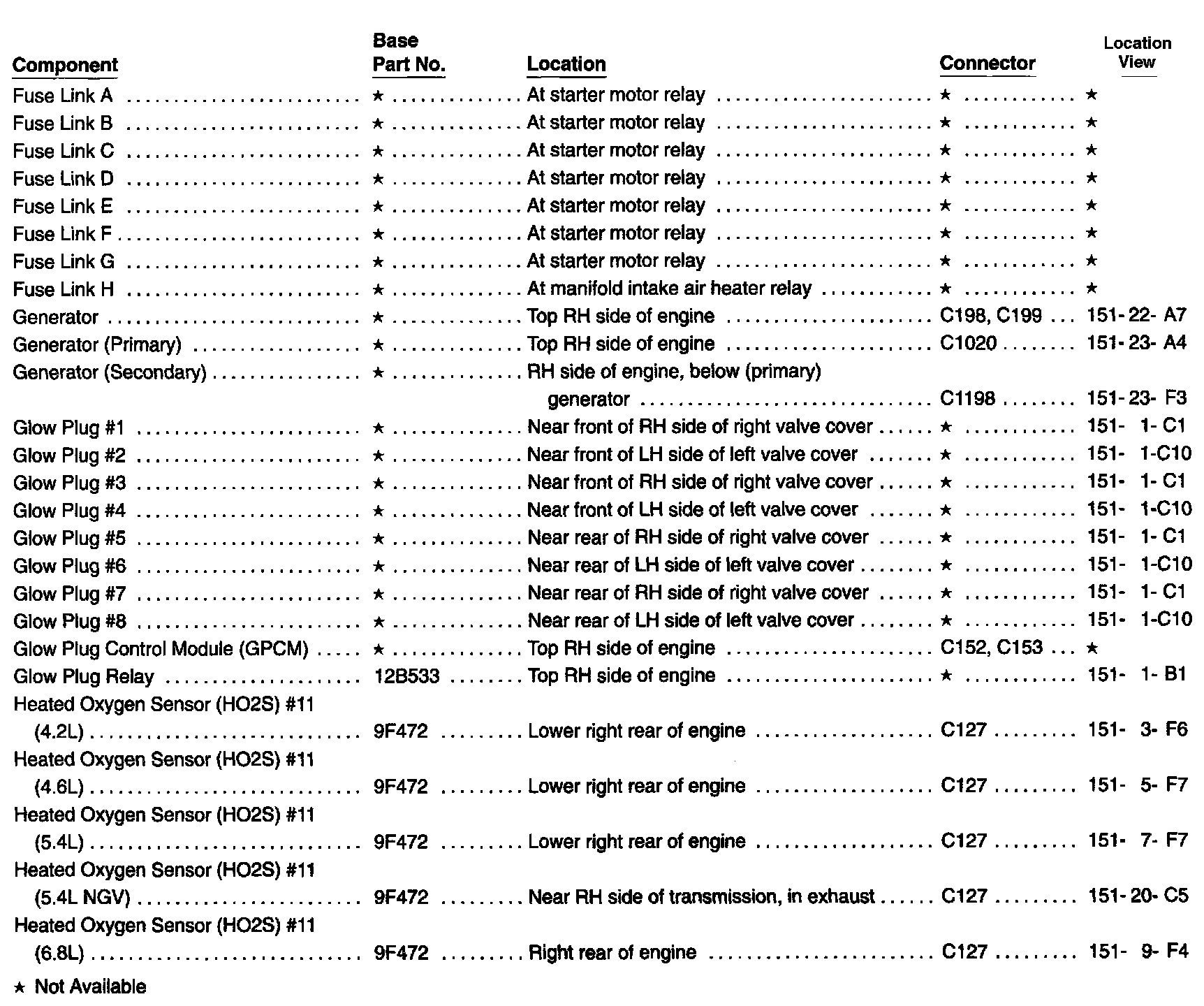

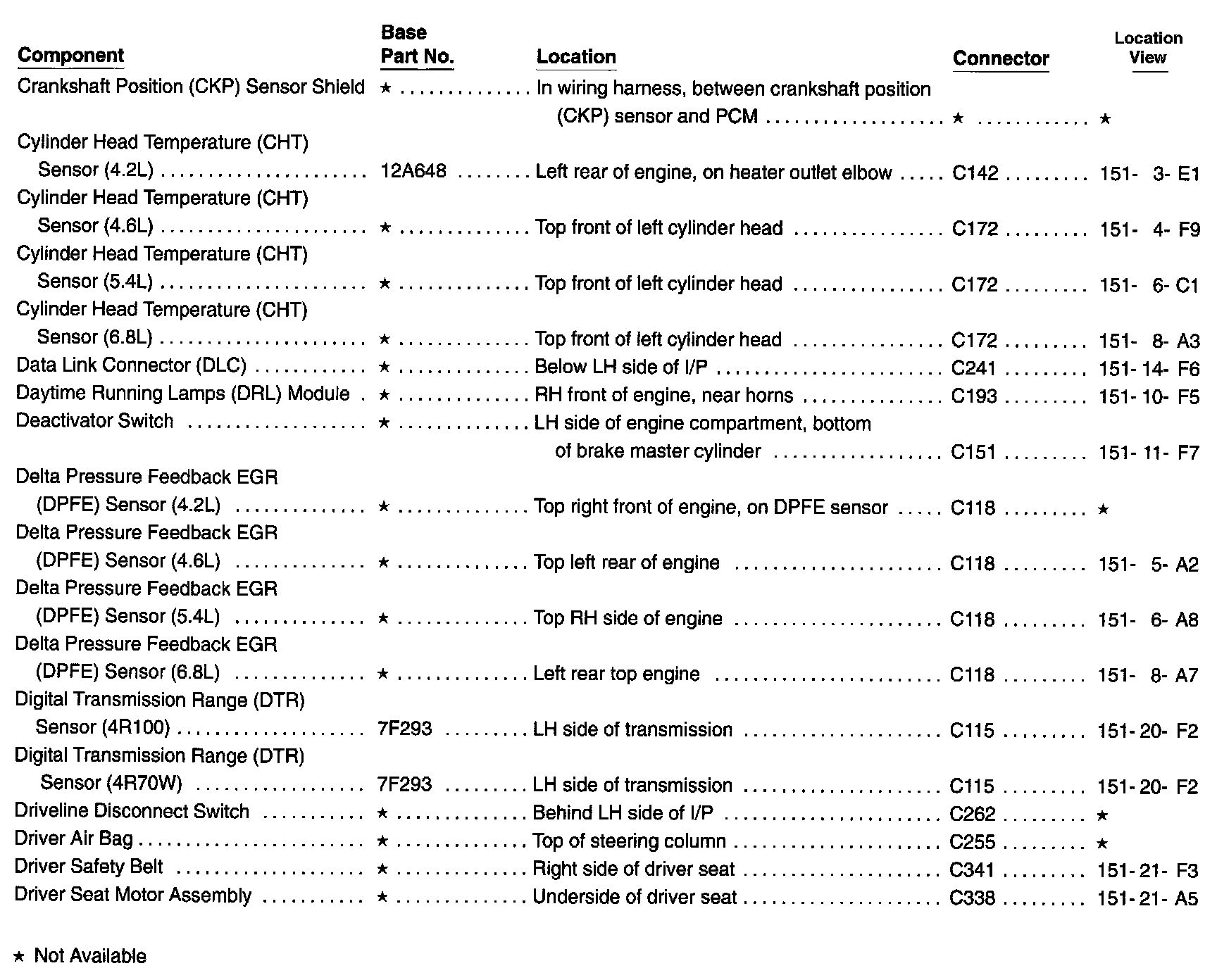

Components

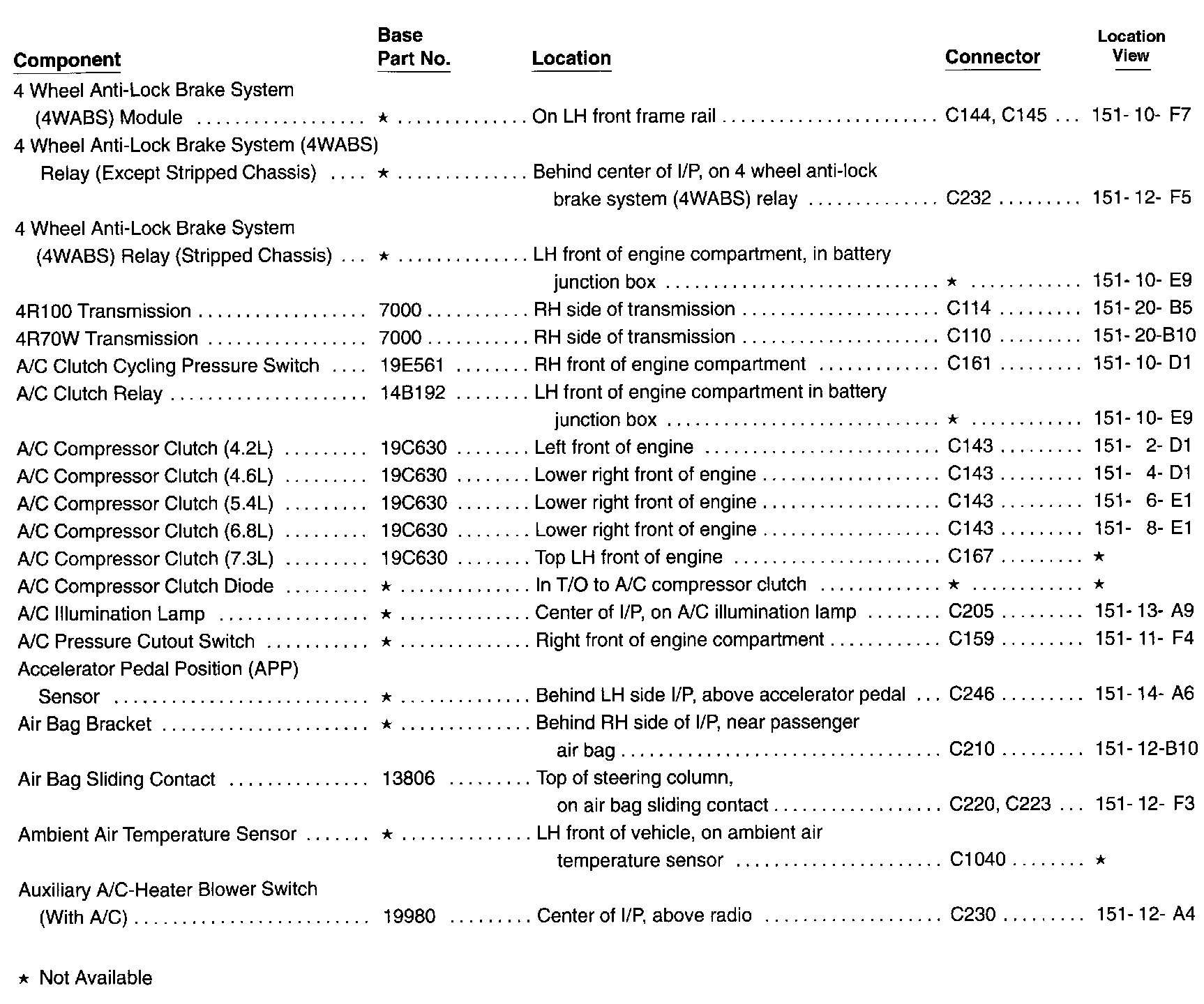

4W-Au:






Au-Ci:






Co-Cr:






Cr-Dr:

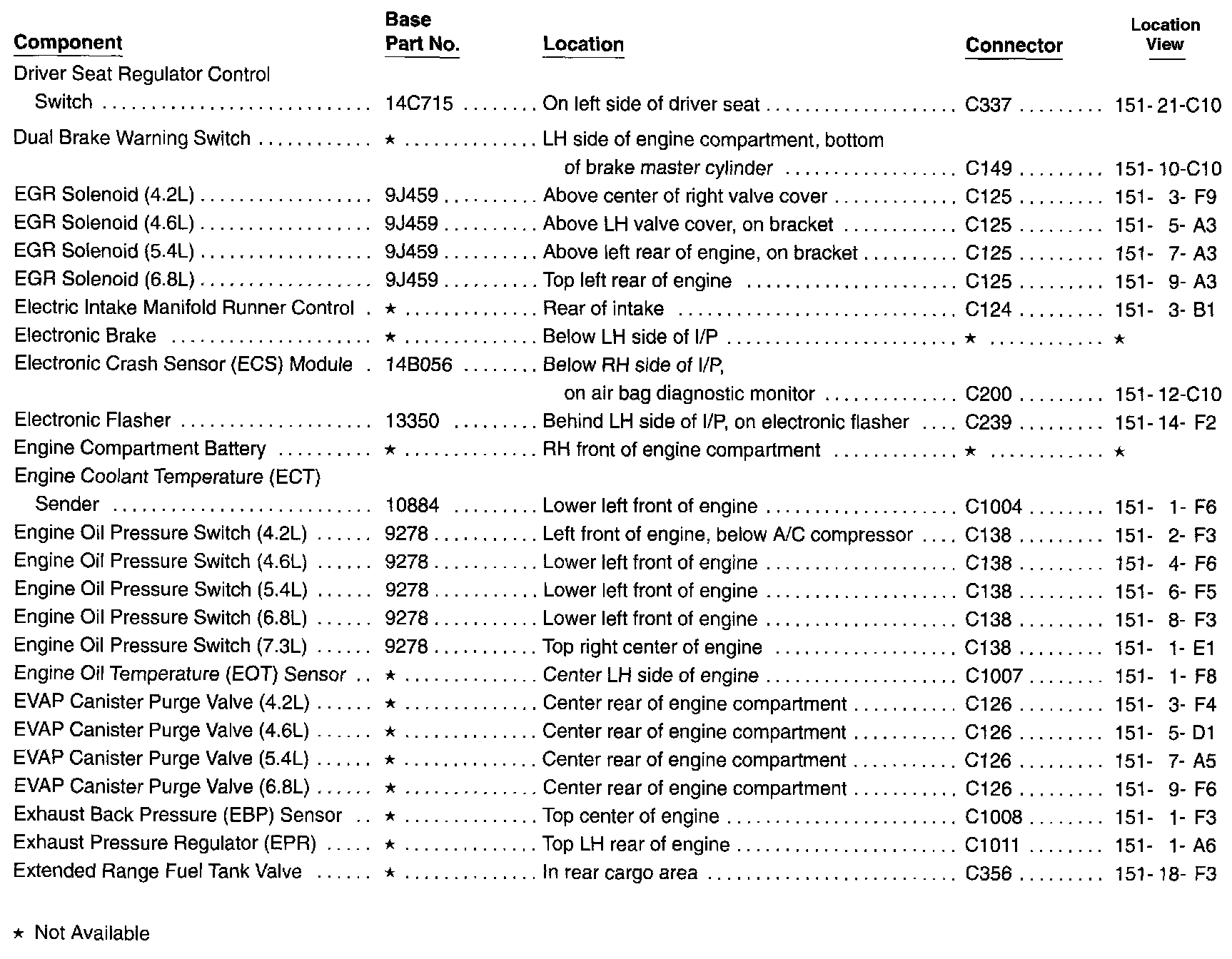

Dr-Ex:

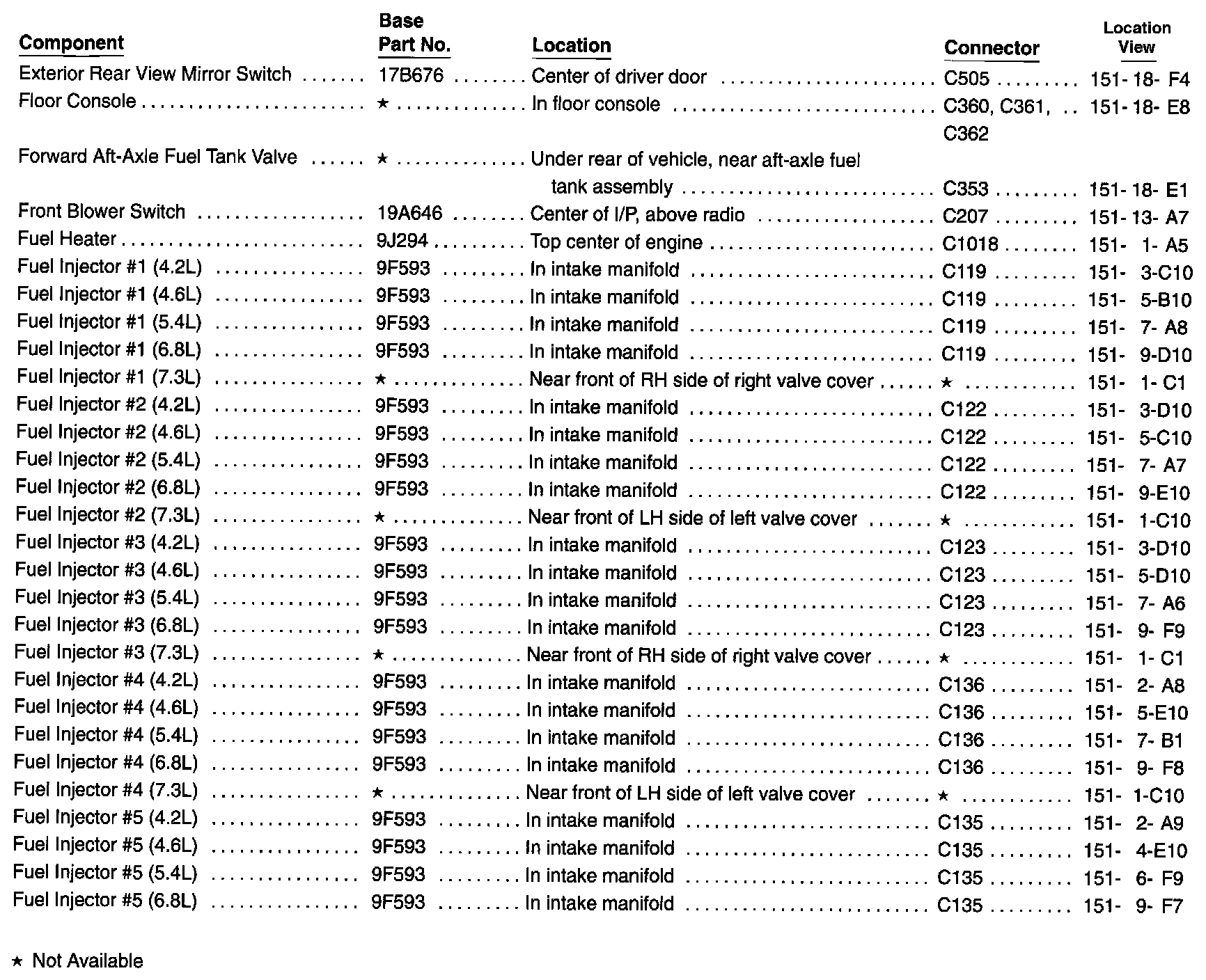

Ex-Fu:

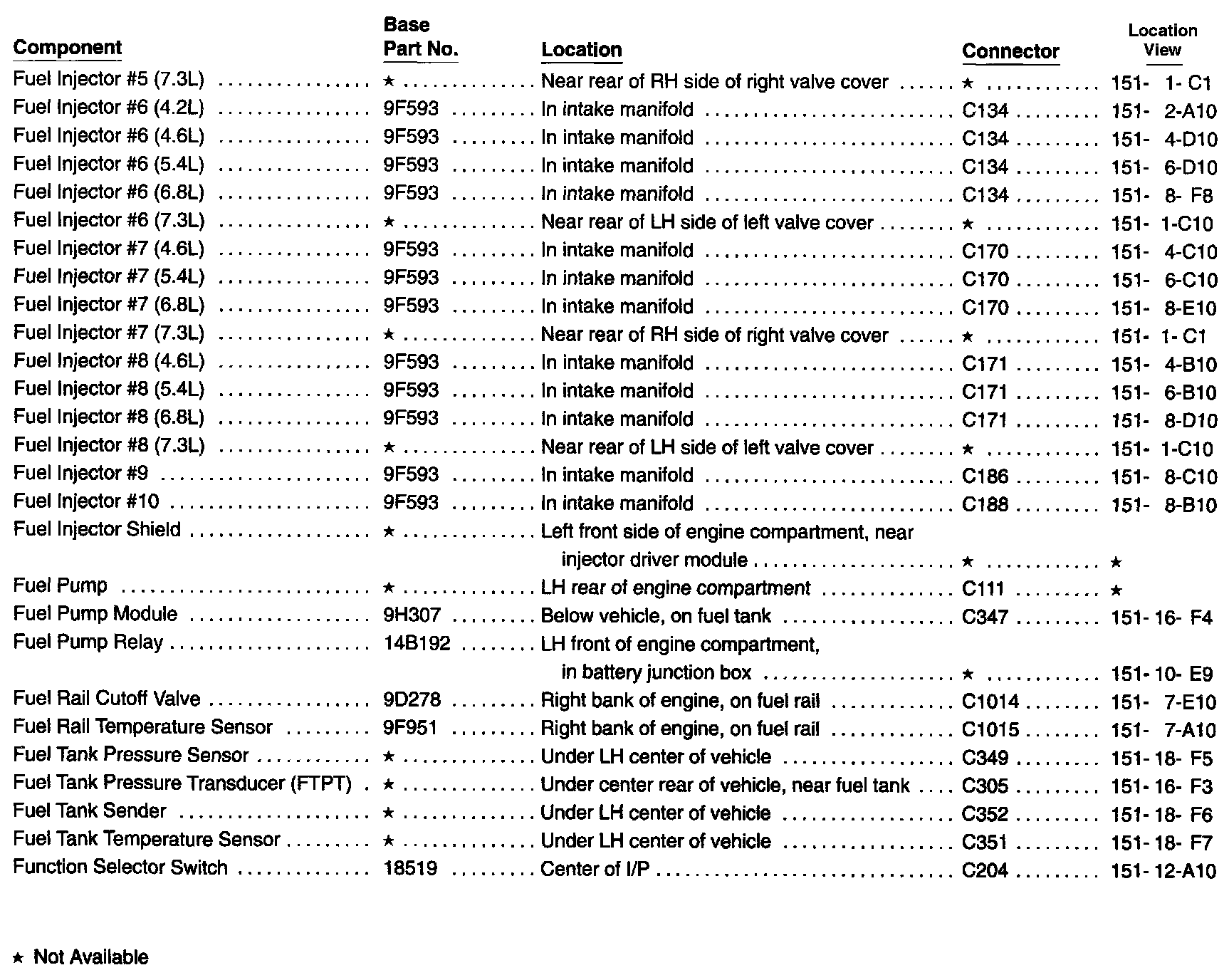

Fu-Fu:






Fu-He:

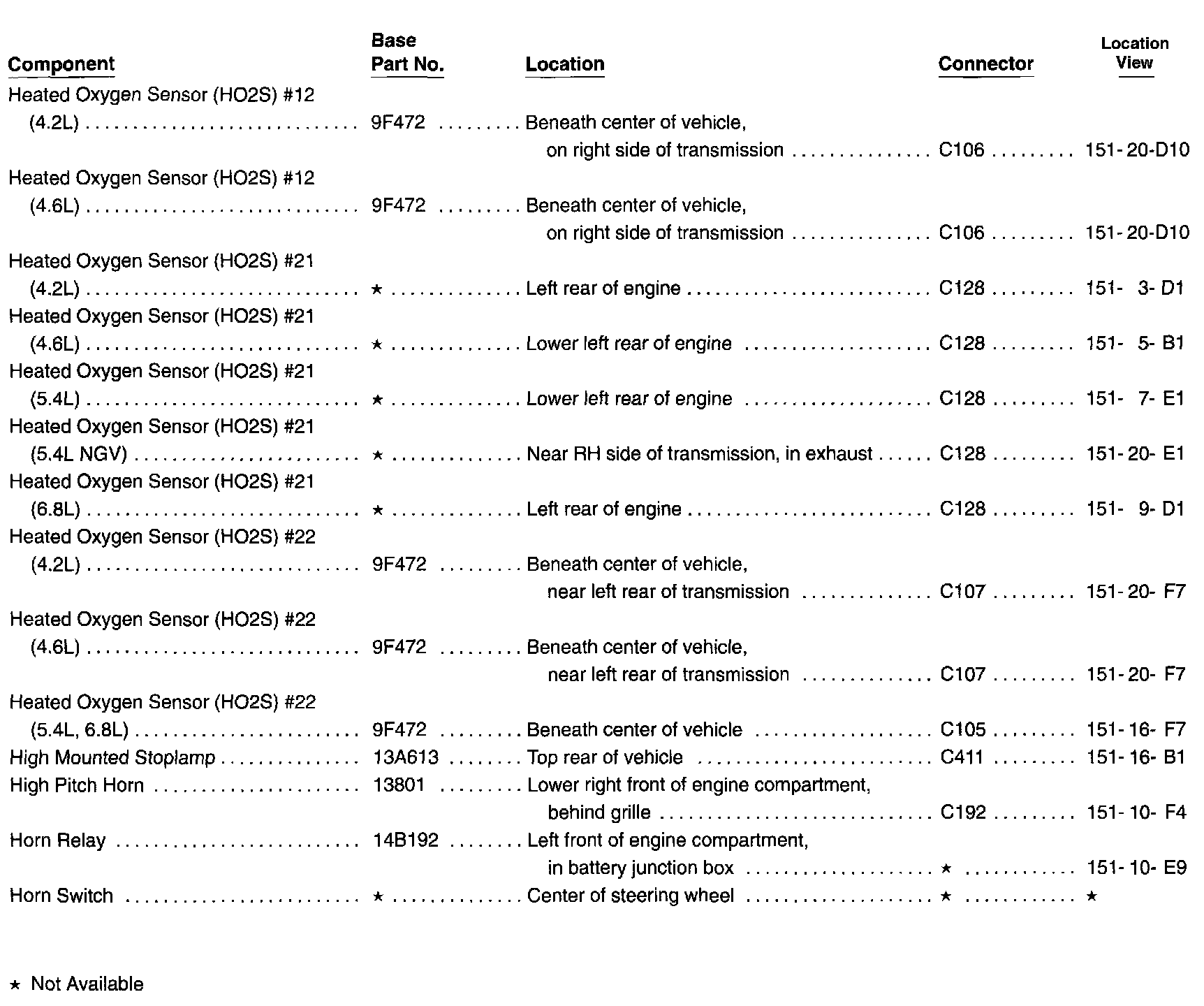

He-Ho:






ID-In:

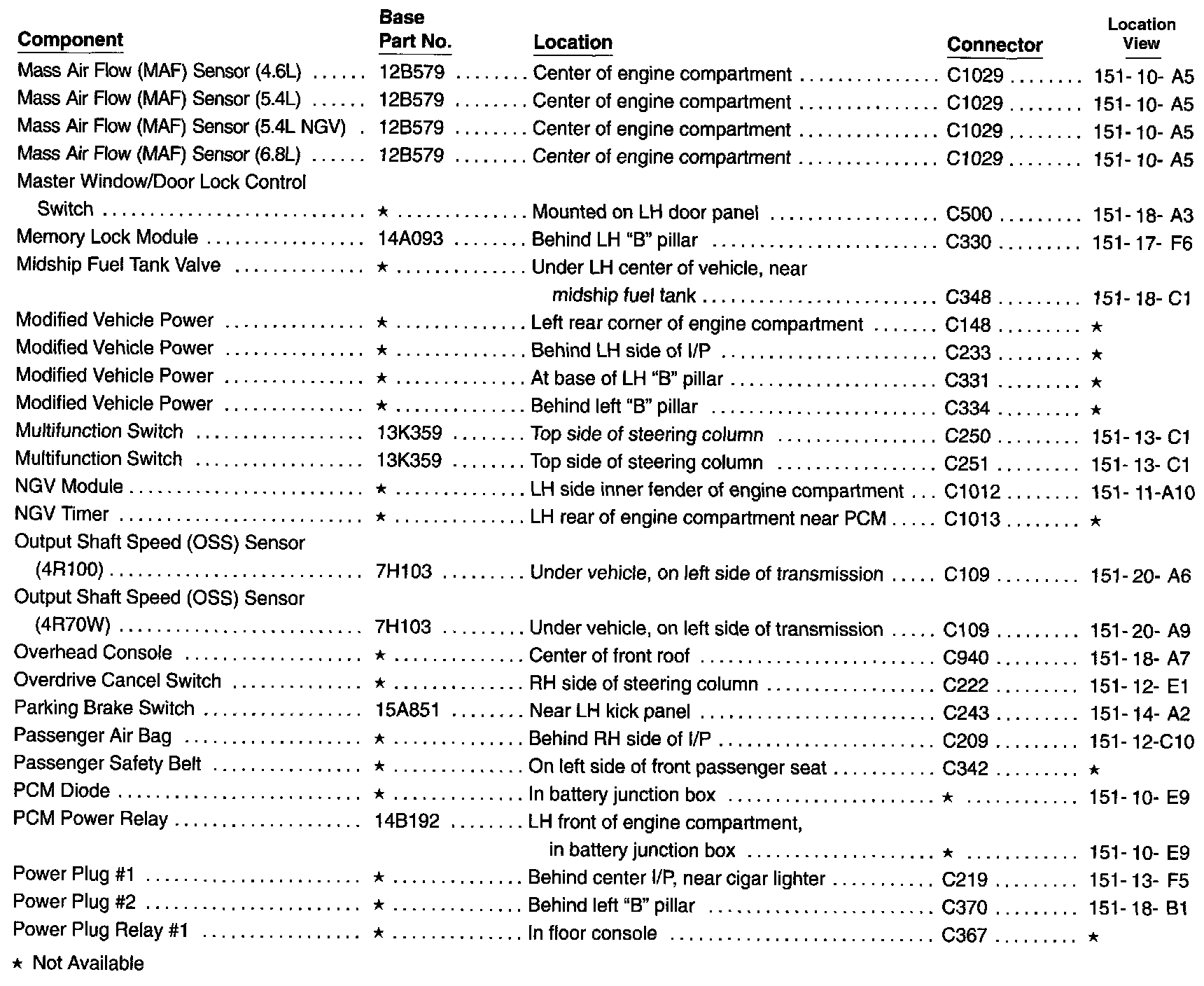

In-Ma:

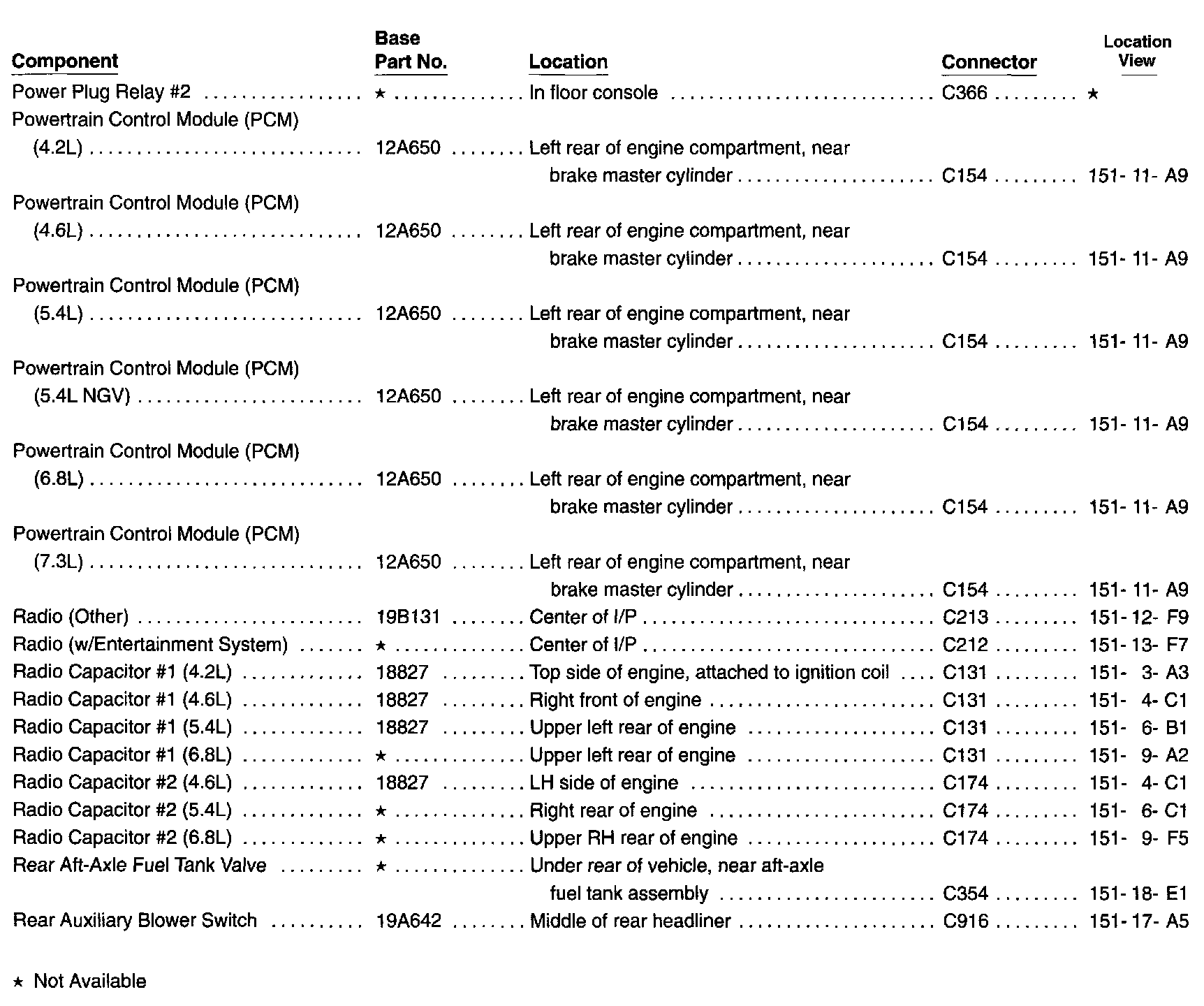

Ma-Po:

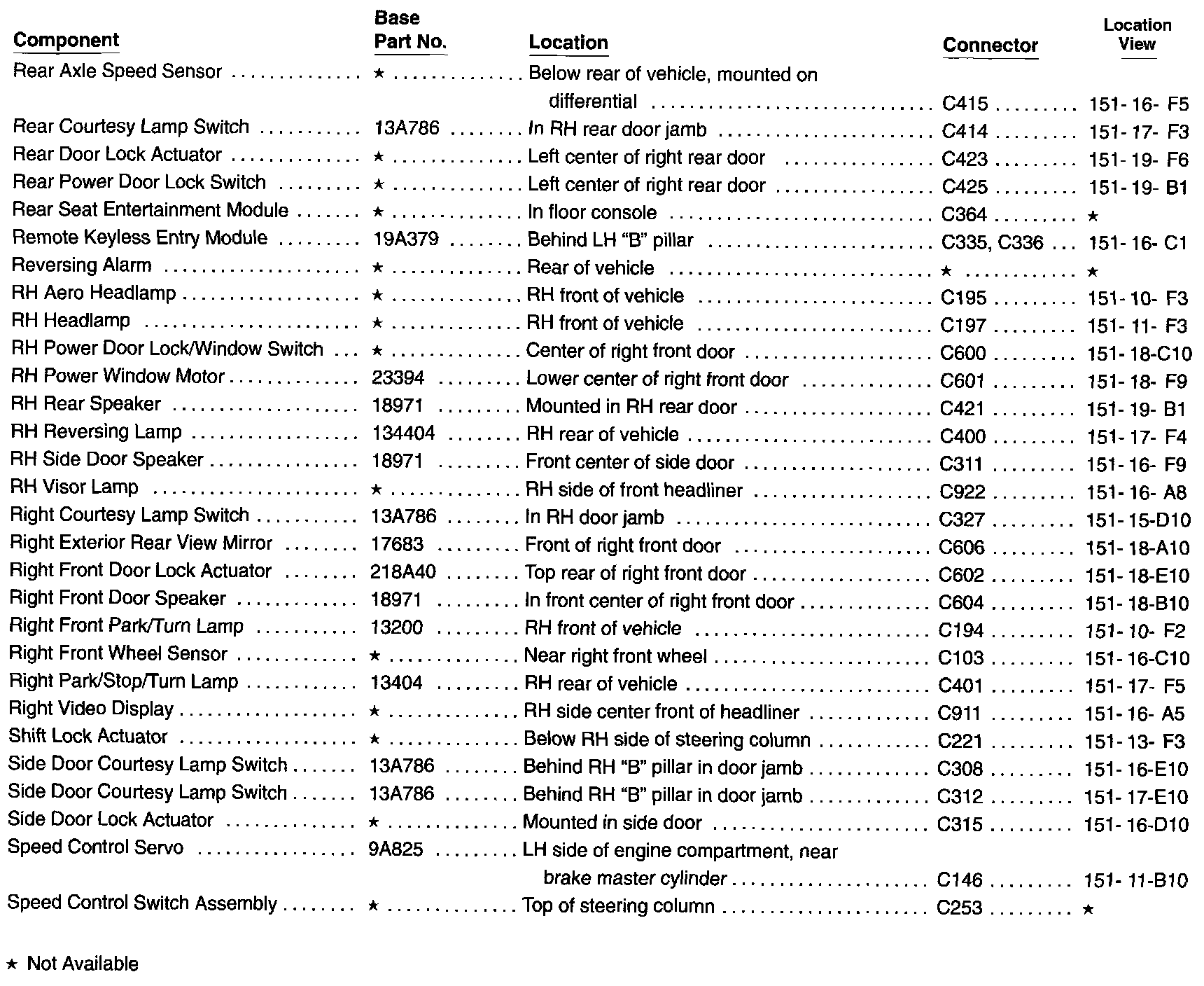

Po-Re:






Re-Sp:






St-Wi:
