SC115 Compressor

Special Tool(s):

SPECIAL TOOL(S)

REMOVAL
1. Remove the A/C compressor.

SC 115 Compressor Clutch:

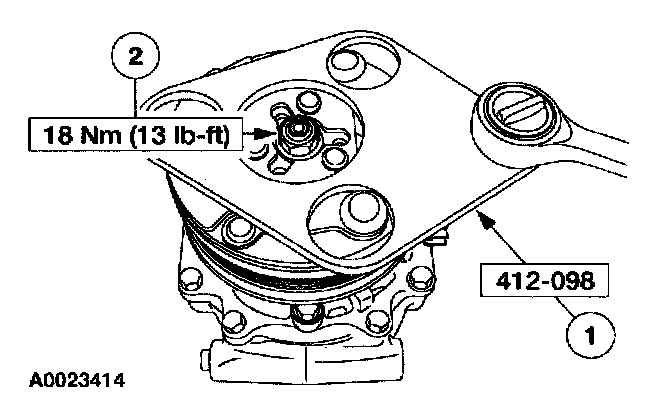

2. Remove the A/C clutch plate retaining nut.
1 Using the special tool, hold the A/C clutch plate.
2 Remove the nut.

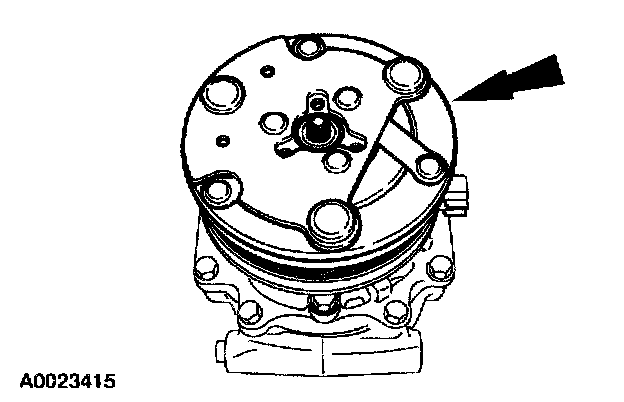

3. Remove the A/C clutch plate.







4. Remove the A/C clutch plate spacer.

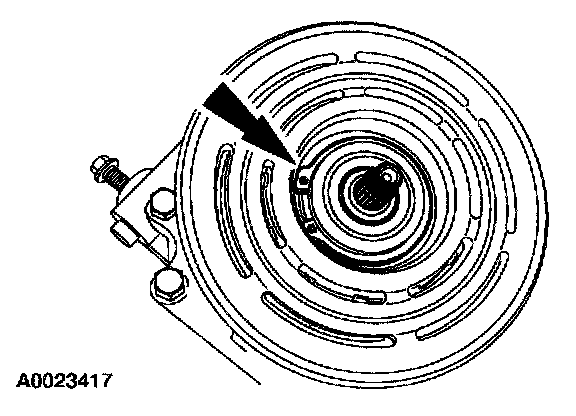

5. Remove the A/C clutch pulley snap-ring.

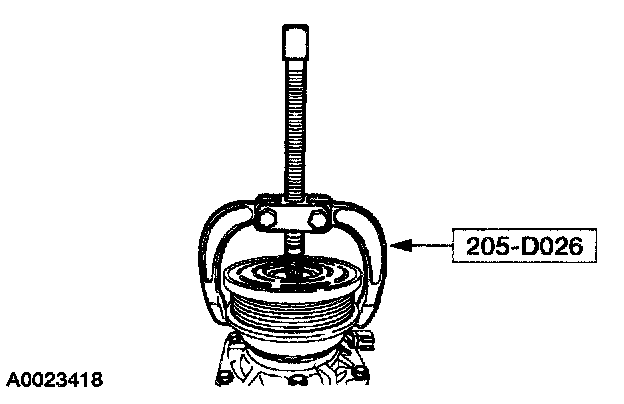

6. Using the special tool, remove the A/C clutch pulley.

CAUTION: Do not use air tools. Damage to the A/C clutch pulley may result.

7. Note the location of the A/C clutch field coil connector.

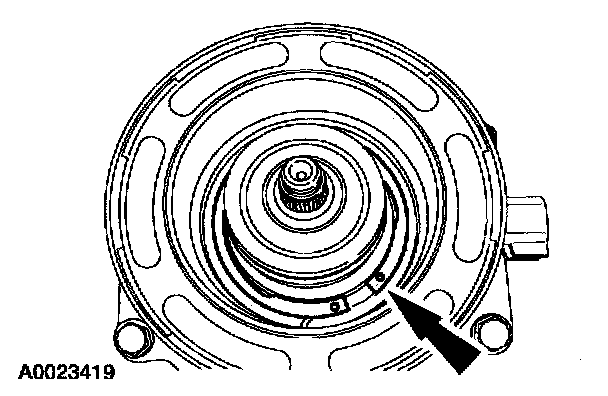

8. Remove the A/C clutch field coil snap-ring.

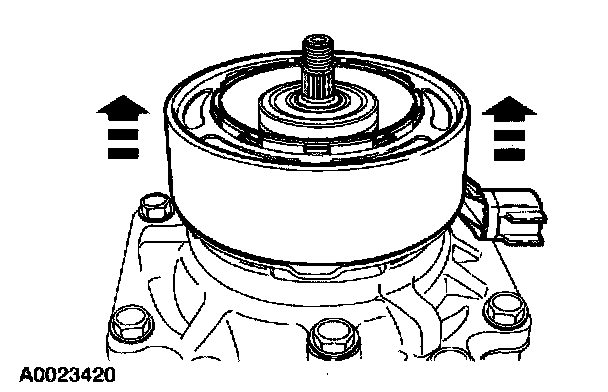

9. Remove the A/C clutch field coil.
10. Clean the A/C compressor, A/C clutch field coil, and the A/C clutch pulley mounting surfaces.

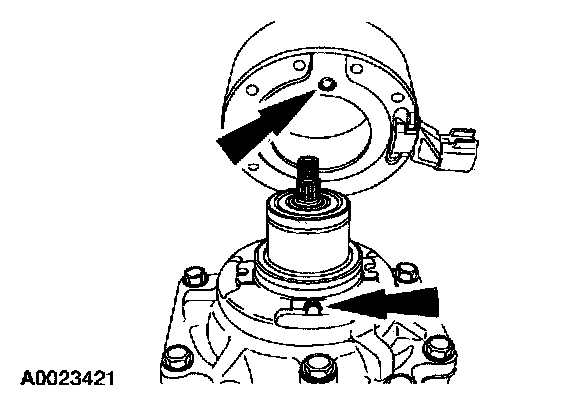

11. Align and install the A/C clutch field coil to the A/C compressor.

CAUTION: There is an indexing locator on the A/C clutch field coil mounting surface. Make sure it is correctly aligned during installation to the A/C compressor.







12. Install the A/C clutch field coil snap-ring.

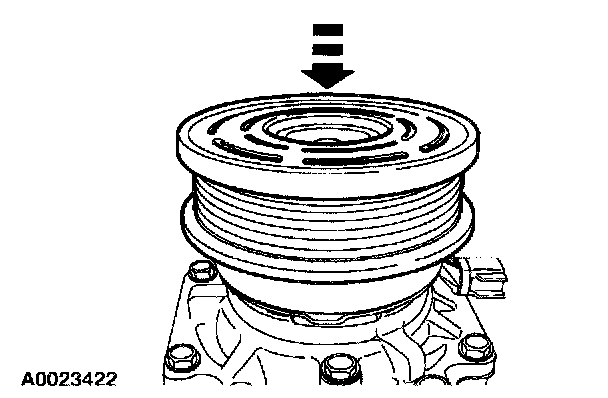

13. Install the A/C clutch pulley.

NOTE: The A/C clutch pulley fits tightly to the A/C compressor. It must be aligned correctly for installation.







14. Install the A/C clutch pulley snap-ring with the bevel side up.

NOTE: The snap-ring must be installed with the bevel side up.







15. Install one nominal thickness A/C clutch plate spacer onto the A/C compressor shaft.







16. Install the A/C clutch plate.







17. Install the clutch plate retaining nut.
1 Using the special tool, hold the A/C clutch plate.
2 Tighten the nut.

SC 115 Compressor Clutch:

18. Measure and adjust (if necessary) the A/C clutch air gap by removing or adding A/C clutch plate spacers.
19. Install the A/C compressor.
