Exploded Views

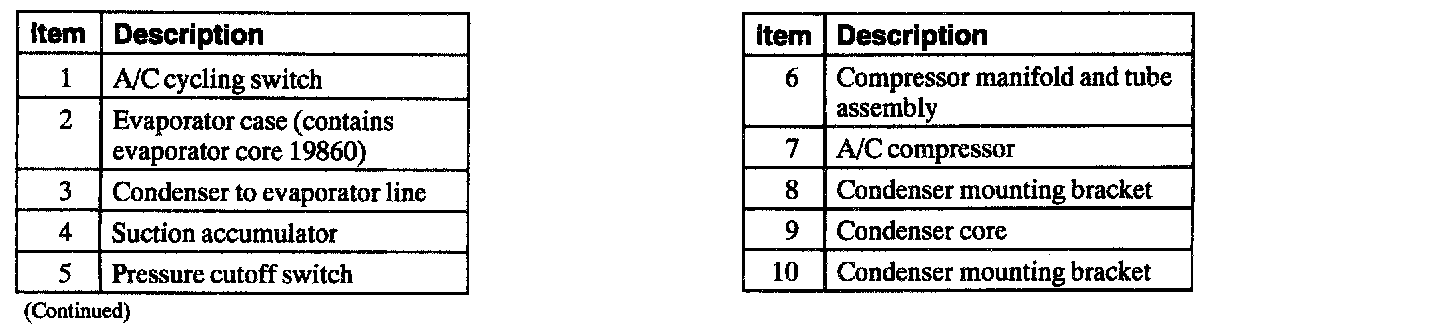

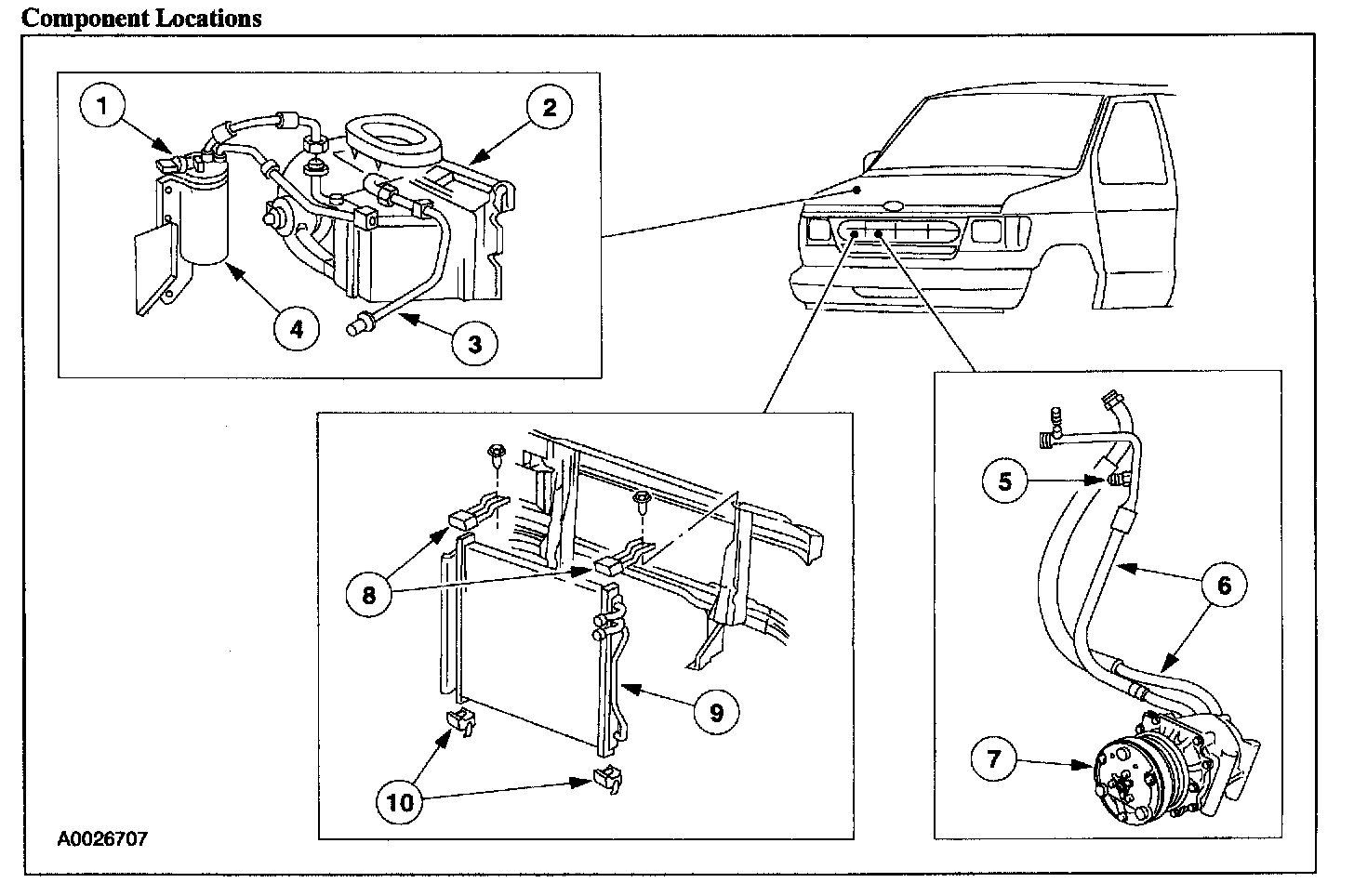

Component Locations, Part 1:






Component Locations, Part 2:

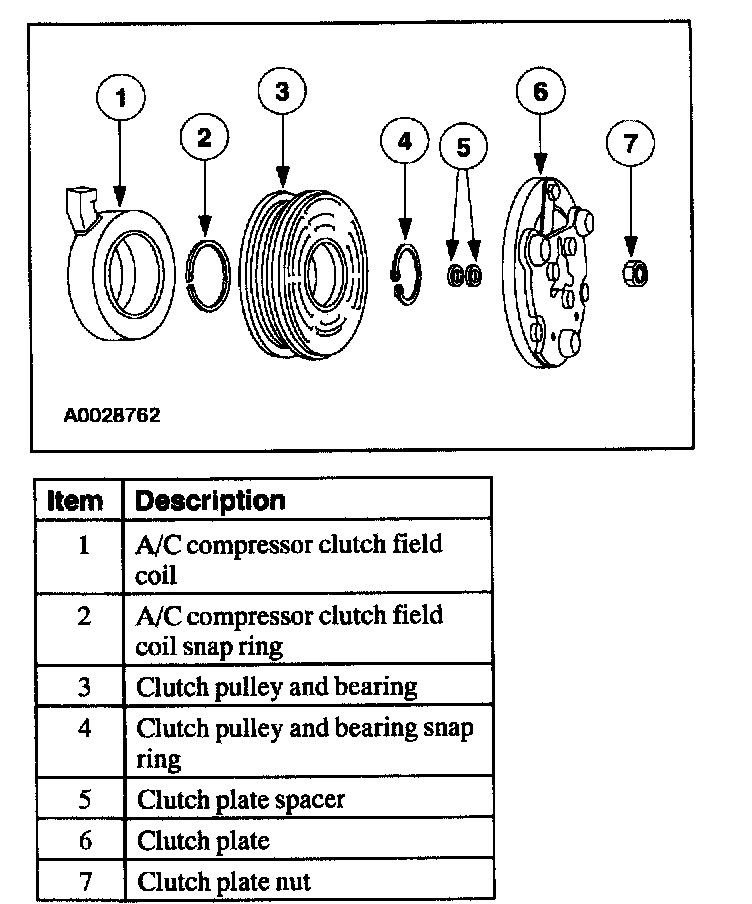

SC 115 Compressor Clutch:
