Home >> Ford >> 2001 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Electrical Diagrams >> Control Assembly, HVAC

Control Assembly, HVAC

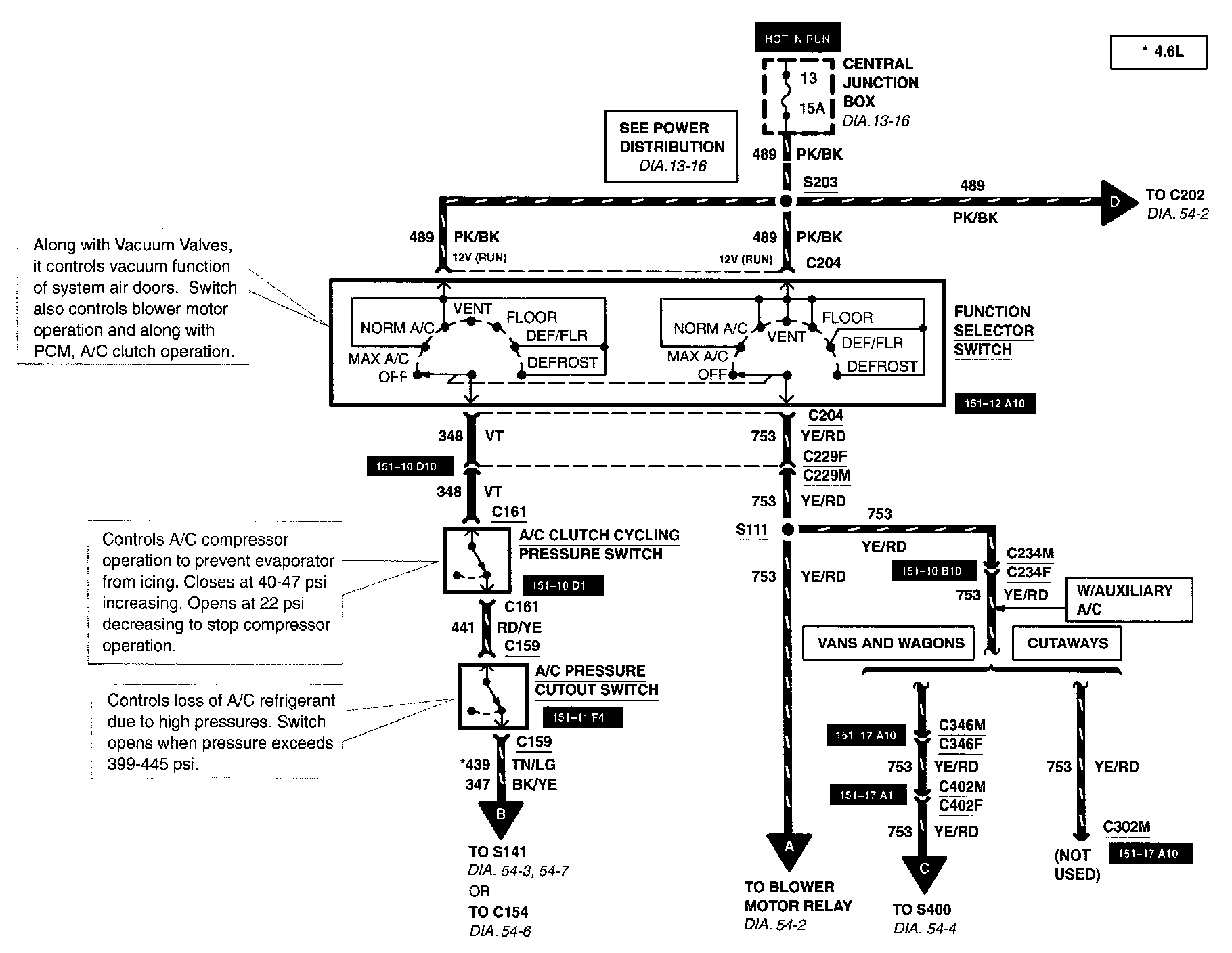

Diagram 54-1:

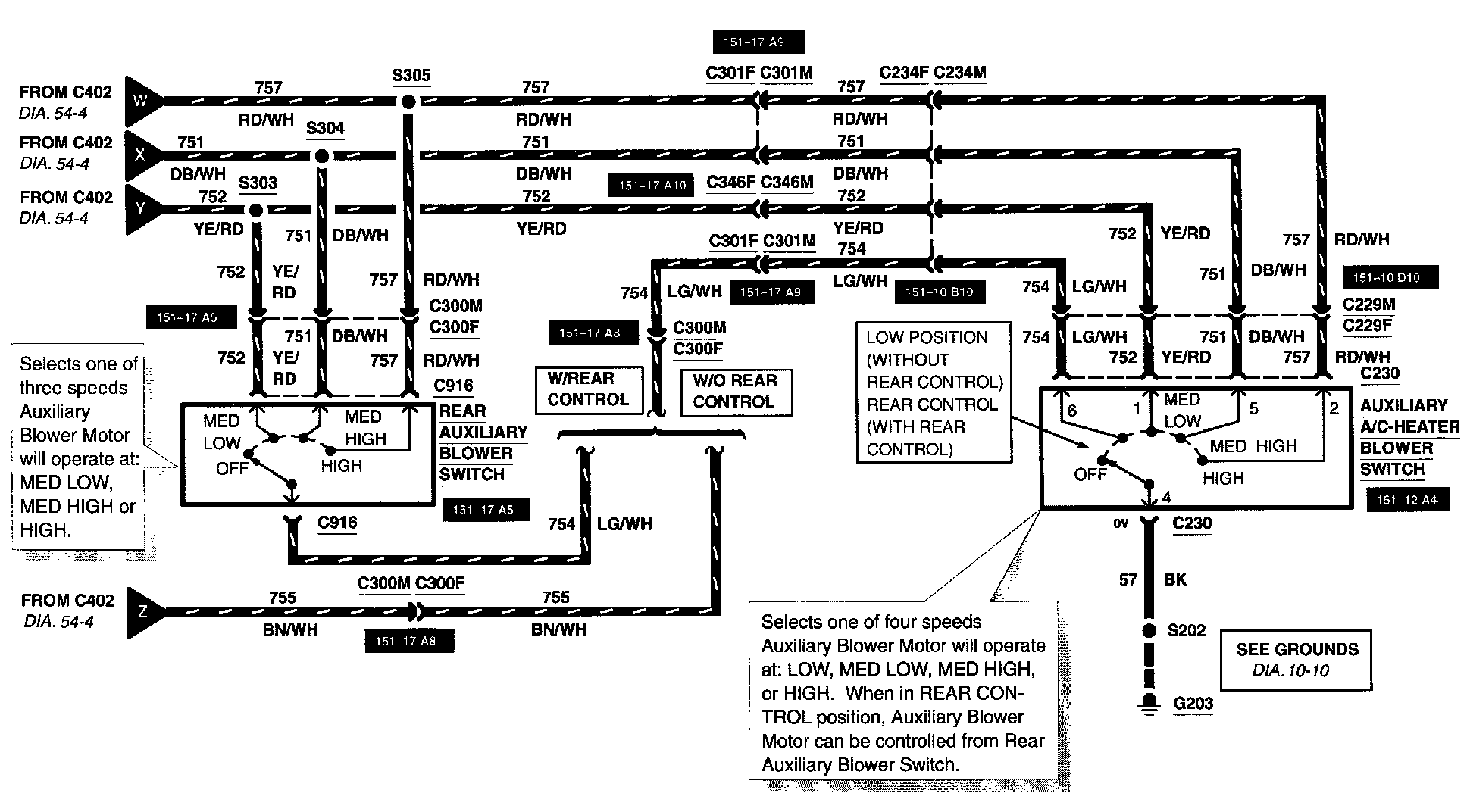

Diagram 54-2:






Diagram 54-4:






Diagram 54-5:






Diagram 54-6:






Diagram 54-8:
