Home >> Ford >> 2001 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

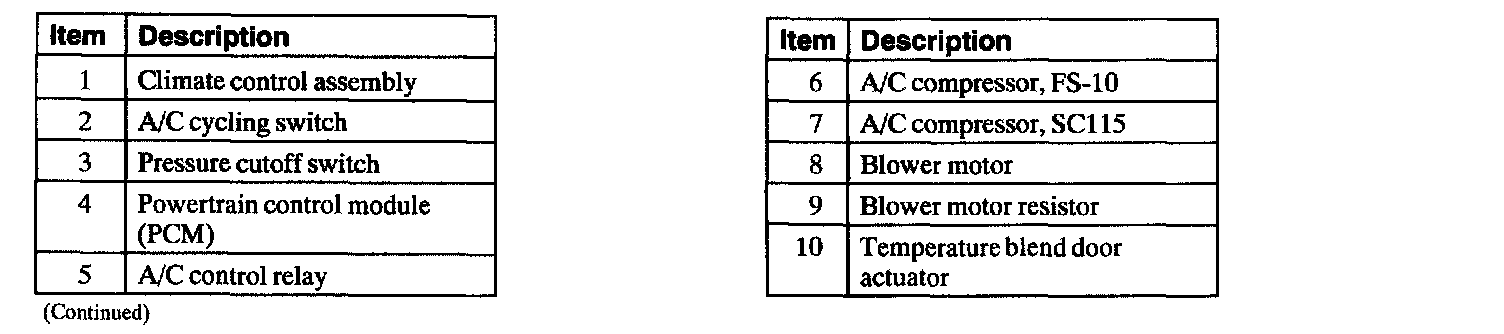

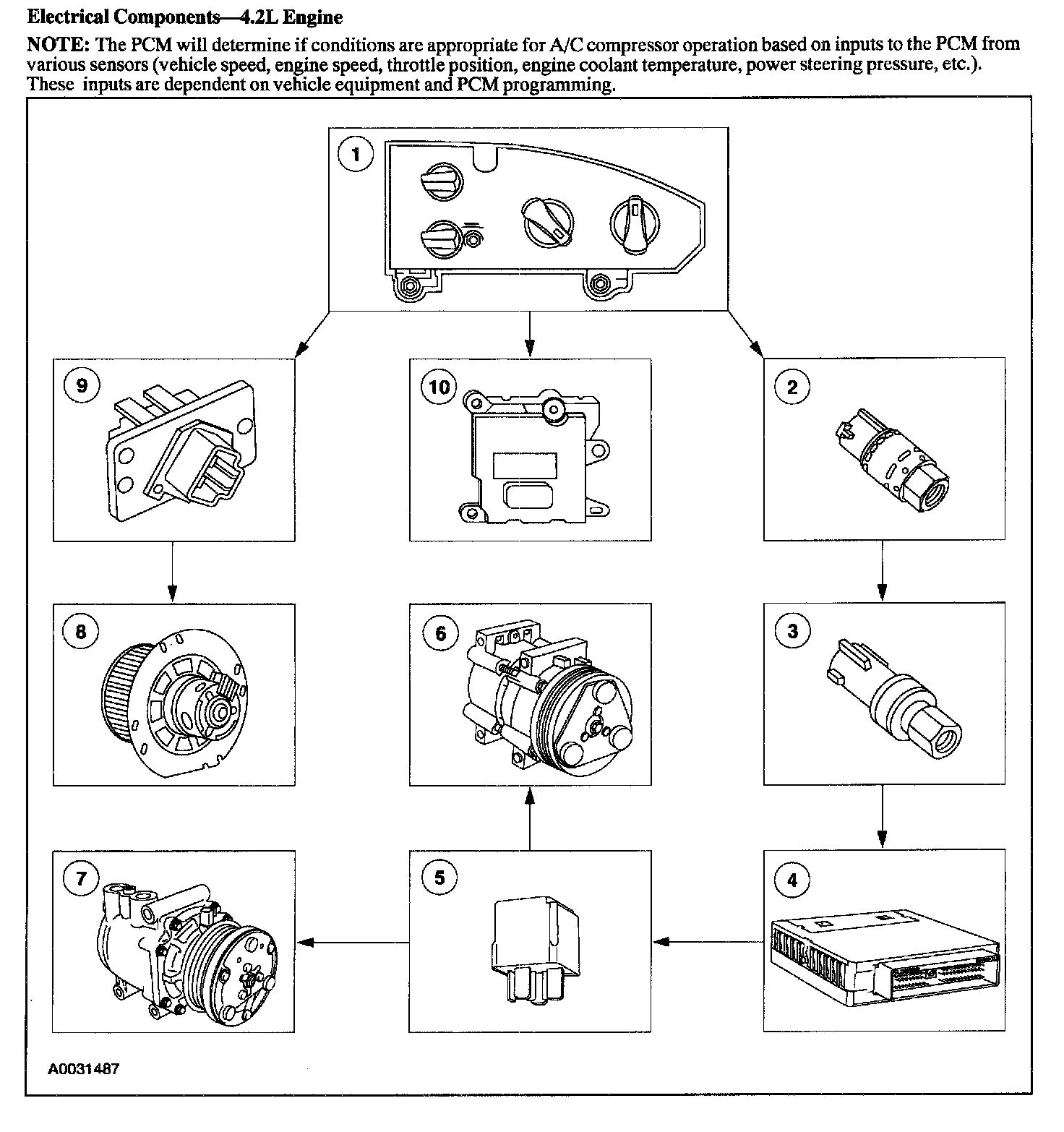

Electrical Components, Part 1:



Electrical Components, Part 2:
