Connector Locations

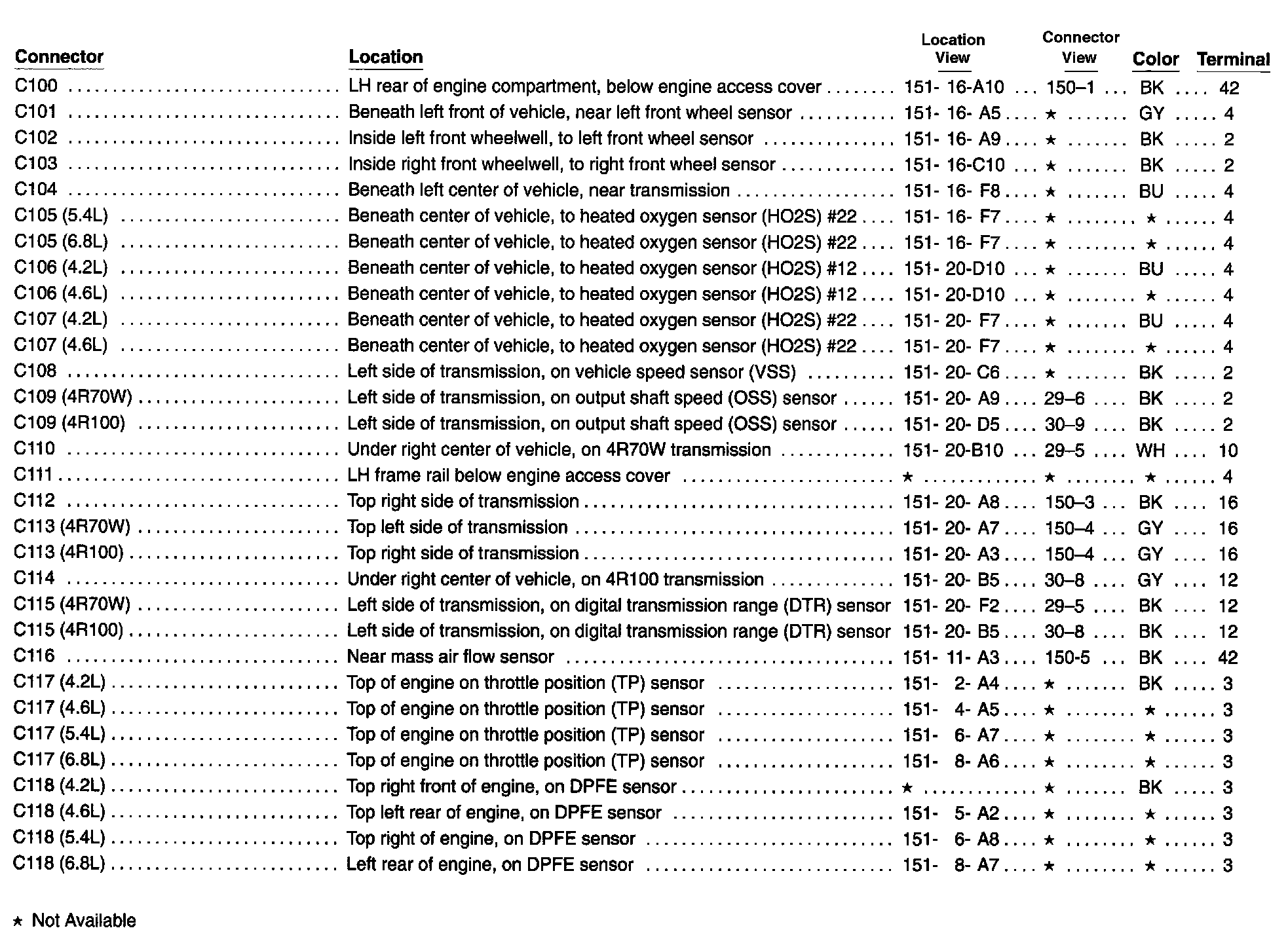

C100-C118:

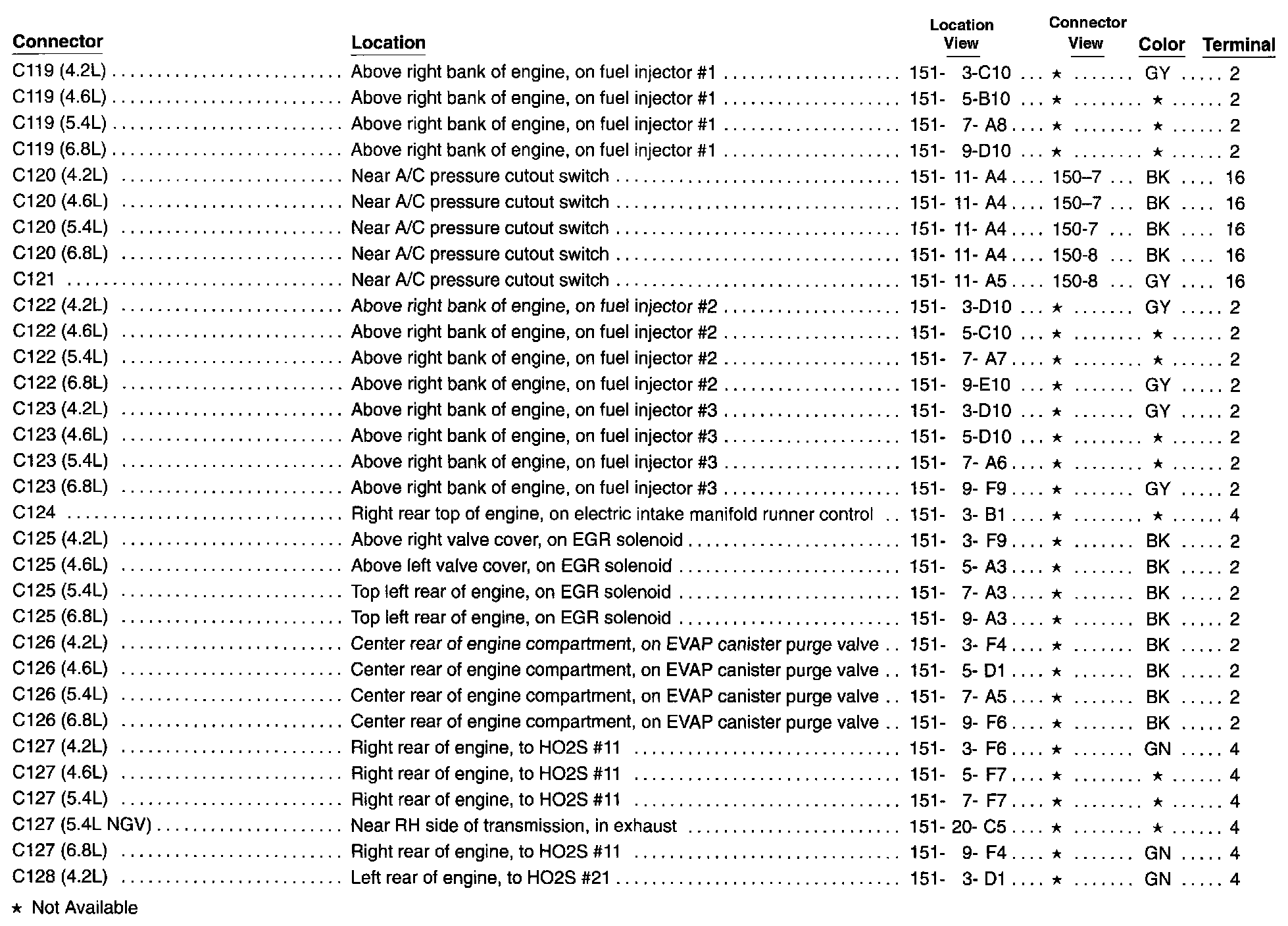

C119-C128:

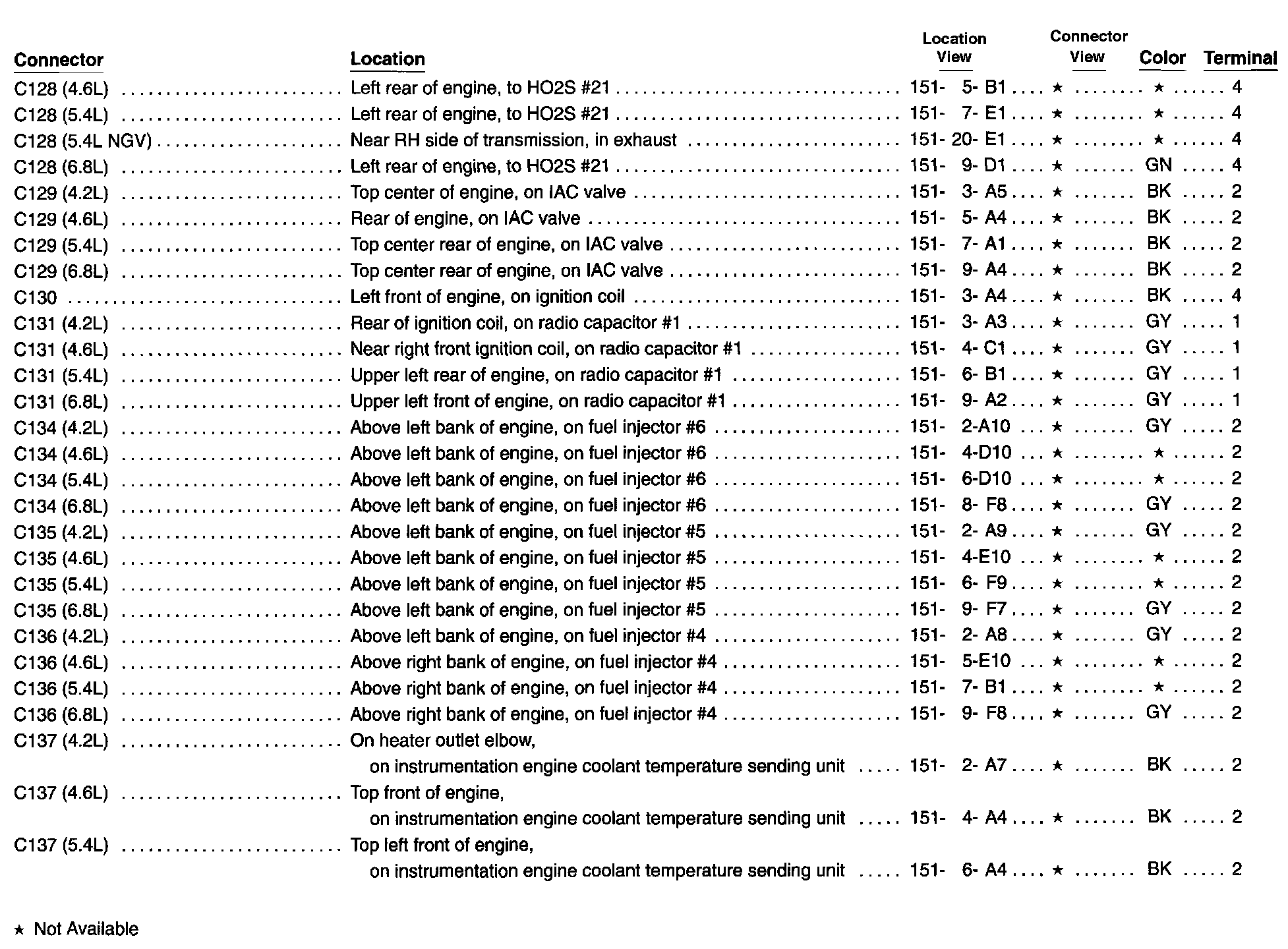

C128-C137:

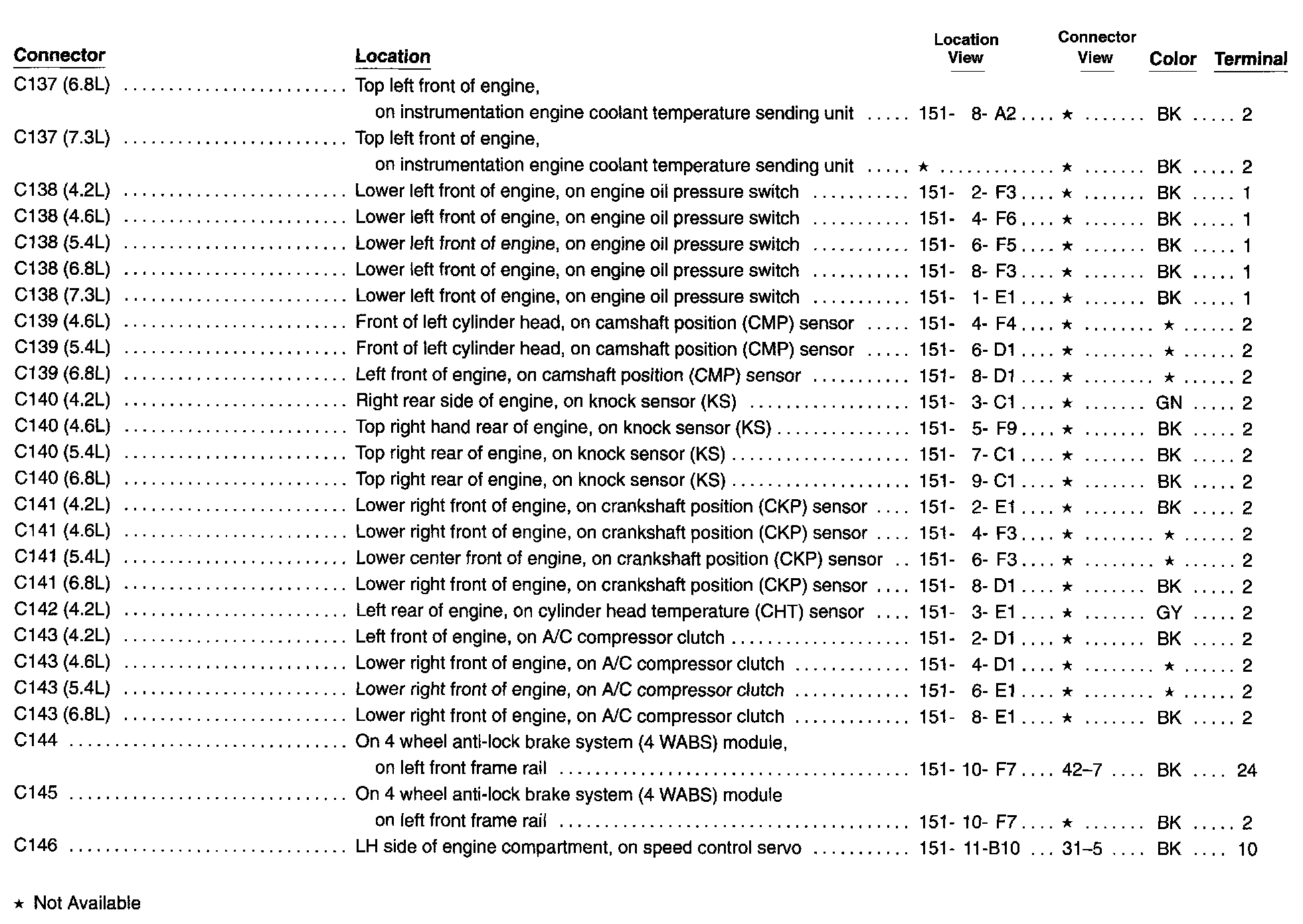

C137-C146:

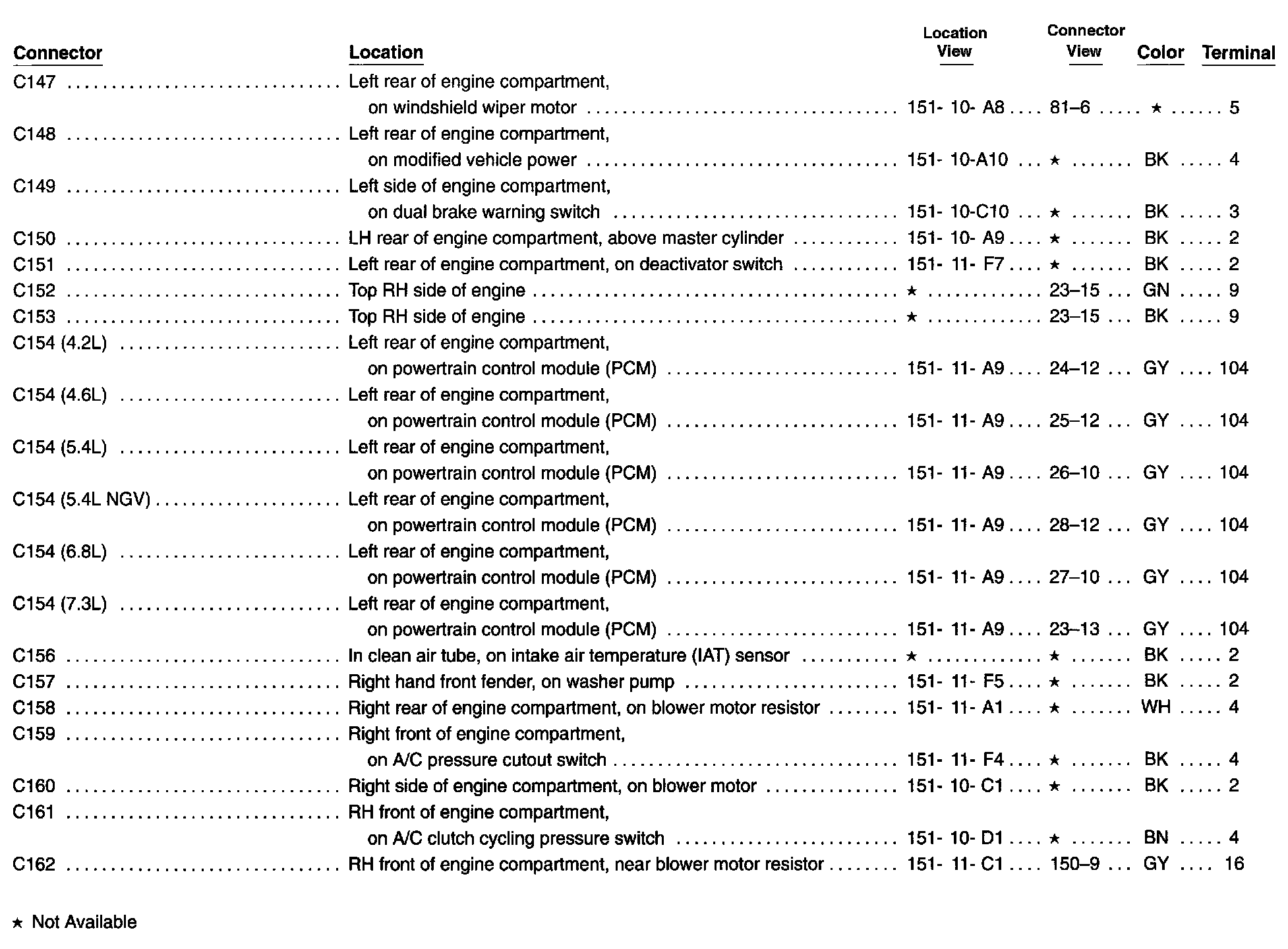

C147-C162:

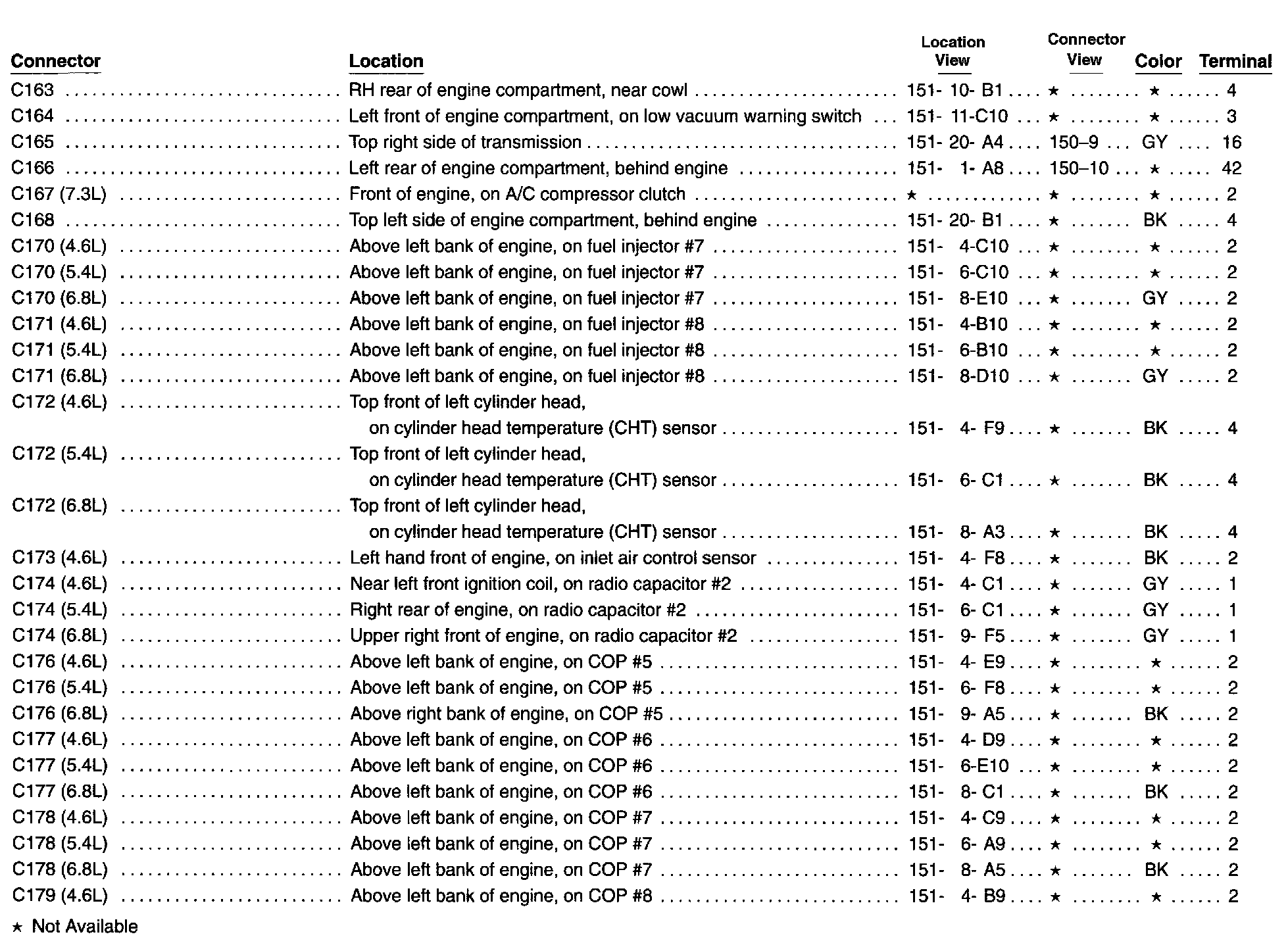

C163-C179:

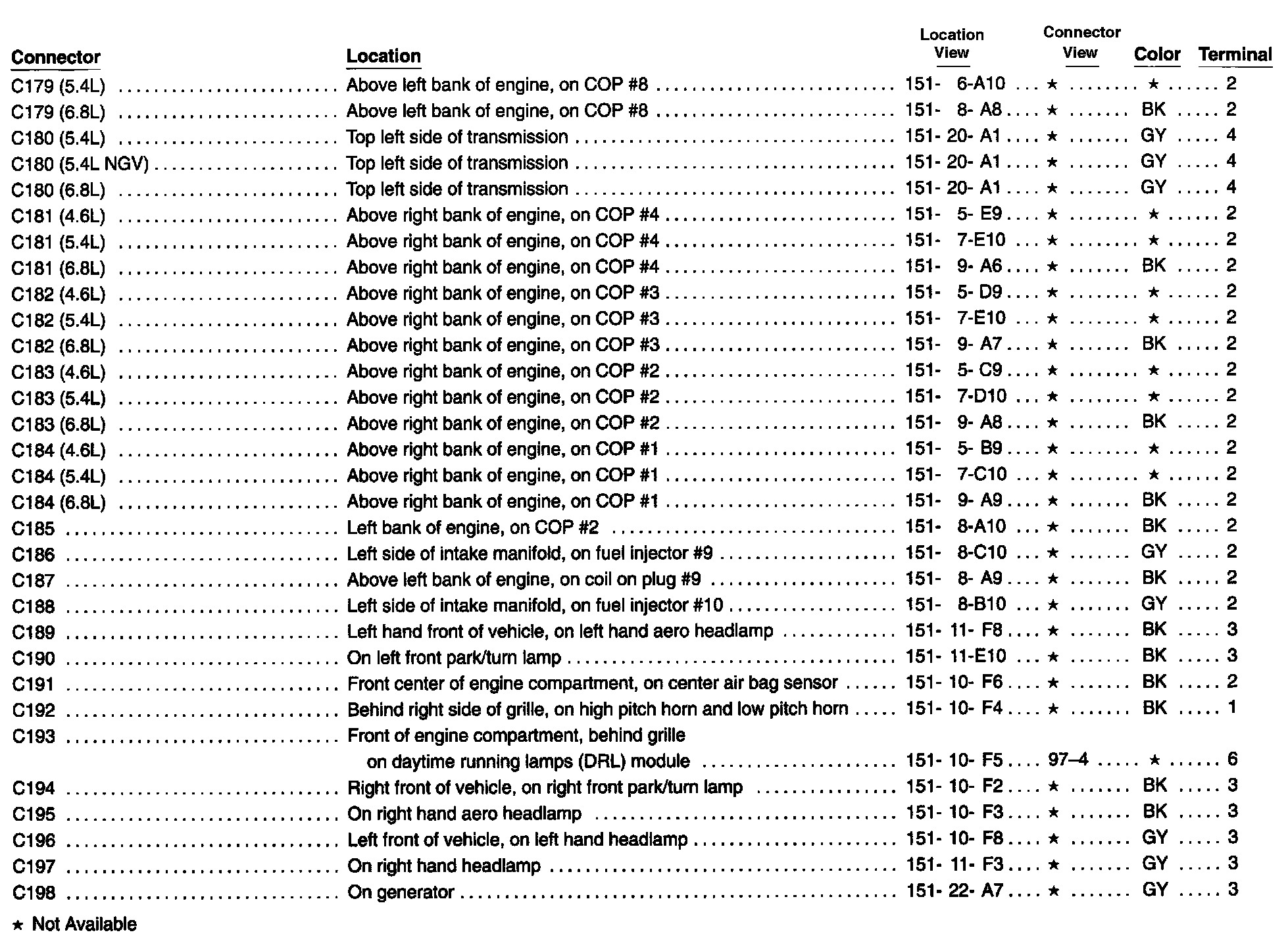

C179-C198:






C199-C232:

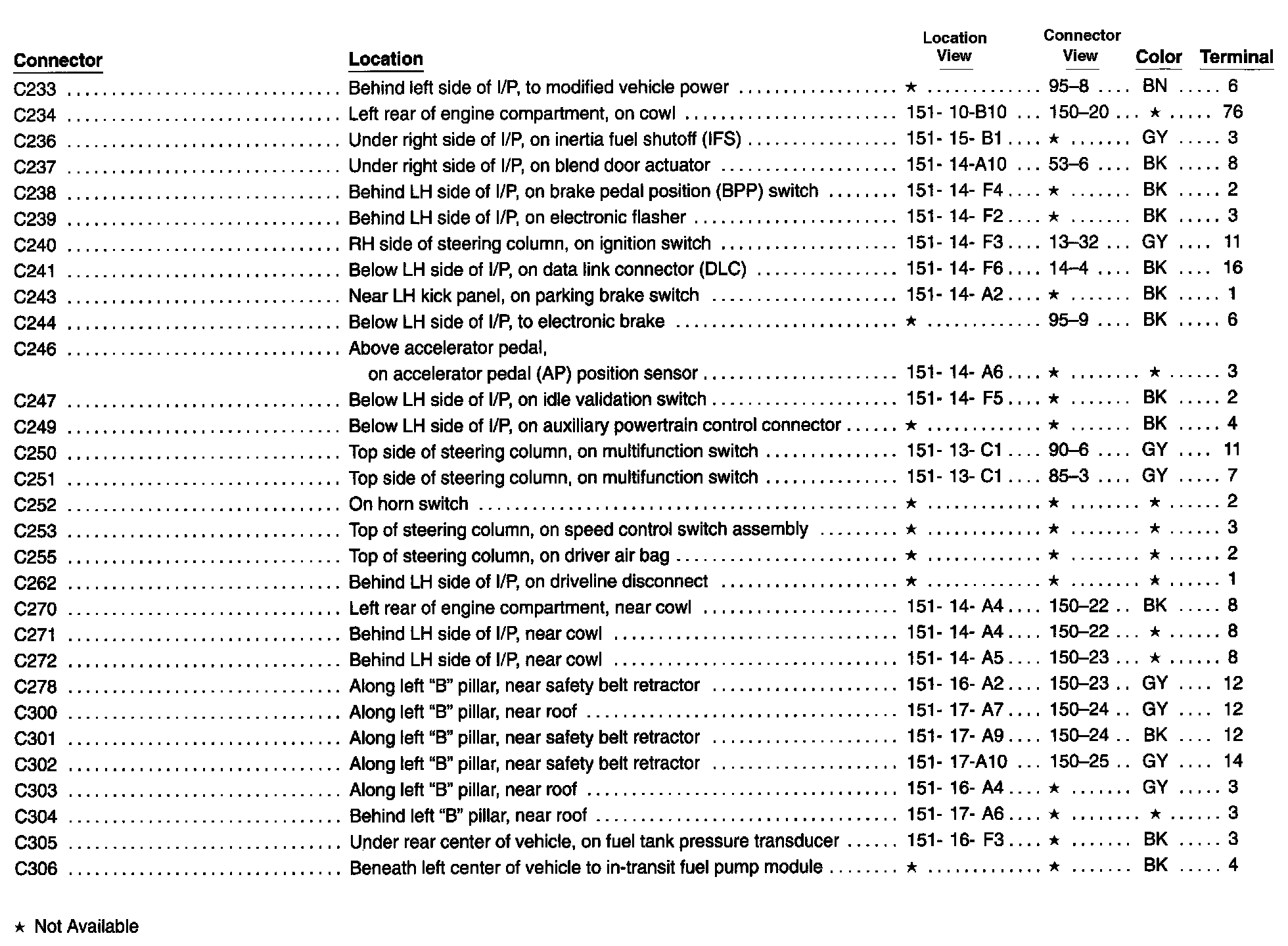

C233-C306:

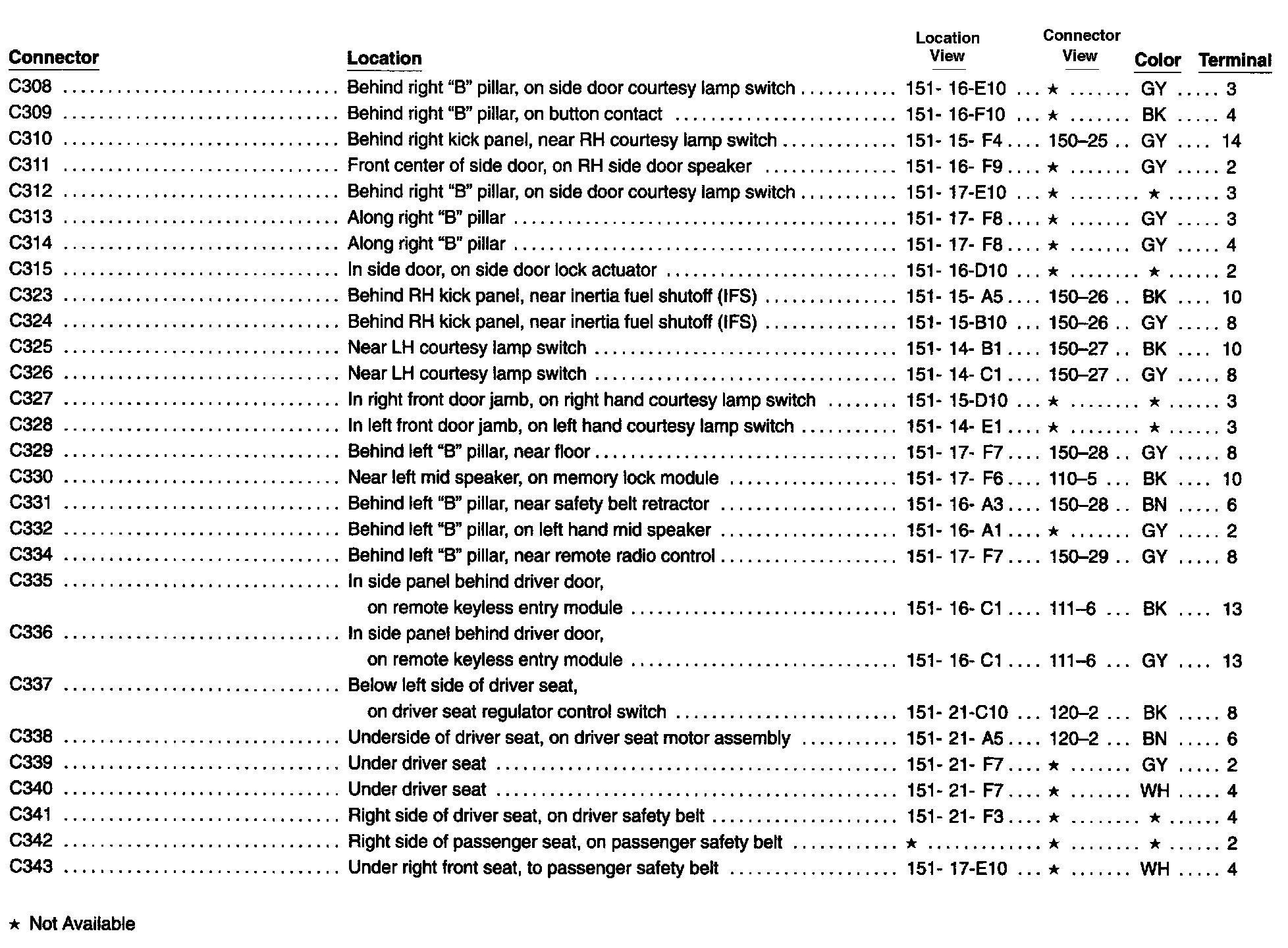

C308-C343:

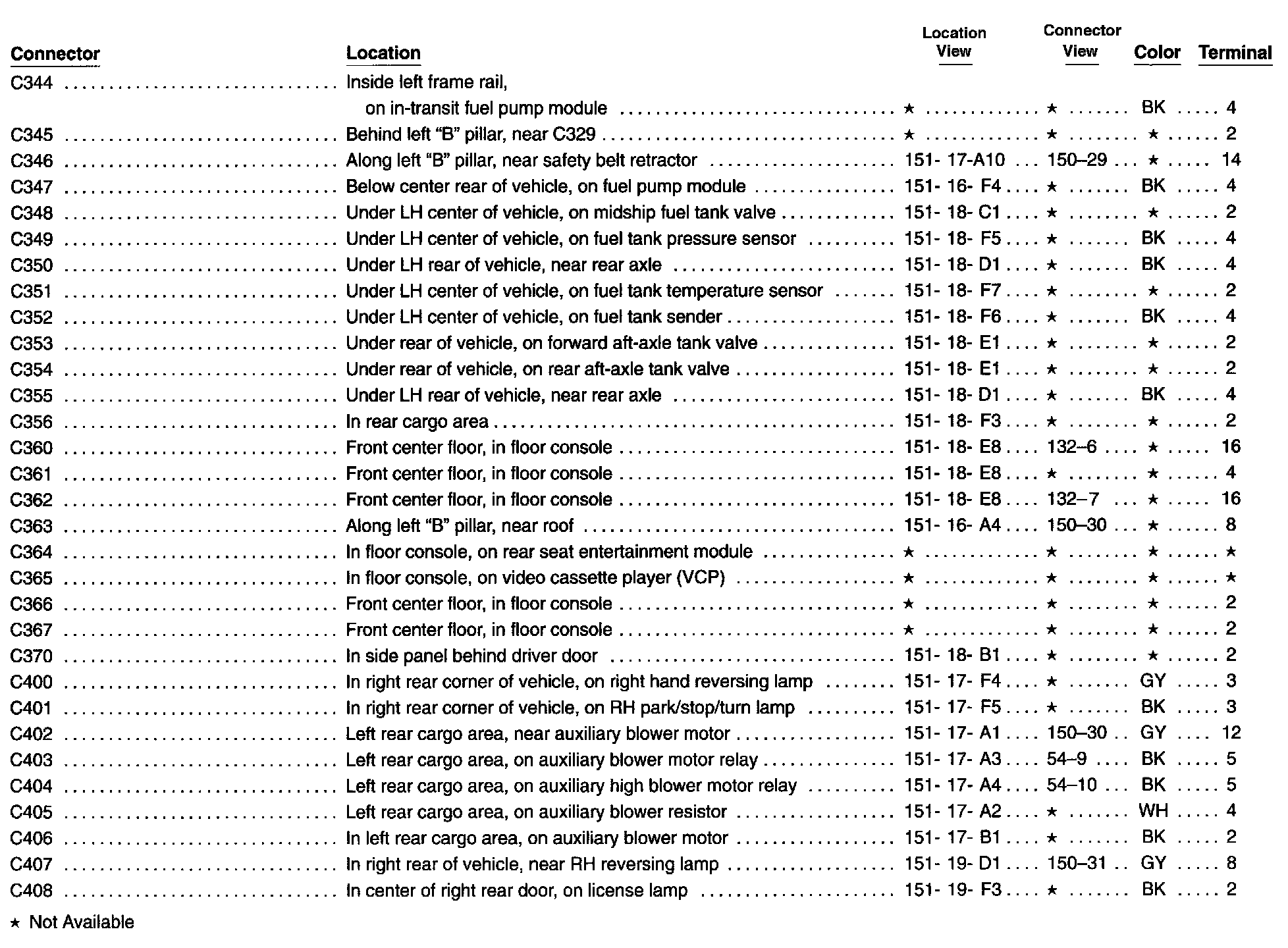

C344-C408:

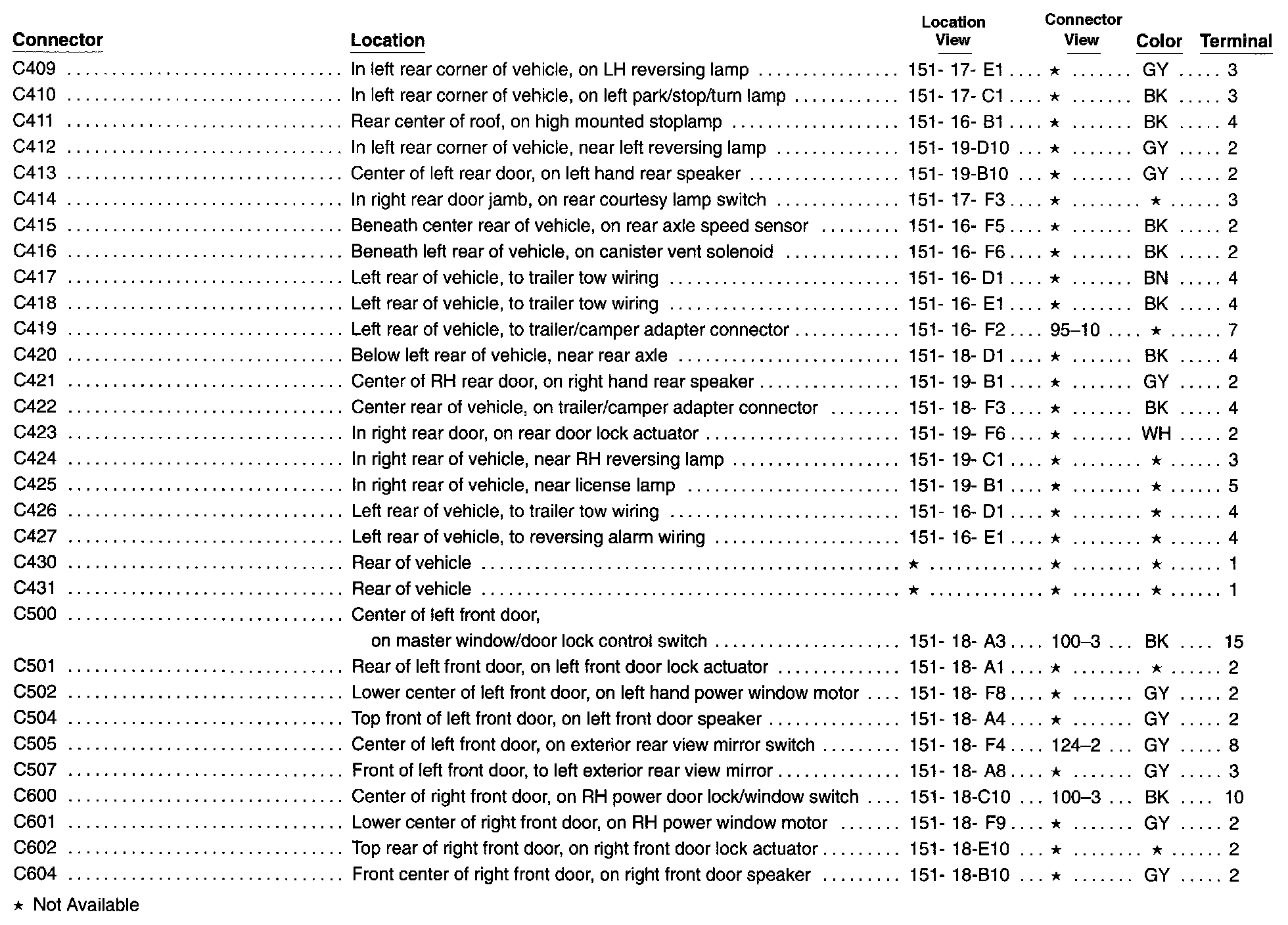

C409-C604:

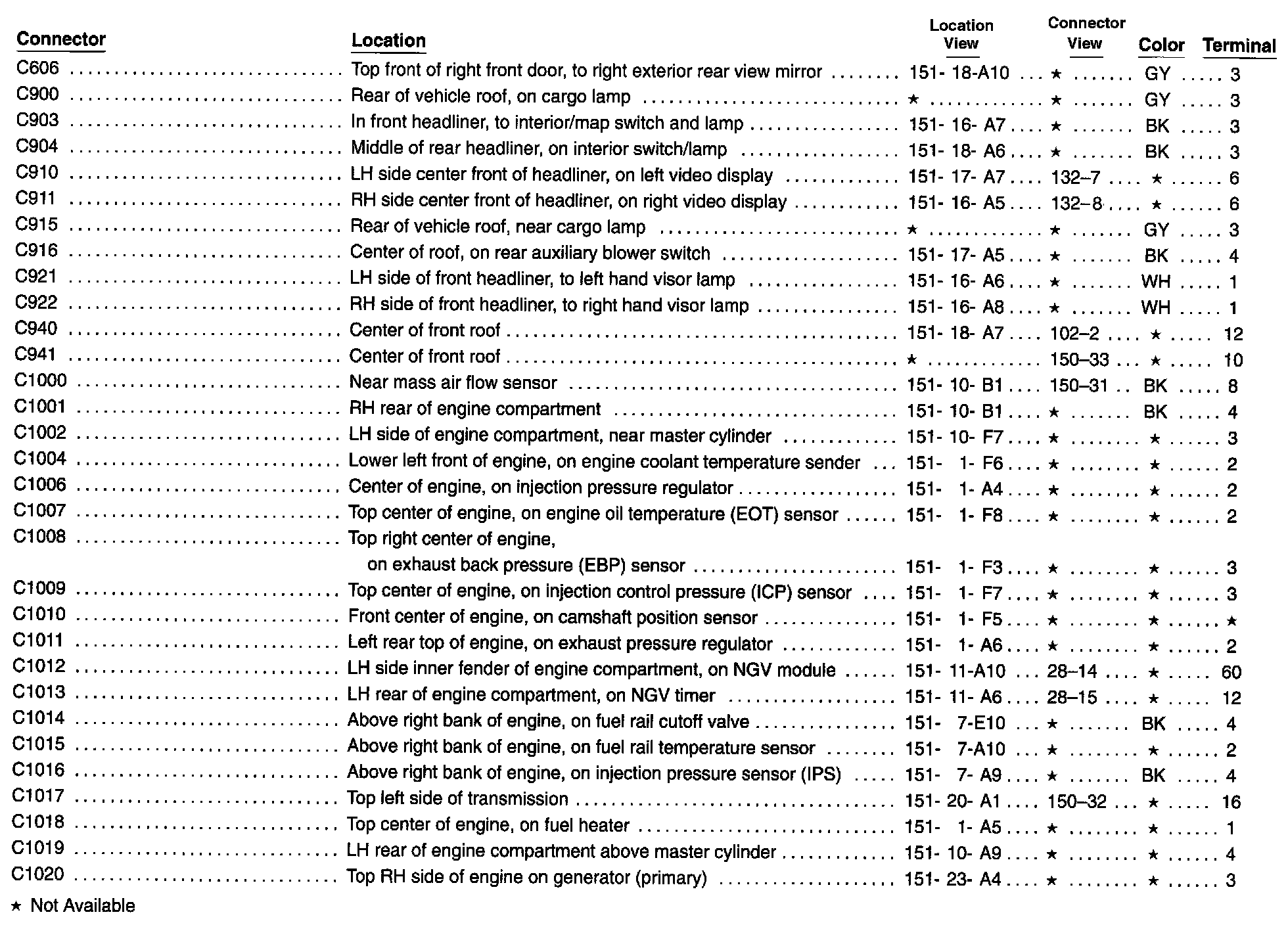

C606-C1020:

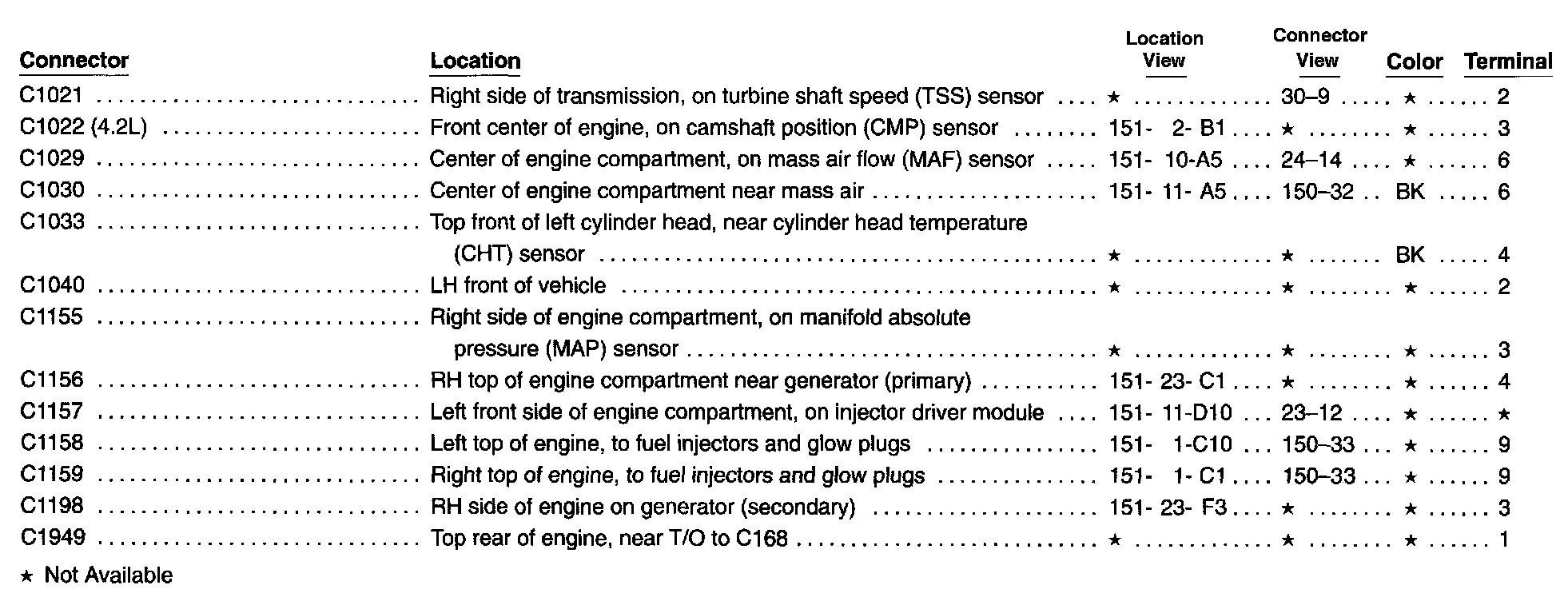

C1021-C1949:
