Home >> Ford >> 2001 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Battery Junction Box

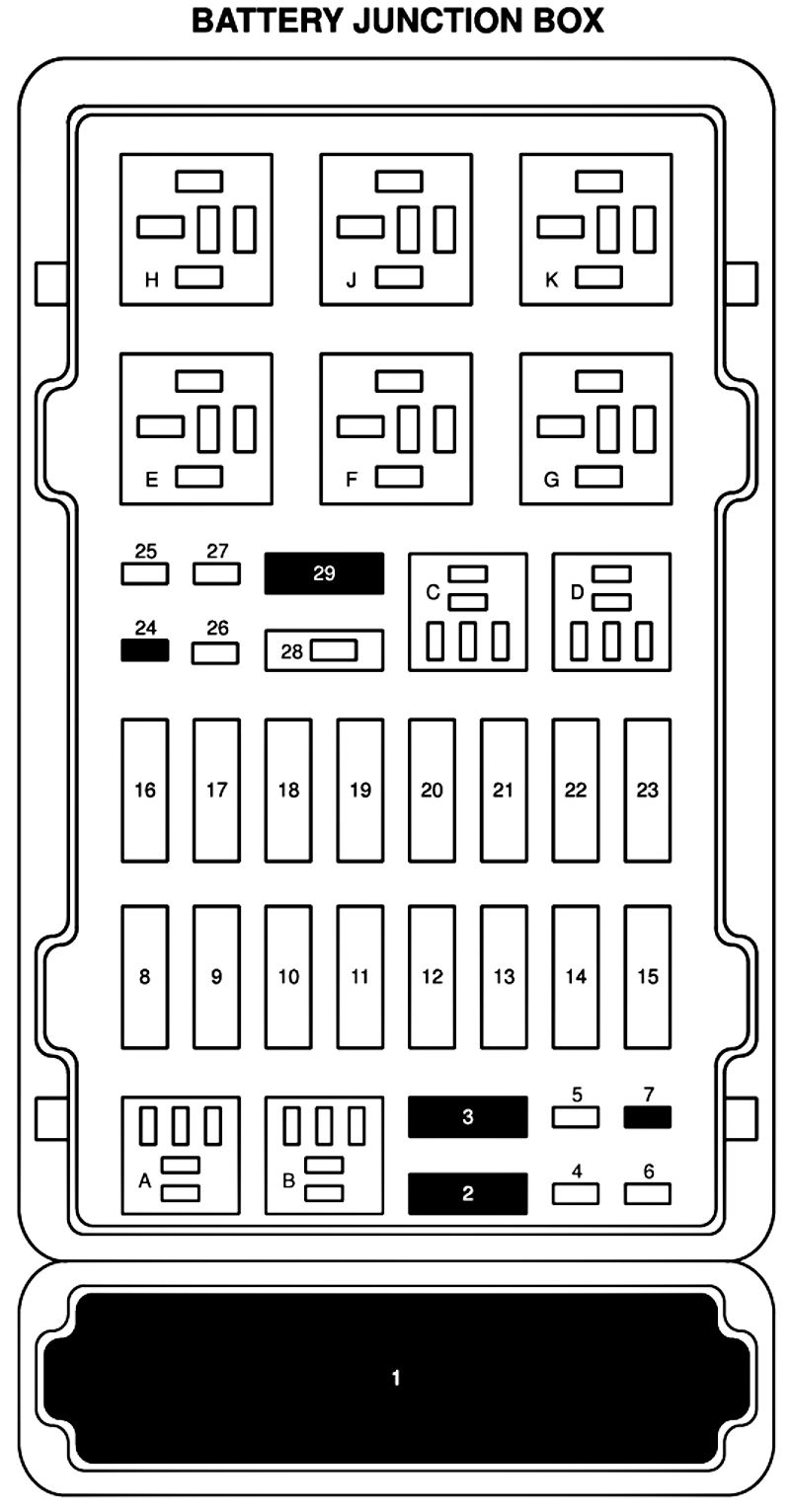

Battery Junction Box

















Note: The battery junction box is located in the engine compartment.
