Home >> Ford >> 2001 >> Econoline E150 1/2 Ton V6-4.2L VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test C: Module Does Not Respond to the Scan Tool - PCM

Test C: Module Does Not Respond to the Scan Tool - PCM

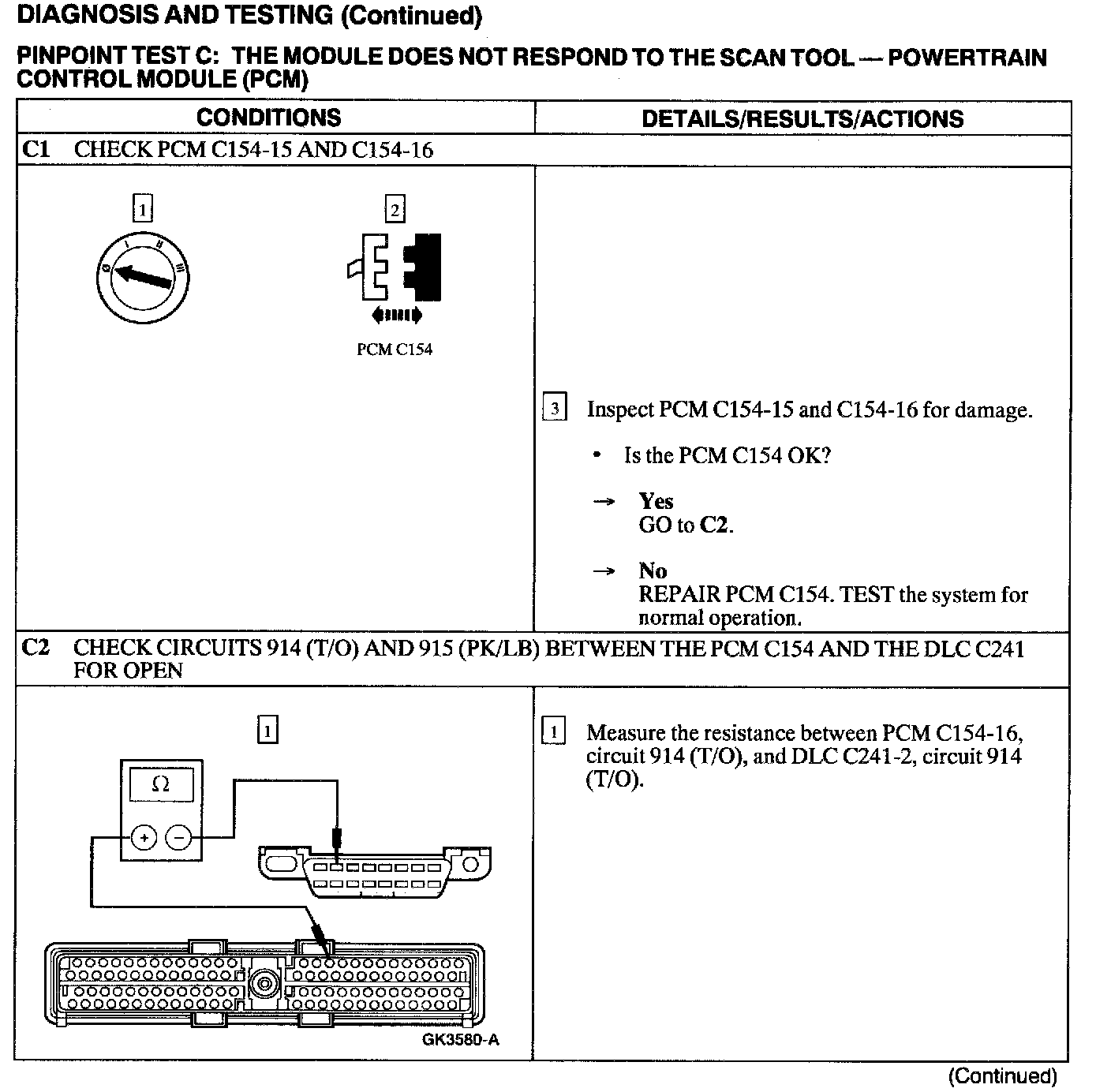

C1 - C2:

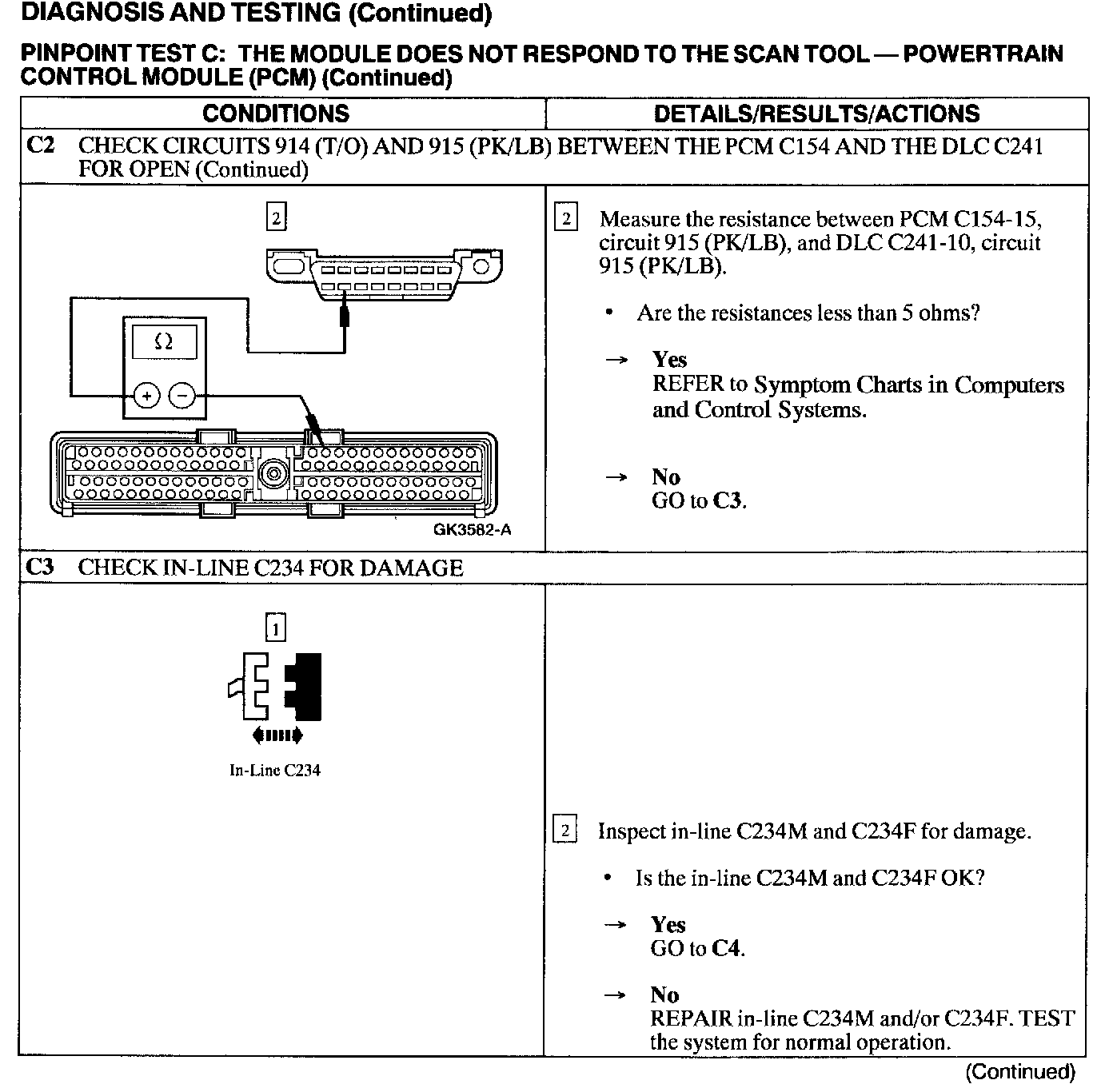

C2 - C3:






C4:
