Alignment Specifications

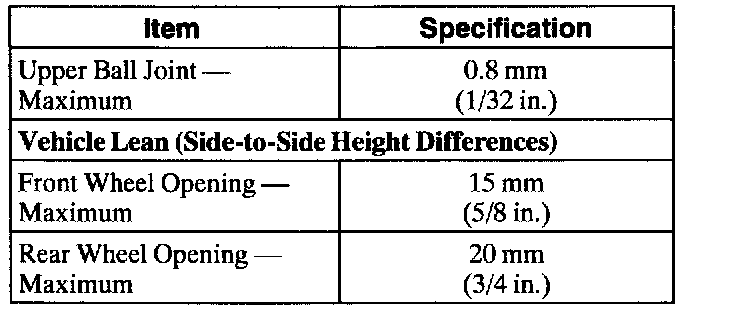

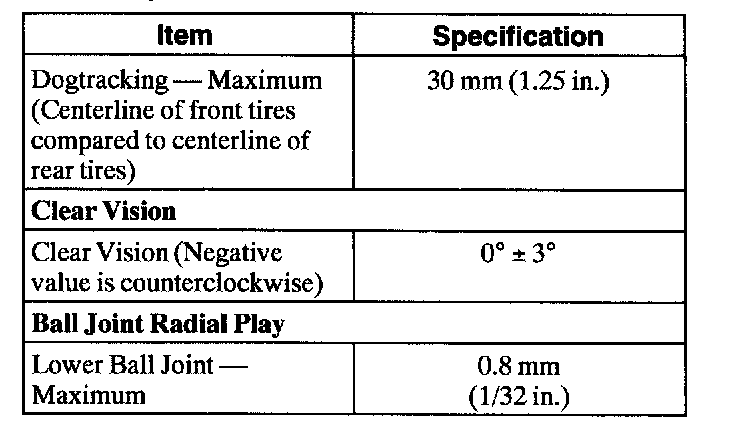

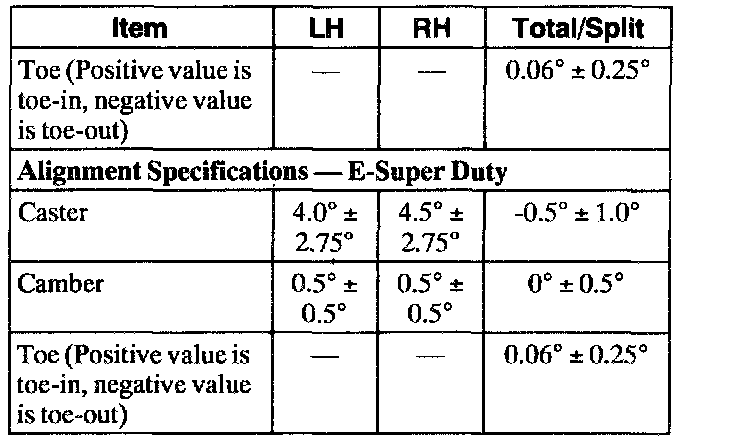

Alignment Specifications

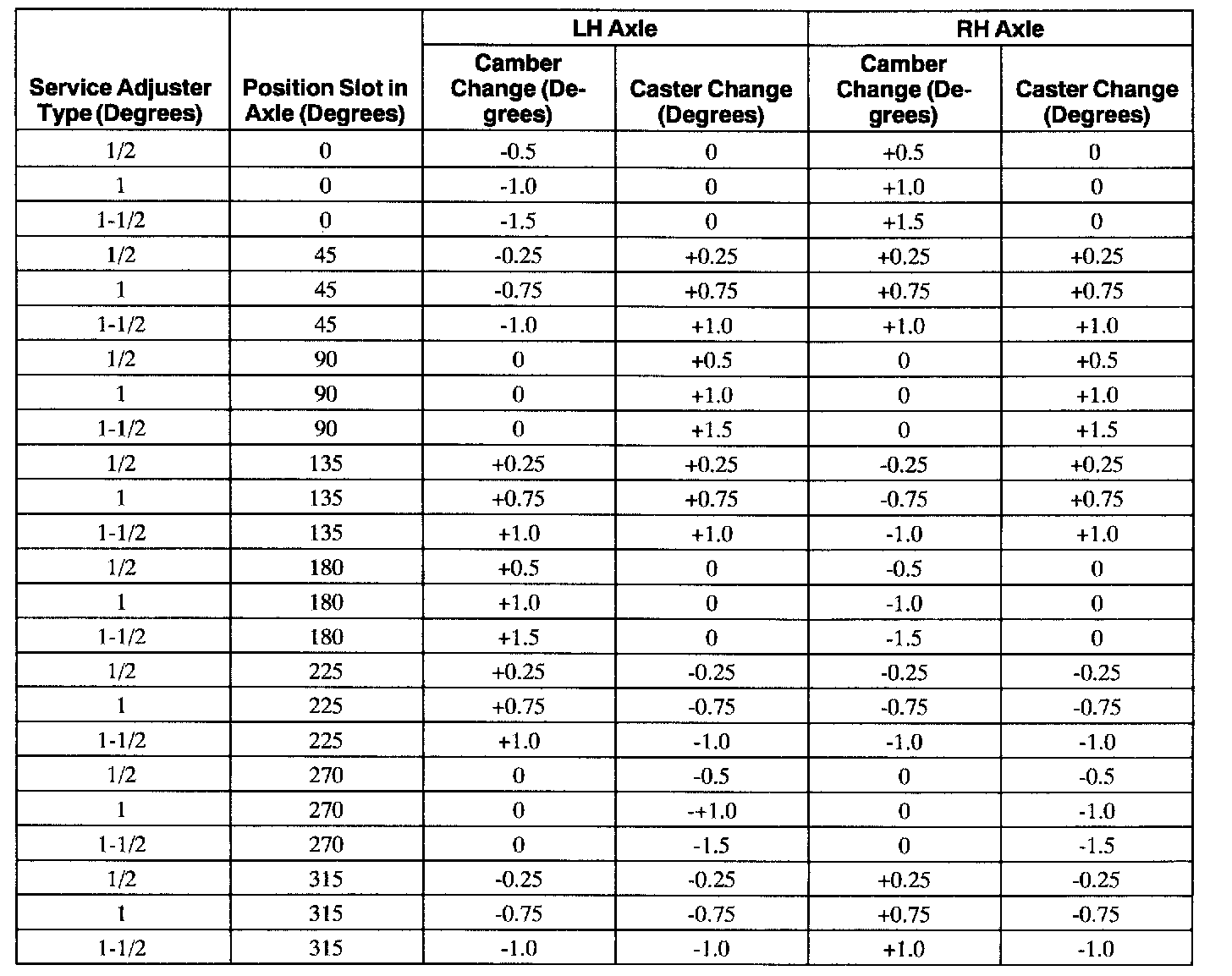

Camber/Caster Service Adjuster

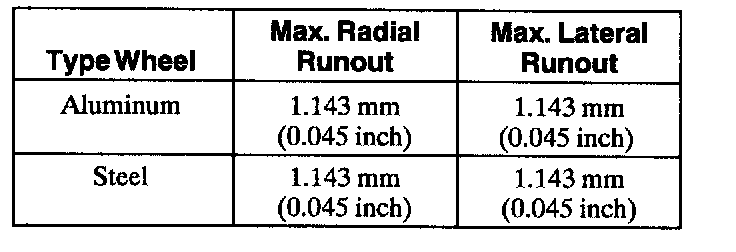

Wheel Rim Runout






Tire Runout Specifications

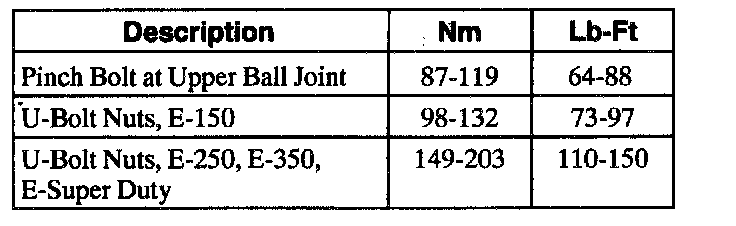

Torque Specifications
