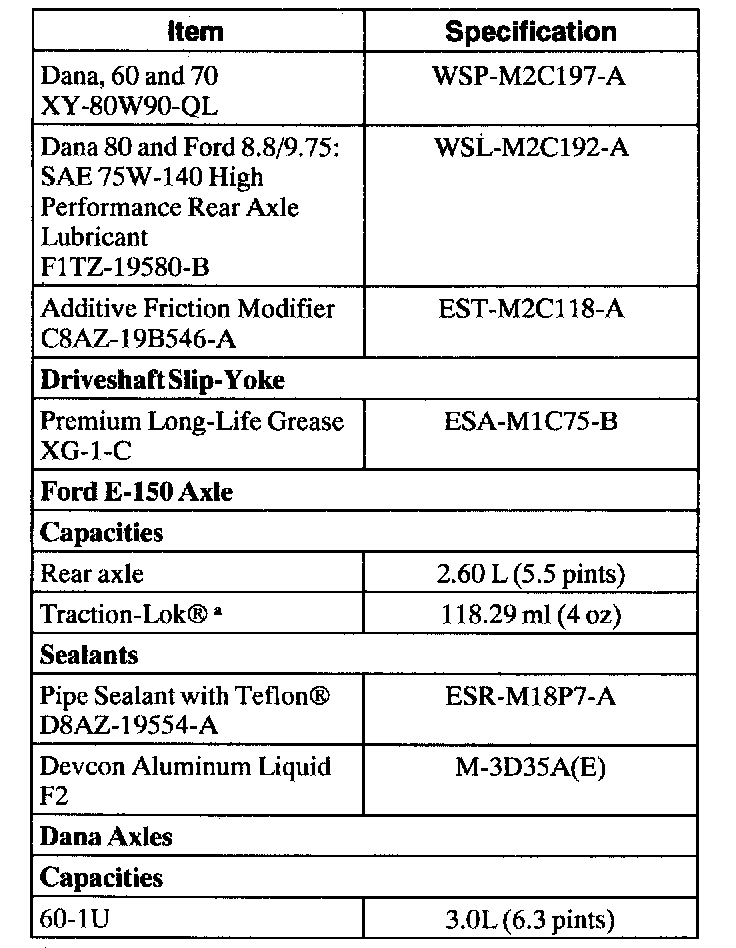

General Specifications

Part 1 of 2





Part 2 of 2

NOTE: Use Ford Friction Modifier C8AZ-1913546-A or equivalent meeting Ford specification EST-M2C118-A for complete refill of Dana limited slip rear axles. Add 0.2 liter (8 oz) for complete refill.

Note: No Data axles for E250, W350 or E450 have synthetic lubricant as factory fill. If any Econoline vehicle will be towing a trailer frequently, particularly in hot or hilly area, it is recommended that the axle be filled with 75W- 140 synthetic lubricant or equivalent meeting Ford specification WSL-M2C192-A.
