Engine

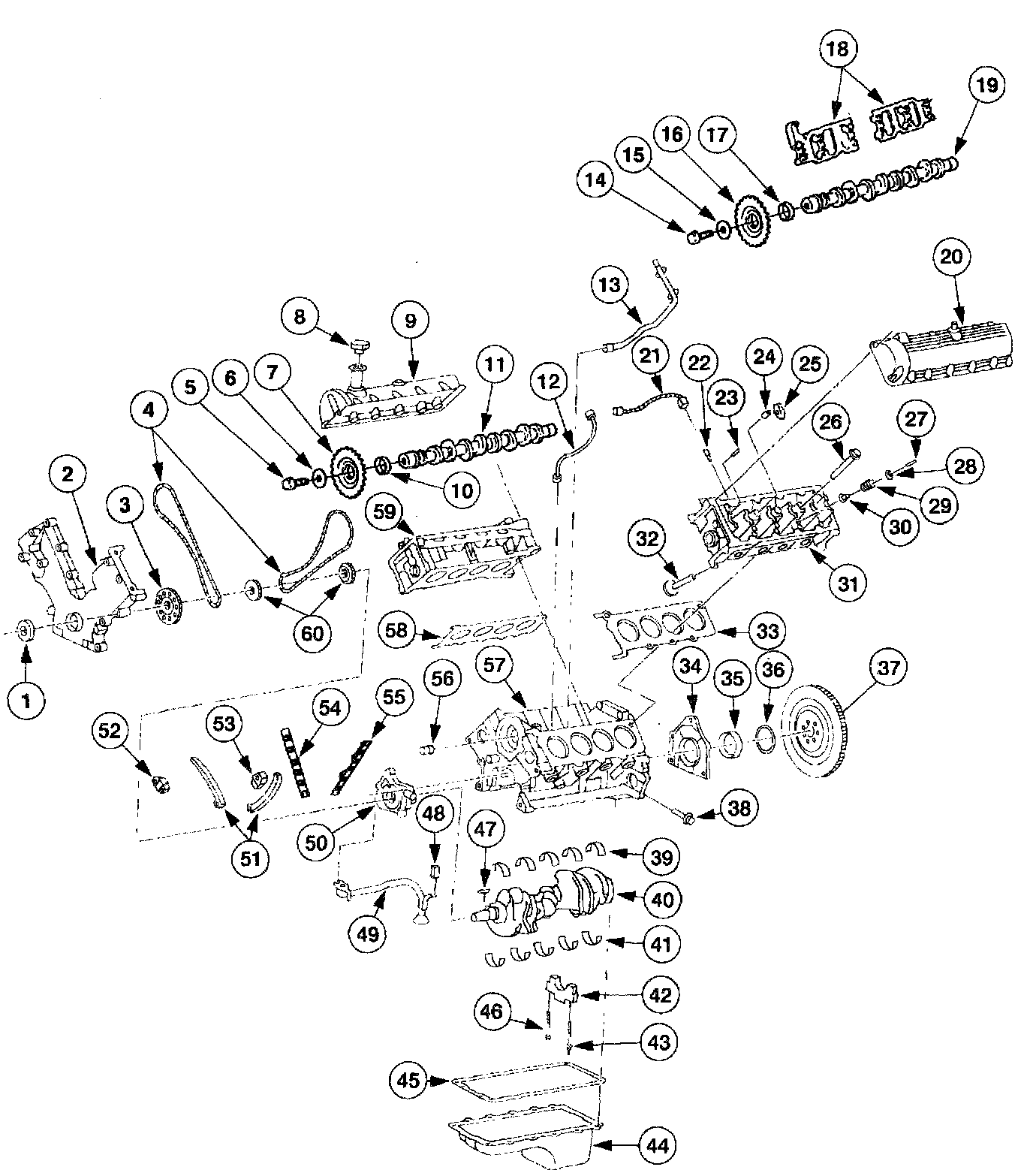

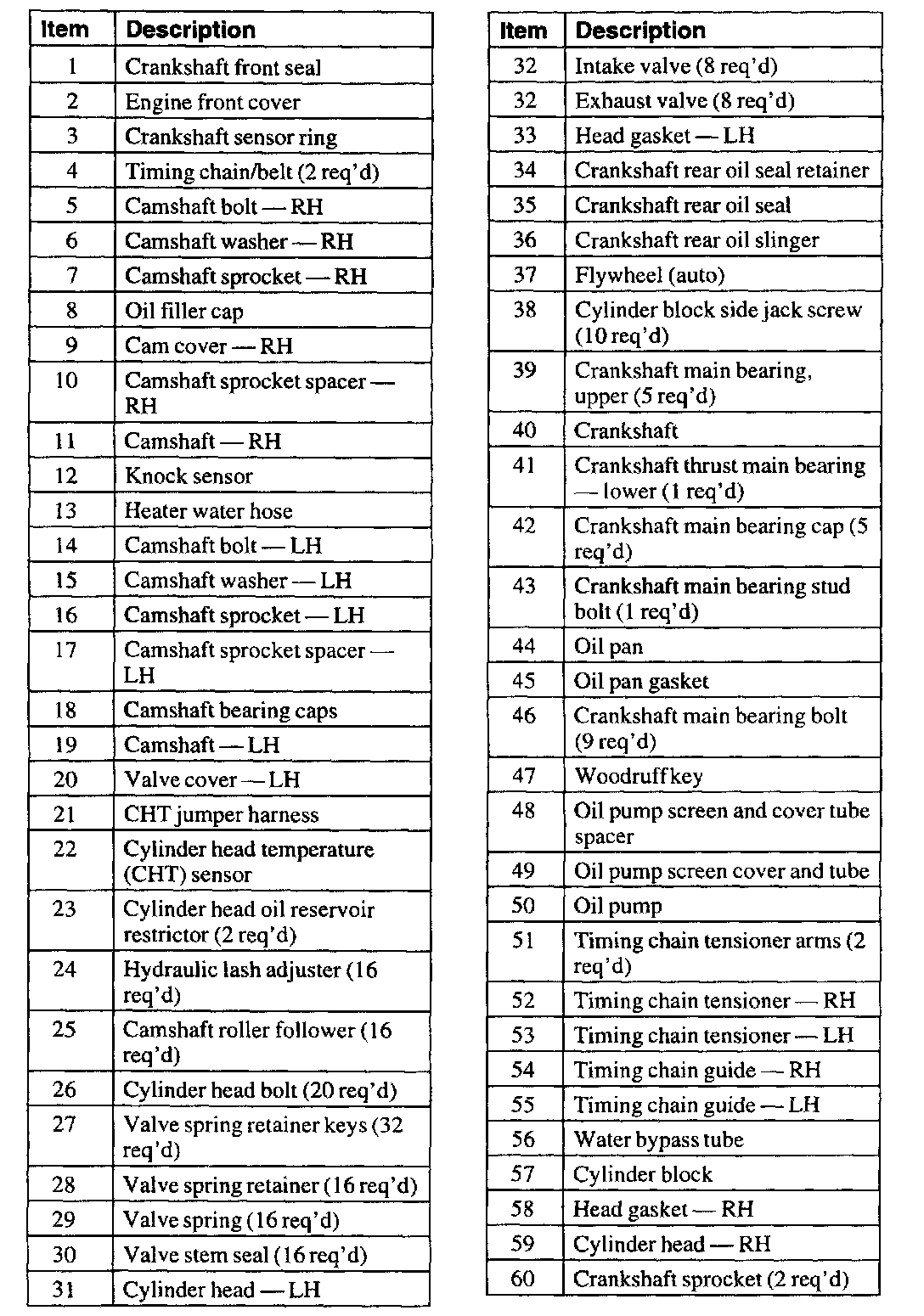

4.6L Romeo Engine part 1 of 2





4.6L Romeo Engine part 2 of 2

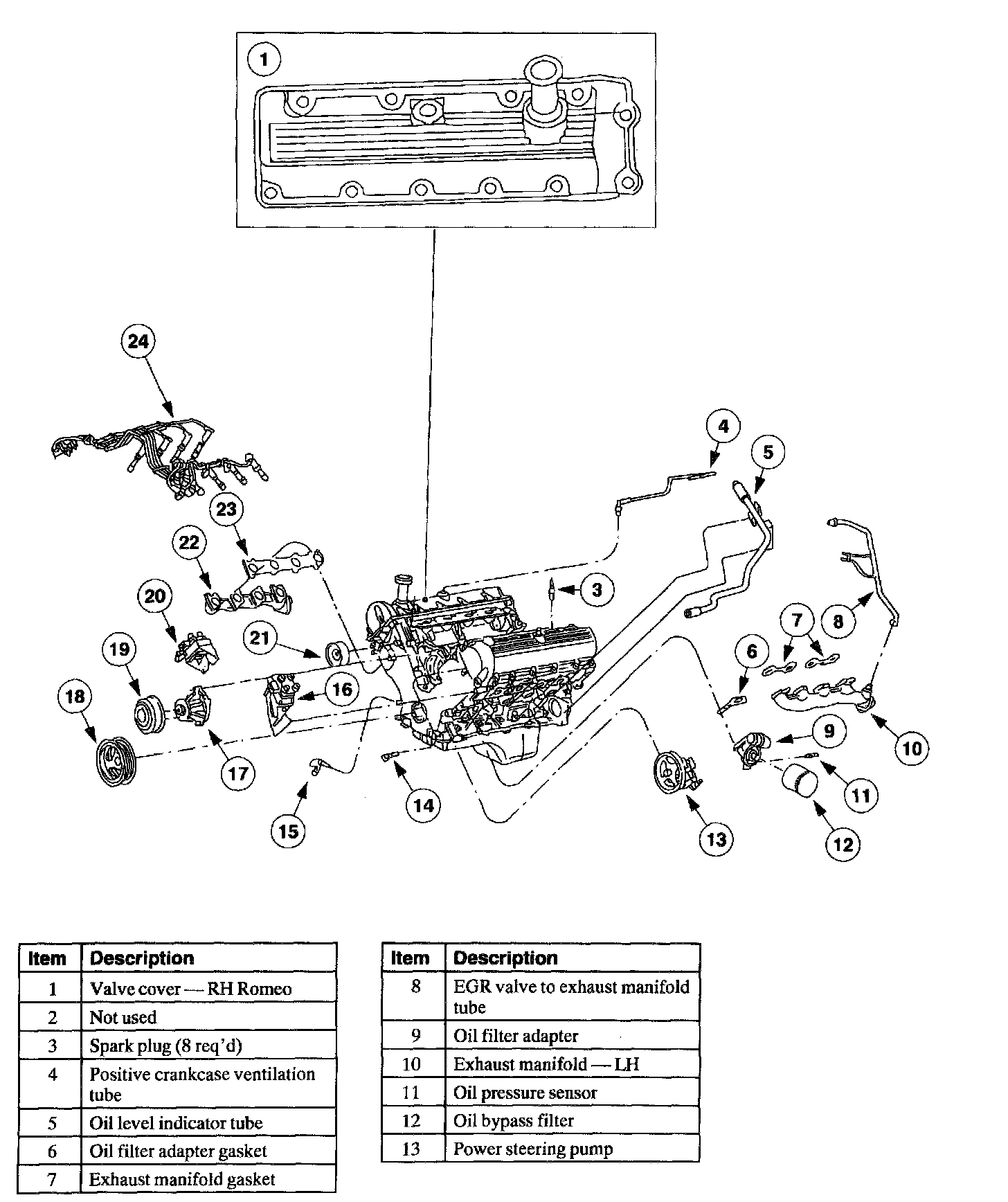

4.6L Engine Components Part 1 of 2





4.6L Engine Components Part 1 of 2
