Engine

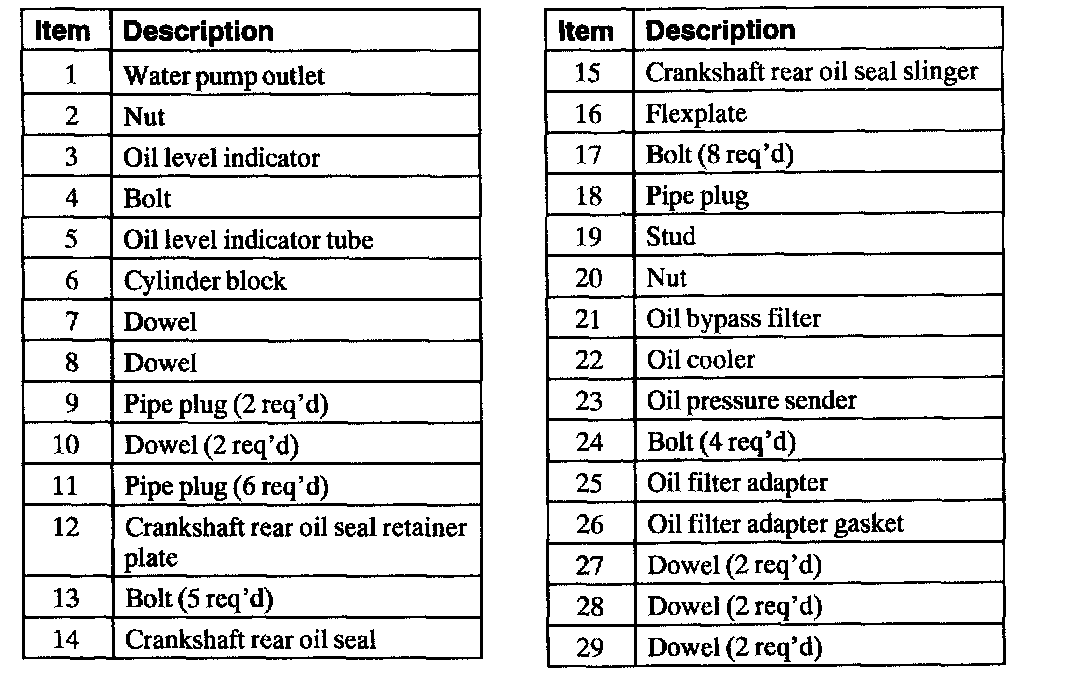

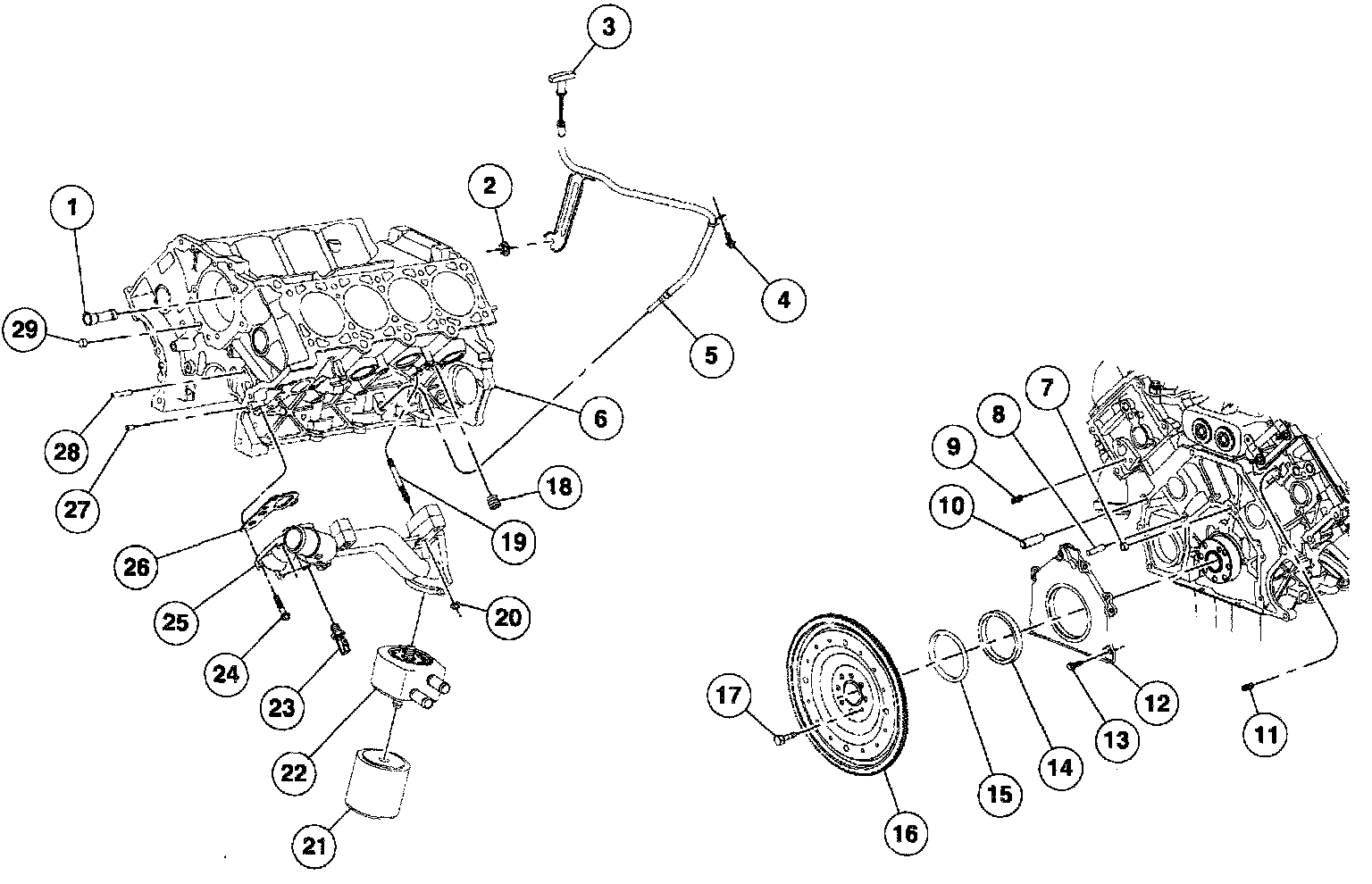

5.4L Engine Part 1 of 2





5.4L Engine Part 2 of 2

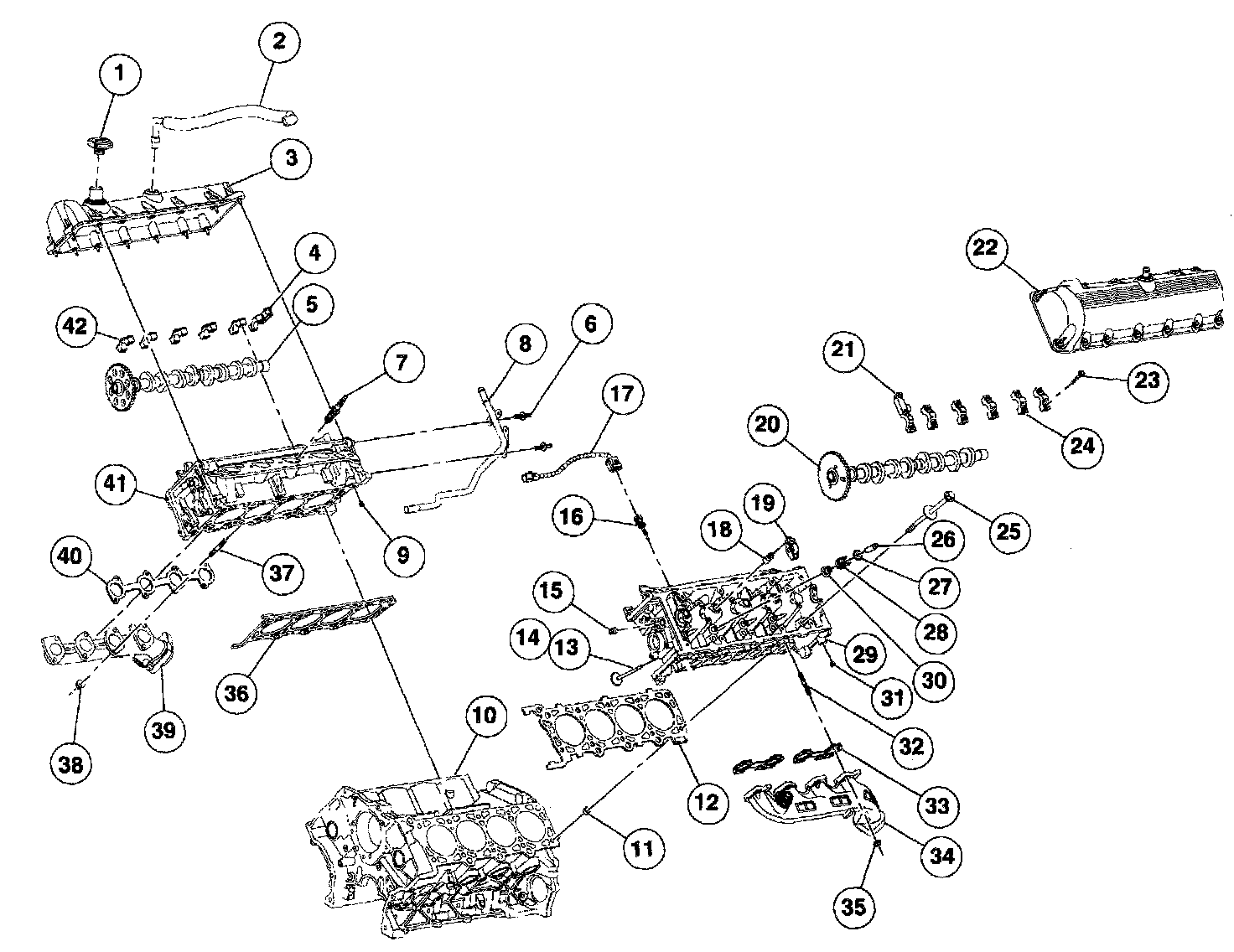

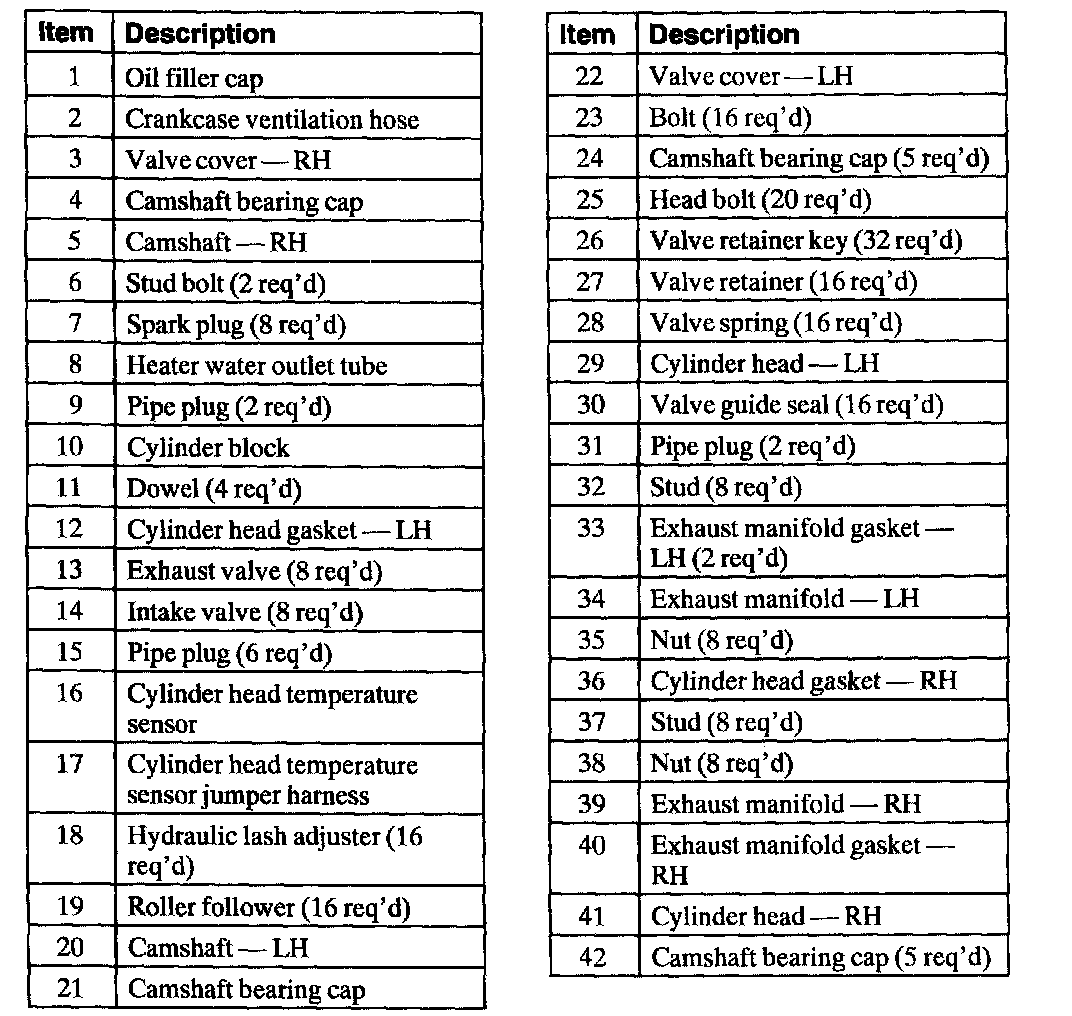

5.4L Engine- Valve Train Part 1 of 2





5.4L Engine- Valve Train Part 2 of 2

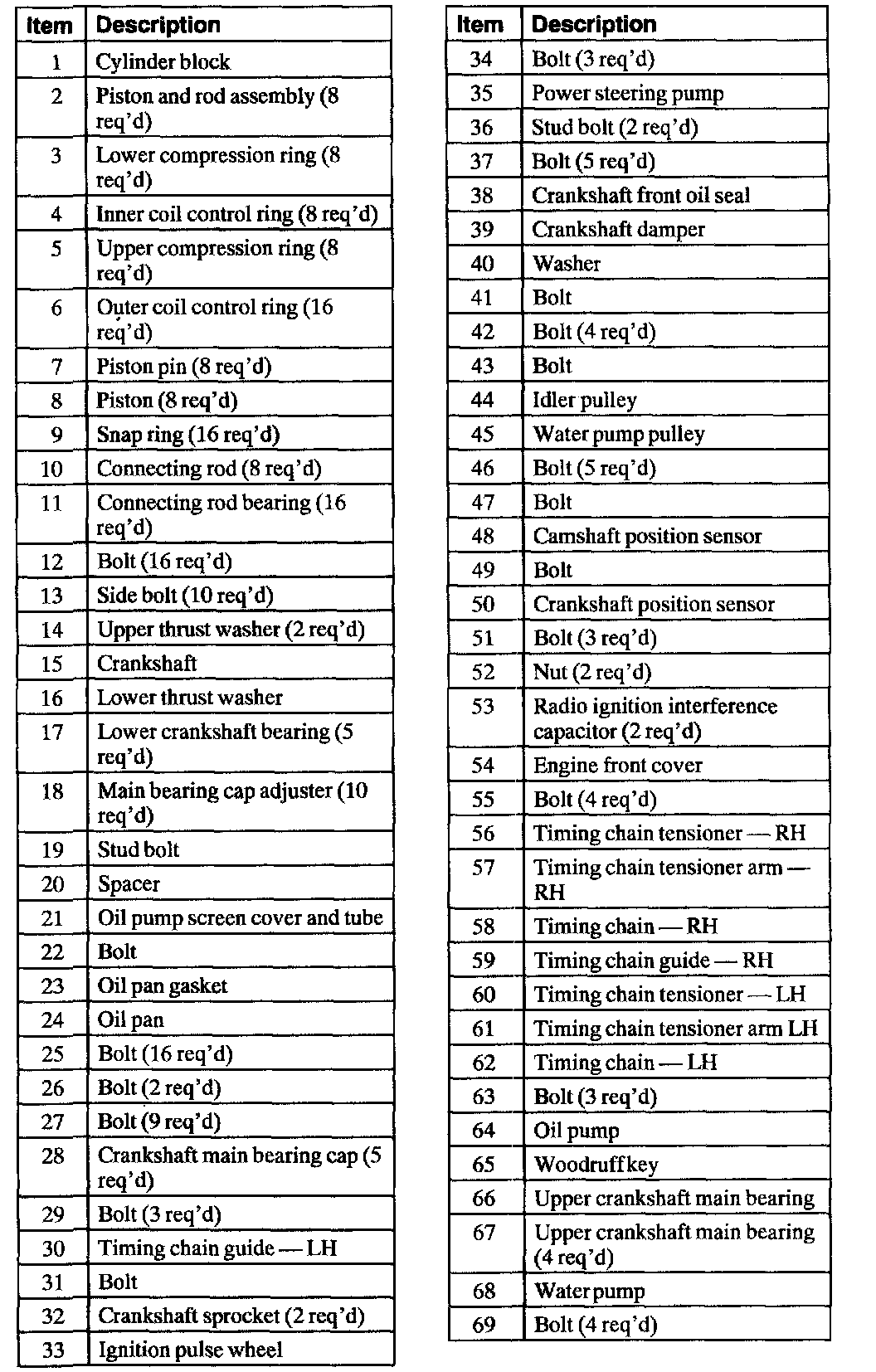

5.4L Engine - Lower and Front End Part 1 of 2





5.4L Engine - Lower and Front End Part 2 of 2

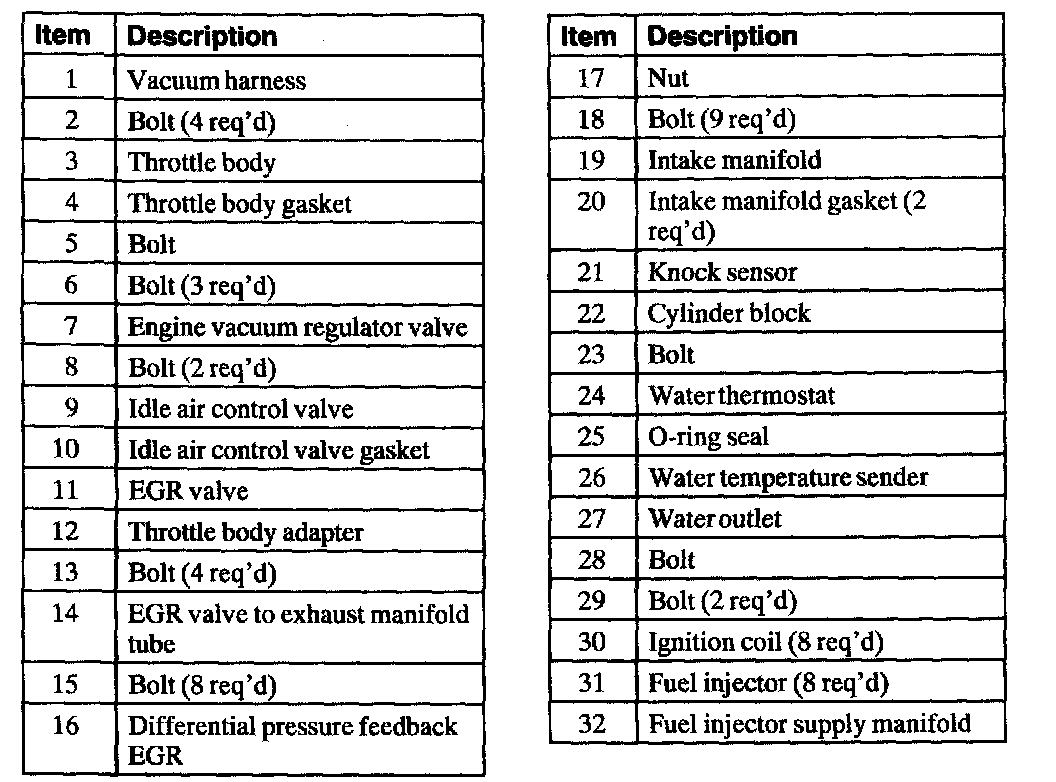

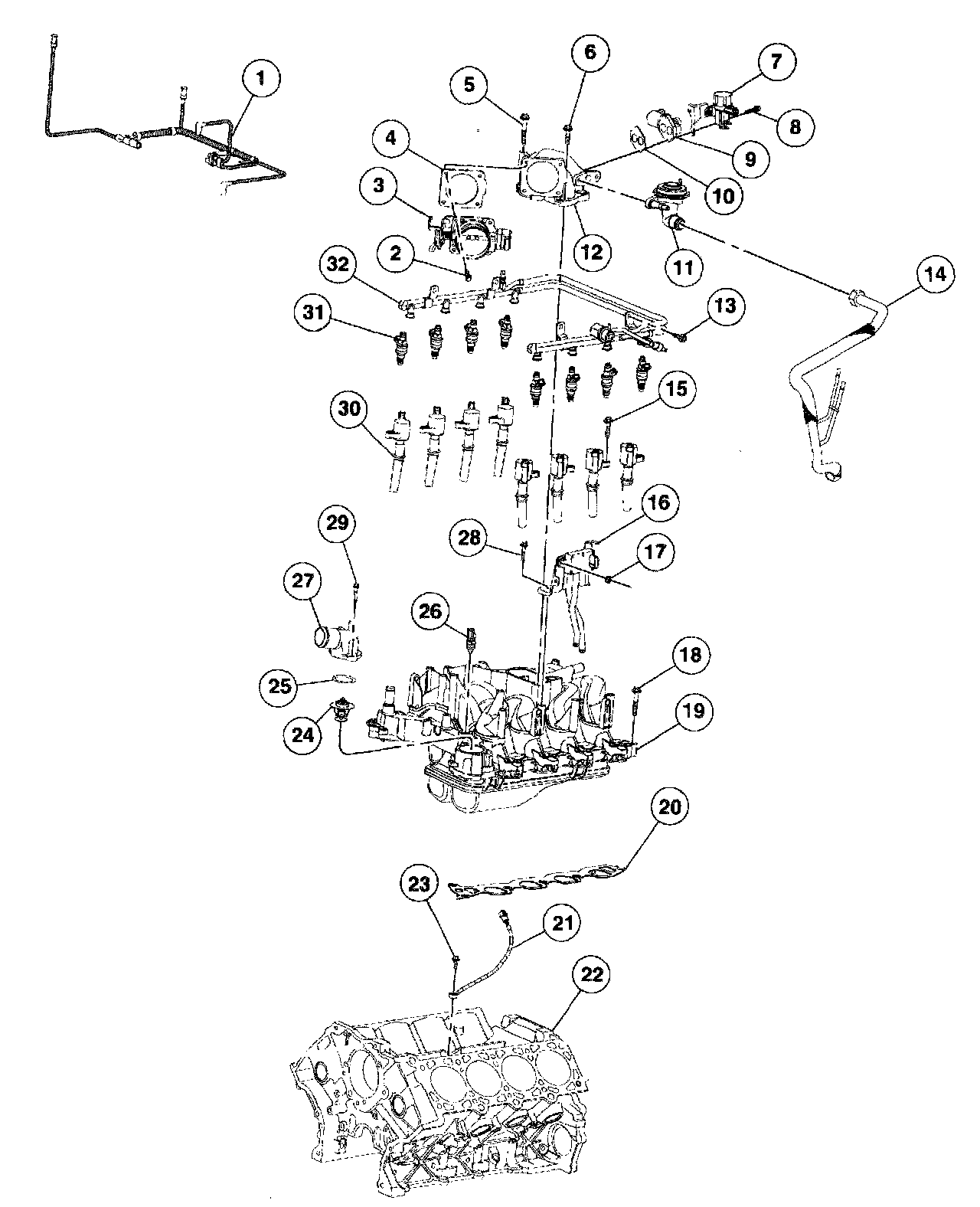

5.4L Engine - Exterior Components Part 1 of 2





5.4L Engine - Exterior Components Part 2 of 2
