System Specifications

Camshaft Sprocket
On engines equipped with bolt on sprockets, install the camshaft sprocket (2).
1 Install the bolt (1).
2 Tighten the bolt.
^ 10 bolt: Tighten in two stages.
- Stage 1: Tighten to 40 Nm (30 ft. lbs.).
- Stage 2: Tighten an additional 90 degrees.
^ 12 bolt: Tighten to 120 Nm (90 ft. lbs.).






Crankshaft Pulley

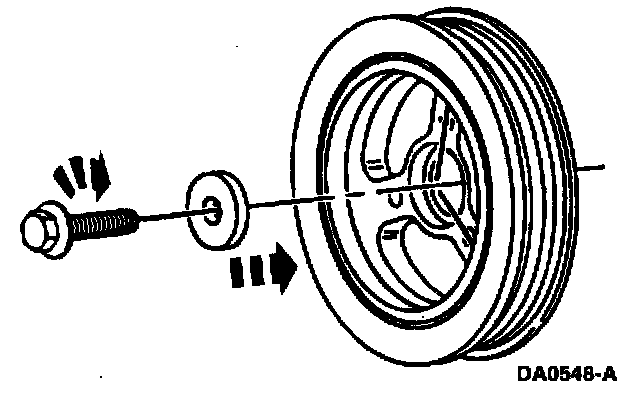

Tighten the crankshaft pulley bolt in four stages.
^ Stage 1: Tighten to 90 Nm (66 ft. lbs.).
^ Stage 2: Loosen 360 degrees.
^ Stage 3: Tighten to 50 Nm (37 ft. lbs.).
^ Stage 4: Tighten an additional 85 - 90 degrees.
