Engine

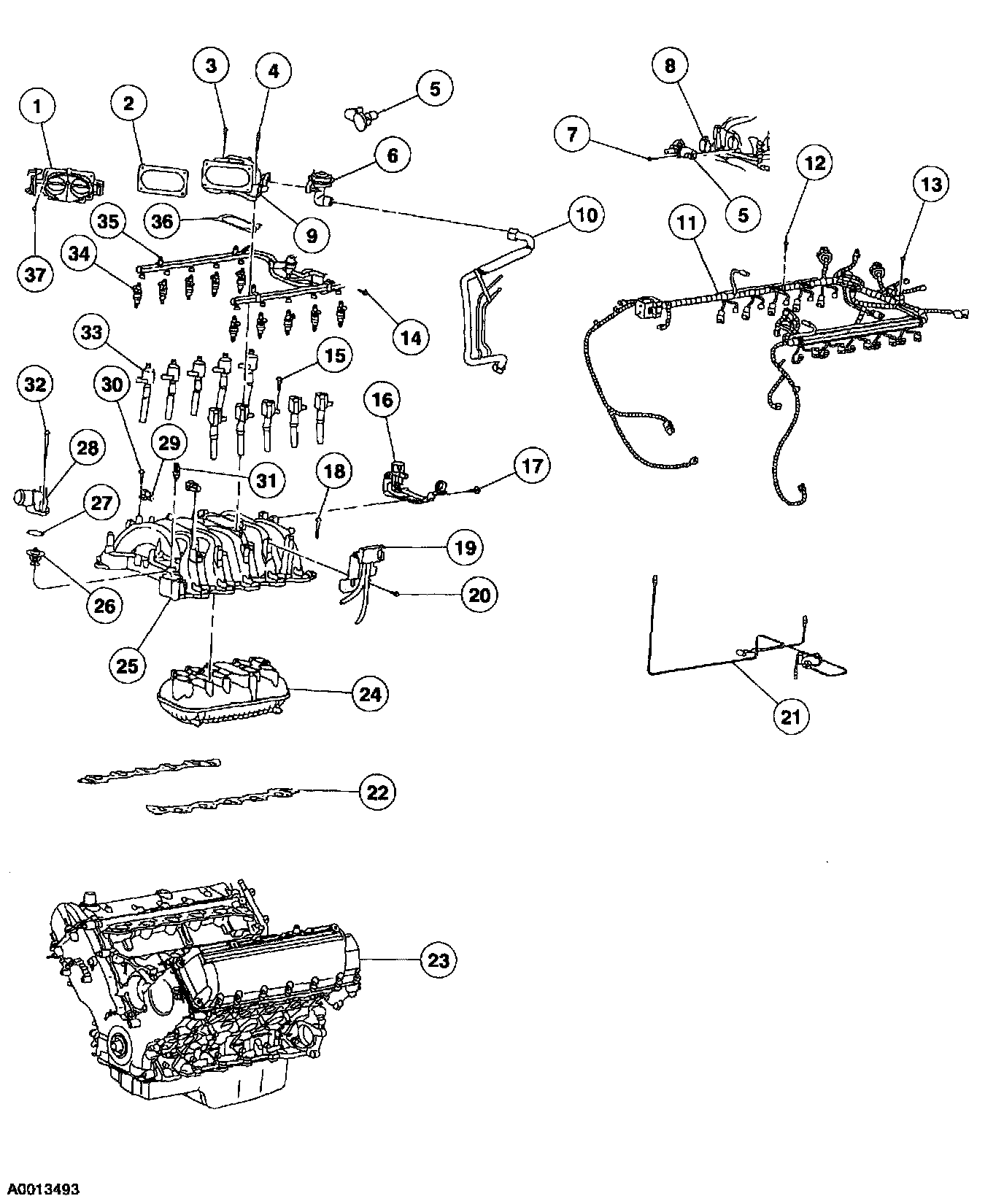

Engine Intake Components Part 1 of 2





Engine Intake Components Part 2 of 2

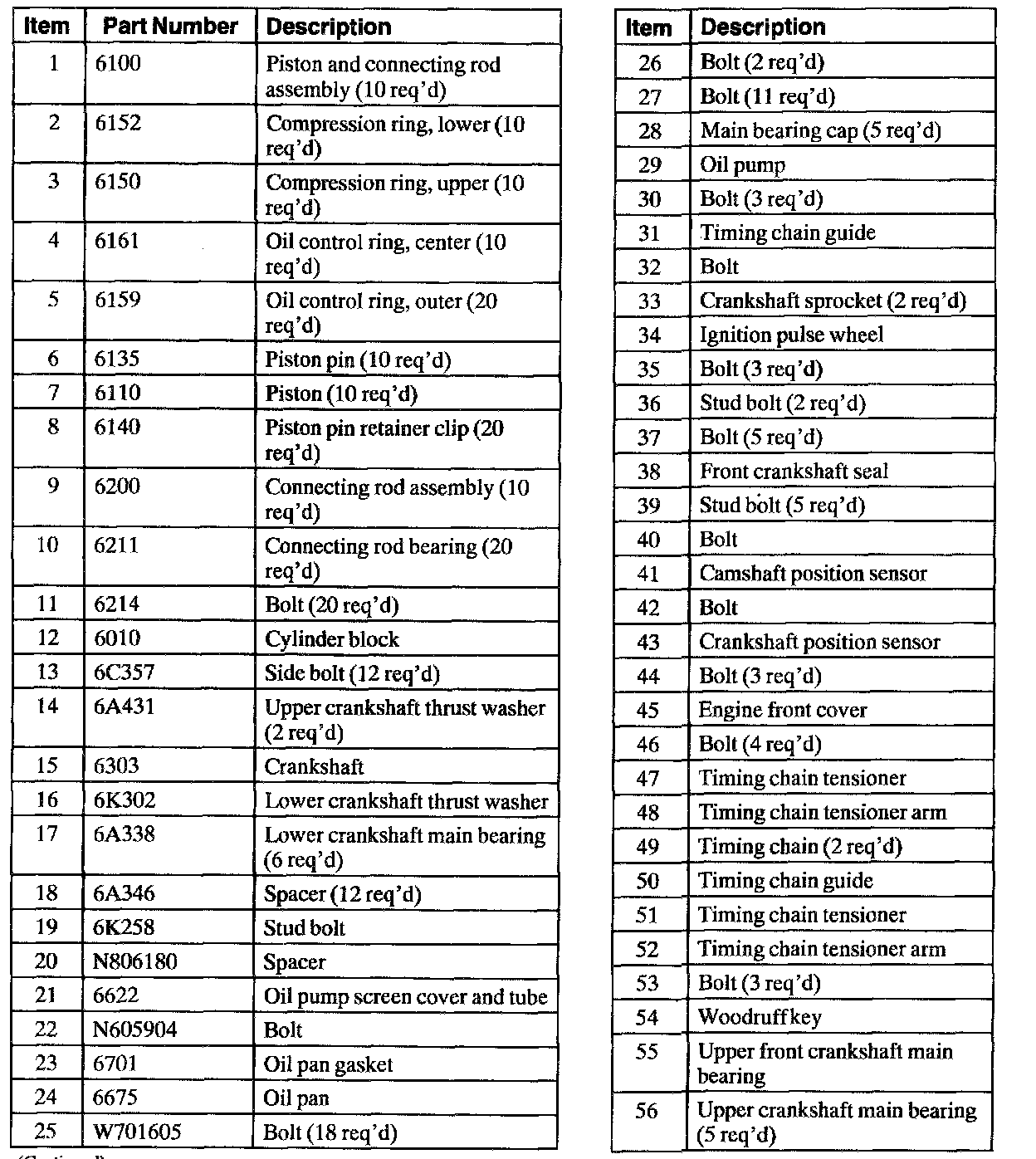

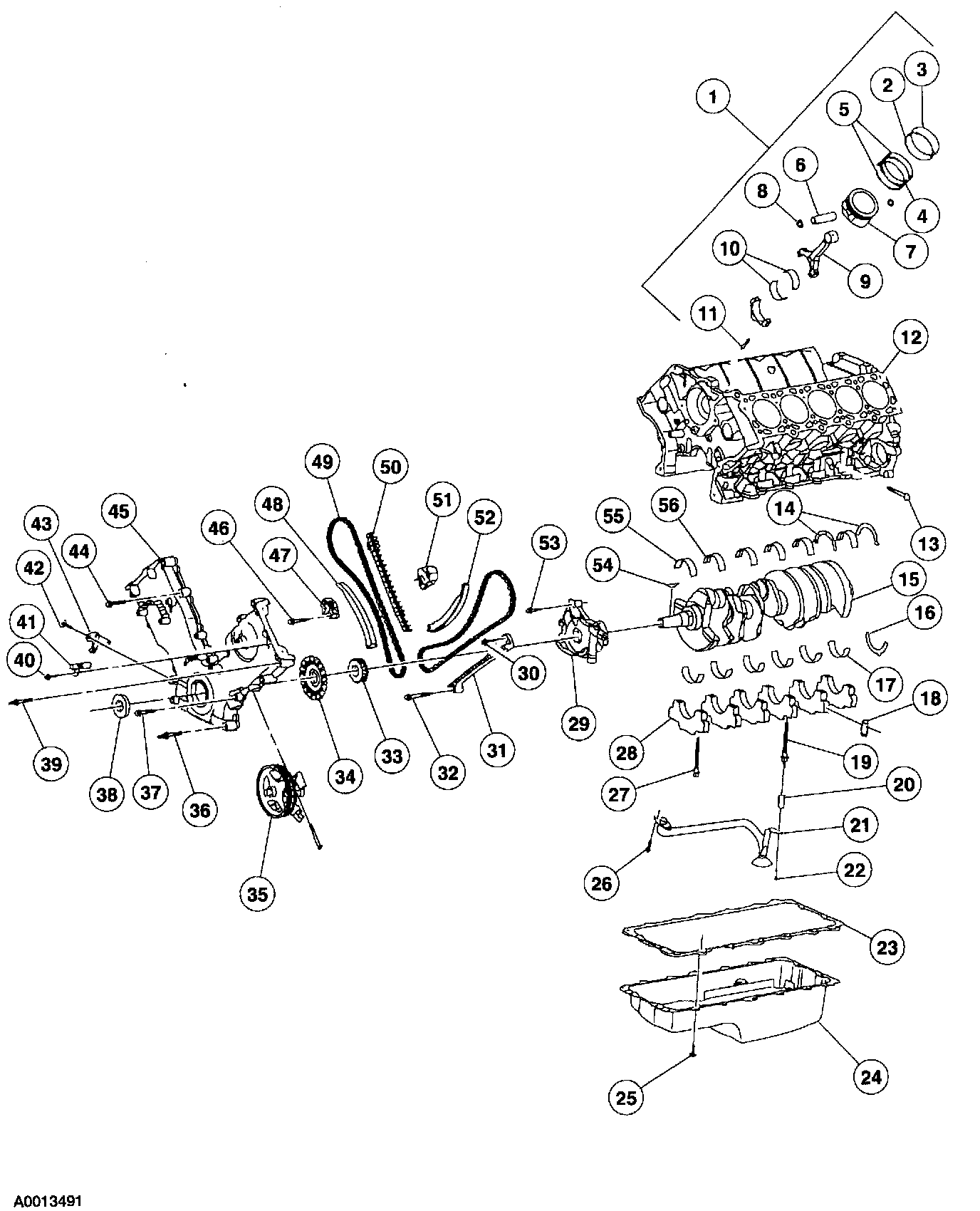

Lower and Front End Components Part 1 of 2





Lower and Front End Components Part 2 of 2

��=:

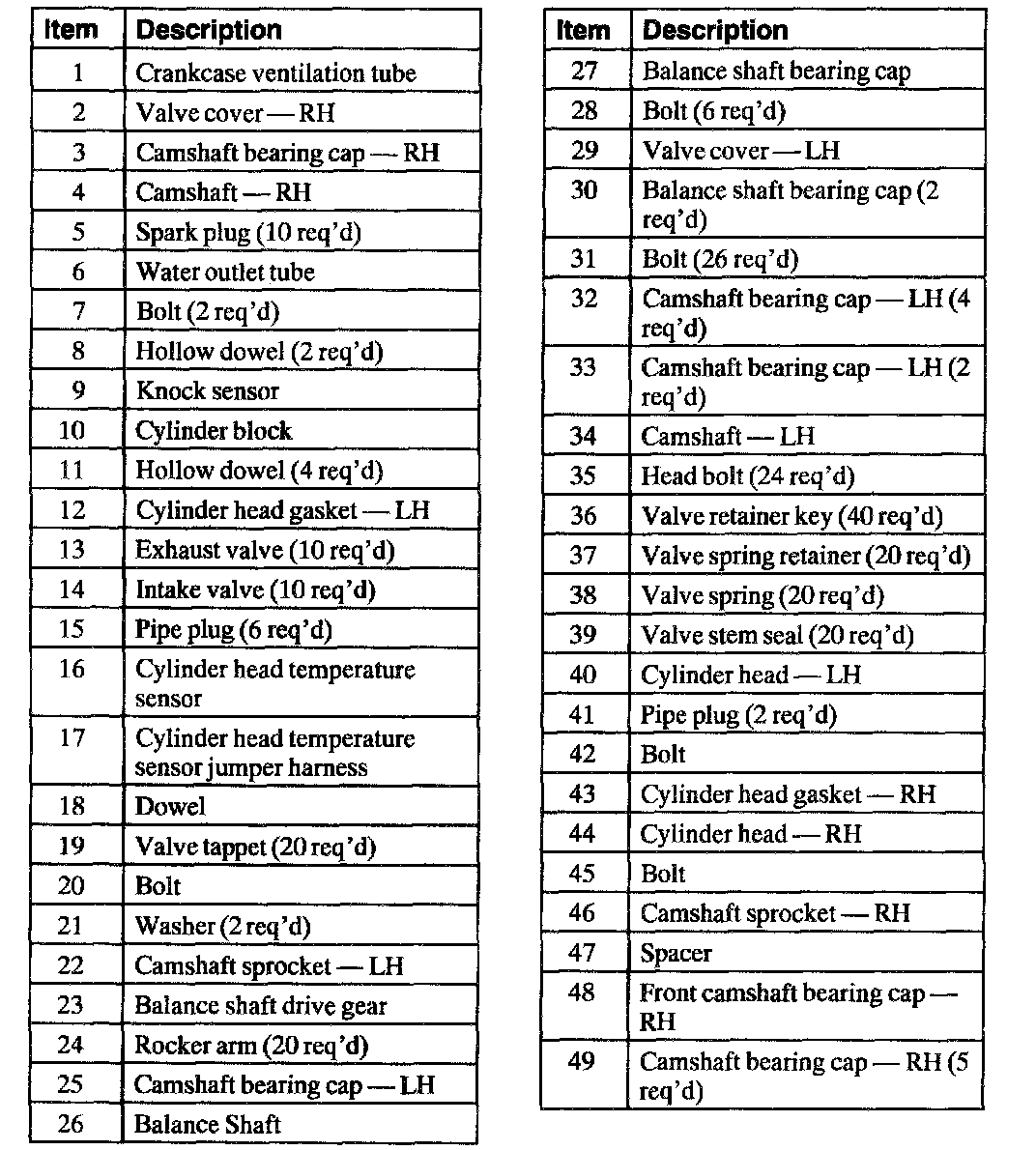

Upper End Components Part 1 of 2





Upper End Components Part 2 of 2

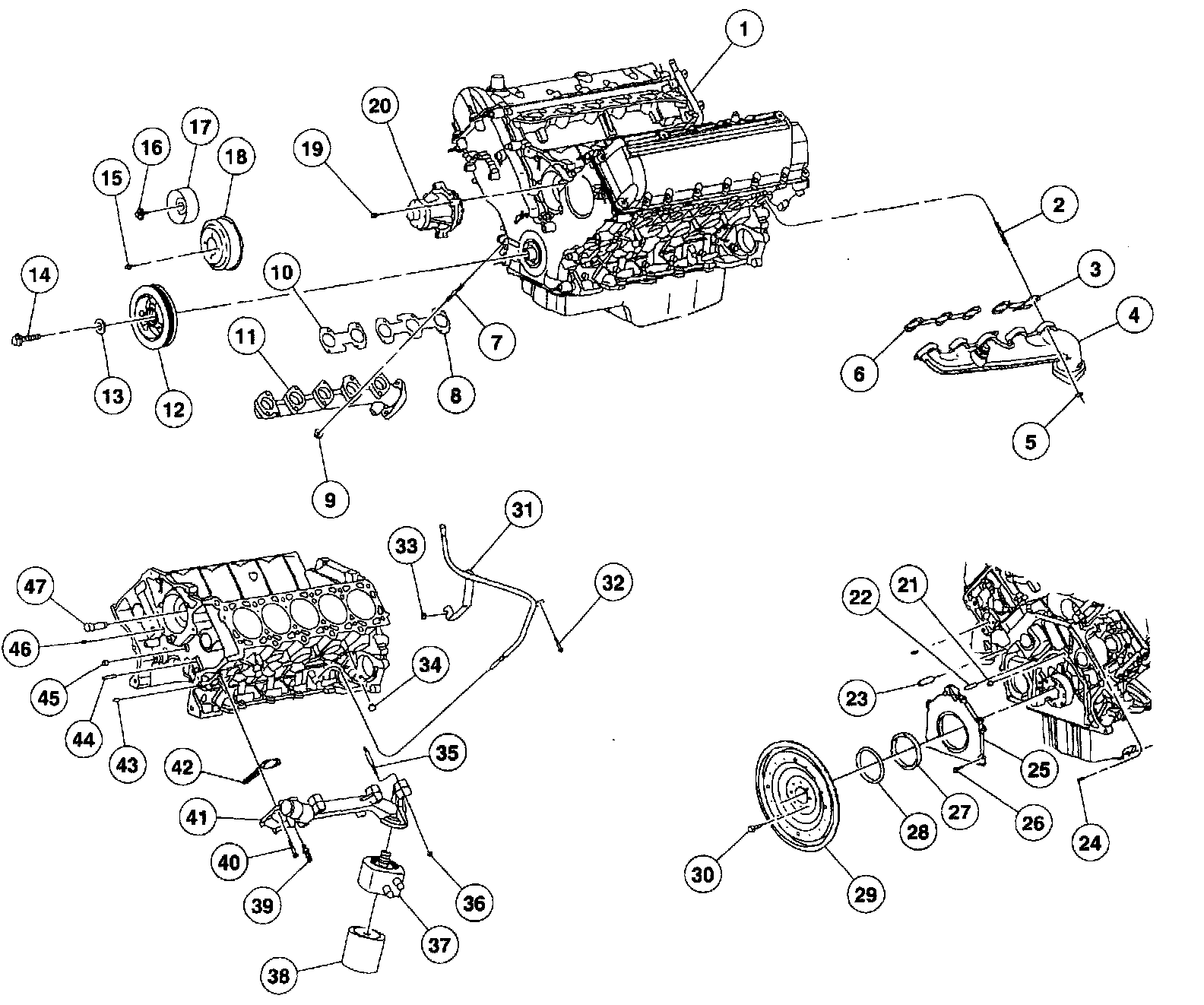

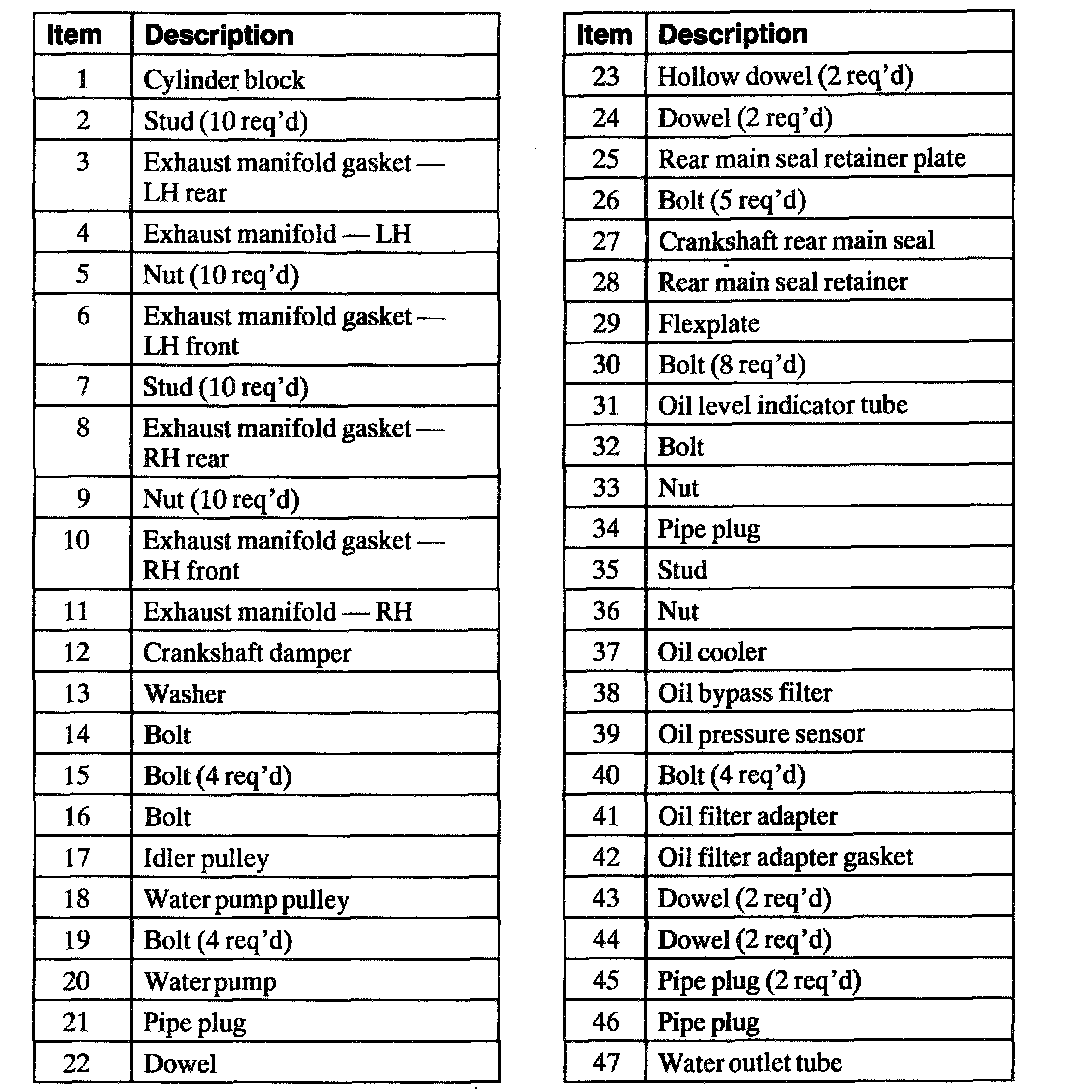

Major Exterior Components Part 1 of 2





Major Exterior Components Part 2 of 2
