Econoline E450 Super Duty V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagnostic Connector - ABS
>>
Locations
Diagnostic Connector - ABS: Locations

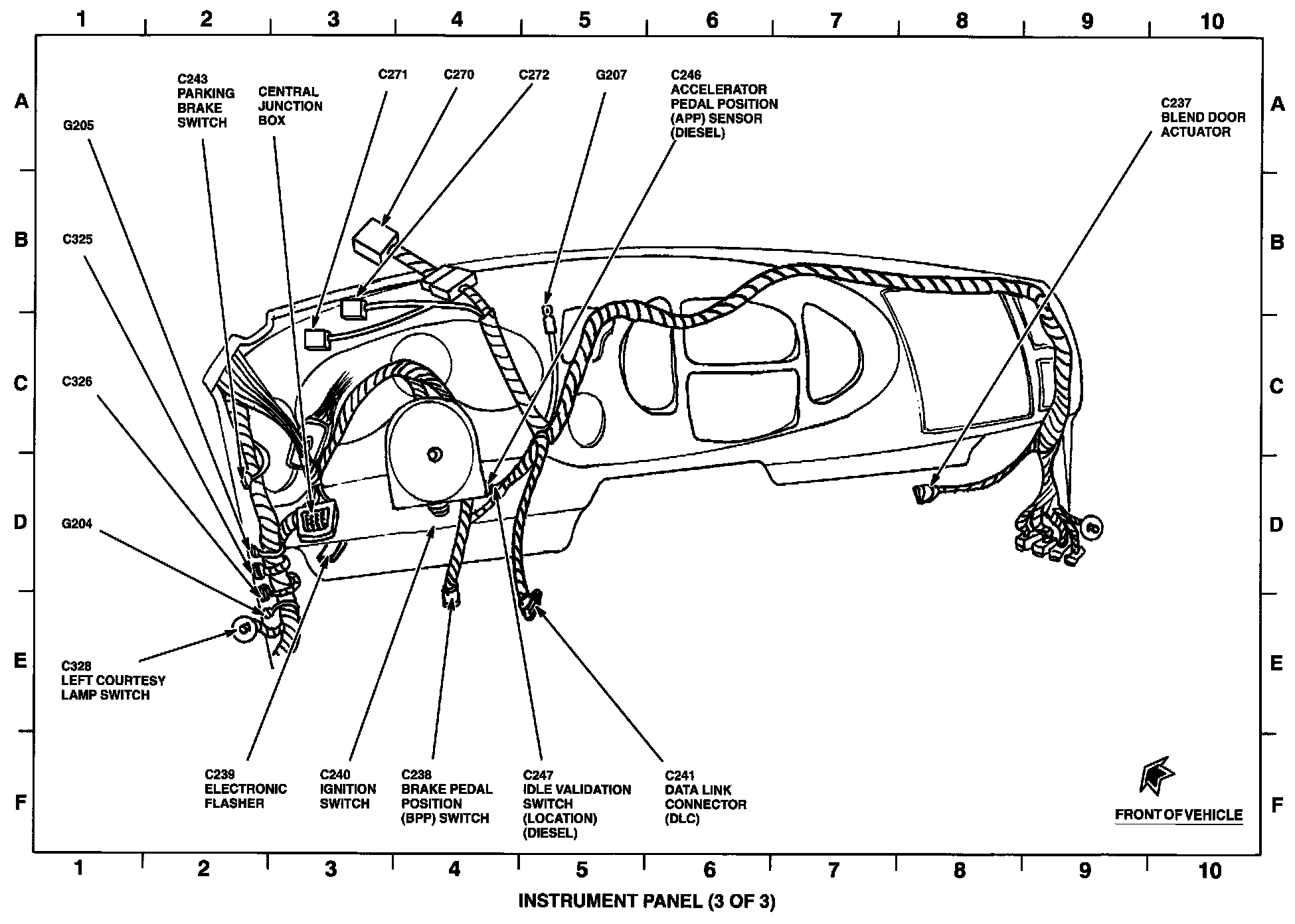

View 151-14:
Data Link Connector (DLC) C241 is located behind the center of I/P.
