D: C1226, C1225

D: DTC C1226, C1225

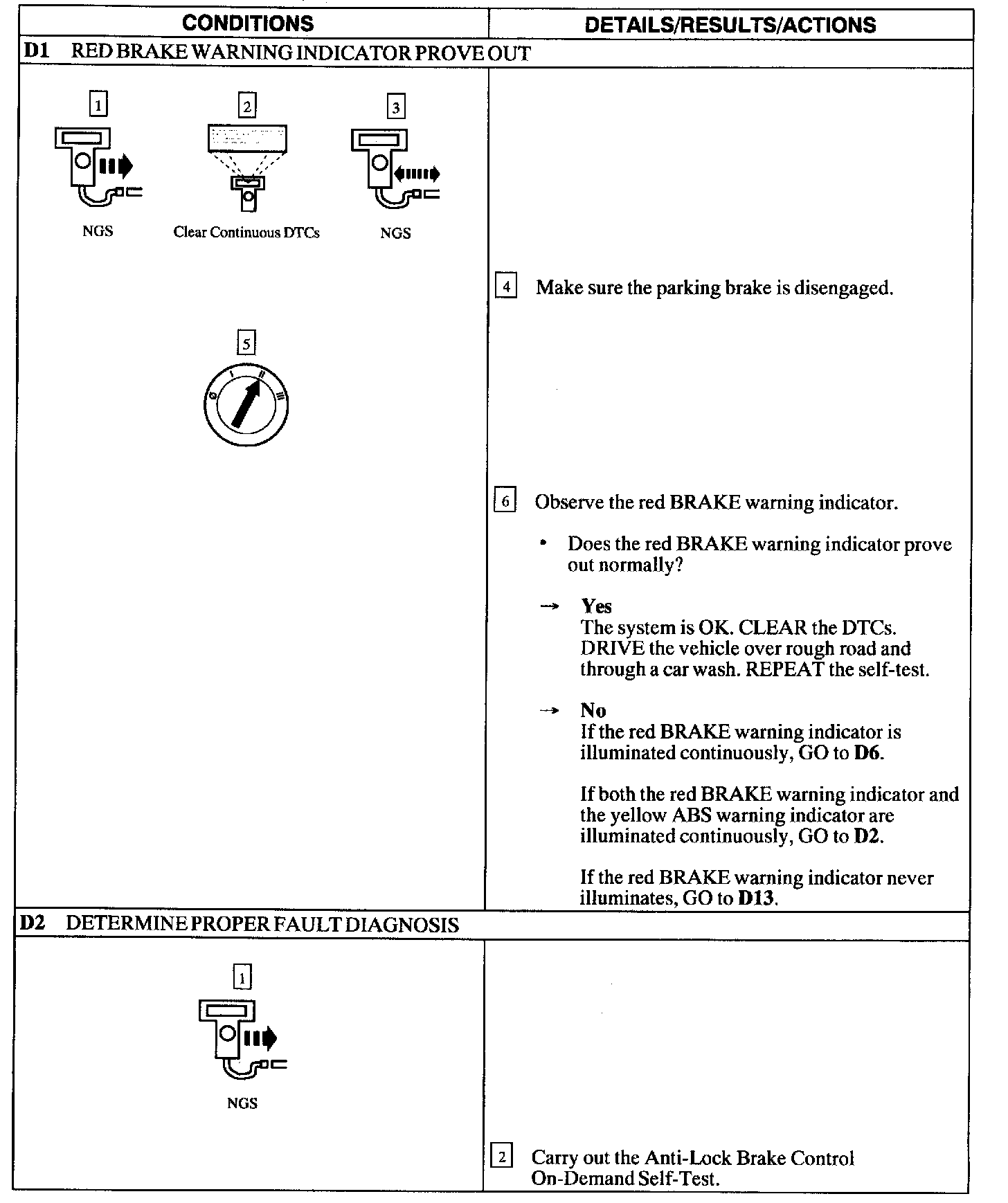

Test D1-D2:

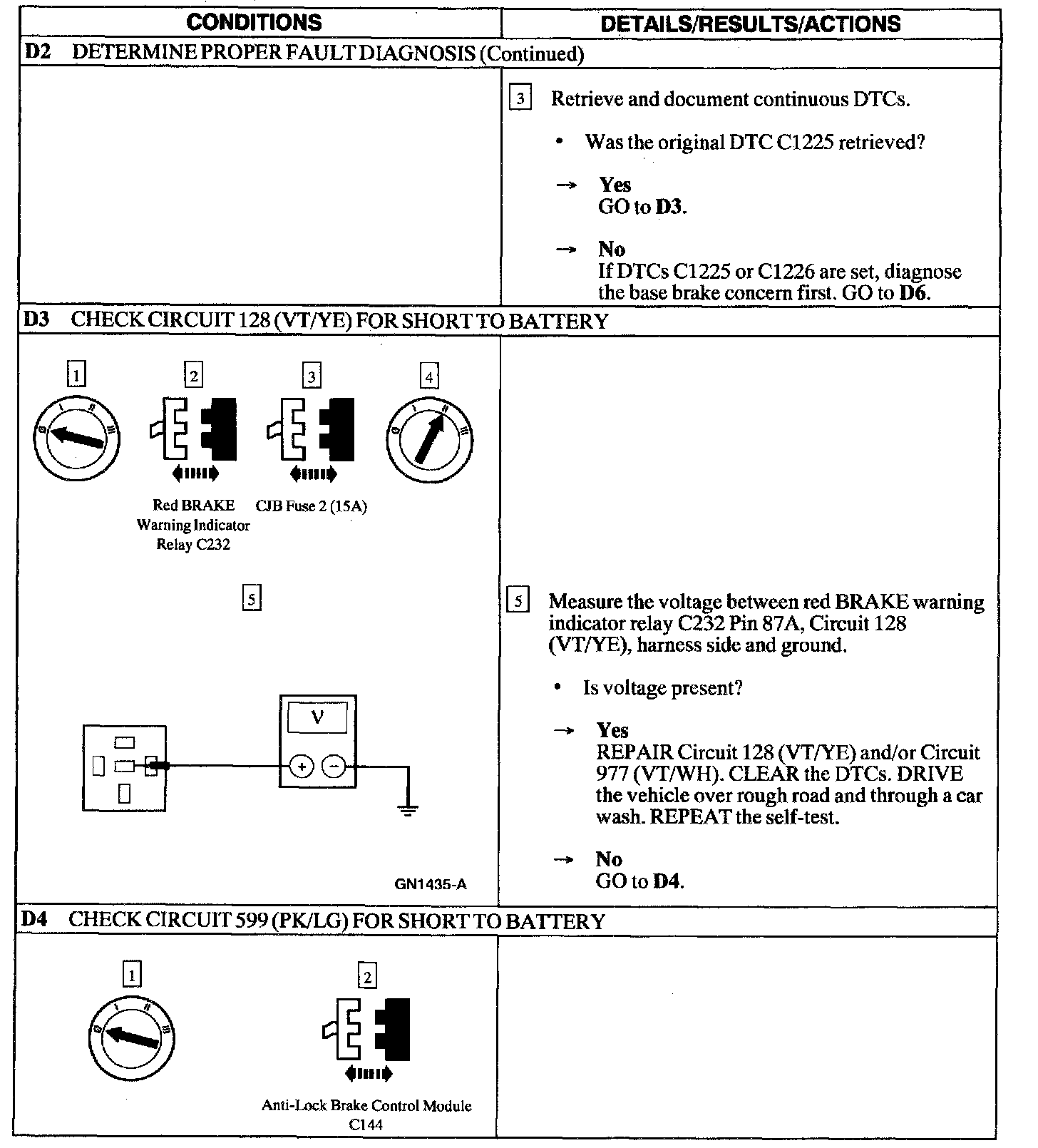

Test D2-D4:

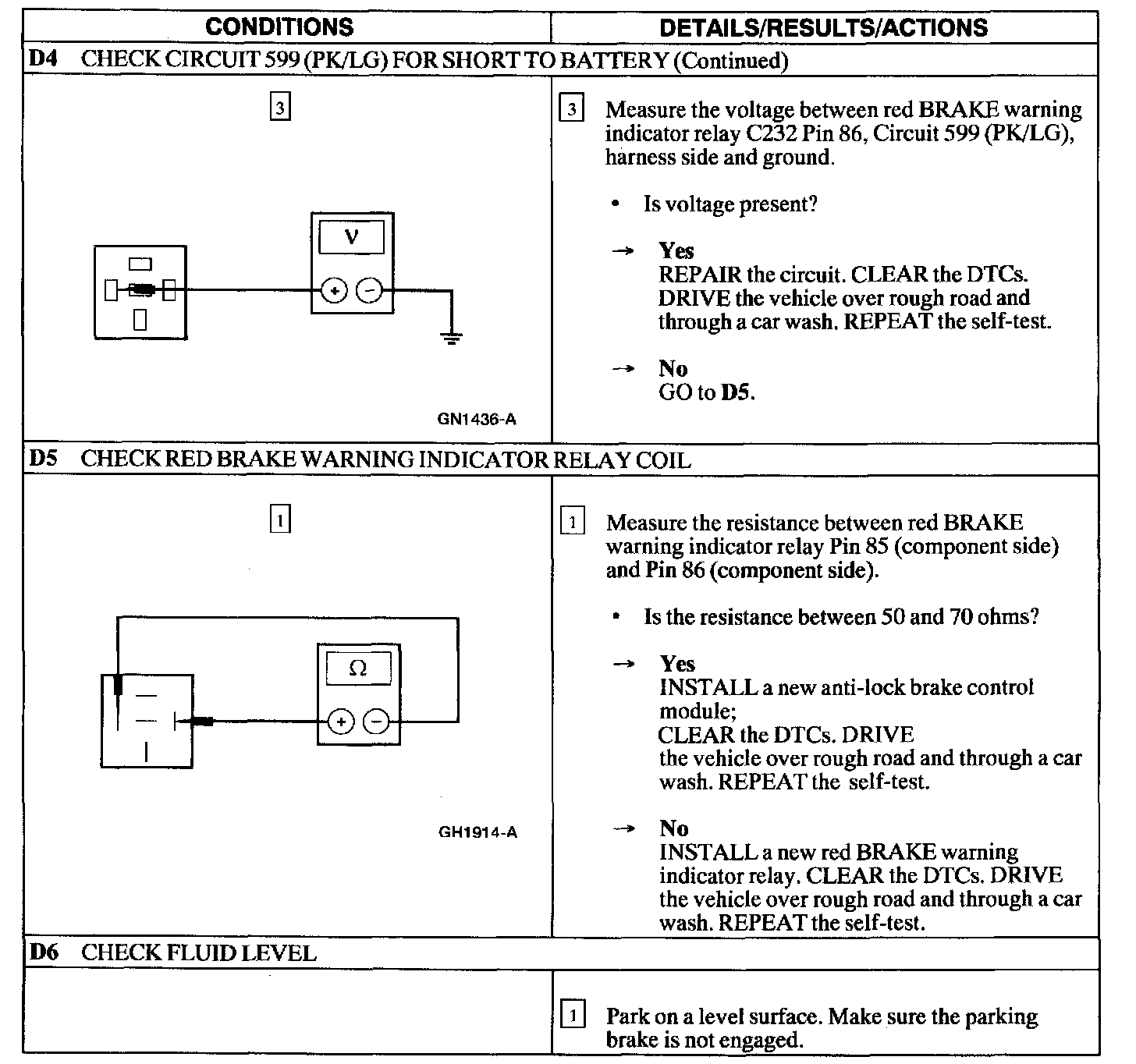

Test D4-D6:

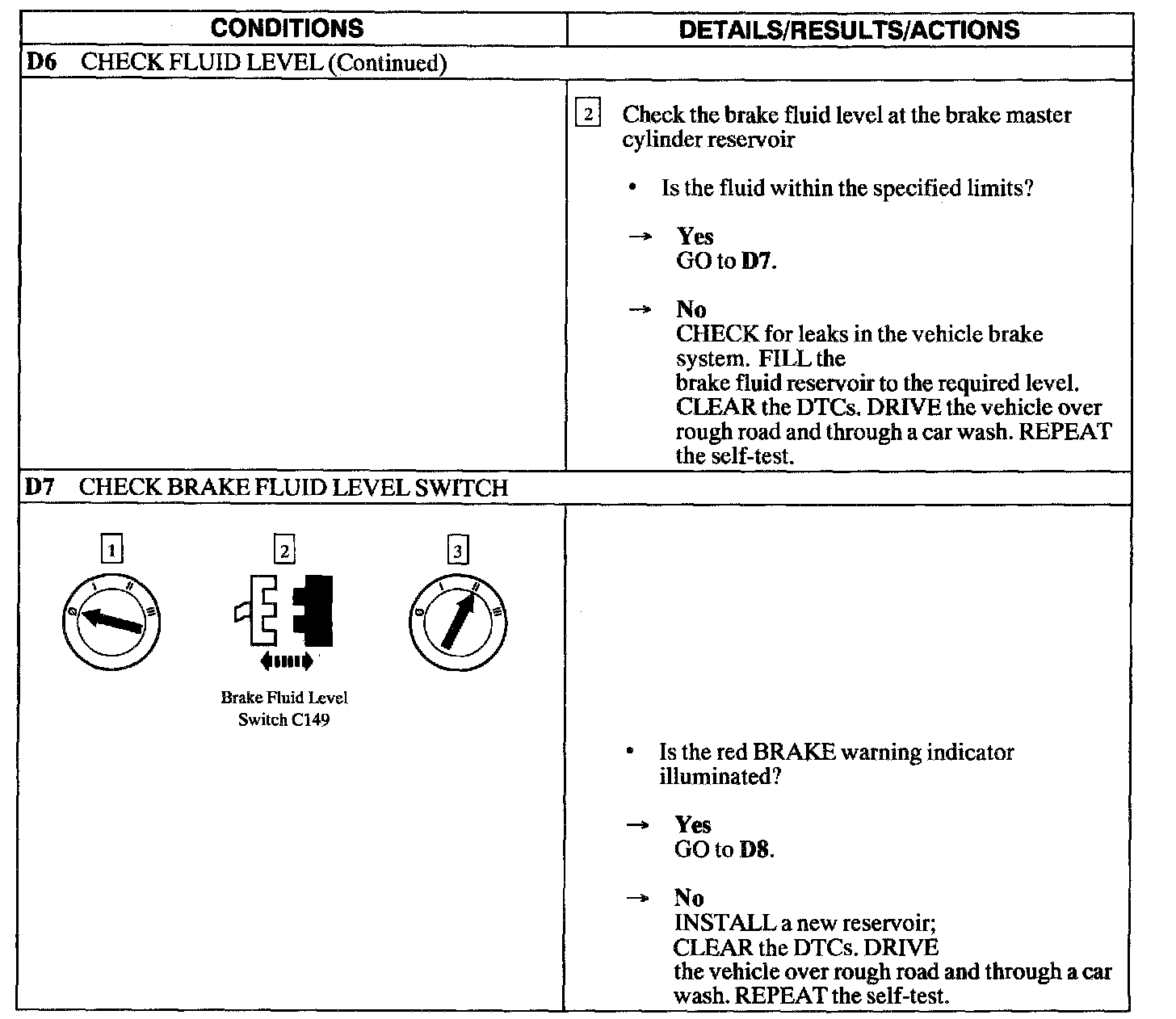

Test D6-D7:

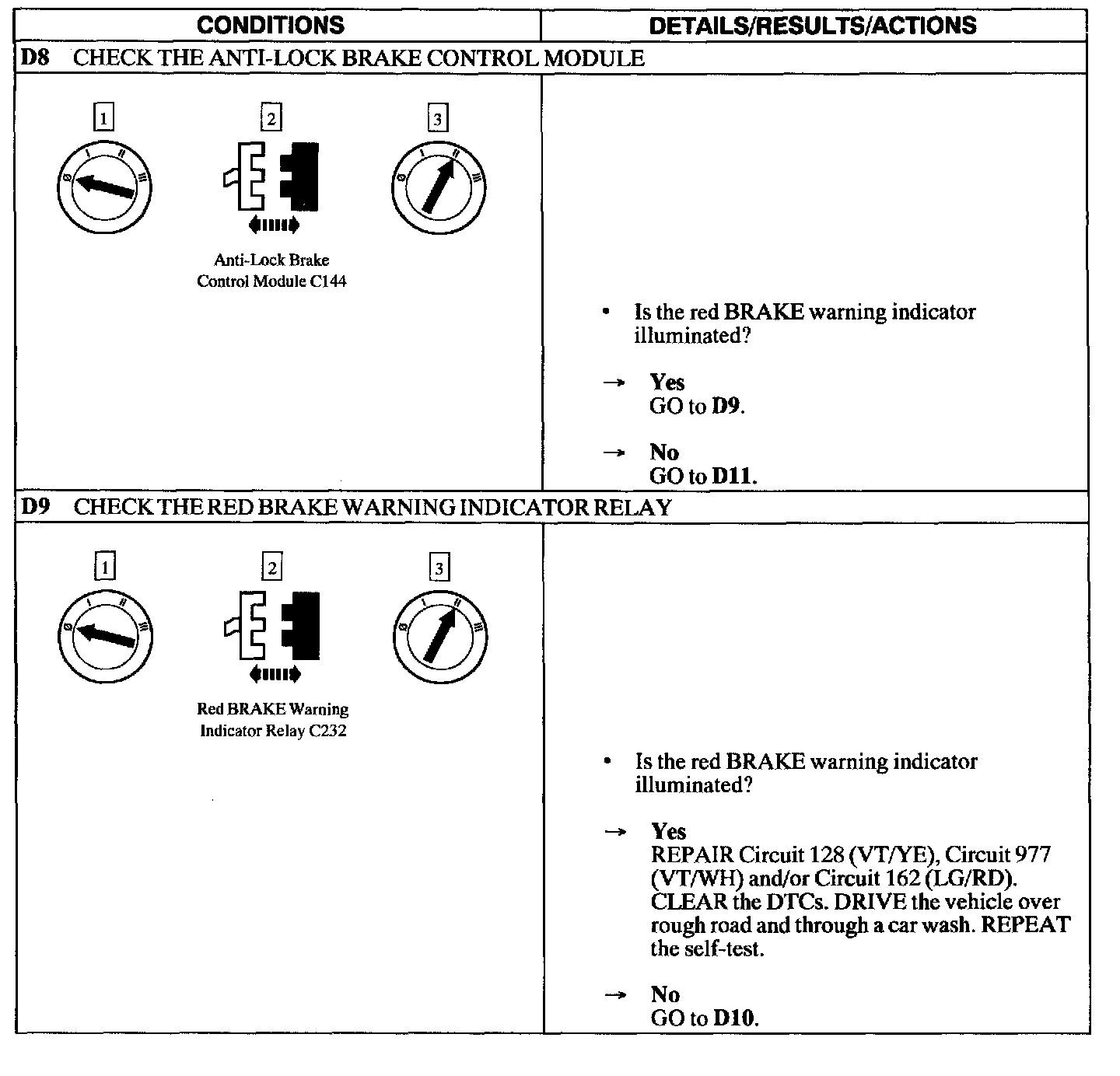

Test D8-D9:

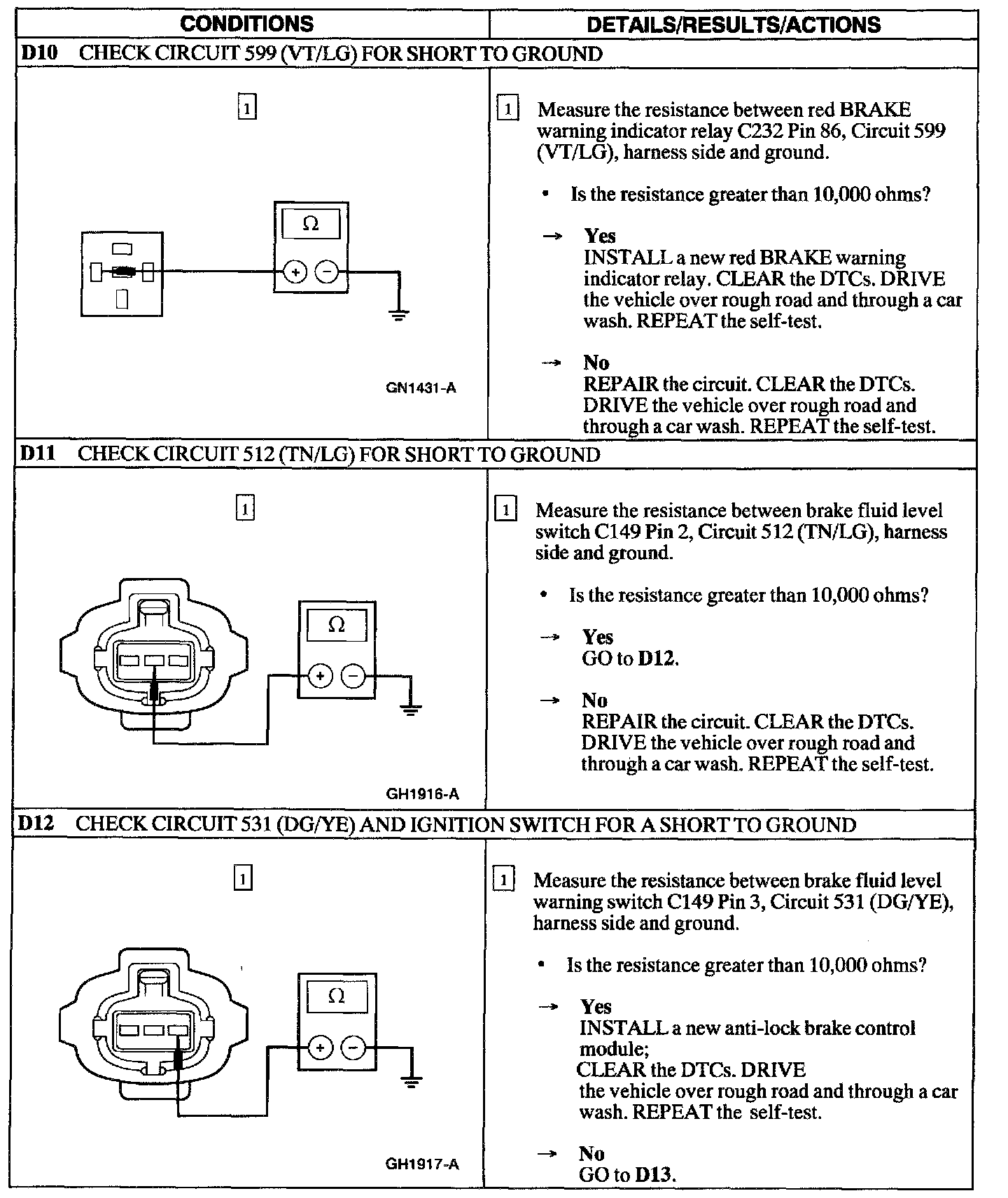

Test D10-D12:

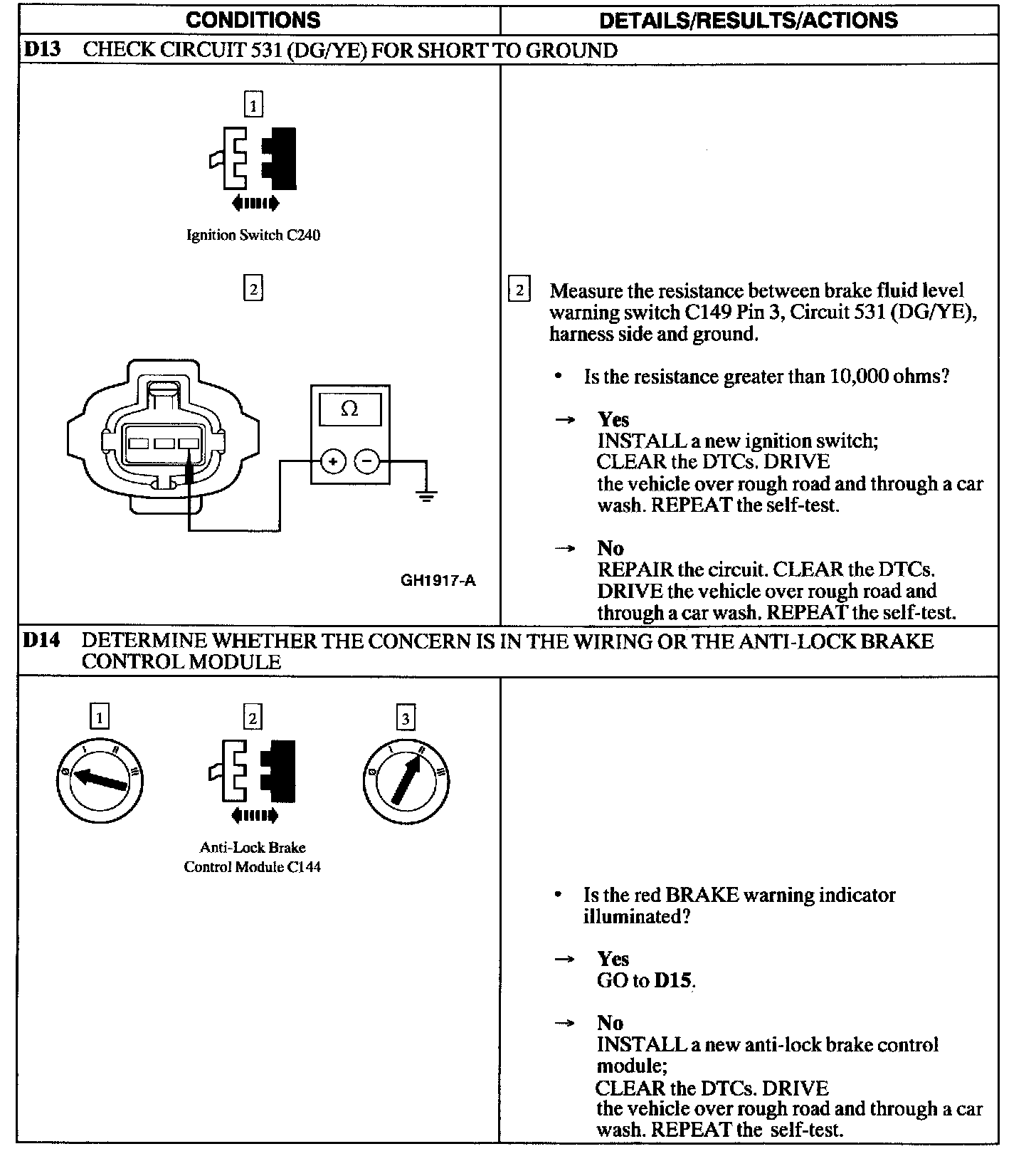

Test D13-D14:

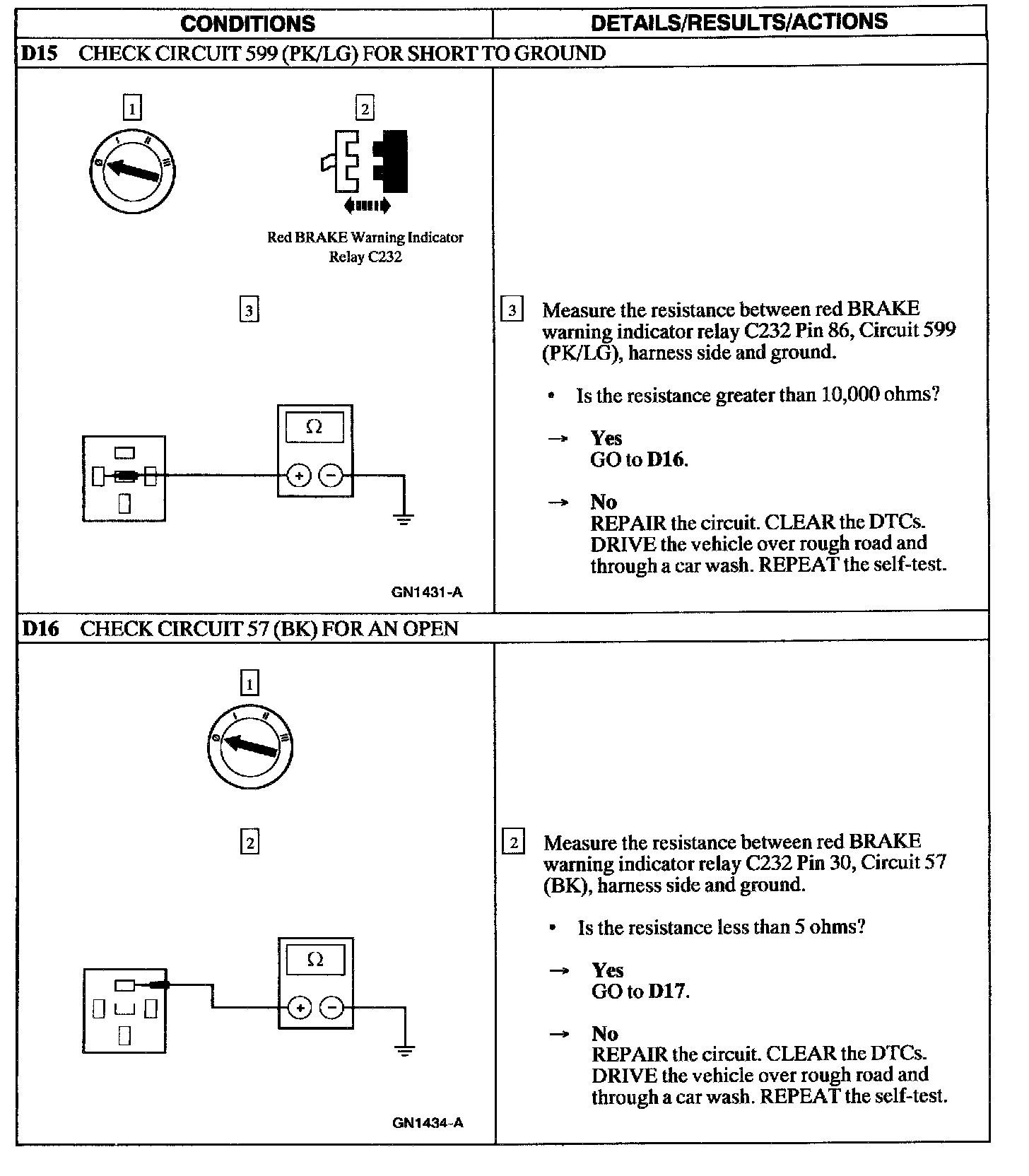

Test D15-D16:

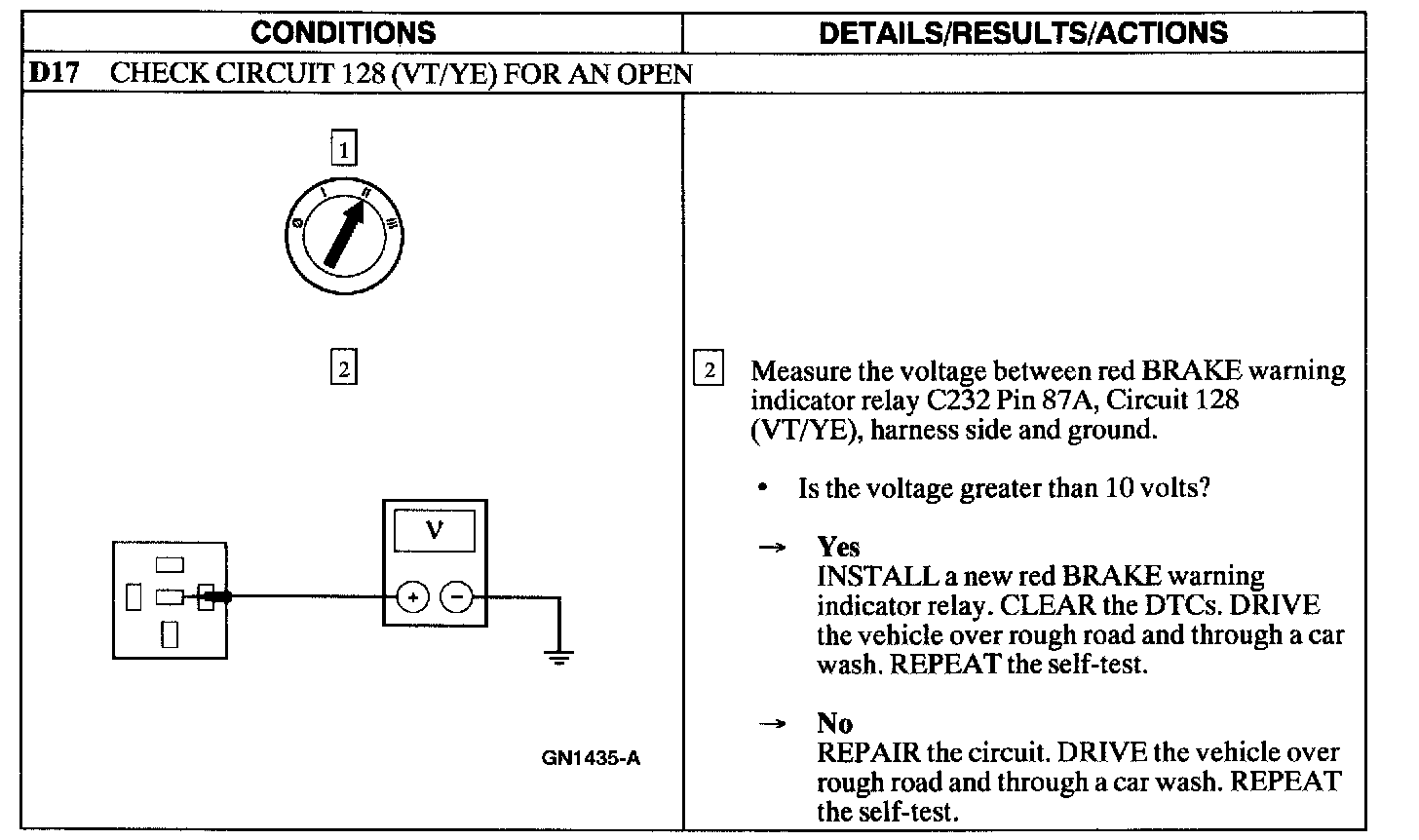

Test D17:
