G: LF Antilock Brake Sensor (DYNAMIC)
G: LF Antilock Brake Sensor (DYNAMIC)
G: LF ANTI-LOCK BRAKE SENSOR (DYNAMIC)

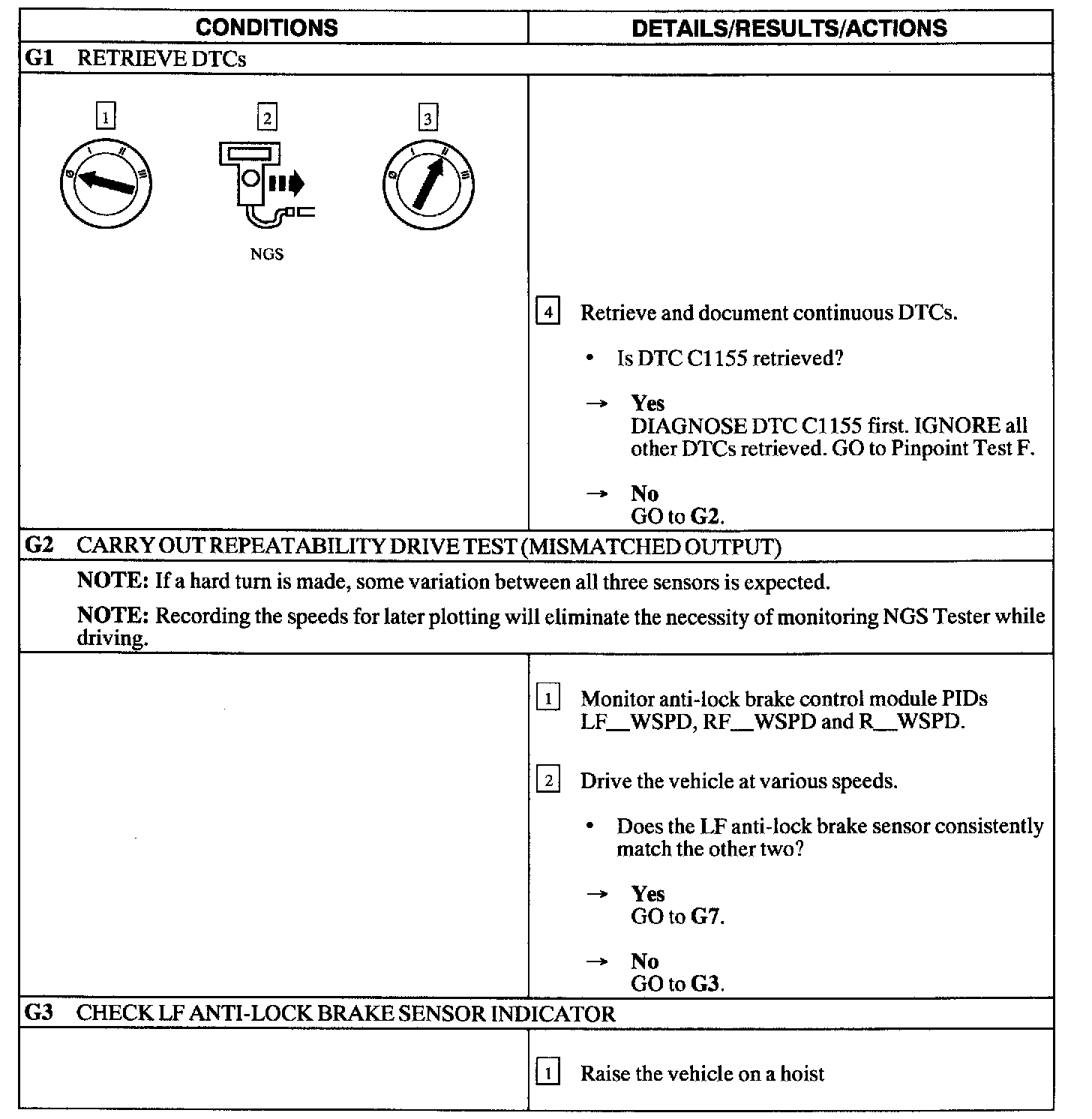

Test G1-G3:

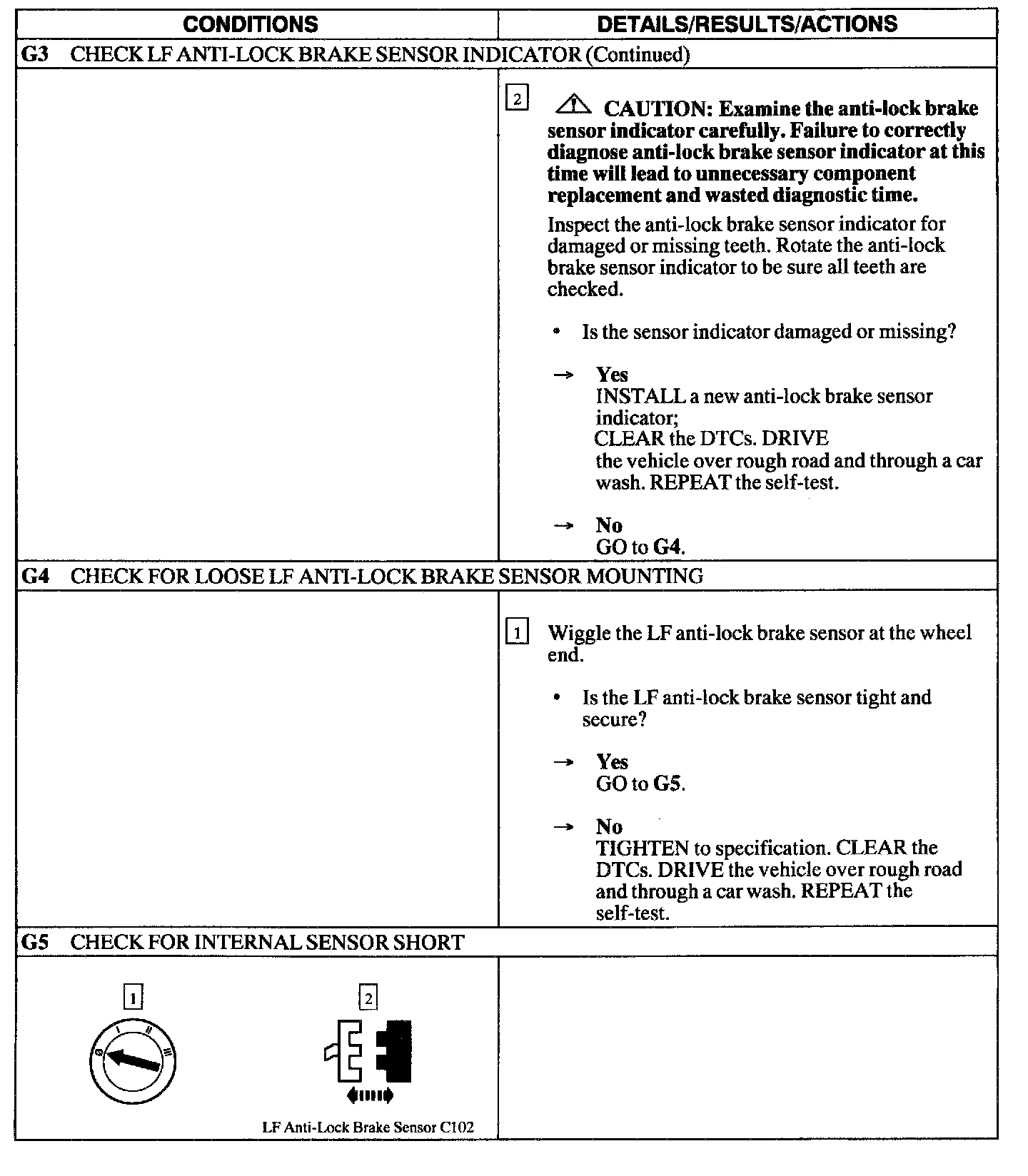

Test G3-G5:

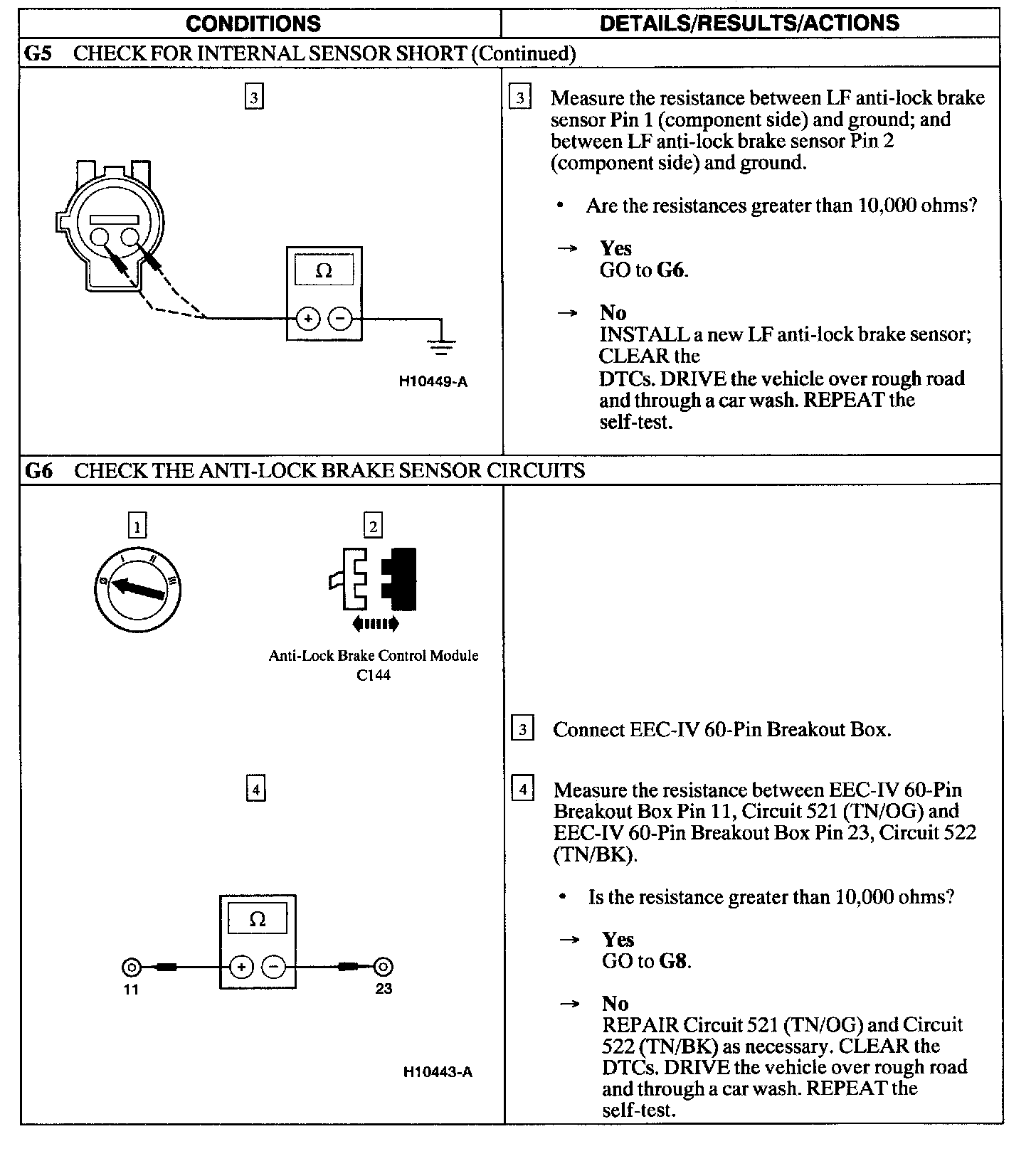

Test G5-G6:

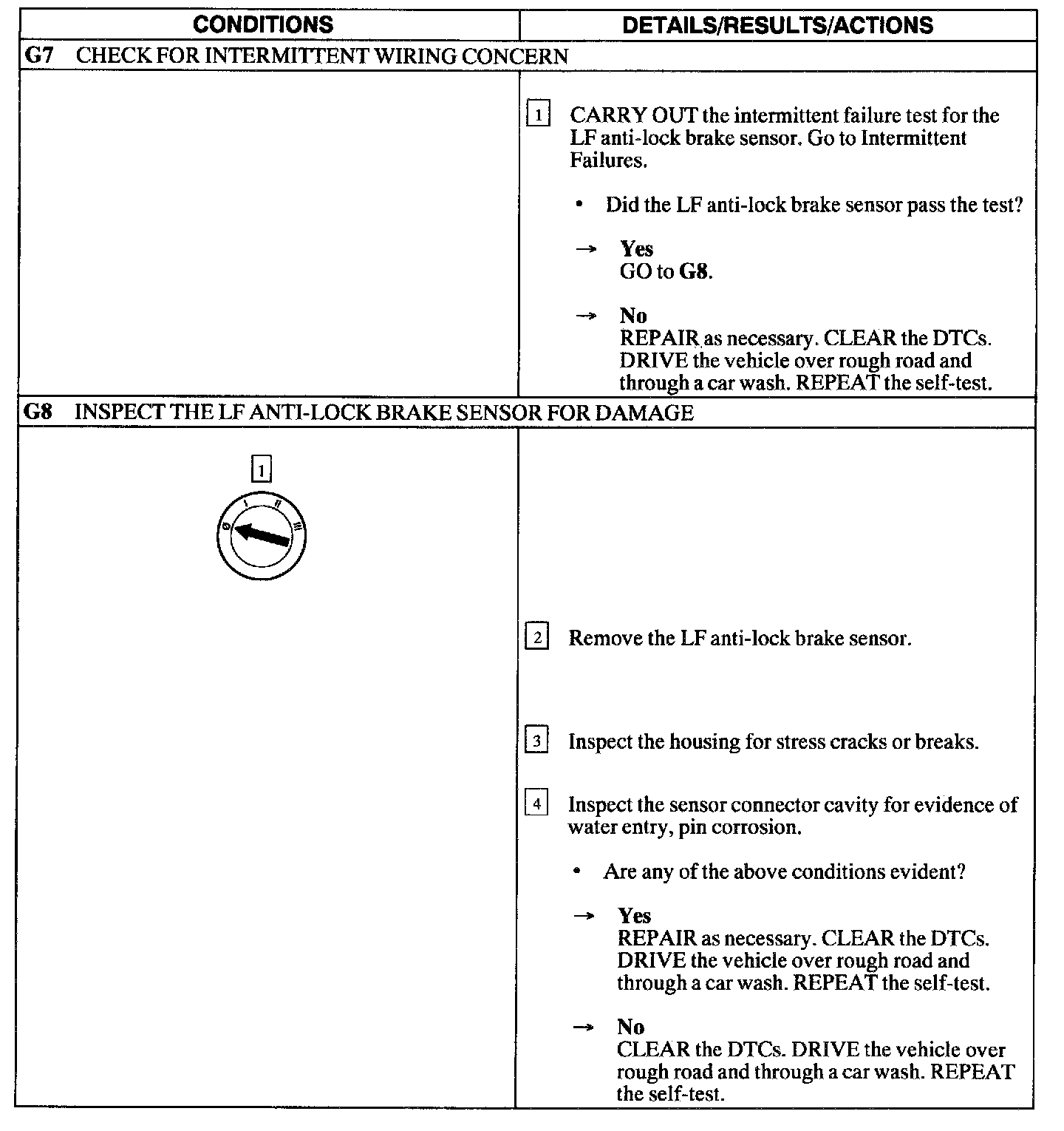

Test G7-G8:
