Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Econoline E450 Super Duty V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
I: RF Antilock Brake Sensor (DYNAMIC)
I: RF Antilock Brake Sensor (DYNAMIC)
I: RF ANTI-LOCK BRAKE SENSOR (DYNAMIC)

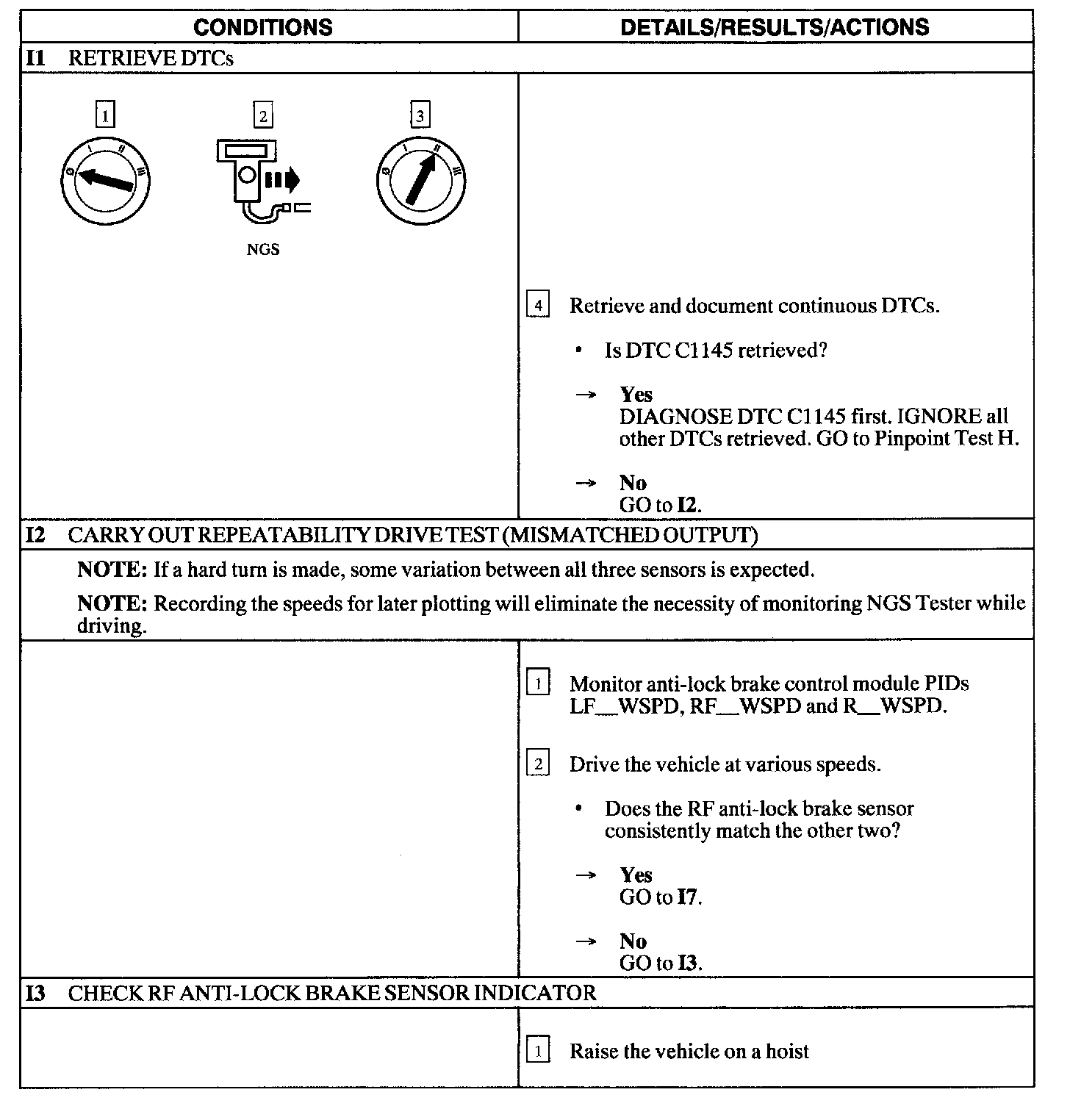

Test I1-I3:

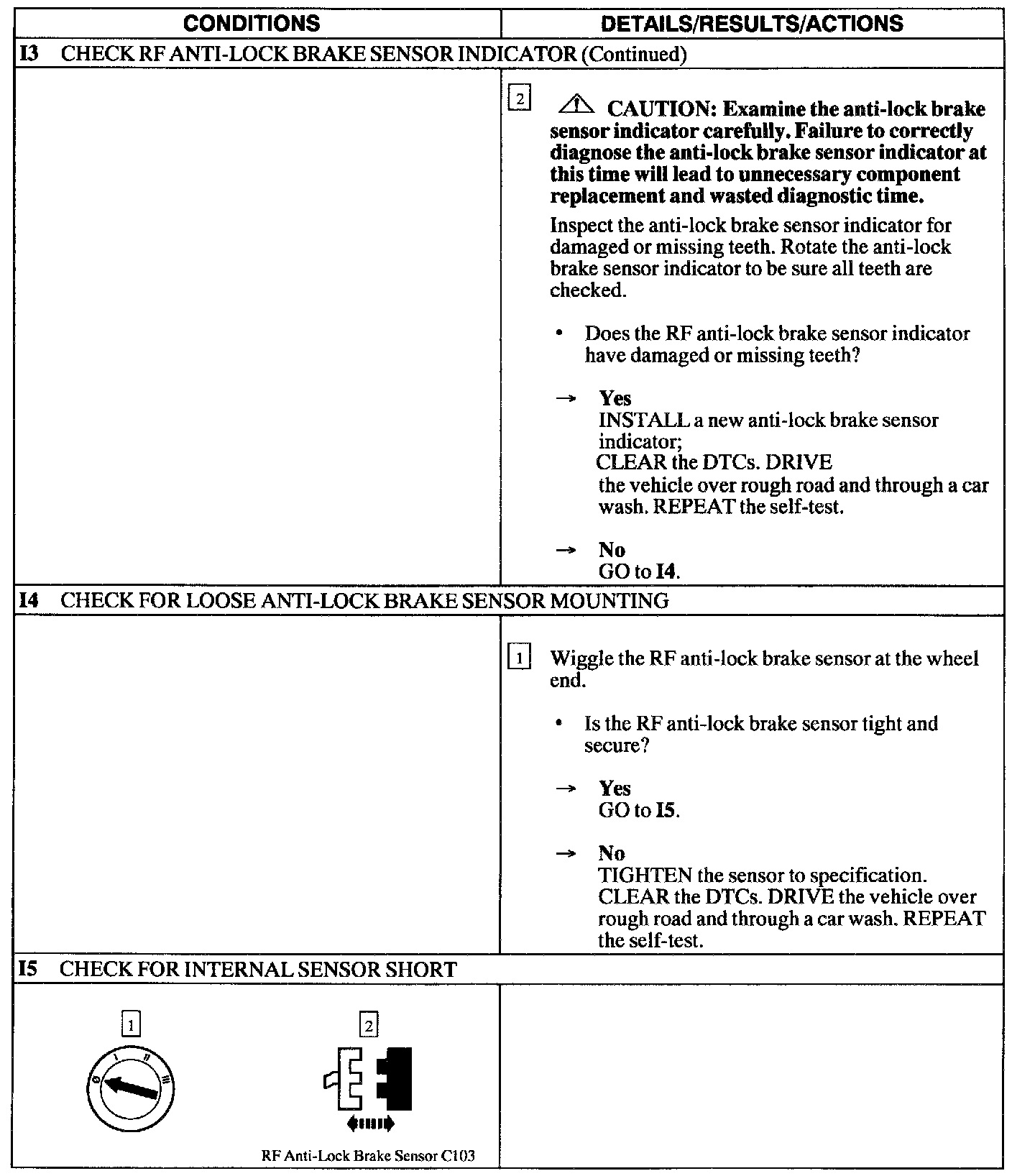

Test I3-I5:

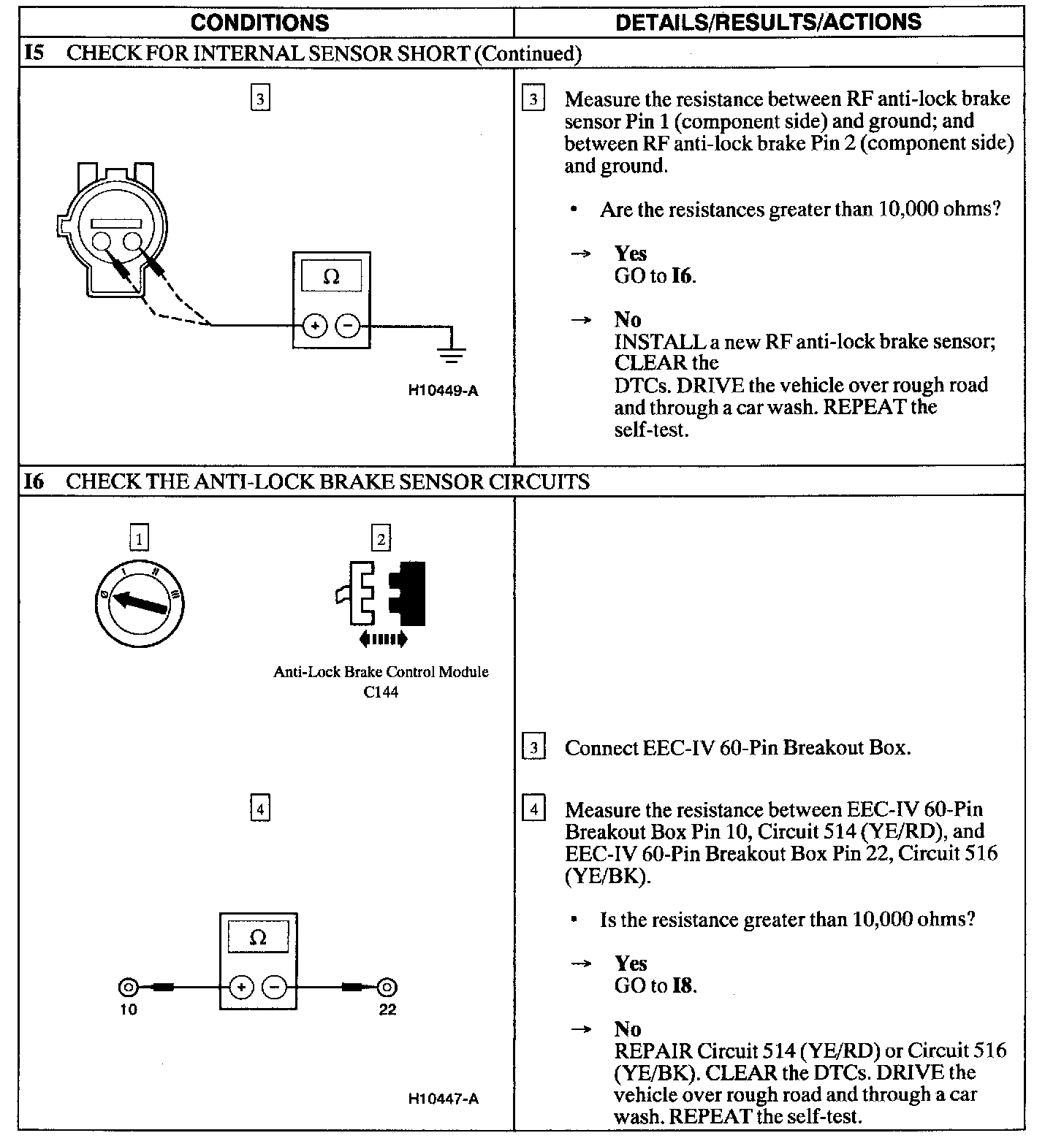

Test I5-I6:

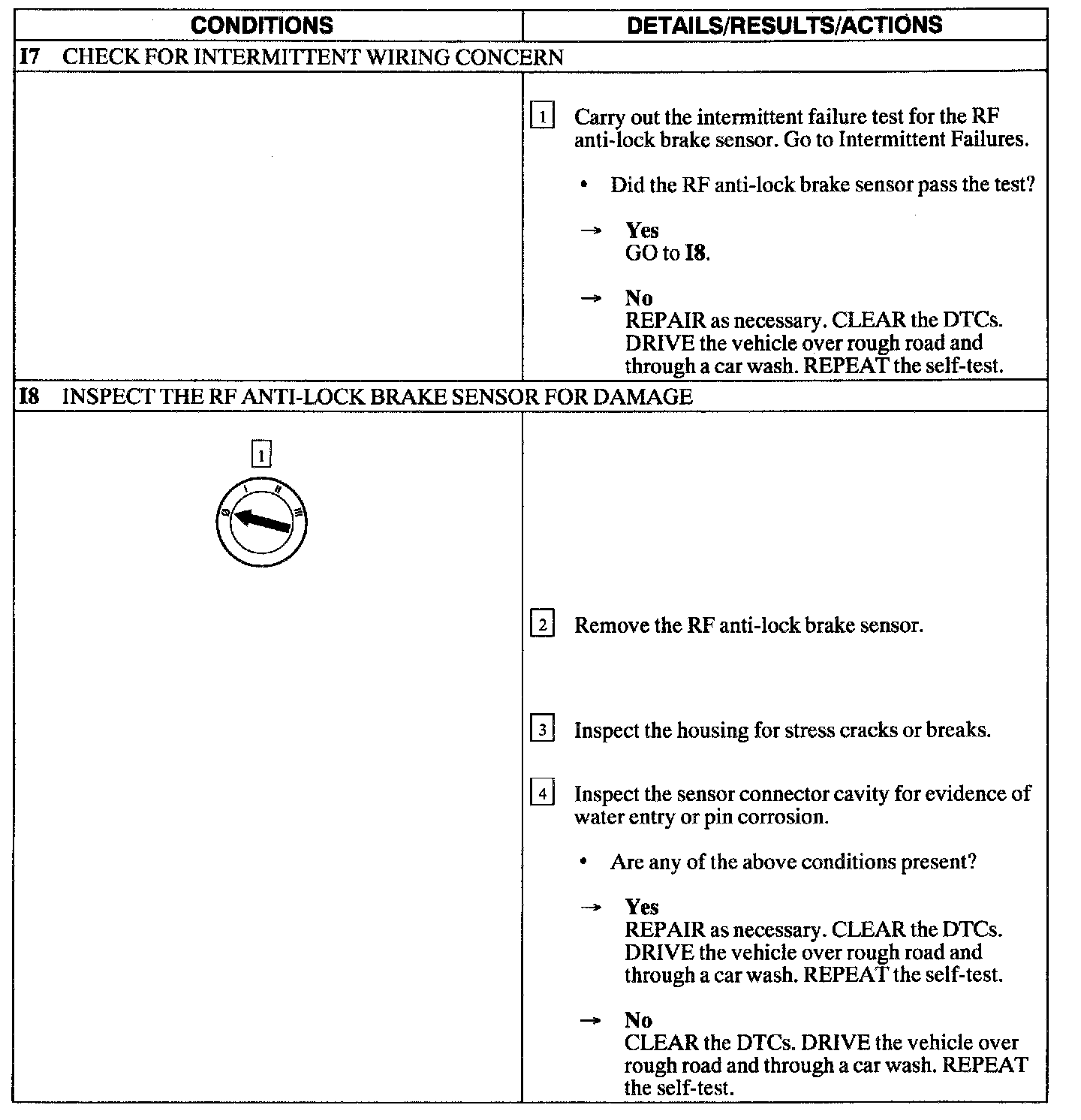

Test I7-I8:
