Tests KL: Manifold Intake Air Heater (MIAH)

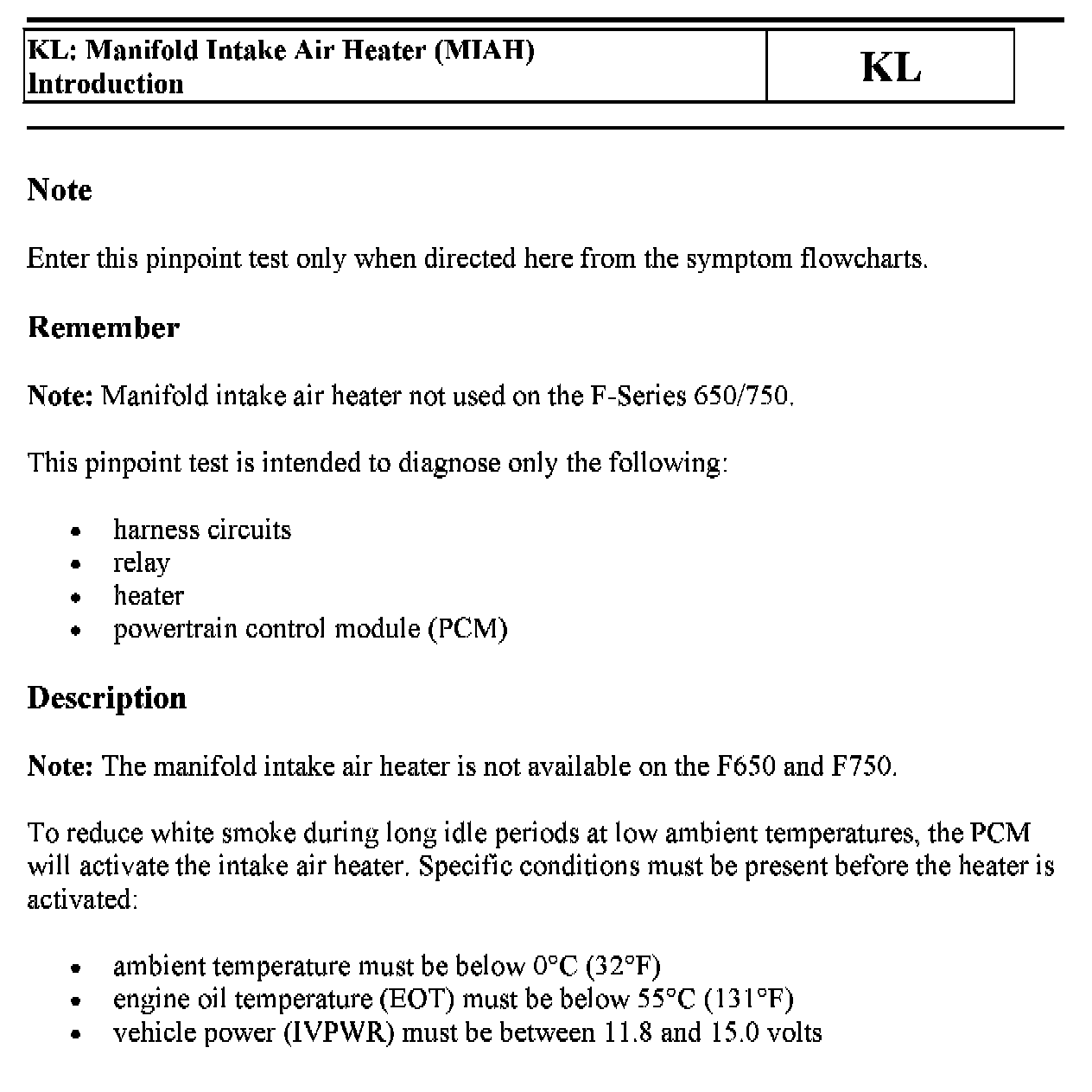

KL Introduction 1 Of 2:





KL Introduction 2 Of 2:

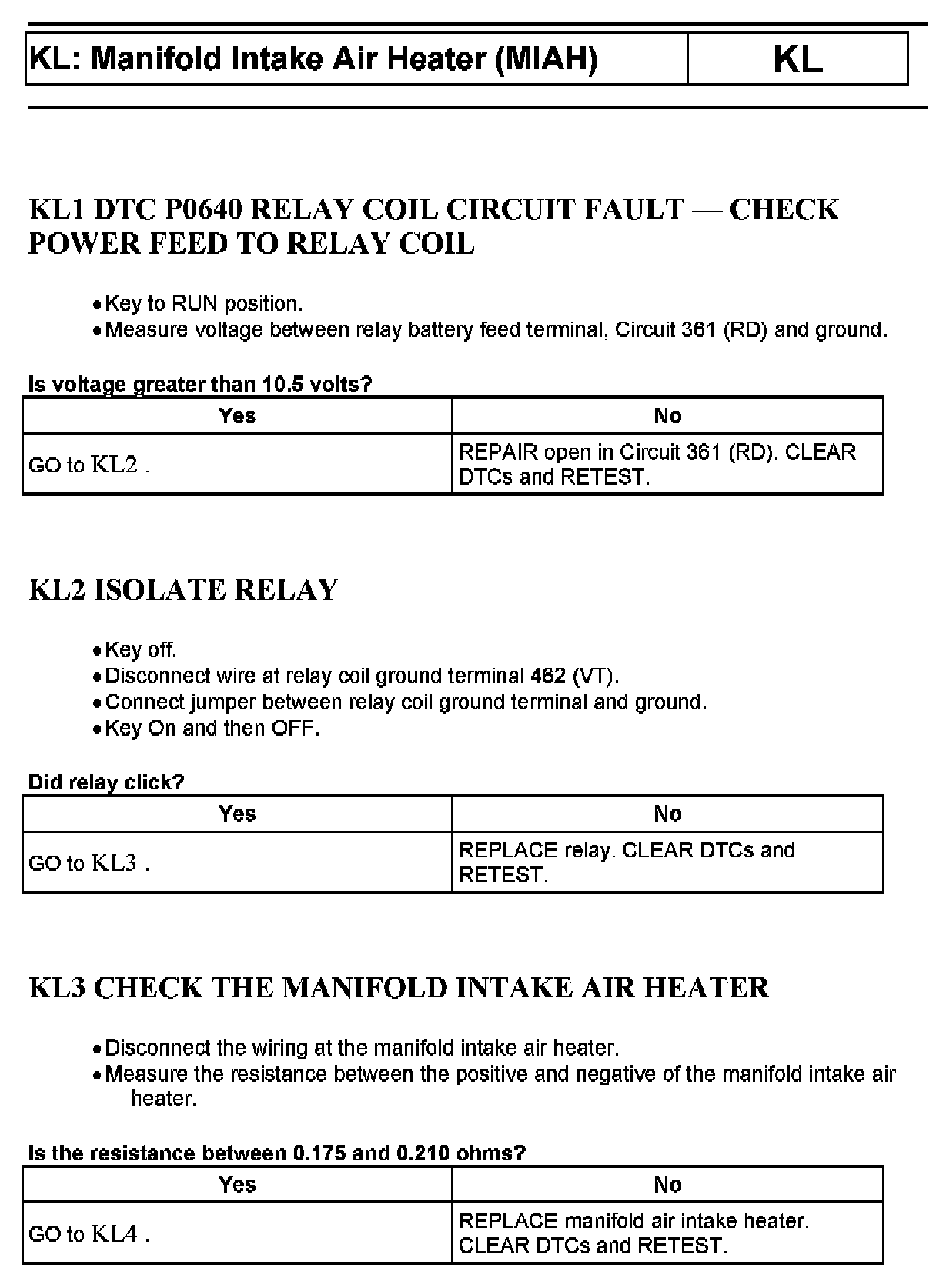

KL1 - KL3:

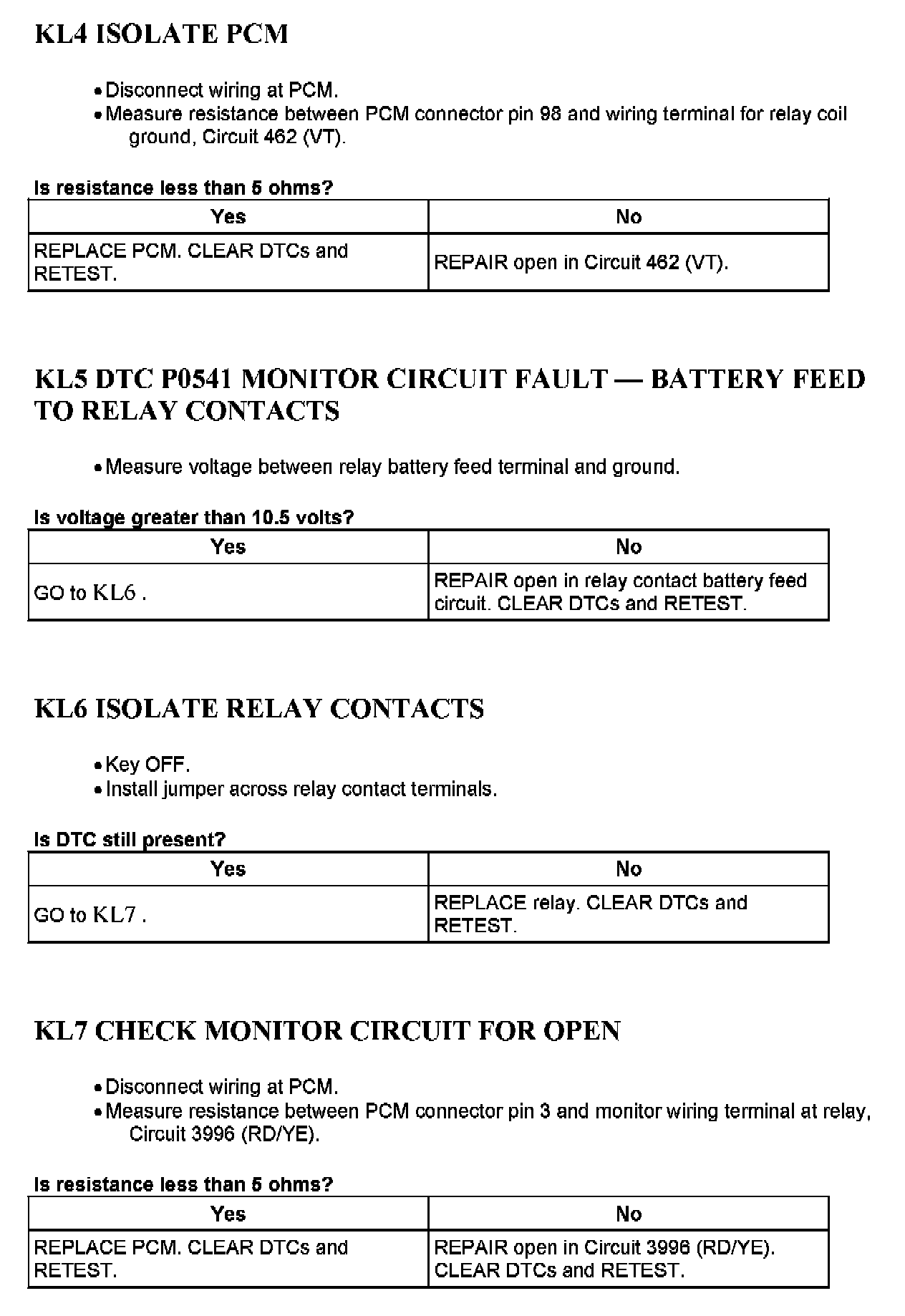

KL4 - KL7:

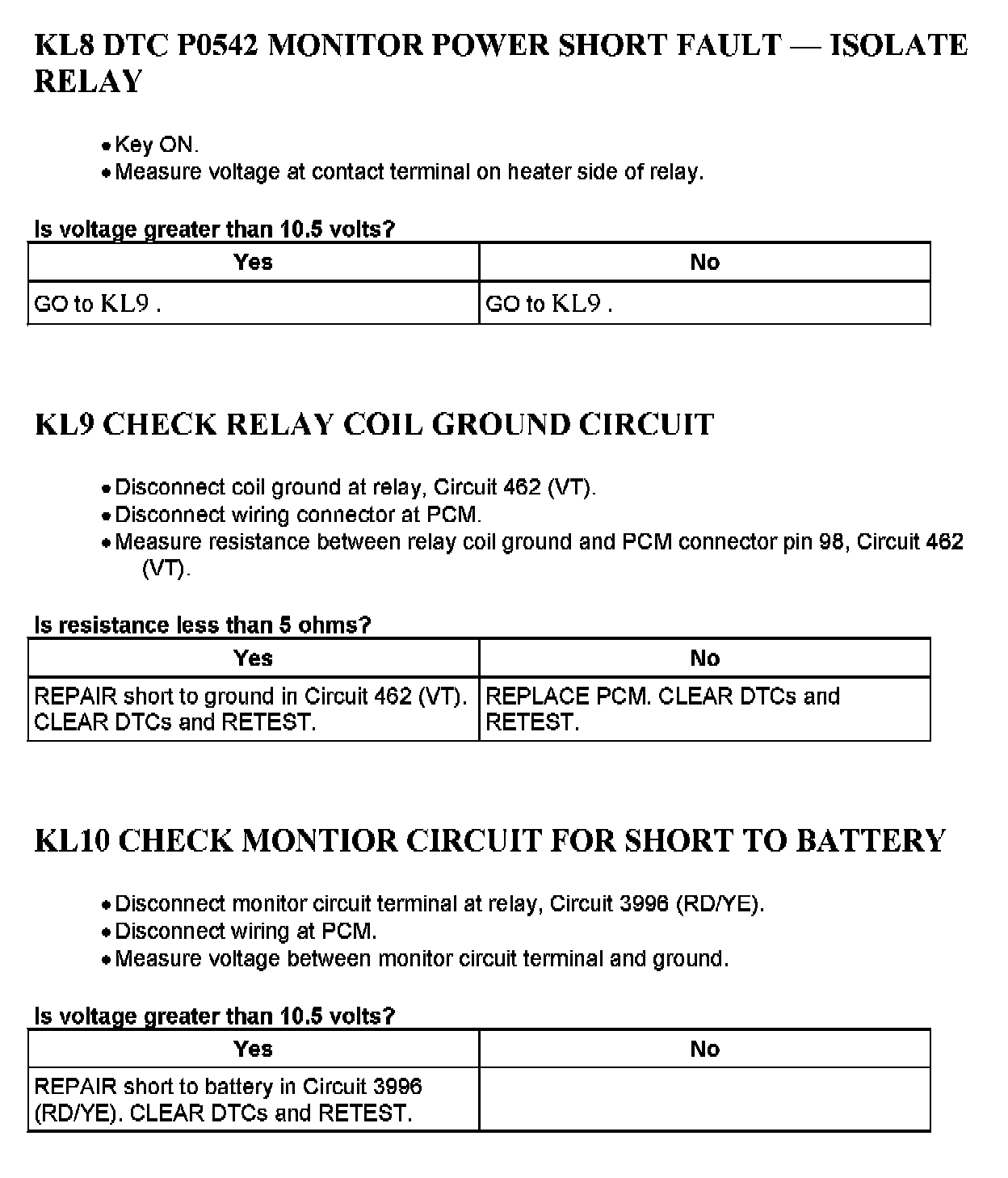

KL8 - KL10:
