Parameter Identification (PID)

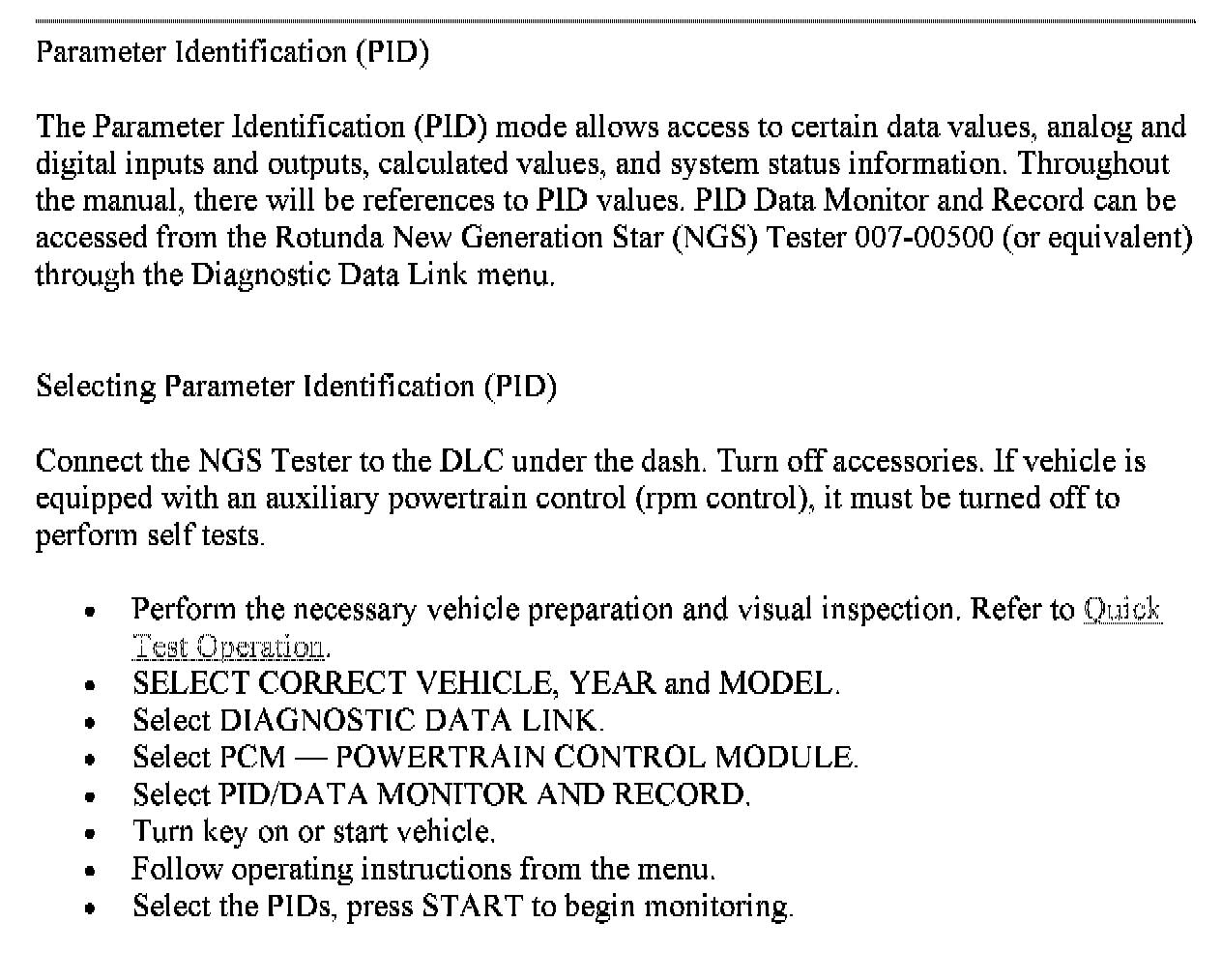

Parameter Identification (PID):

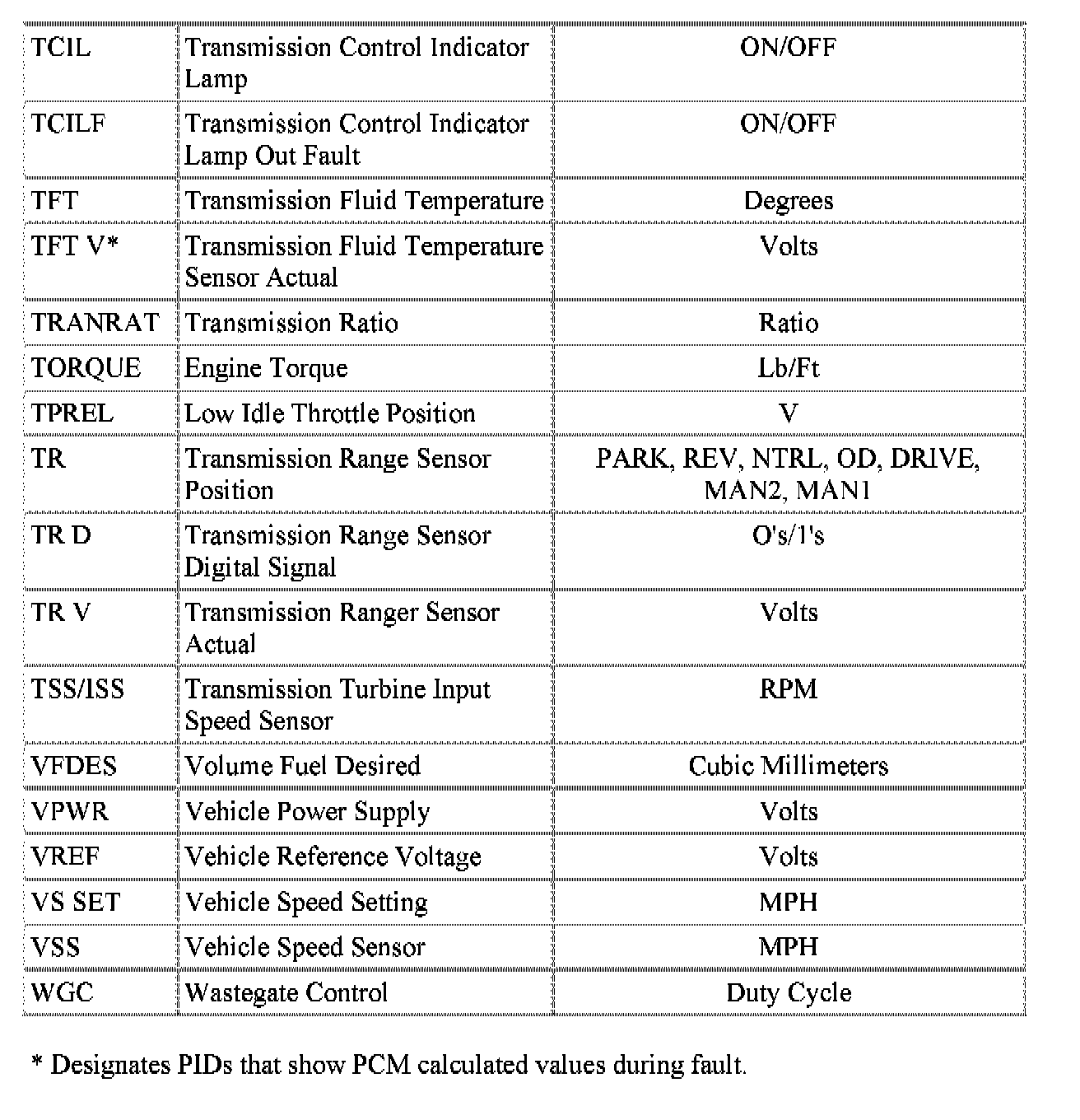

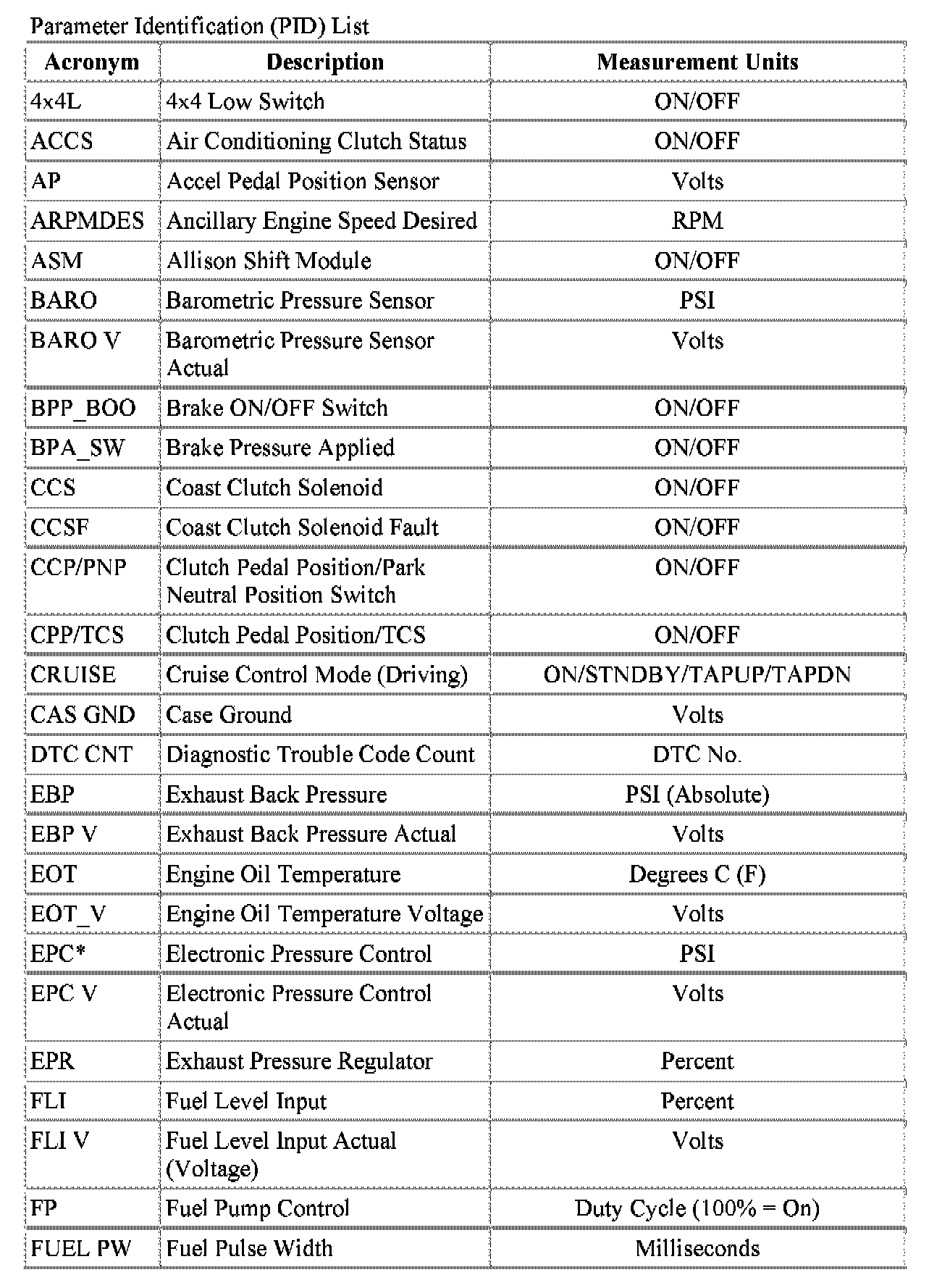

Parameter Identification (PID) List:

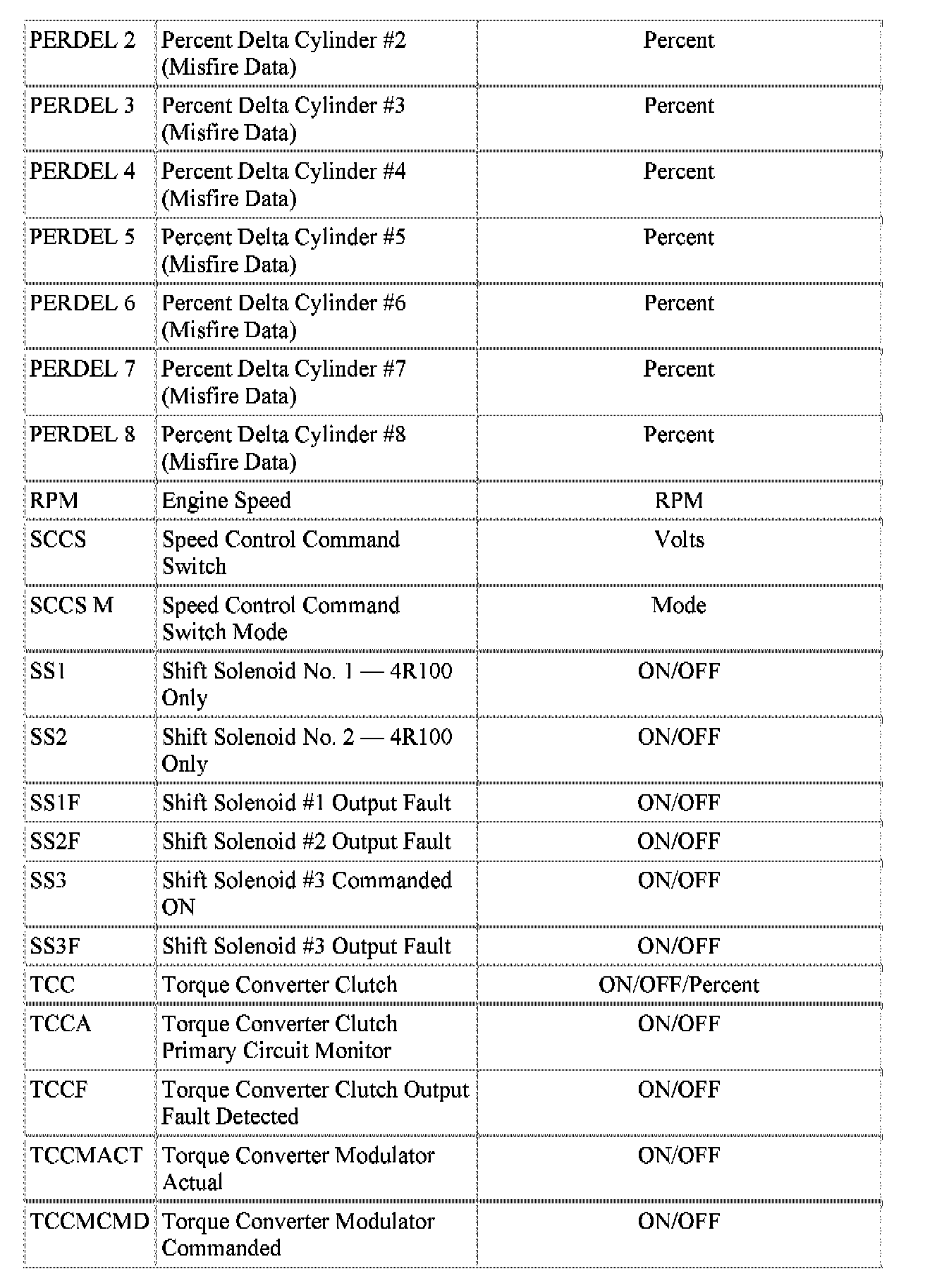

Parameter Identification (PID) List:





Parameter Identification (PID) List:





Parameter Identification (PID) List:

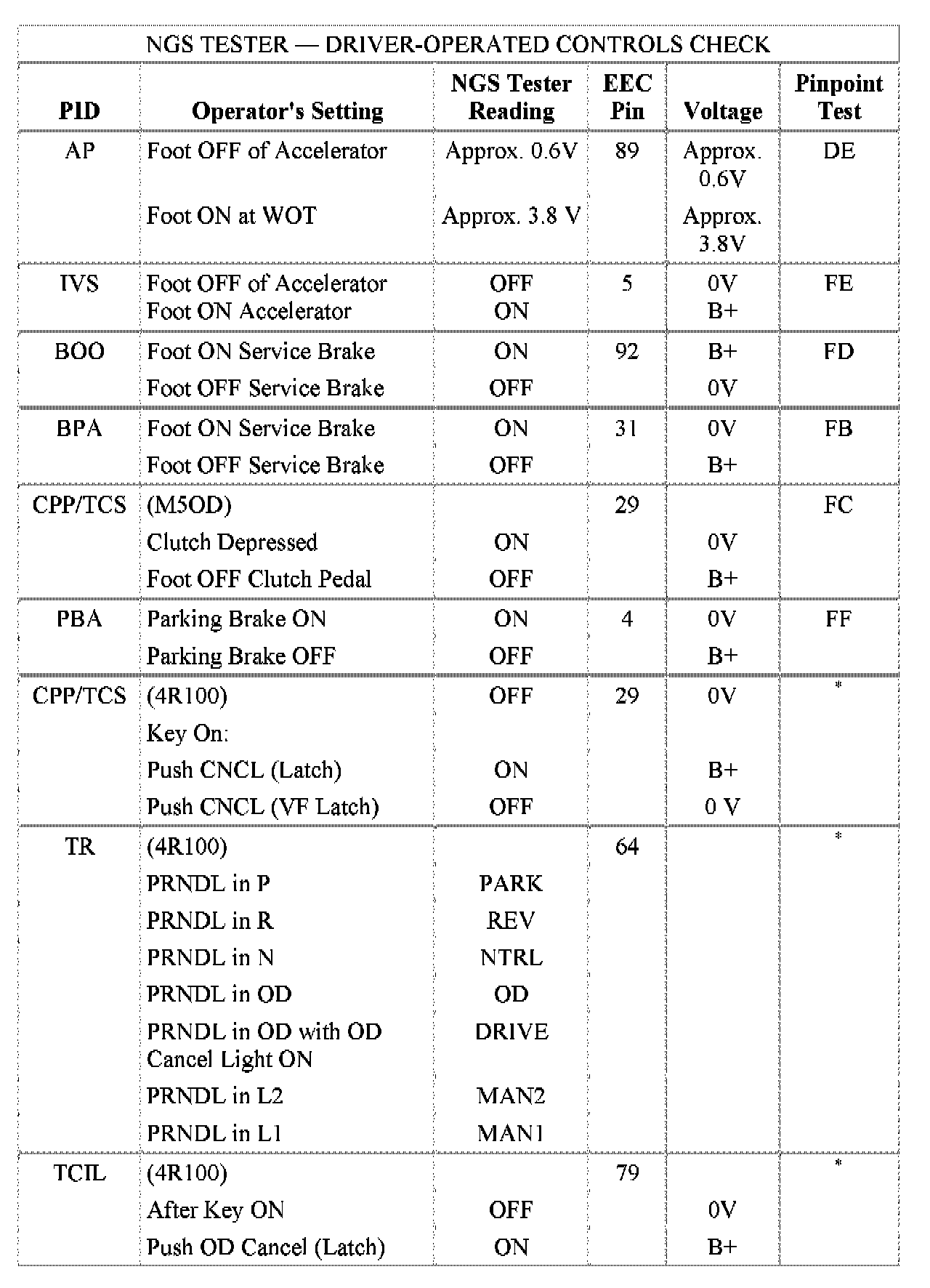

NGS TESTER:

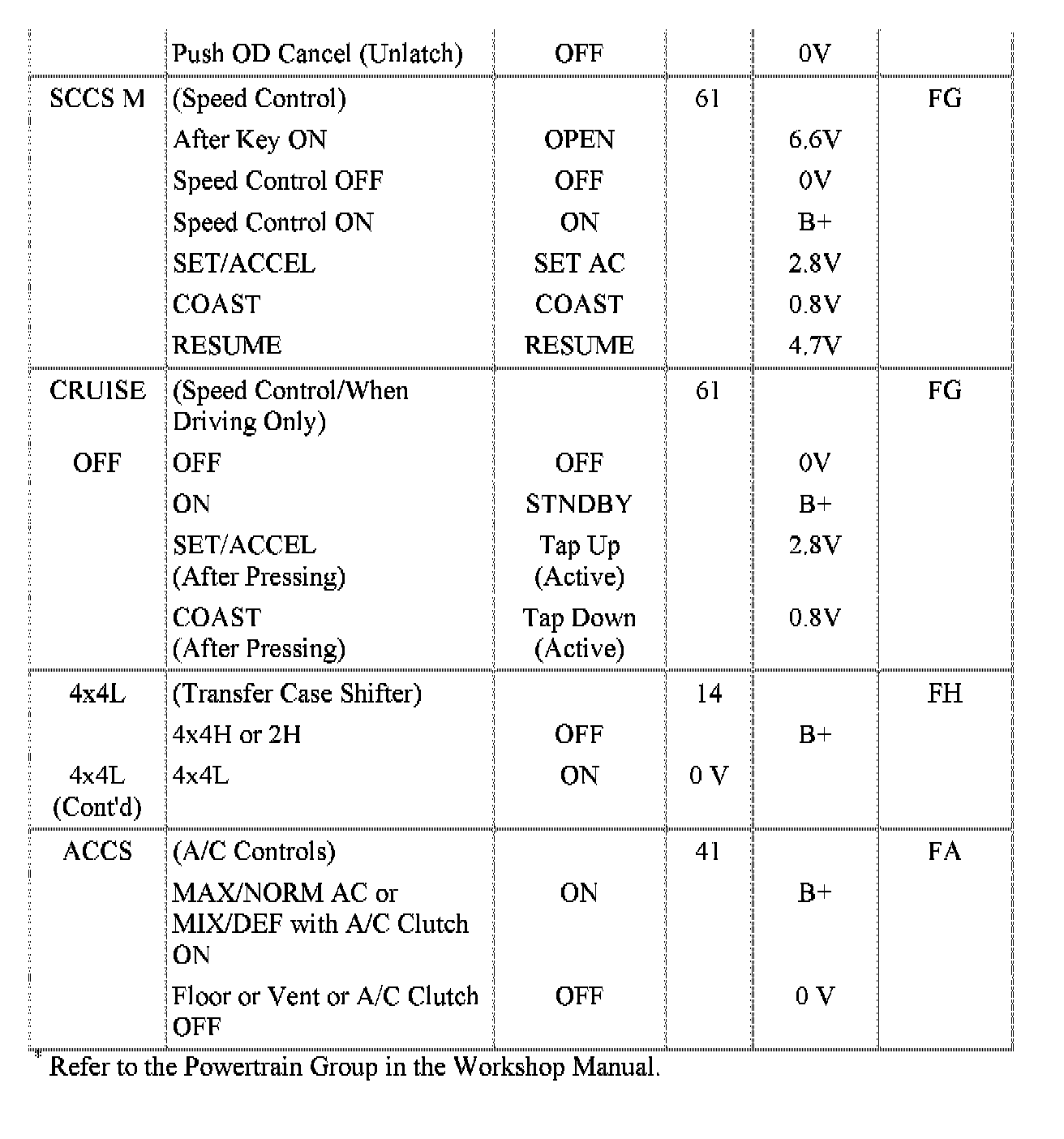

NGS TESTER Cont'd:
