PCM Pin Descriptions And Expected Values

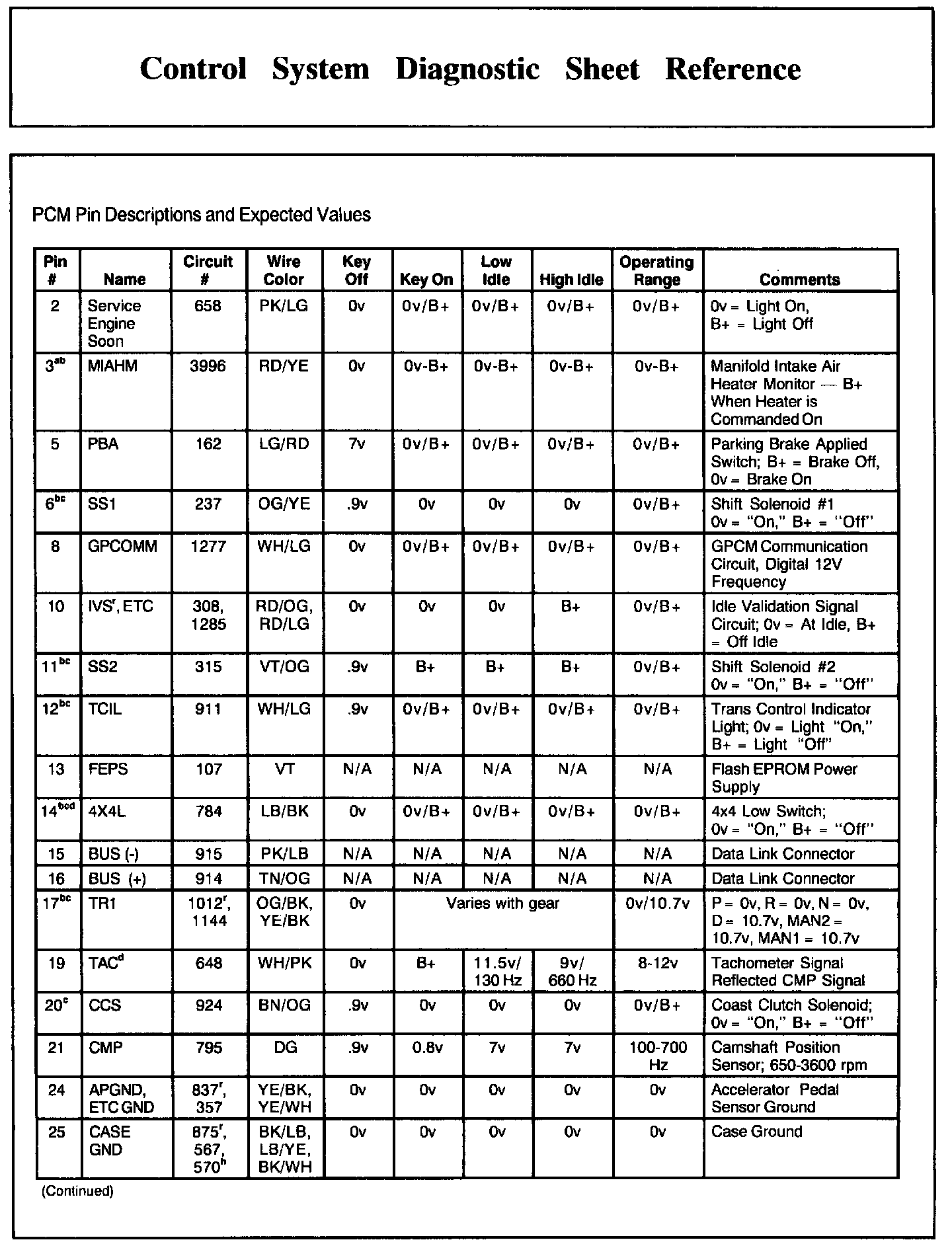

PCM Pin Descriptions And Expected Values, Part 1:

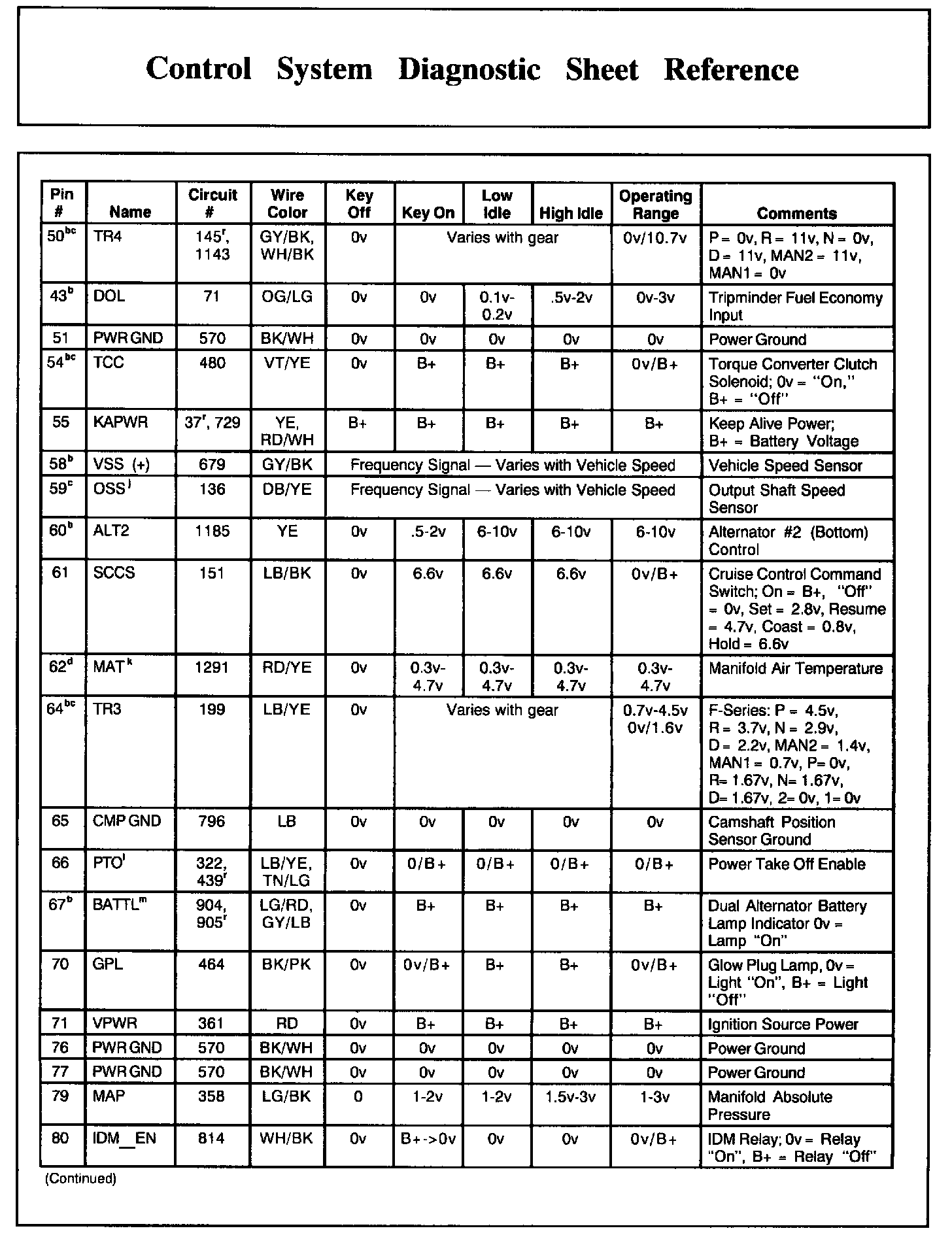

PCM Pin Descriptions And Expected Values, Part 2:

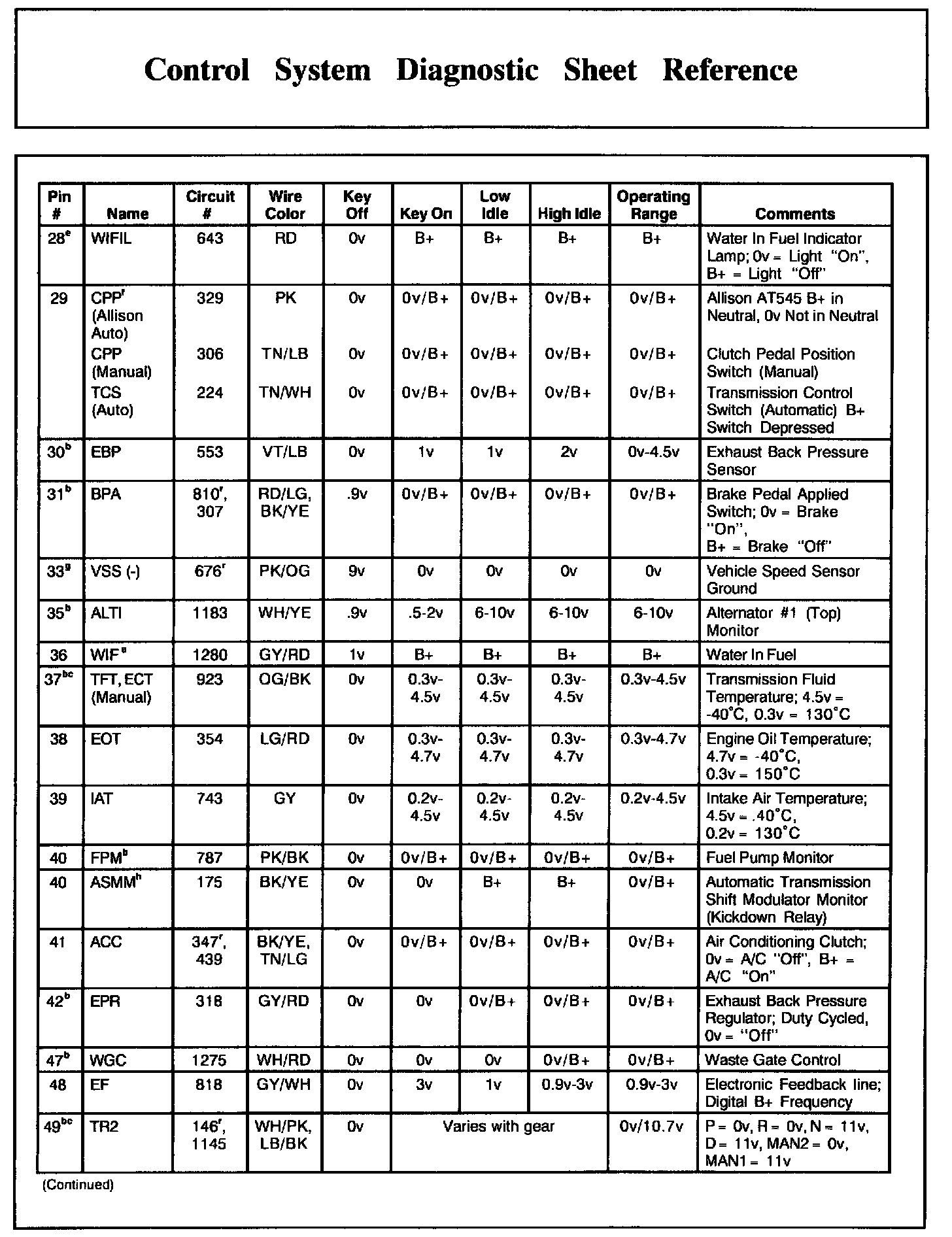

PCM Pin Descriptions And Expected Values, Part 3:






PCM Pin Descriptions And Expected Values, Part 4:

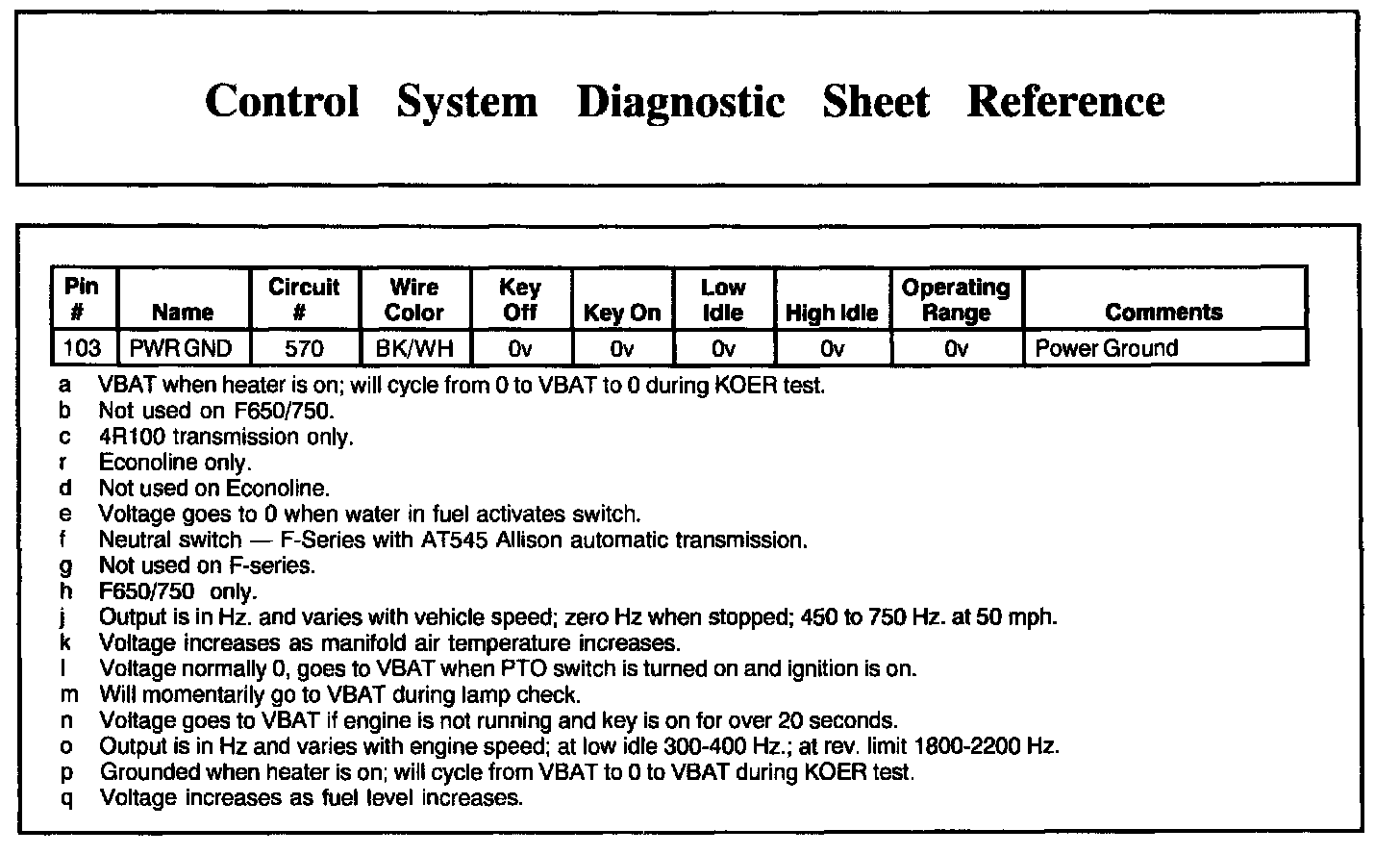

PCM Pin Descriptions And Expected Values, Part 5:
