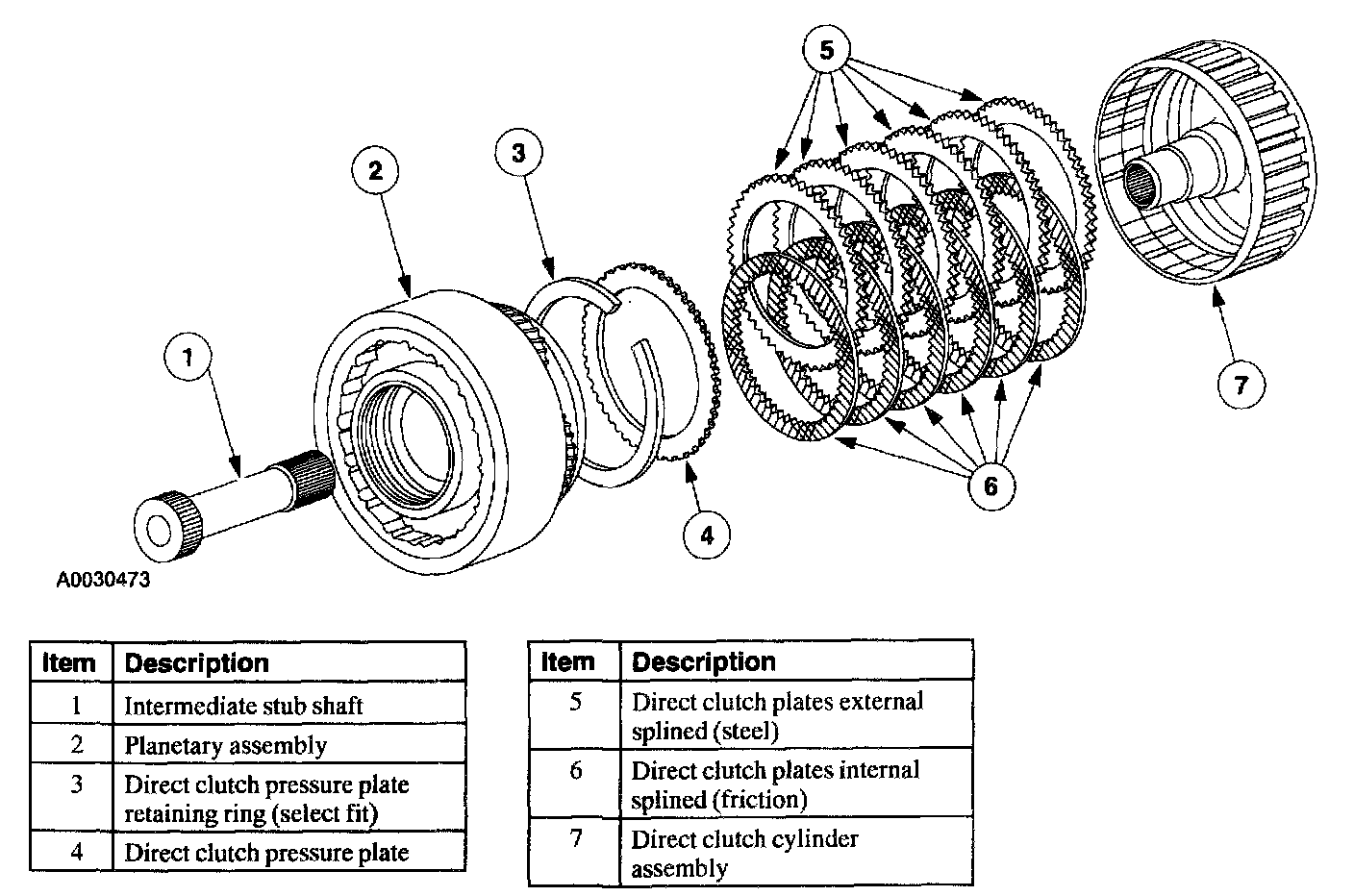

Clutch-Direct

Clutch-Direct





The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
