Automatic Transmission 4R100

Disassembled Views

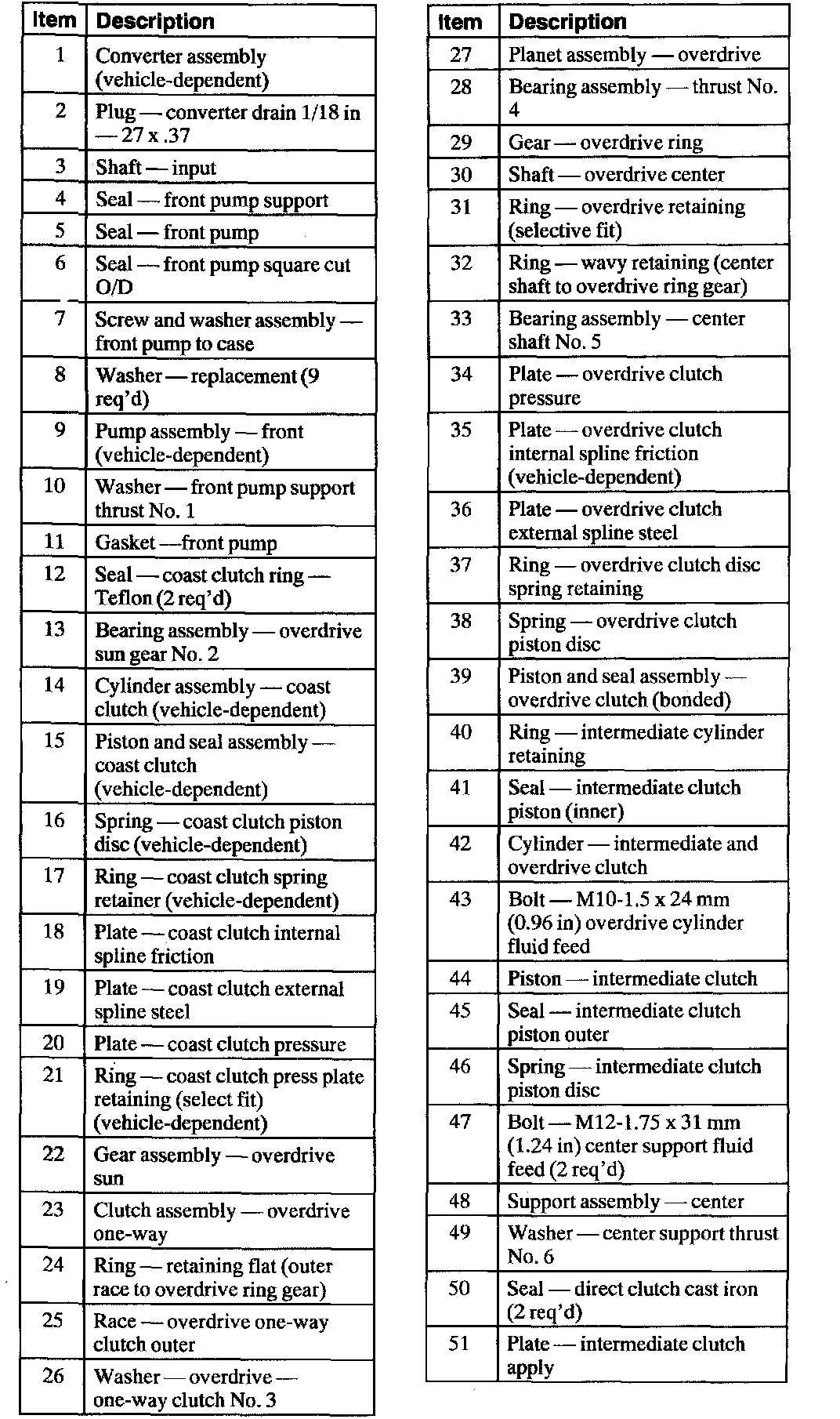

Transmission, Disassembled View Part 1 of 7





Transmission, Disassembled View Part 2 of 7





Transmission, Disassembled View Part 3 of 7





Transmission, Disassembled View Part 4 of 7





Transmission, Disassembled View Part 5 of 7





Transmission, Disassembled View Part 6 of 7





Transmission, Disassembled View Part 7 of 7
