Shift Solenoids Pre-Diagnosis

Digital Transmission Range (TR) Sensor Diagnosis Chart

Wiggle Test information for Open/Shorts
A. TR4, TR3A, TR2, and TR1 Are all closed in PARK. PARK is a good position to check for intermittent open circuits (with scan tool monitoring TR_D).
B. TR4, TR3A, TR2, and TR I are all open in OVERDRIVE, so OVERDRIVE is a good position to check for shorts to ground. To determine the shorted components while observing TR_D, unplug the TR and see if the short goes away. If the short is still present unplug the transaxle harness and see if the short goes away. If the short is still present, then the short is in the PCM or vehicle harness. Remove the suspect circuit(s) wire terminal from the PCM connector. If the short is still present, then the PCM has an internal failure, otherwise the failure is in the vehicle harness.

Use the following shift solenoid operation information when carrying out Pinpoint Test A.








Solenoid Operation Chart

Shift Solenoid Failure Mode Chart "Always Off"








Failed off due to PCM or vehicle wiring concerns, electrically or hydraulically stuck off.

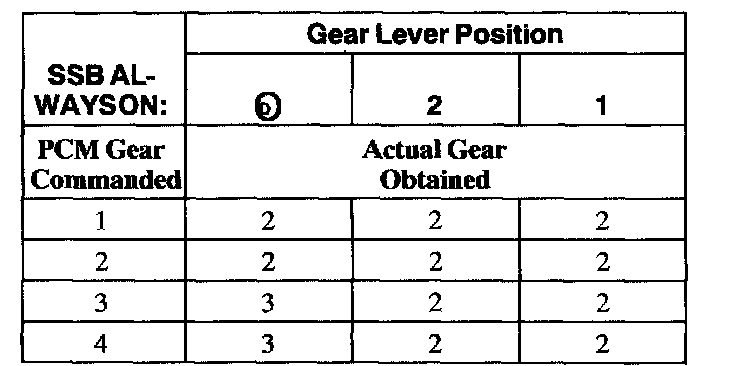

Shift Solenoid Failure Mode Chart "Always On"








Failed on due to PCM or vehicle wiring concerns, electrically or hydraulically stuck off.
