Cruise Control Servo: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

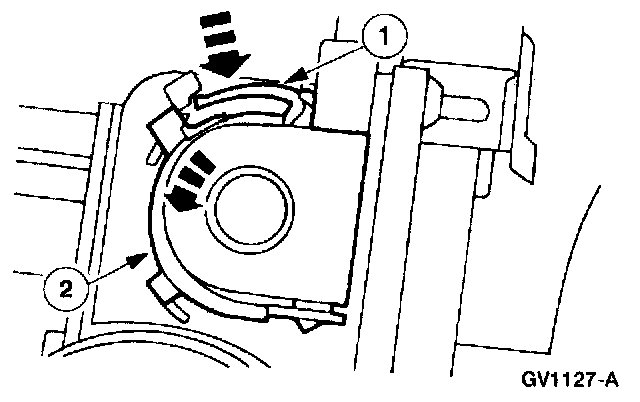

2. Release the speed control cable cap.
1 Squeeze the speed control cable cap retaining tab.
2 Rotate the speed control cable cap.

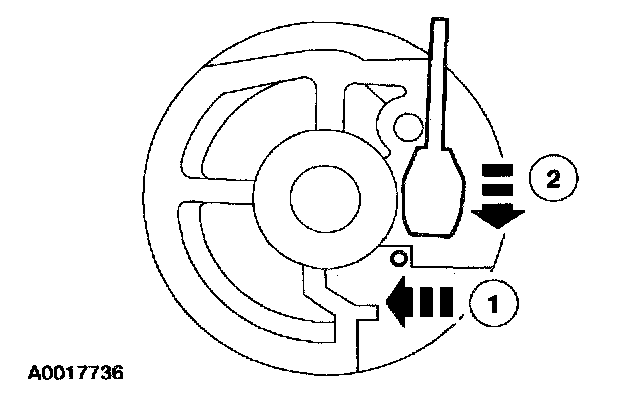

3. Remove the speed control cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

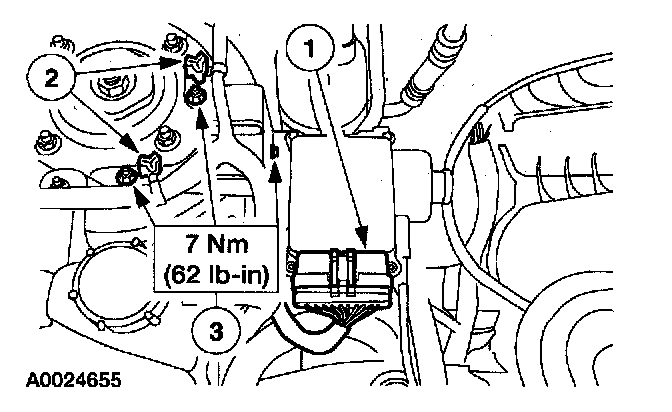

4. Remove the speed control actuator assembly.
1 Disconnect the electrical connector.
2 Separate the wire harness from the bracket.
3 Remove the nuts.

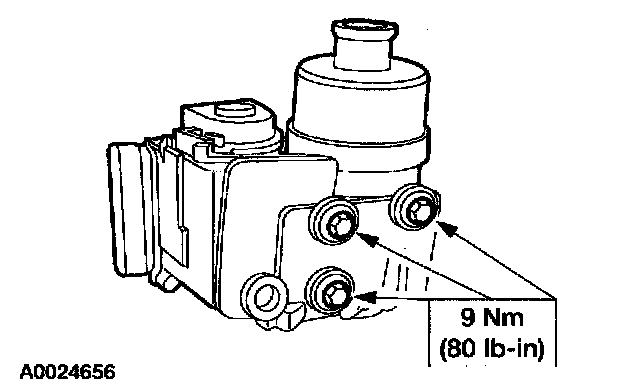

5. Remove the bolts and separate the speed control actuator from the bracket.

INSTALLATION
1. To install, reverse the removal procedure.
