Component Tests

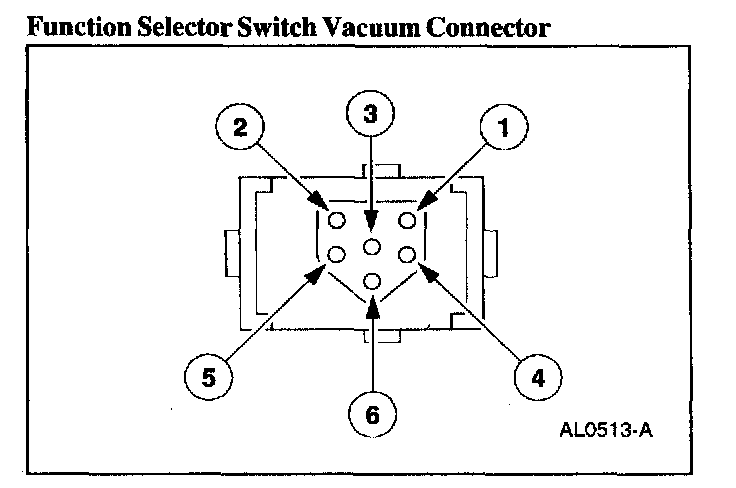

Function Selector Switch Vacuum Connector:

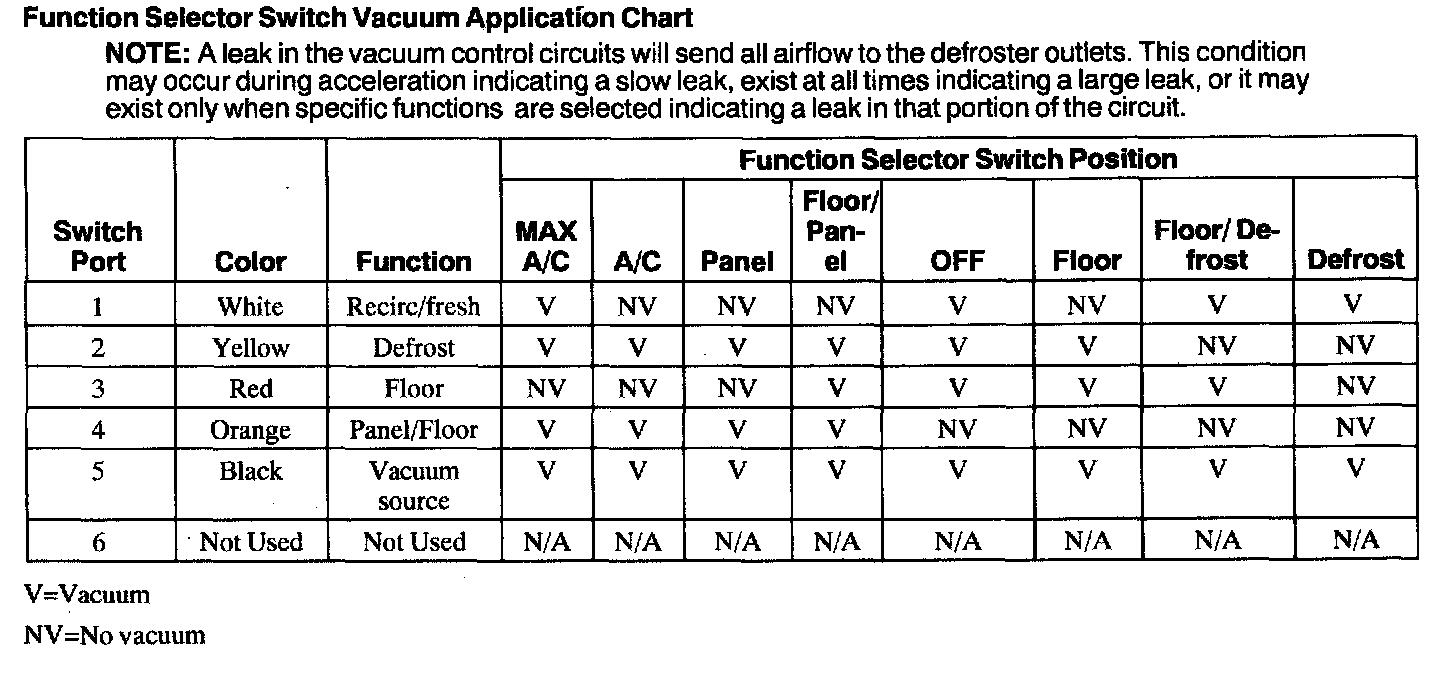

Function Selector Switch Vavuum Application Chart:
