Torque Specifications

Torque Specifications

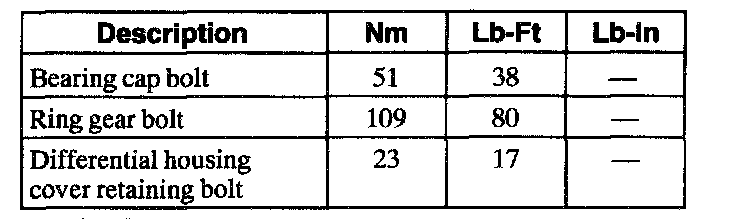

Part 1 of 3

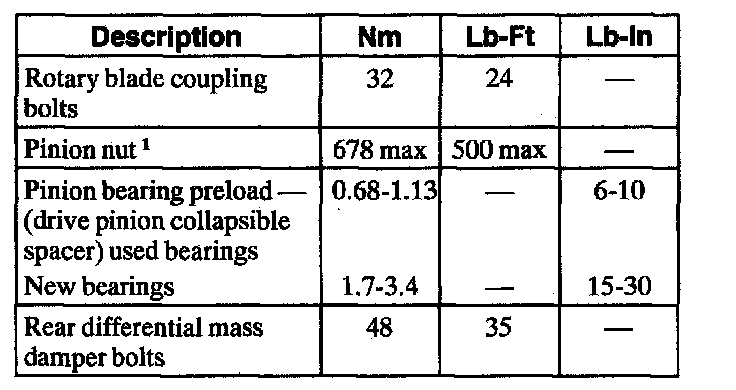

Part 2 of 3

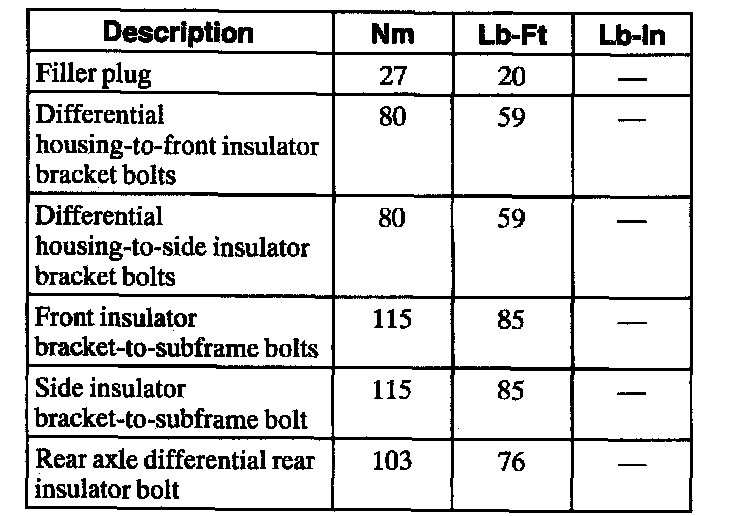

Part 3 of 3

1 Refer to procedure for correct tightening sequence.
