Test A: Incorrect/Erratic Direction Of Airflow From Outlet(s)
Test A: Incorrect/Erratic Direction Of Airflow From Outlet(s)
A1:
A2 - A3:
A4 - A5:

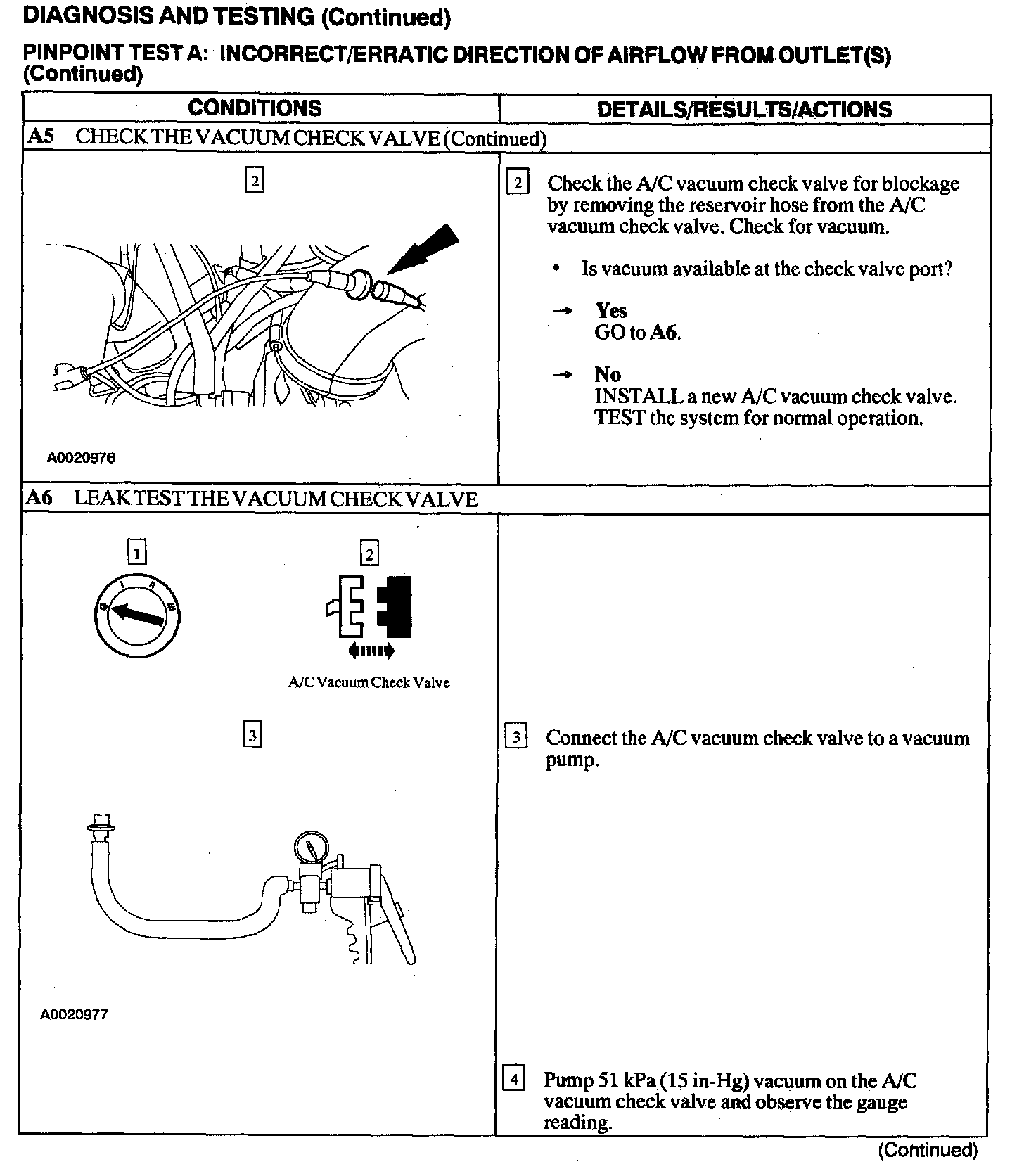

A5 - A6:
A6 - A8:
A8 - A9:
A9 - A10:
A10 - A11:
A12 - A14:
A15 - A17:
A18 - A19:
A20:
