Power Steering Pump

Removal
1. Remove the accessory drive belt.





2. Disconnect the electrical connector.





3. NOTE: Drain the power steering fluid into a suitable drain pan.

Disconnect the power steering pressure line.

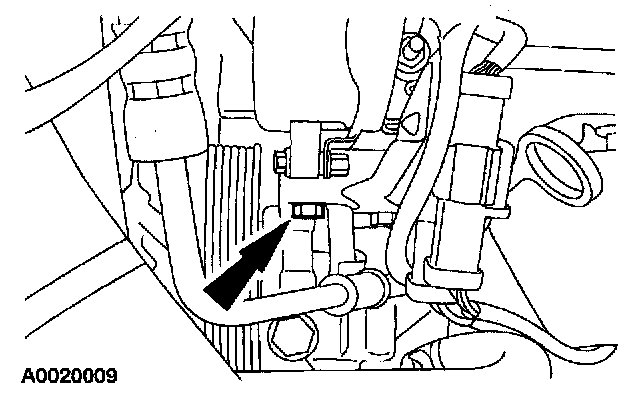

4. Remove the lower power steering pump bolts.
5. Lower the vehicle.





6. Remove the power steering pressure line bracket bolt.





7. Disconnect the power steering low pressure hose.





8. Remove the bolts and the power steering pump.





9. Using the special tool, remove the power steering pump pulley.

Installation





1. CAUTION: Install a new power steering pump pulley after the second removal and installation.

Inspect the pulley for paint marks in the web area near the hub. If there are two paint marks, install a new pulley. If there is no paint or one paint mark, use a paint pencil to mark the web area of the pulley near the hub. Using the special tool, install the power steering pump pulley.





2. Using the special tool, install a new seal on the power steering pressure hose fitting.
^ Remove and discard the original seal.

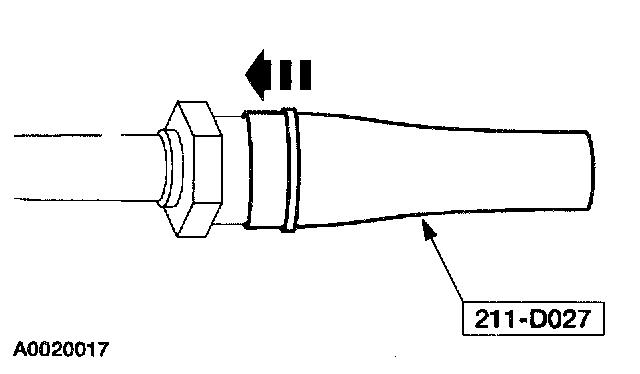

^ Stretch the seal over the seal replacer and slide it onto the tube nut.

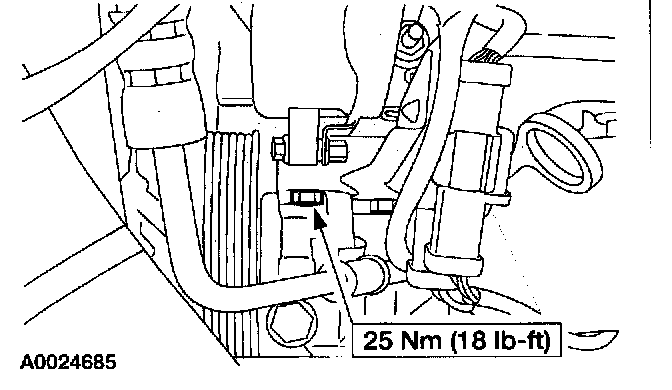

3. Position the power steering pump and install the upper bolts.





4. Connect the power steering low pressure hose.





5. Position the power steering pressure line bracket and install the bolt.
6. Raise the vehicle.





7. Install the lower power steering pump bolts.





8. Connect the power steering pressure line.





9. Connect the electrical connector.
10. Install the drive belt.
11. Fill, bleed and leak check the power steering system.
