Power Steering System Filling

1. WARNING: Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

Fill the reservoir.
^ Use Motorcraft MERCON Multi-Purpose ATE XT-2-QDX or MERCON equivalent.

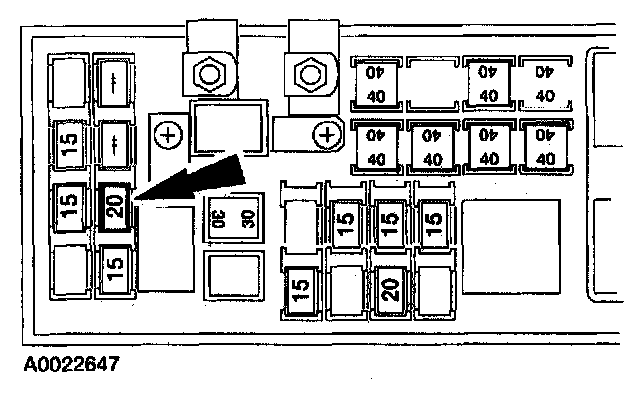

2. Remove the FUEL fuse to disable the vehicle.
3. Raise the front wheels off the floor.





4. CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.

CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.

Turn the steering wheel from stop-to-stop while cranking the engine.
5. Lower the vehicle.





6. CAUTION: Do not overfill the reservoir.

Fill the reservoir.
^ Use Motorcraft MERCON Multi-Purpose ATE XT-2-QDX or MERCON equivalent.





7. Install the FUEL fuse.
