Home >> Ford >> 2001 >> Escape 4WD V6-182 3.0L VIN 1 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> G: Yellow ABS Light Always On, No DTCs

G: Yellow ABS Light Always On, No DTCs

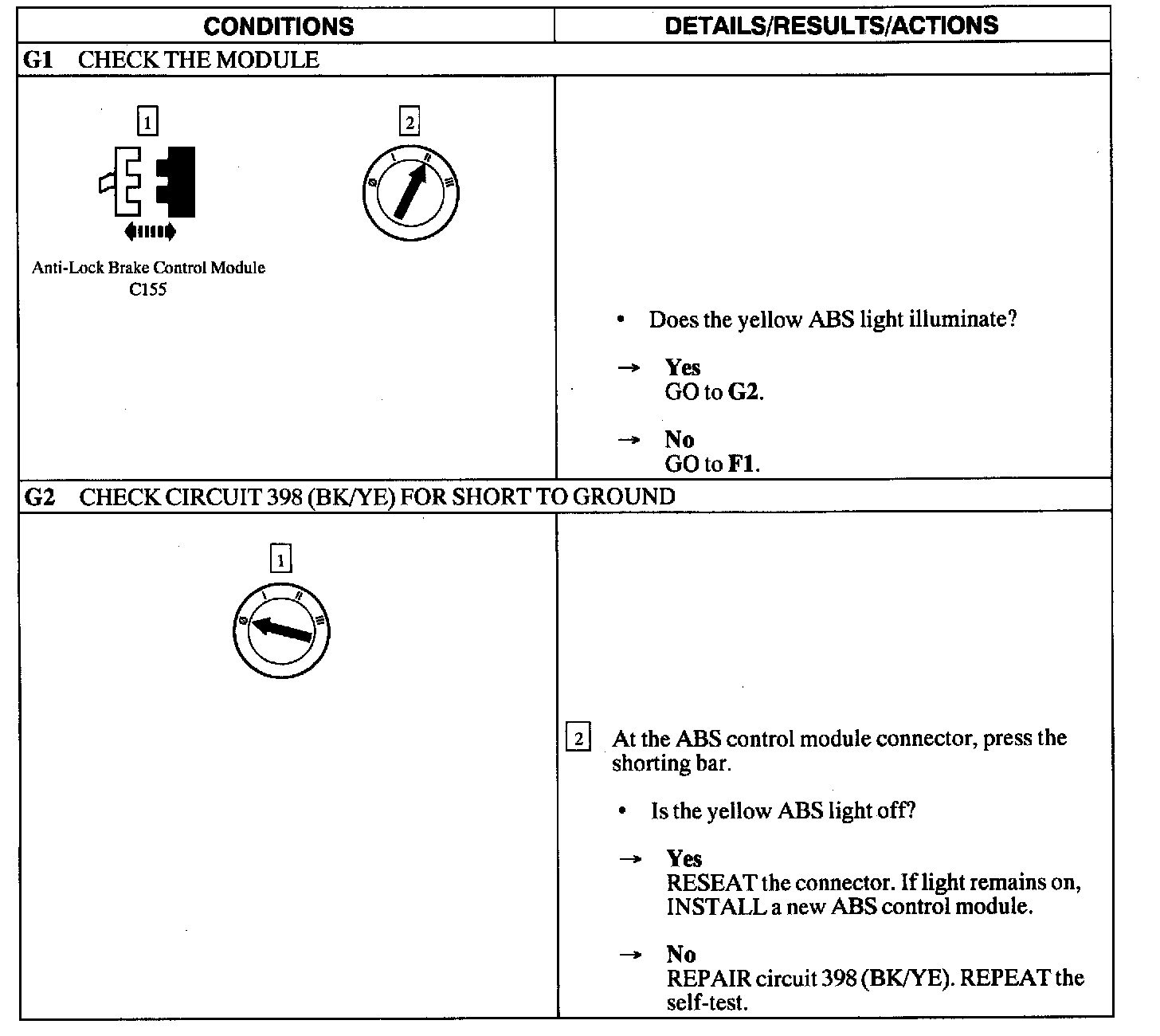

PINPOINT TEST G: YELLOW ABS LIGHT ALWAYS ON, NO DTCS


Test G1-G2:
