Home
>>
Ford
>>
2001
>>
Escape 4WD V6-182 3.0L VIN 1 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Sensors and Switches - Brakes and Traction Control
>>
Wheel Speed Sensor
>>
Diagrams
>>

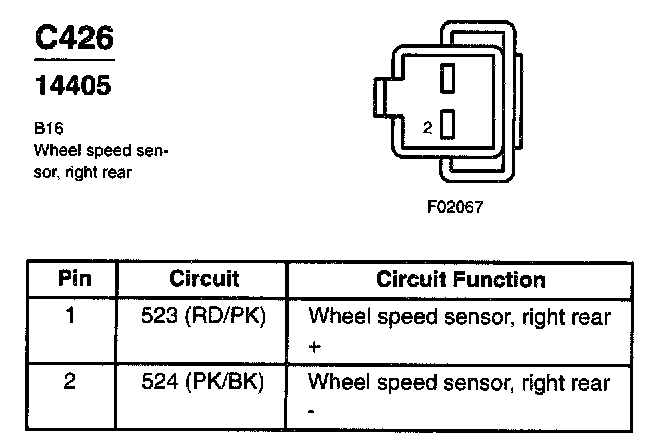

Right Rear
Right Rear
