Radiator Cooling Fan: Service and Repair

Cooling Fan
Removal and Installation
1. Disconnect the battery ground cable.
2. Position the hood latch out of the way.

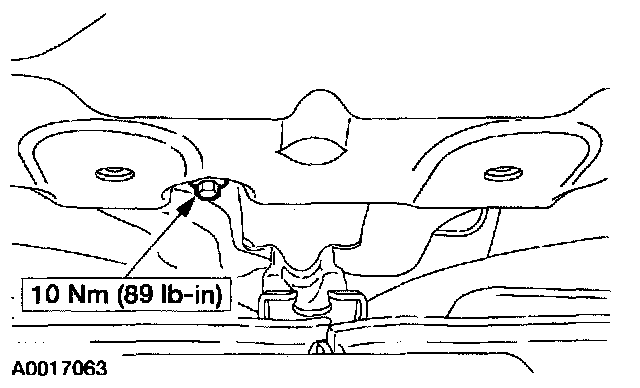

3. Remove the upper and lower bolt and center support.





4. Disconnect the LH fan electrical connector.





5. Remove the LH and RH upper radiator supports.
6. Tilt the radiator forward for clearance.





7. Remove the five bolts and the LH cooling fan.





8. If necessary remove the bolt and disconnect the electrical connector, remove the RH fan.
9. To install, reverse the removal procedure.
