Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2001
>>
Escape 4WD V6-182 3.0L VIN 1 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Panel Illumination
>>
Test A: Climate Control Panel Illumination Is Inoperative

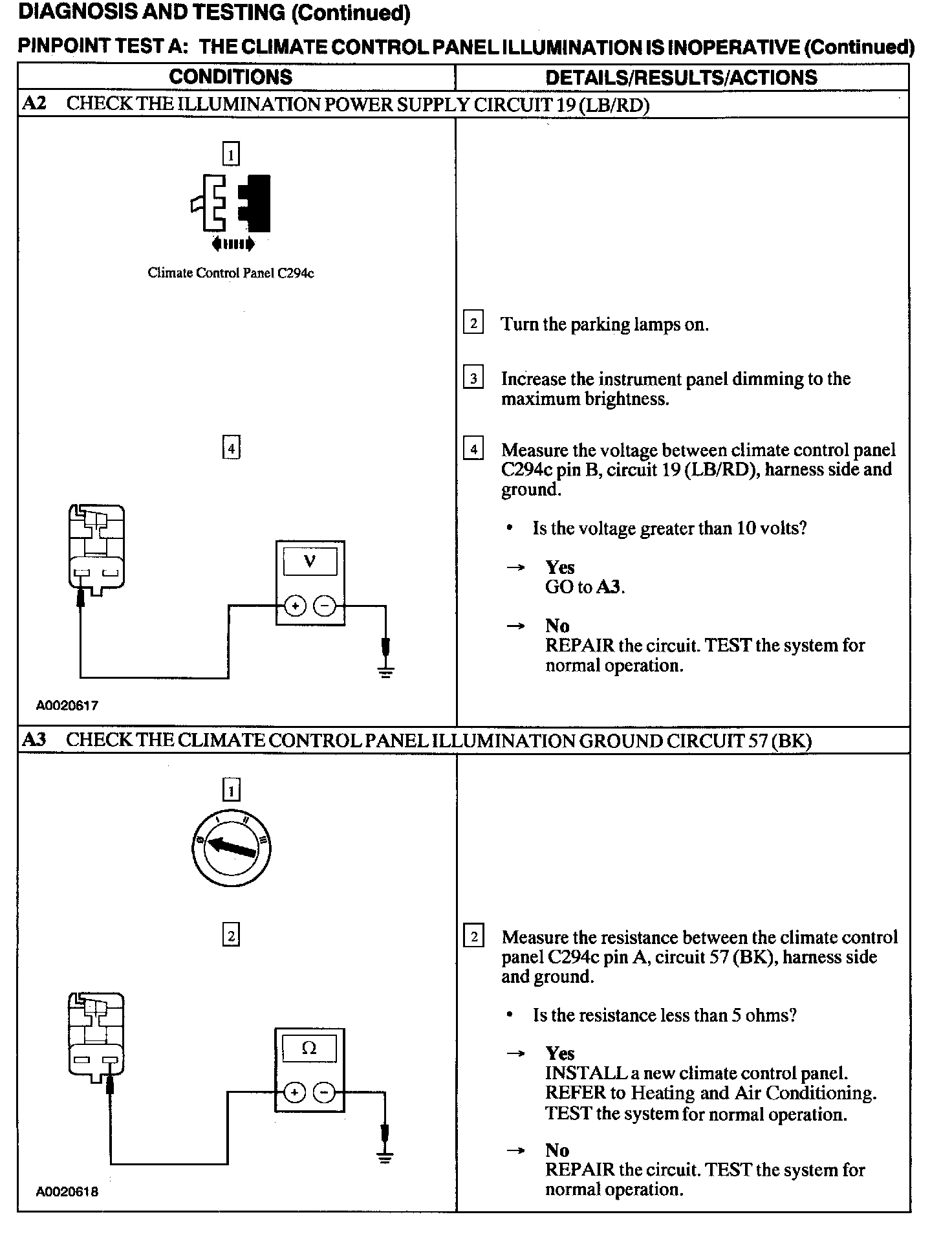

Test A: Climate Control Panel Illumination Is Inoperative
A1:
A2 - A3:
