Catalytic Converter: Service and Repair

Catalytic Converter-3.0L (4V)
Removal and Installation
1. Raise and support the vehicle.

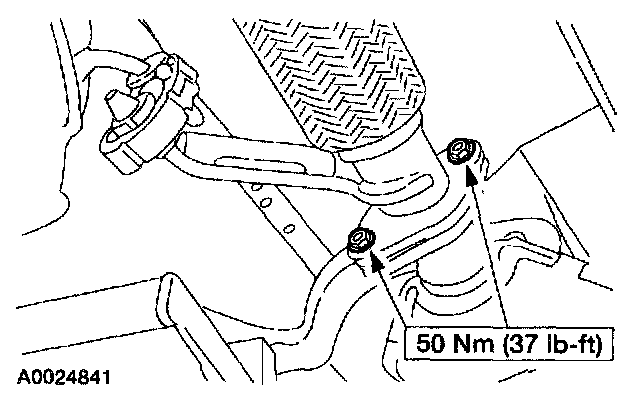

2. Remove and discard the nuts.
^ Discard the gasket.

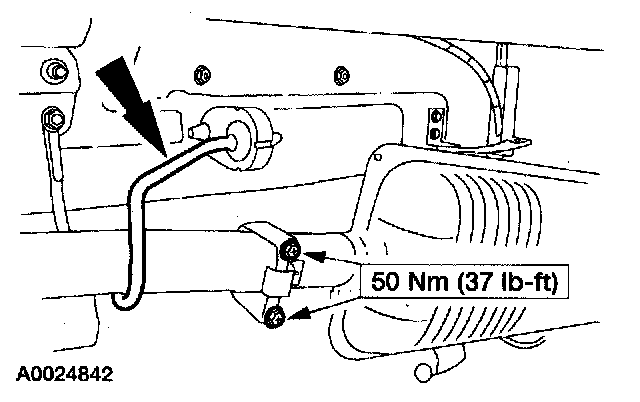

3. Remove the U-bolt, disconnect the catalytic converter from the hanger and remove the converter.
4. To install, reverse the removal procedure.
^ Install a new gasket.
^ Install new nuts.
