Steering Column Shaft

Removal and Installation





1. Position the boot aside.

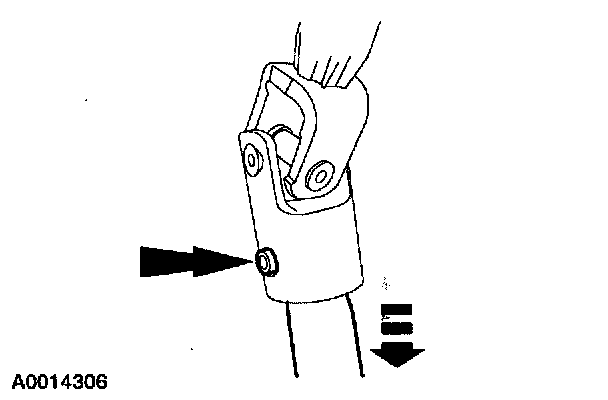

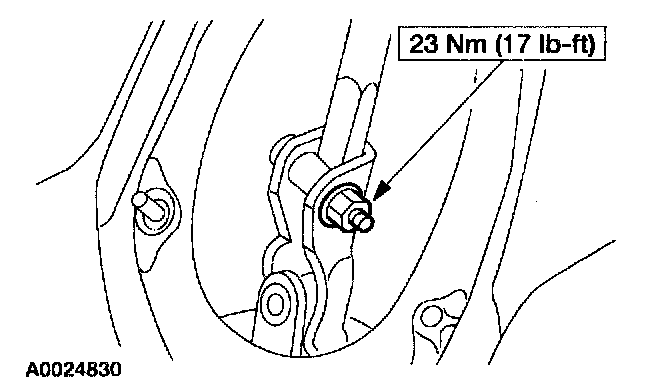

2. Remove and discard the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.





3. Remove the steering column shaft pin and the steering column shaft.
4. To install, reverse the removal procedure.
