Forward/Coast/Direct Clutch Cyl and Reverse Clutch - Disassembly

Forward/Coast/Direct Clutch Cylinder and Reverse Clutch Drum-
Disassembly

Disassembly

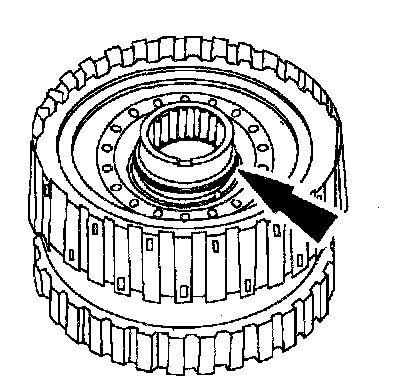

1. NOTE: Support the assembly of the forward/coast/direct clutch cylinder assembly and reverse clutch drum assembly on a block of wood so that the reverse clutch hub faces upward. This will ease the reverse clutch hub-retaining ring removal.

Remove the reverse clutch hub-retaining ring.





2. Remove the reverse clutch hub.





3. Remove the reverse clutch drum assembly.





4. Remove the direct clutch hub and shell from the forward/coast/direct clutch cylinder.





5. Remove and discard the two reverse clutch cylinder seals from the forward/coast/direct clutch cylinder assembly.





6. NOTE: Observe the tab orientation of the No. 2 direct clutch thrust washer during disassembly for correct installation.

Remove the No. 2 direct clutch thrust washer from the forward/coast/direct clutch cylinder.





7. Remove and discard the forward/coast/direct clutch cylinder hub seal ring.
