Antenna: Service and Repair

REMOVAL







1. Remove the pushpins and the trunk scuff plate.







2. Remove the pushpins and the trunk side trim panel.

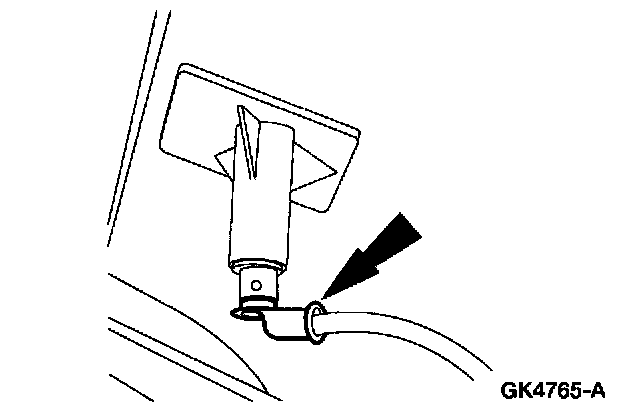

3. Disconnect the radio antenna lead-in cable.

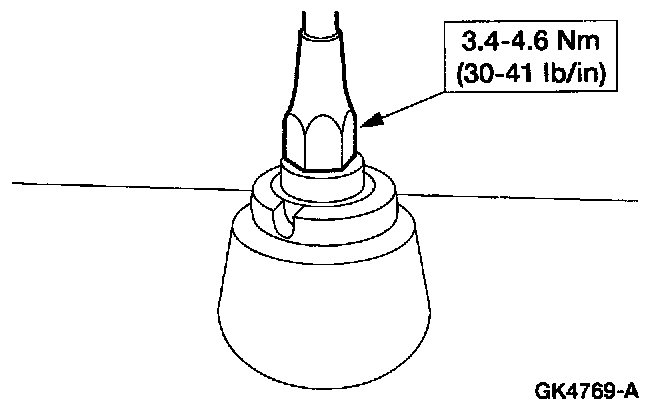

4. Remove the antenna mast.







5. Remove the antenna base.
1 Remove the nut.
2 Remove the base cover.
3 Remove the antenna base.

INSTALLATION












1. To install, reverse the removal procedure.
