Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Disconnect the speed control actuator cable from the throttle control lever.
1 Disconnect the speed control actuator cable end from the throttle control lever.
2 Disengage the speed control actuator cable sleeve from the retainer.
3 Remove the retainer.

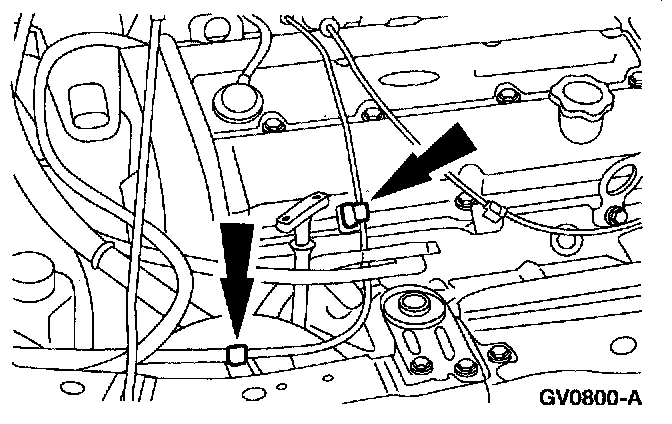

3. Remove the speed control actuator cable retaining clips.







4. Remove the speed control actuator cable cap.
1 Depress the speed control actuator cable cap retaining tab.
2 Rotate the speed control actuator cable cap counterclockwise.







5. Remove the speed control actuator cable.
^ Move the spring tab away from the speed control cable end to release the cable from the actuator. Remove the speed control actuator cable.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy.
